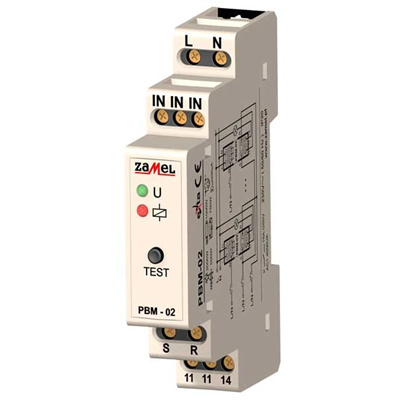

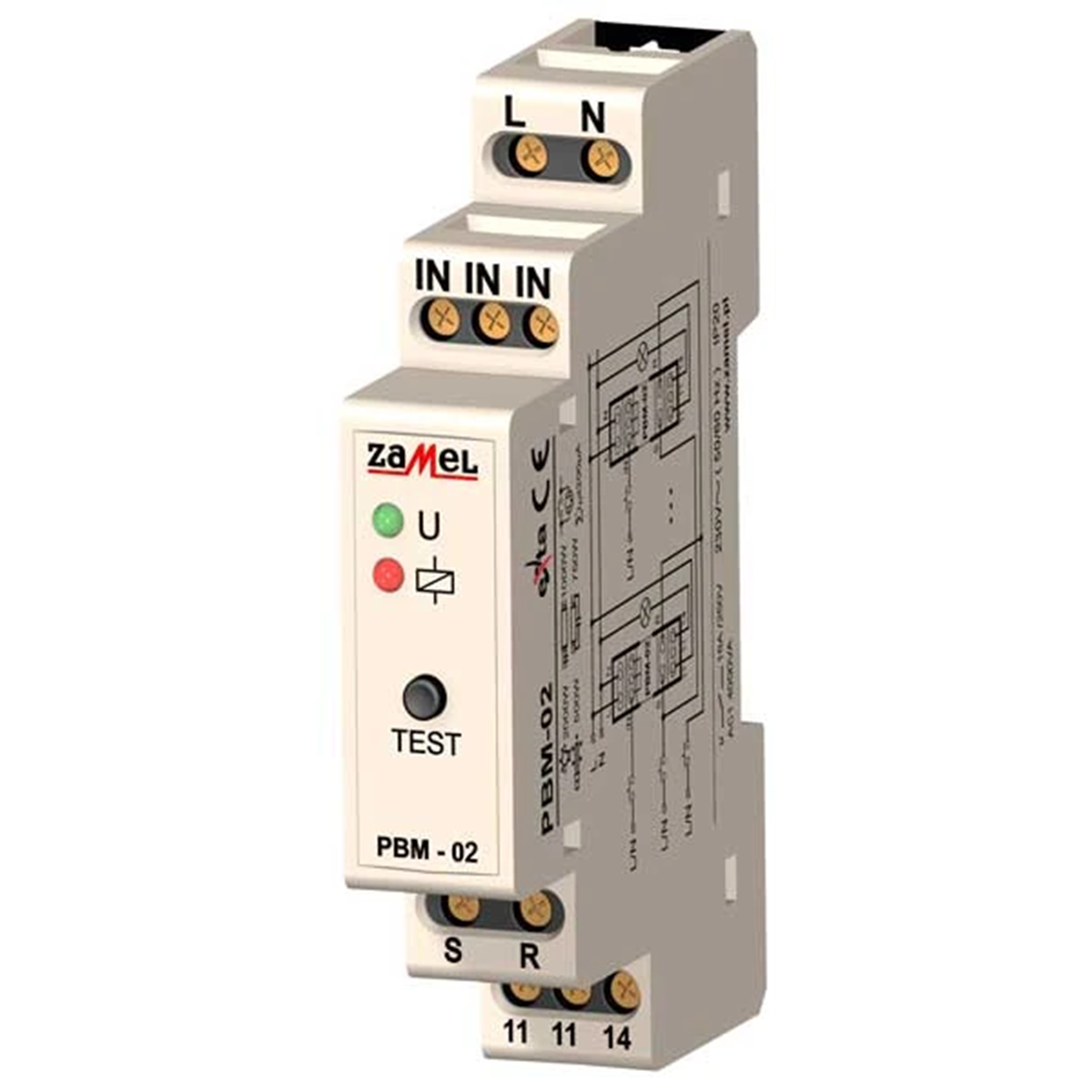

Bistable relay 230V AC TYPE: PBM-02 EXT10000063

local index:
APE008ZAME
Catalog No:
EXT10000063
EAN code:
5903669121152
Manufacturer: ZAMEL
Length [mm]: 66
Maximum relay power [VA]: 4000
Installation: On the TH-35 rail
Price:
26,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The PBM-02 bistable relay is used to control lighting or any other device by means of parallel connected single-pole pushbuttons. Successive pressing of any of the buttons causes switching on or off the devices connected to the output terminals. The control impulse can be a signal from the L or N line. The Set and Reset control inputs allow for central control of a group of relays. The use of the relay's internal memory allows you to remember its current state in the event of a power failure.

Technical data

  • Length [mm]
    66
  • Installation
    On the TH-35 rail
  • Relay current [A]
    16
  • Level of security
    IP20
  • Type
    Relays
  • PKWIU
    27.12.40.0
  • Maximum relay power [VA]
    4000
  • Rated voltage [V]
    230
  • Family
    EXTA
  • Width [mm]
    17.5
  • Height [mm]
    90
