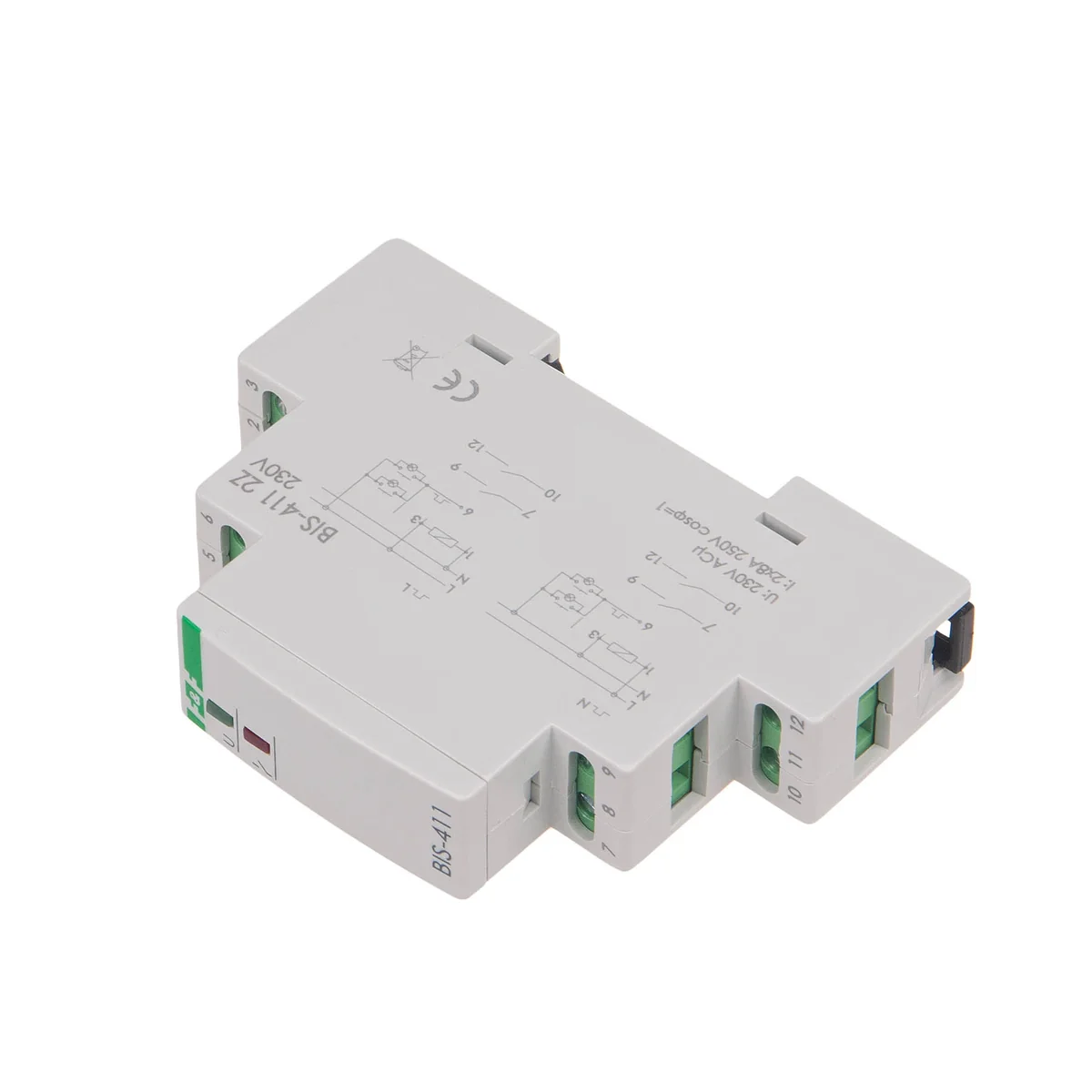

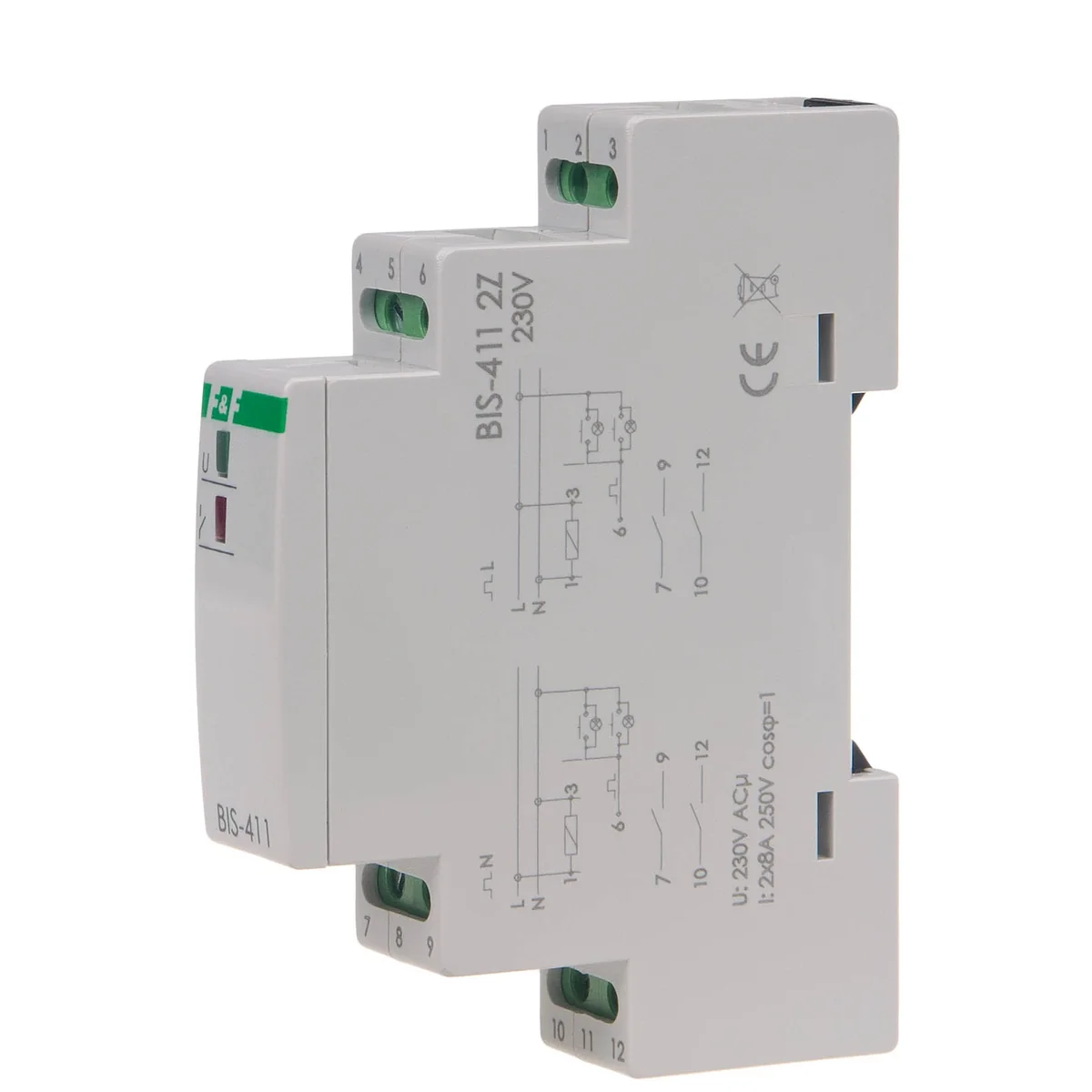

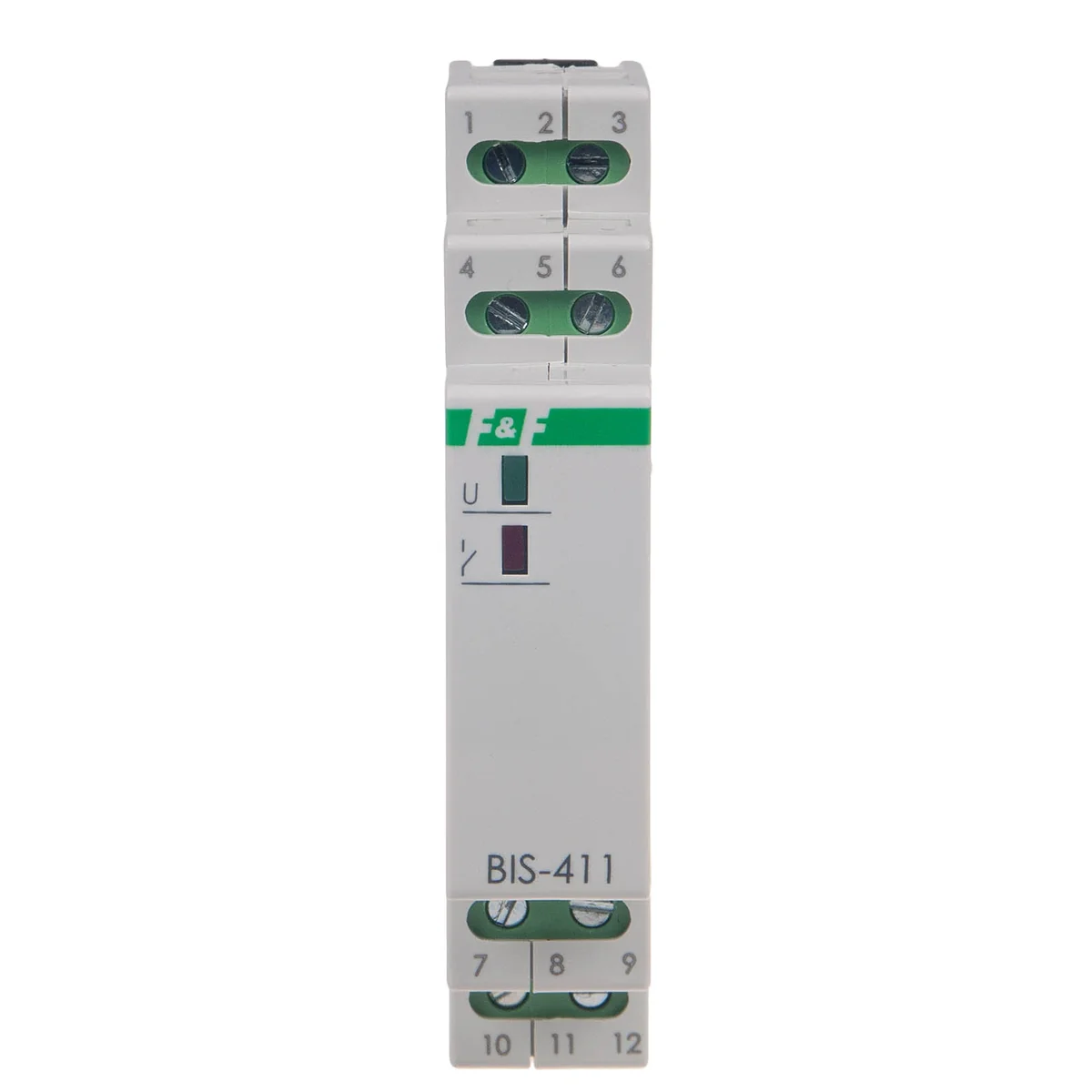

Bistable relay 230V 2Z BIS-411 2Z BIS-411-2Z

local index:
APP001FIFQ
Catalog No:
BIS-411-2Z
EAN code:
5908312594567
Manufacturer: F&F
Power [W]: 0.8
Installation: On the TH-35 rail
Rated voltage [V]: 24
Price:
26,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The electronic bistable impulse relay allows you to switch on the lighting or other device from several different points by means of control buttons connected in parallel. The receivers are switched on after a current impulse caused by pressing any momentary (bell) button connected to the relay. The receivers will be switched off after the next pulse. The relay does not have a "memory" of the contact position, i.e. in the event of a power failure and its return, the relay contact will be switched off. This makes it impossible to automatically turn on the controlled receivers without supervision after a long-term power failure.

Technical data

  • Power [W]
    0.8
  • Rated voltage [V]
    24
  • Control pulse current [mA]
    <1
  • connection
    2.5mm screw terminals
  • Contact activation signaling
    red LED
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.4
  • Installation
    On the TH-35 rail
  • Tripping delay [s]
    0.1-0.2
  • load current [A]
    2x8
  • Contact
    2Z separated
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • PKWIU
    27.12.23.0

Other technical data

  • Function
    Electronic switch
  • Width in number of modular spacings
    1
  • Number of contacts as normally open contact
    2
  • Type of control voltage 1
    AC
  • Rated switch current
    5 A
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    300 VA
  • Max. load fluorescent lamp (parallel compensated)
    200 VA
  • Suitable for manual operation
    No
  • Mounting method
    DIN rail
  • Built-in depth
    70 mm
  • Control voltage 1
    230 ... 230 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Supply voltage
    230 ... 230 V
  • Max. incandescent lamp load
    600 W
  • Max. load fluorescent lamp (Duo circuit)
    300 VA
  • Max. switching current (cos phi = 0.6)
    16 A

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,070
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
