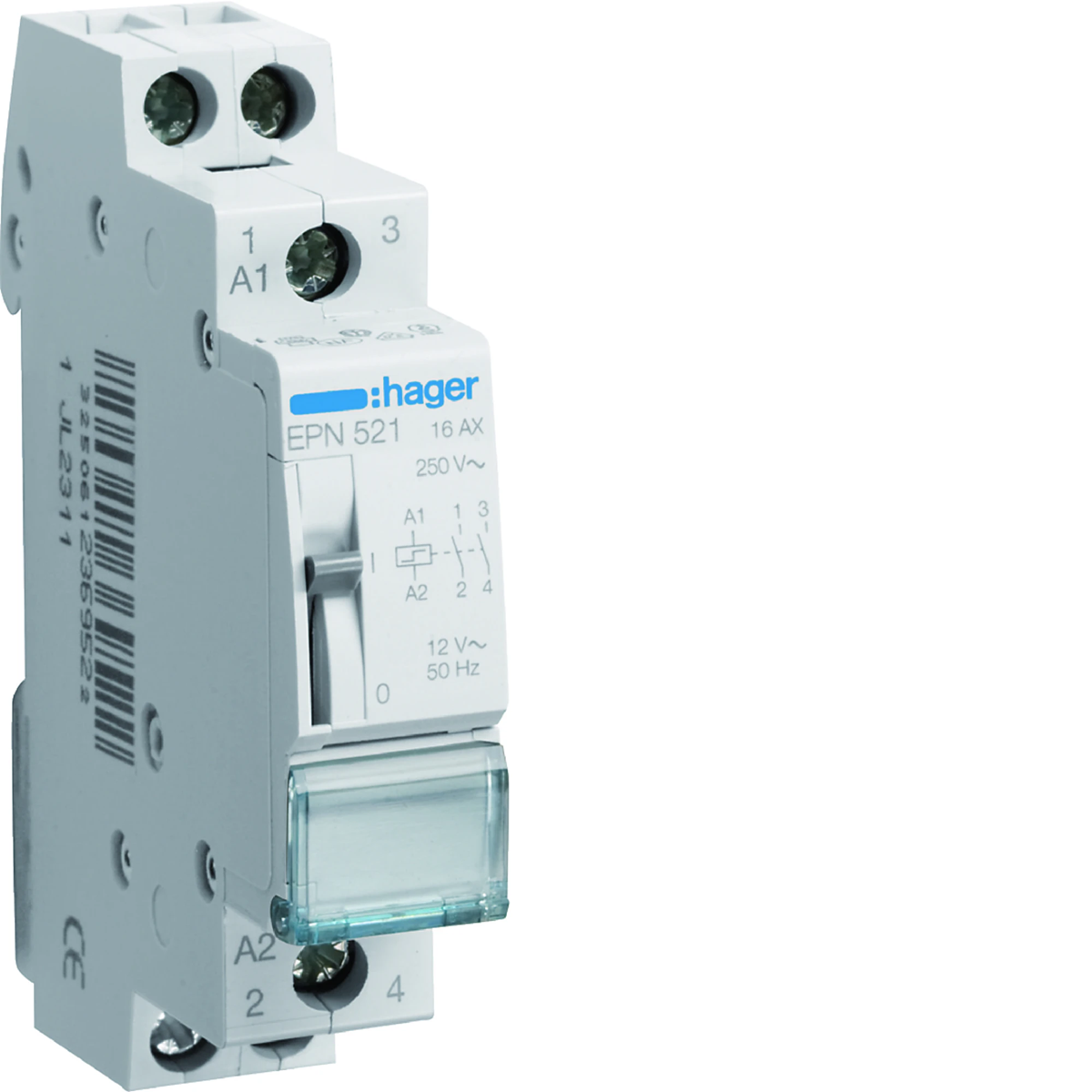

Bistable relay 12VAC 2NO 16A EPN521

local index:
APE006HAGE
Catalog No:
EPN521
EAN code:
3250612369522
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Depth [mm]: 63
Maximum input power [VA]: 25
Price:
21,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

• for controlling circuits up to 16 A
• possibility of central switching on and off
• possibility to connect auxiliary contacts
• power-on status indicator and manual override.

Technical data

  • Rated frequency [Hz]
    50/60
  • Maximum input power [VA]
    25
  • Rated voltage [V]
    250
  • Rated current [A]
    16
  • power loss [W]
    2.4
  • Working temperature [°C]
    -5 to 40
  • Mechanical durability (number of cycles)
    500000
  • Number of modules
    1
  • Depth [mm]
    63
  • AC control voltage [V]
    12
  • Rated insulation voltage [V]
    250
  • Contact type
    2 NO
  • Width [mm]
    17.5
  • Height [mm]
    83
  • Connection type
    With a screw
  • PKWIU
    27.12.24.0

Other technical data

  • Function
    Mechanical switch
  • Width in number of modular spacings
    17.5
  • Number of contacts as normally open contact
    2
  • Number of contacts as change-over contact
    0
  • Type of control voltage 1
    AC
  • Control voltage 2
    0 ... 0 V
  • Frequency control voltage 2
    50 ... 60 Hz
  • Supply voltage
    250 ... 250 V
  • Max. switching current (cos phi = 0.6)
    16 A
  • Mounting method
    DIN rail
  • Built-in depth
    63 mm
  • Number of contacts as normally closed contact
    0
  • Control voltage 1
    12 ... 12 V
  • Frequency control voltage 1
    50 ... 60 Hz
  • Type of control voltage 2
    DC
  • Rated switch current
    16 A
  • Voltage type (supply voltage)
    AC

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 108 pcs. 2592 pcs.
Weight (kg) 0,129 0,140 15,500 395,000
Width (m) 0,095 0,075 0,310 0,800
Length (m) 0,080 0,025 0,215 1,050
Depth (m) 0,020 0,090 0,360 1,200
