Bistable relay 12VAC 1NO+1NC 16A EPN519

Name: Bistable relay 12VAC 1NO+1NC 16A
Brand: HAGER
SKU: APE005HAGE
Price: 22.62 PLN

local index:

APE005HAGE

Catalog No:

EPN519

EAN code:

3250612369546

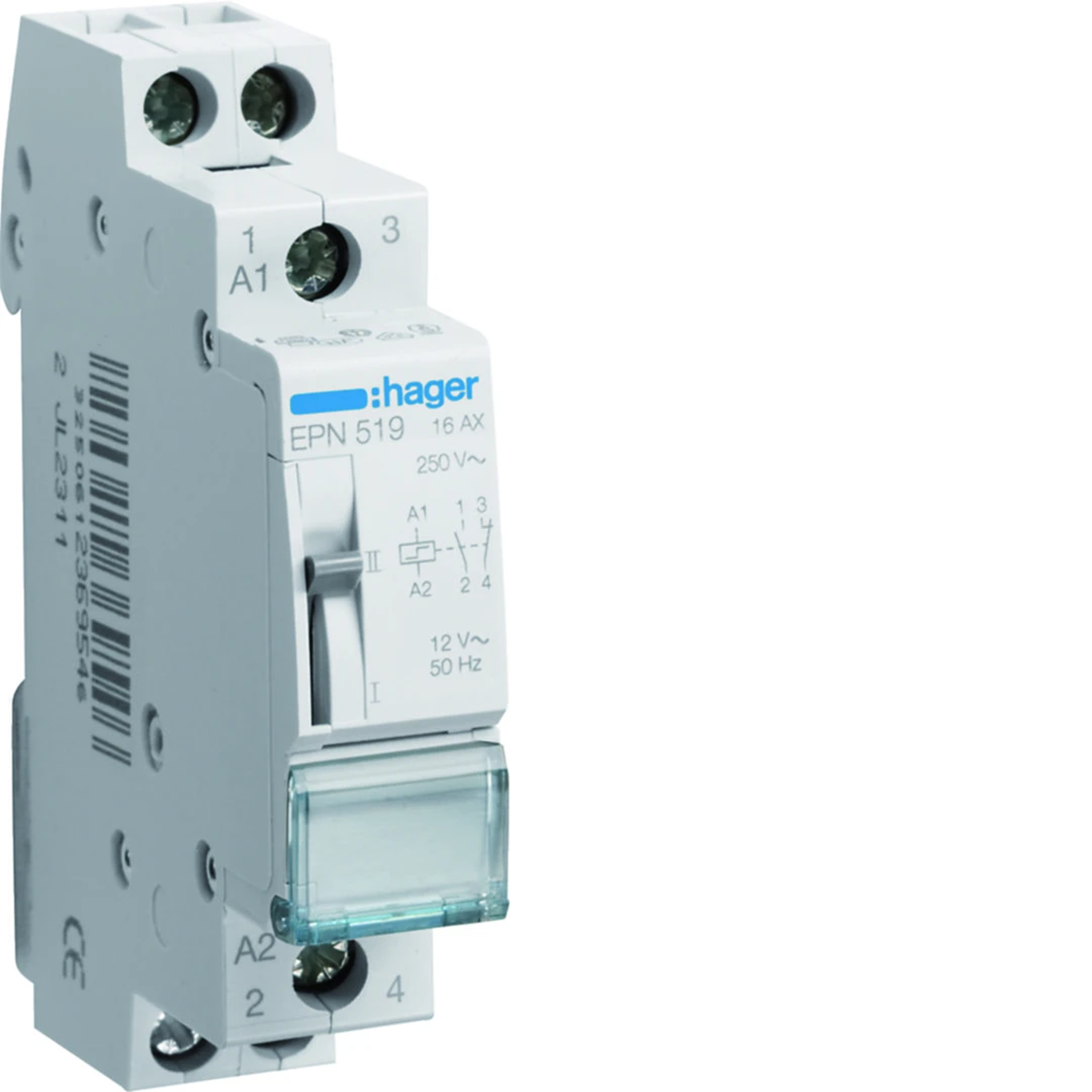

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 50/60

Depth [mm]: 63

Maximum input power [VA]: 25

See full description

Price:

22,62 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

• for controlling circuits up to 16 A
• possibility of central switching on and off
• possibility to connect auxiliary contacts
• power-on status indicator and manual override.

Technical data

Rated frequency [Hz]

50/60
Maximum input power [VA]

25
Rated voltage [V]

250
Rated current [A]

16
power loss [W]

1.2
Working temperature [°C]

-5 to 40
Mechanical durability (number of cycles)

500000
Number of modules

1

Depth [mm]

63
AC control voltage [V]

12
Rated insulation voltage [V]

250
Contact type

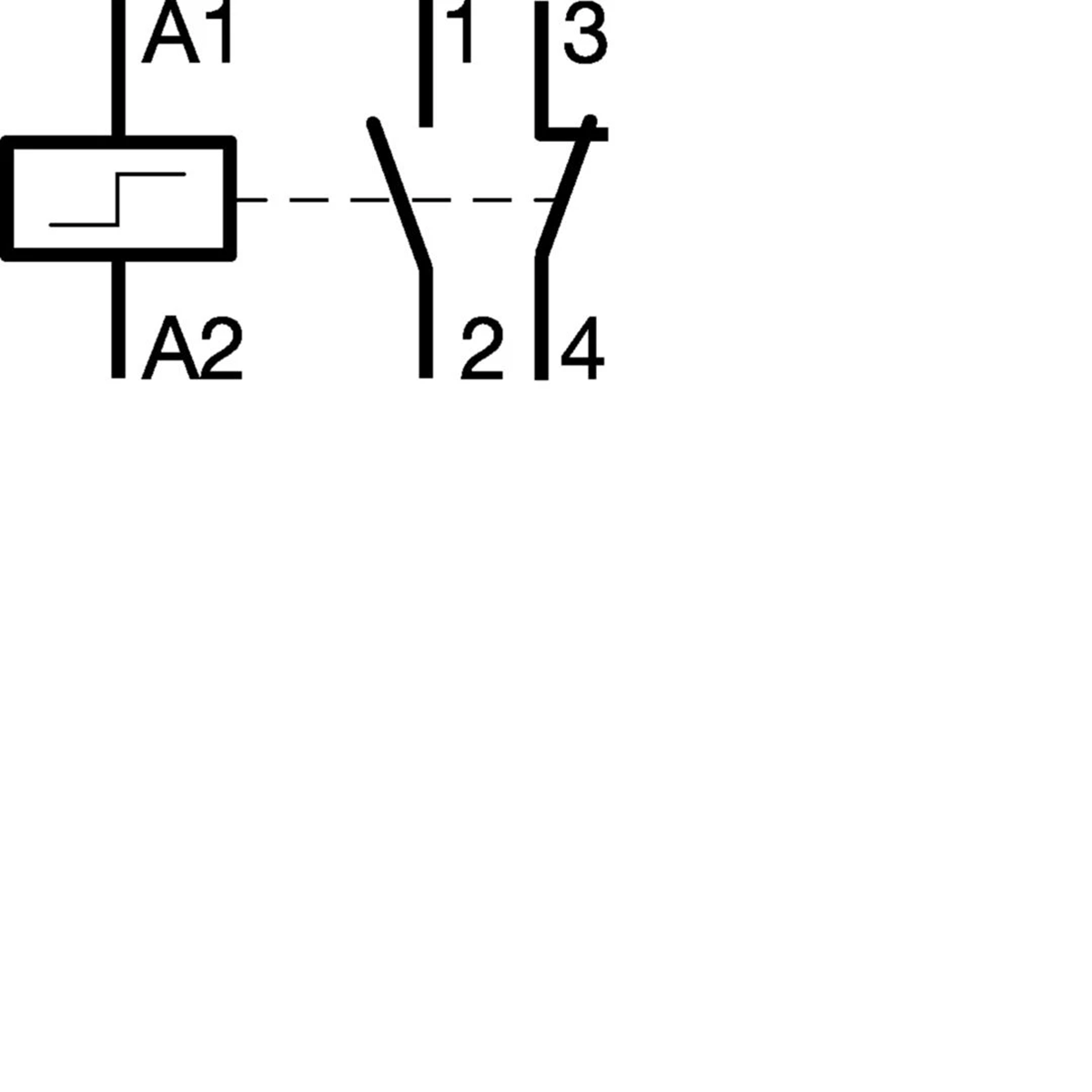

1NC + 1NO
Width [mm]

17.5
Height [mm]

83
Connection type

With a screw
PKWIU

27.12.24.0

Other technical data

Function

Mechanical switch
Width in number of modular spacings

17.5
Number of contacts as normally open contact

1
Number of contacts as change-over contact

0
Type of control voltage 1

AC
Control voltage 2

0 ... 0 V
Frequency control voltage 2

50 ... 60 Hz
Supply voltage

250 ... 250 V
Max. switching current (cos phi = 0.6)

16 A

Mounting method

DIN rail
Built-in depth

63 mm
Number of contacts as normally closed contact

1
Control voltage 1

12 ... 12 V
Frequency control voltage 1

50 ... 60 Hz
Type of control voltage 2

DC
Rated switch current

16 A
Voltage type (supply voltage)

AC

Manufacturer details

Manufacturer

Hager Electro S.A.S.
Address

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	1 pcs.	108 pcs.	2592 pcs.
Weight (kg)	0,120	13,930	334,360
Width (m)	0,080	0,310	0,800
Length (m)	0,020	0,210	1,050
Depth (m)	0,090	0,370	1,200
