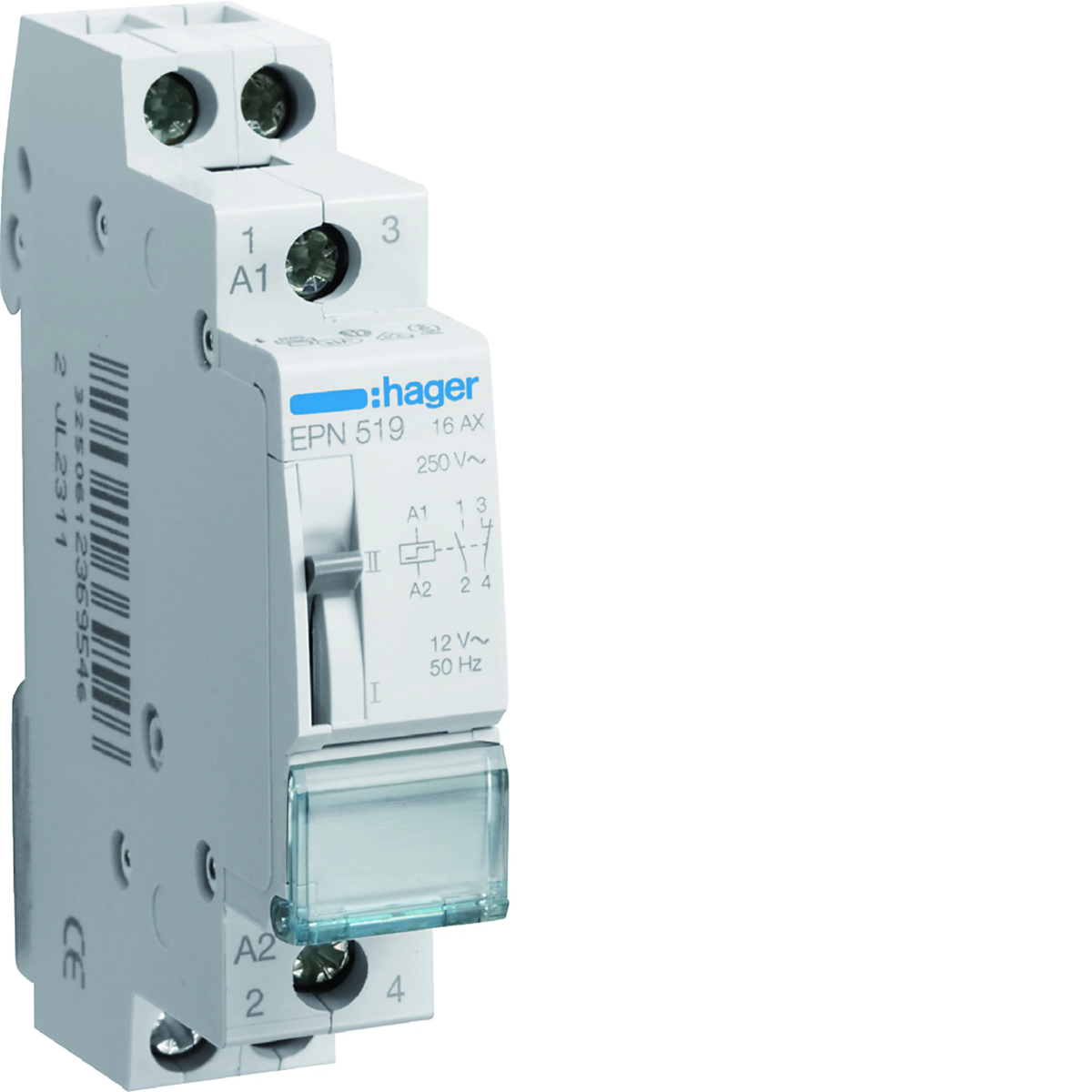

Bistable relay 12VAC 1NO+1NC 16A EPN519
local index:
APE005HAGE
Catalog No:
EPN519
EAN code:
3250612369546
Price:
21,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
• for controlling circuits up to 16 A
• possibility of central switching on and off
• possibility to connect auxiliary contacts
• power-on status indicator and manual override.
Technical data
-
Rated frequency [Hz]50/60
-
Maximum input power [VA]25
-
Rated voltage [V]250
-
Rated current [A]16
-
power loss [W]1.2
-
Working temperature [°C]-5 to 40
-
Mechanical durability (number of cycles)500000
-
Number of modules1
-
Depth [mm]63
-
AC control voltage [V]12
-
Rated insulation voltage [V]250
-
Contact type1NC + 1NO
-
Width [mm]17.5
-
Height [mm]83
-
Connection typeWith a screw
-
PKWIU27.12.24.0
Other technical data
-
FunctionMechanical switch
-
Width in number of modular spacings17.5
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
Type of control voltage 1AC
-
Control voltage 20 ... 0 V
-
Frequency control voltage 250 ... 60 Hz
-
Supply voltage250 ... 250 V
-
Max. switching current (cos phi = 0.6)16 A
-
Mounting methodDIN rail
-
Built-in depth63 mm
-
Number of contacts as normally closed contact1
-
Control voltage 112 ... 12 V
-
Frequency control voltage 150 ... 60 Hz
-
Type of control voltage 2DC
-
Rated switch current16 A
-
Voltage type (supply voltage)AC
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 108 pcs. | 2592 pcs. |
| Weight (kg) | 0,129 | 0,140 | 15,750 | 401,000 |
| Width (m) | 0,018 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,083 | 0,025 | 0,215 | 1,050 |
| Depth (m) | 0,071 | 0,095 | 0,370 | 1,200 |
