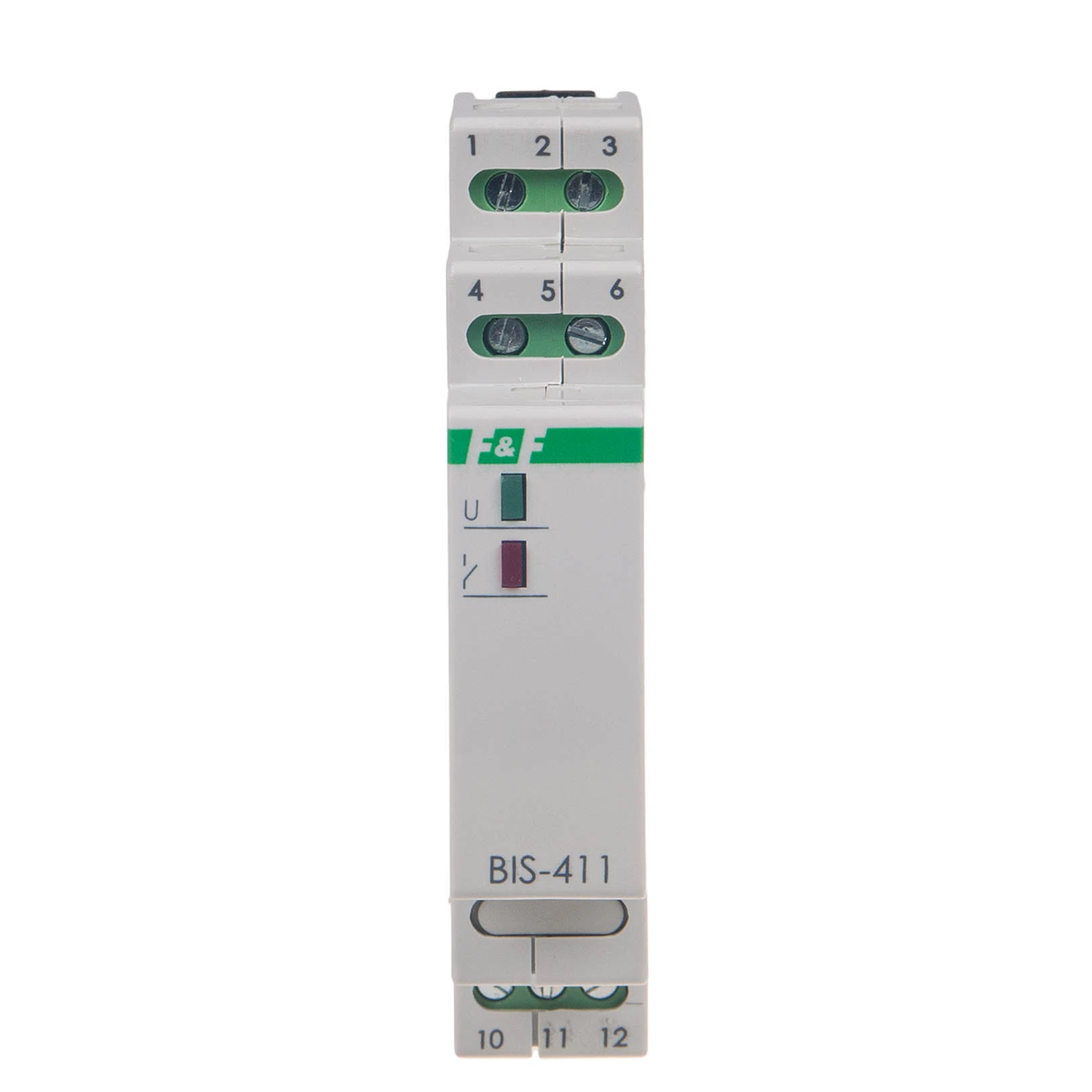

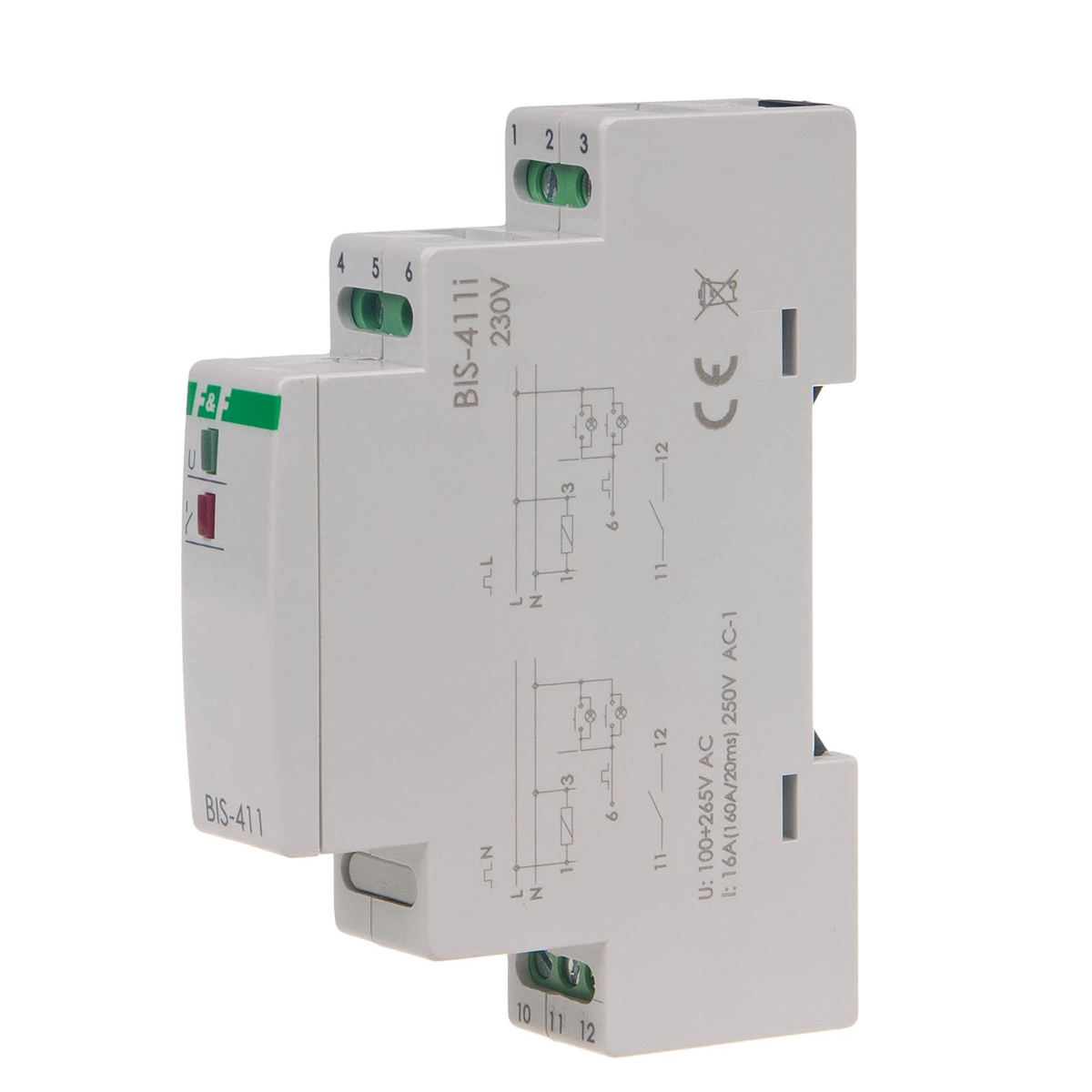

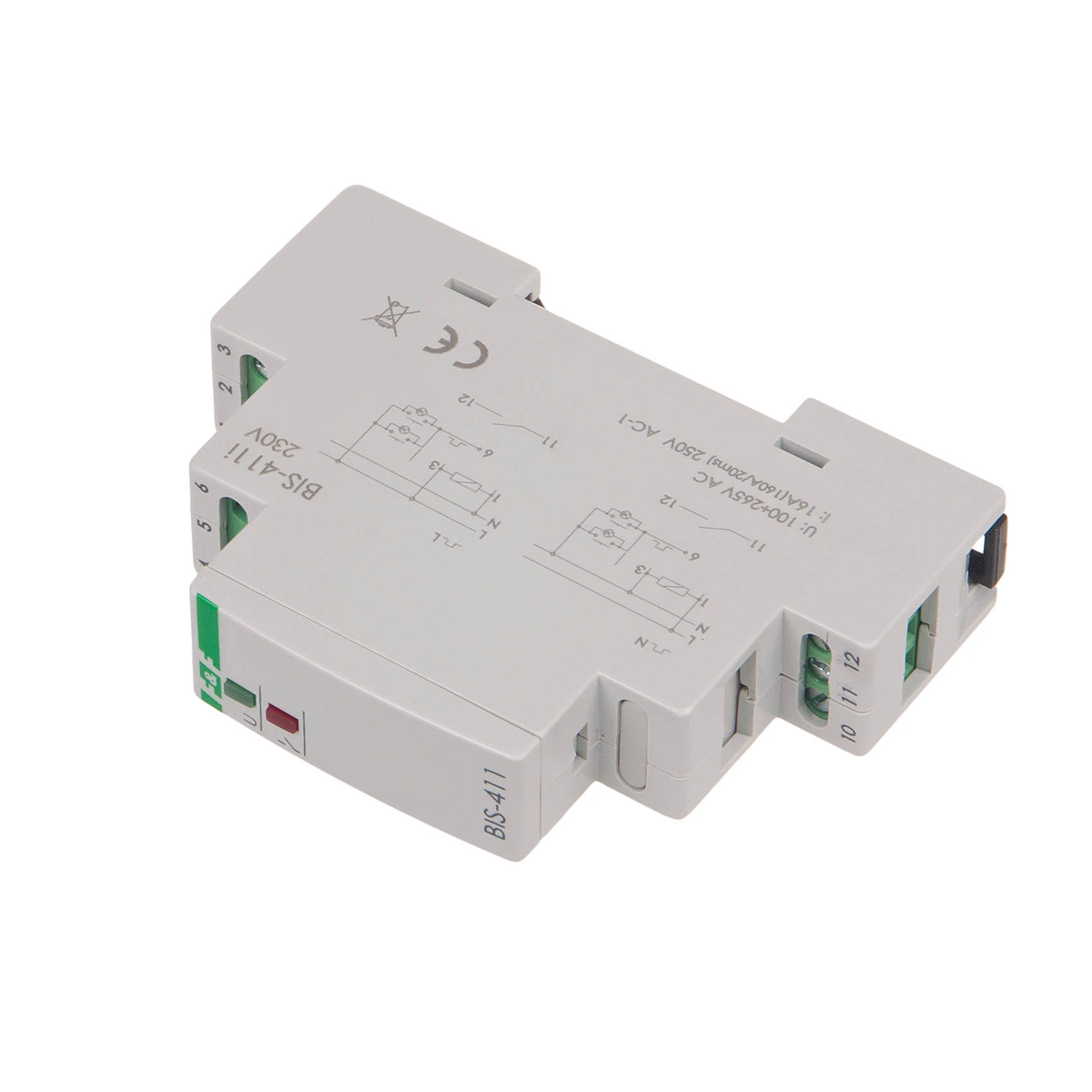

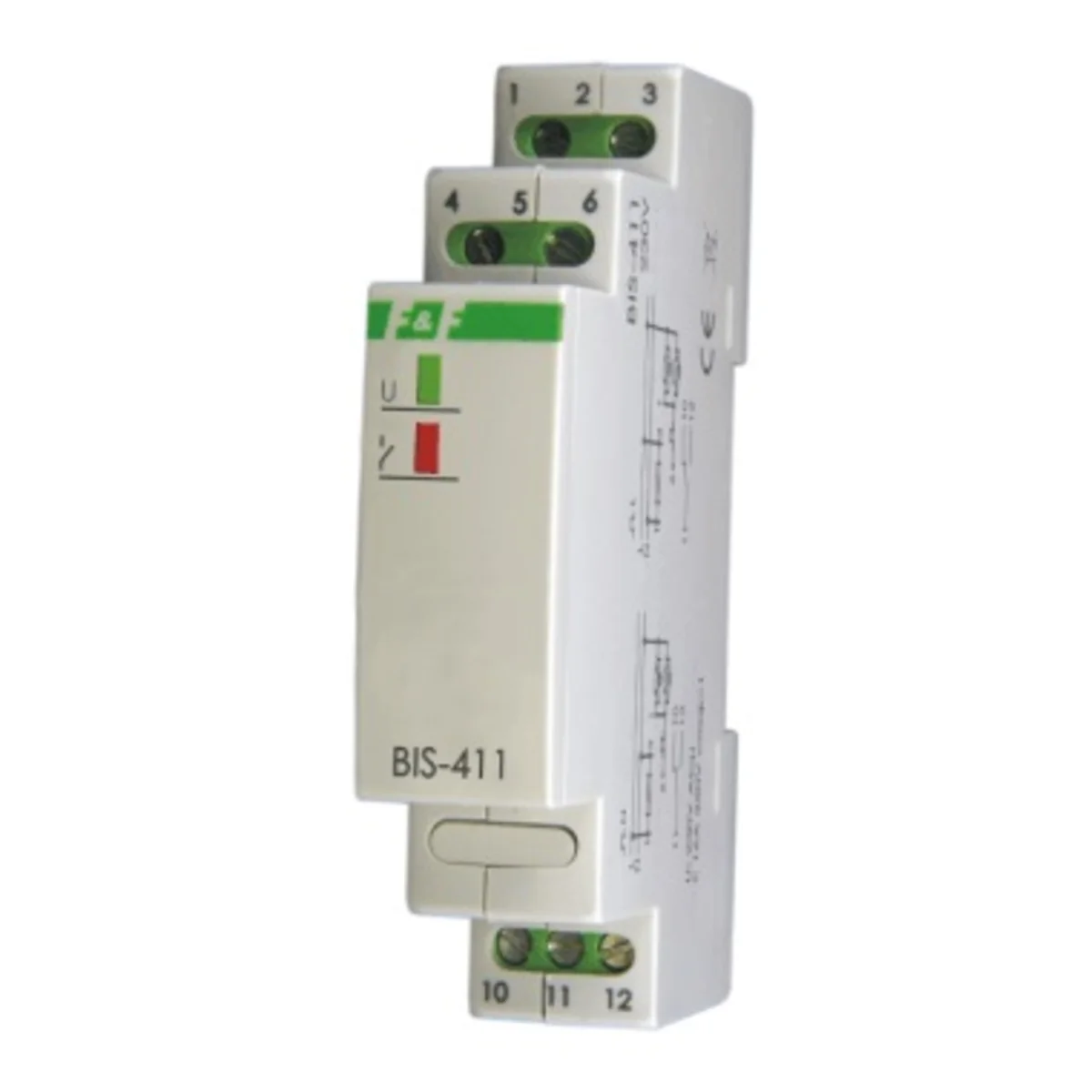

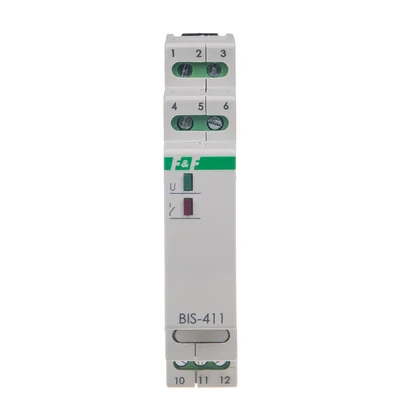

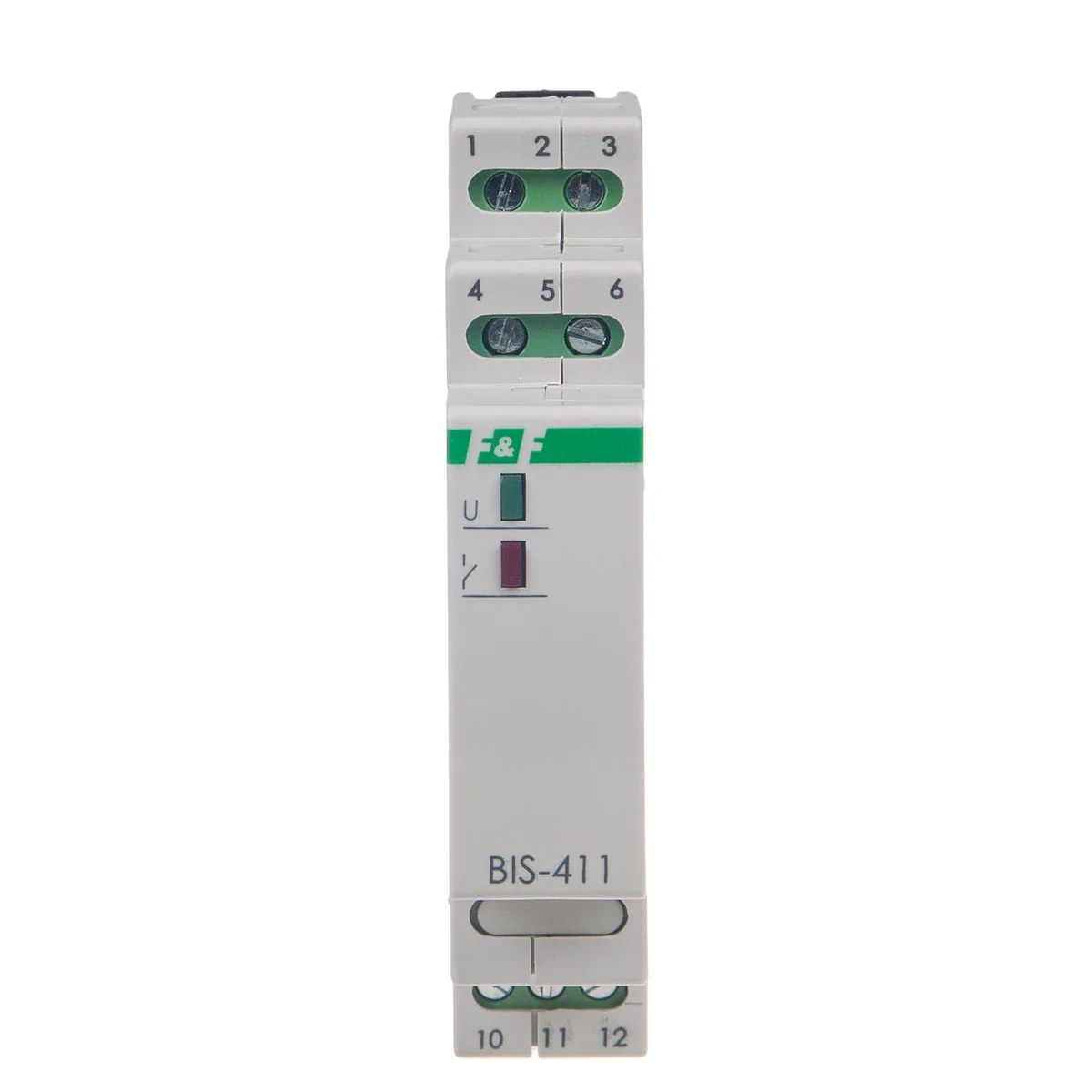

Bistable "on-off" relay BIS-411-LED

local index:
APE046FIFQ
Catalog No:
BIS-411-LED
EAN code:
5908312598381
Manufacturer: F&F
Tripping delay [s]: 0.1/0.2
Level of security: IP20
Signaling: LED green/red
Price:
18,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 29 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electronic bistable impulse relays enable switching on or off lighting or other device from several different points by means of parallel connected, momentary (bell) control switches. The receiver is switched on after a current pulse caused by pressing any momentary (bell) button connected to the relay. After the next pulse, the receiver will turn off. The relay does not have a "memory" of the contact position, i.e. in the event of a power failure and its return, the relay contact will be switched off. This makes it impossible to automatically turn on the controlled receivers without supervision after a long-term power failure.

Technical data

  • Tripping delay [s]
    0.1/0.2
  • Signaling
    LED green/red
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • Power consumption in the on state [W]
    0.6
  • PKWIU
    27.12.23.0
  • Level of security
    IP20
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.2
  • Standby power consumption [W]
    0.15

Other technical data

  • Function
    Electronic switch
  • Width in number of modular spacings
    1
  • Type of control voltage 1
    AC
  • Rated switch current
    16 A
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    750 VA
  • Max. load fluorescent lamp (parallel compensated)
    750 VA
  • Suitable for manual operation
    No
  • Mounting method
    DIN rail
  • Control voltage 1
    100 ... 265 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Supply voltage
    100 ... 230 V
  • Max. incandescent lamp load
    3000 W
  • Max. load fluorescent lamp (Duo circuit)
    750 VA
  • Max. switching current (cos phi = 0.6)
    16 A

Bulk packaging

A kind of package Sztuka Karton
Quantity 1 pcs. 12 pcs.
Weight (kg) 0,071 -
Width (m) 0,019 -
Length (m) 0,095 -
Depth (m) 0,070 -
