el12
Automation
Relays and drivers
Electromagnetic relays

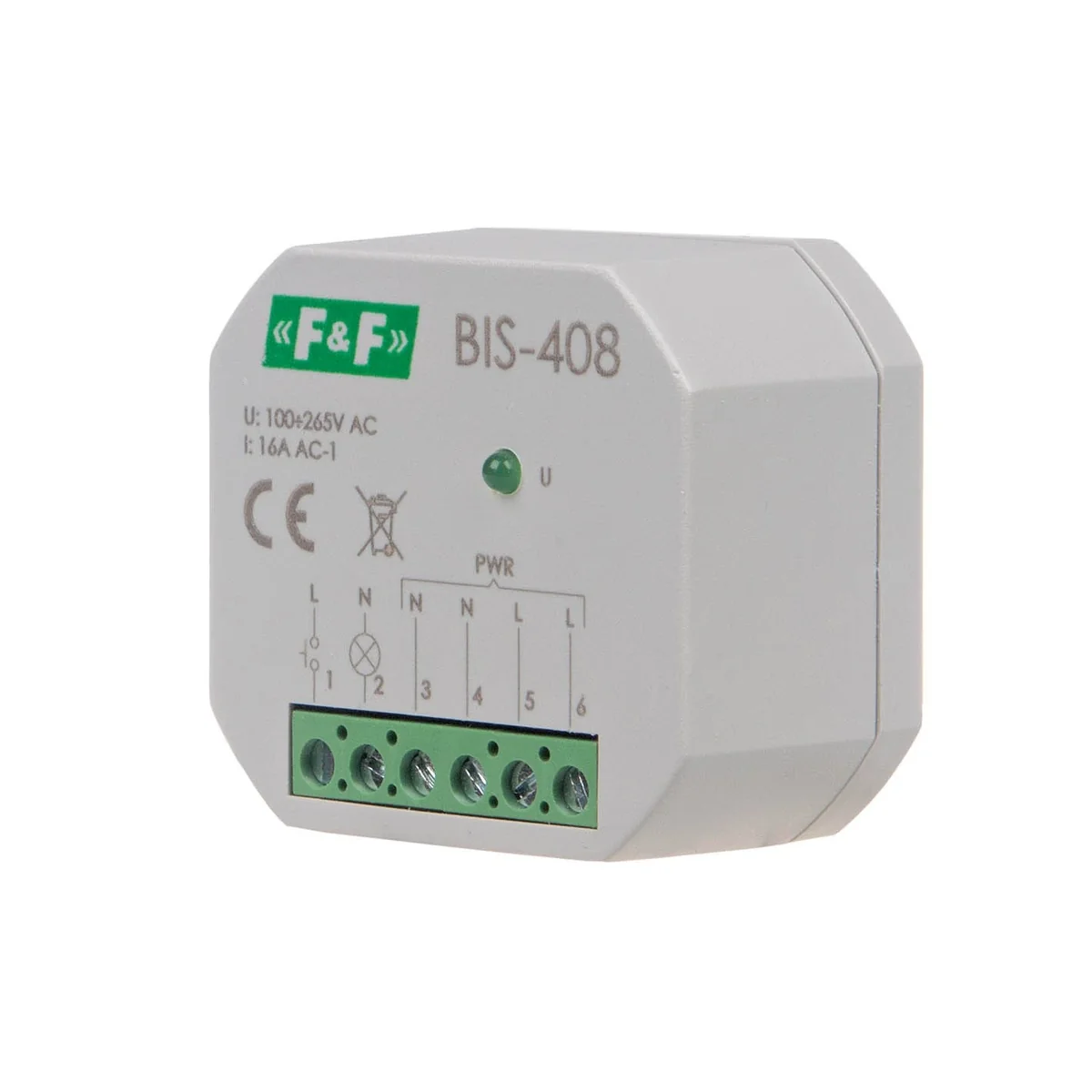

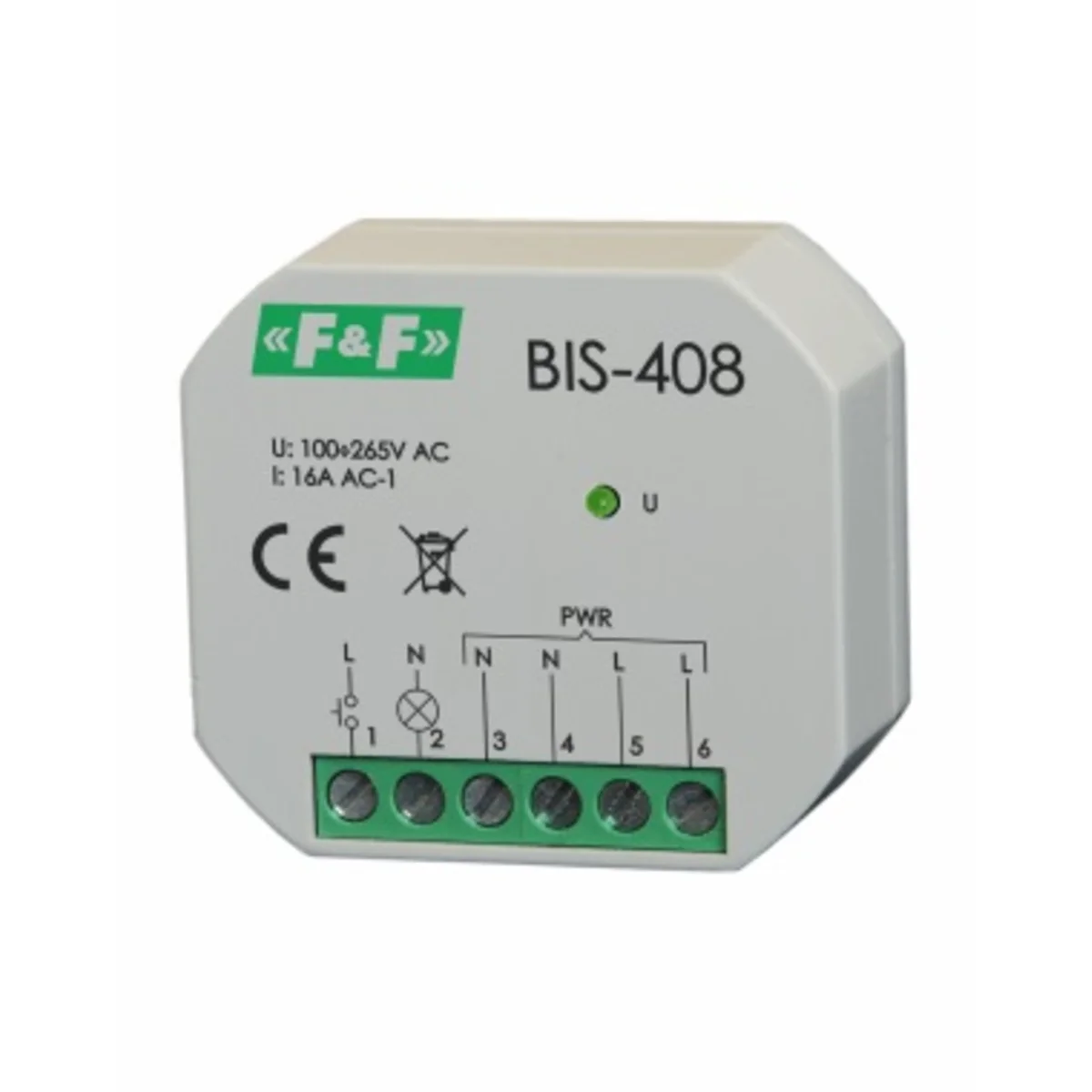

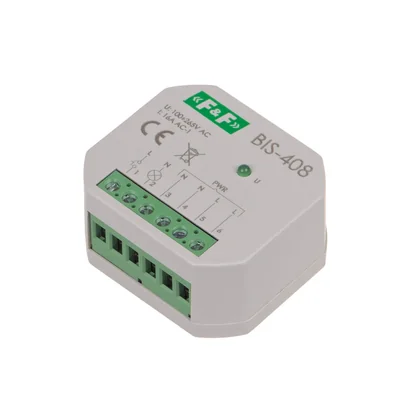

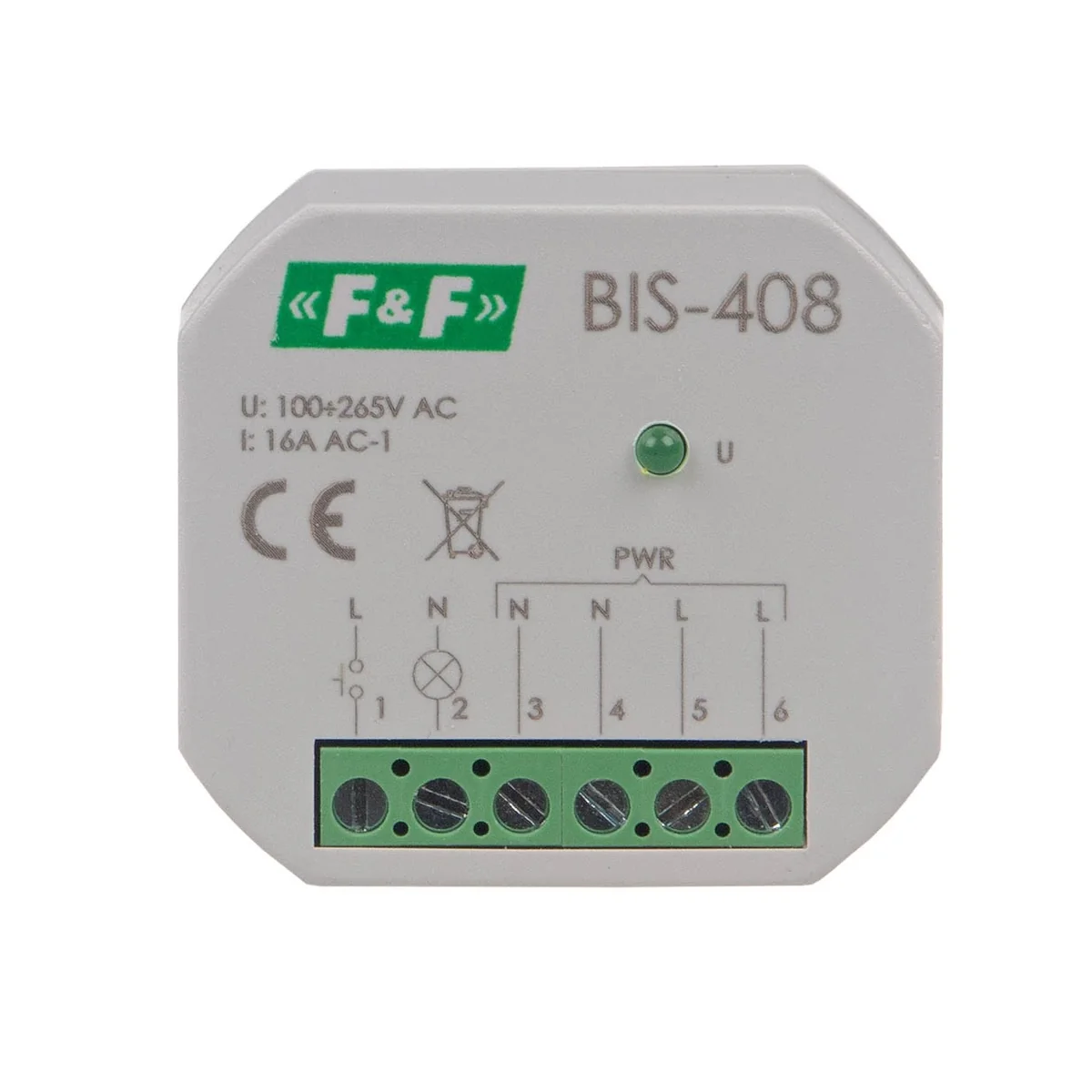

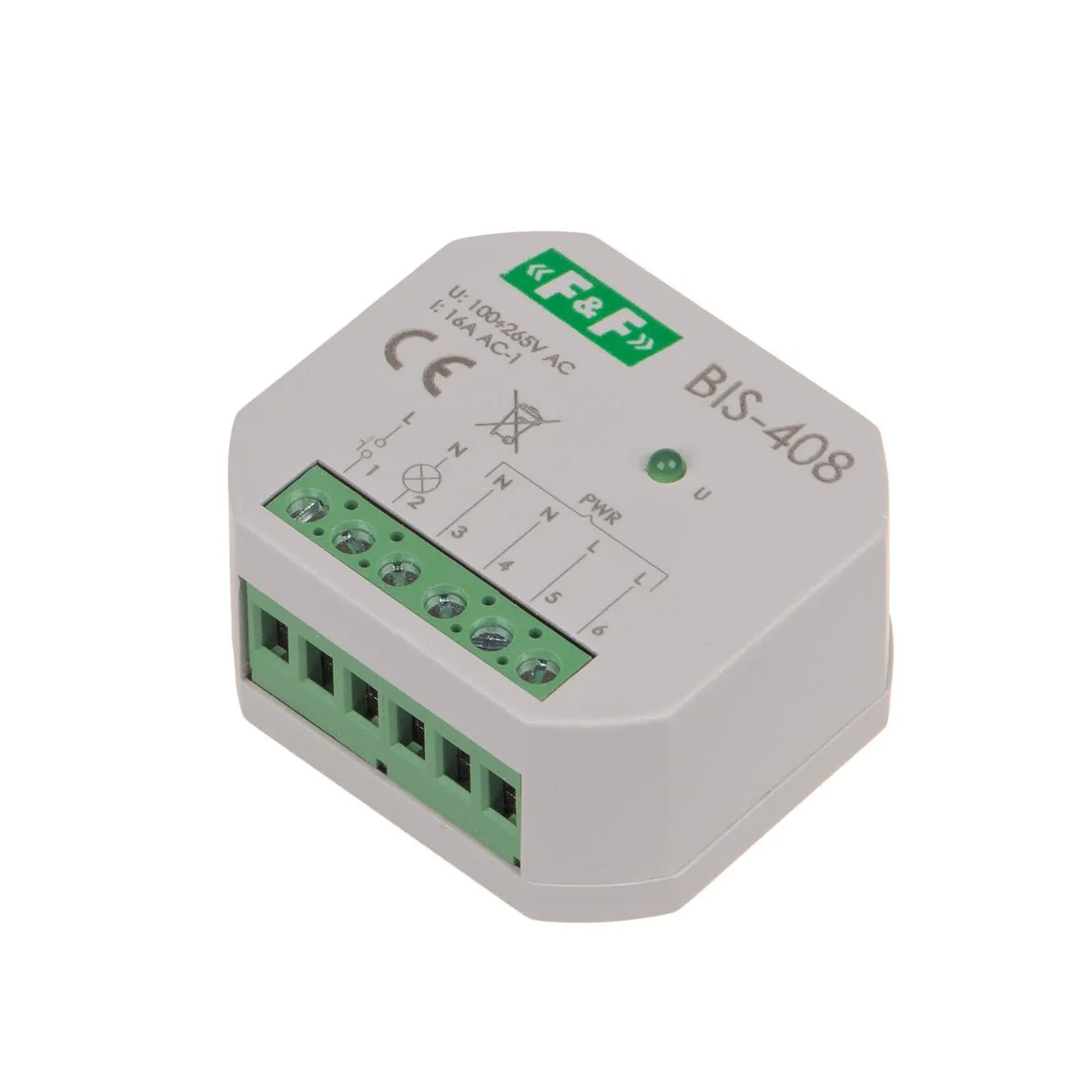

Bistable "on-off" relay BIS-408
local index:
APE050FIFQ
Catalog No:
BIS-408
EAN code:
5908312598282
Click on the photo to enlarge
Manufacturer:
F&F
Tripping delay [s]:
0.1/0.2
load current [A]:
<16A
Level of security:
IP20
See full description
Price:
19,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Files to download
Product description
The electronic bistable impulse relay allows you to switch on the lighting or other device from several different points by means of control buttons connected in parallel.
Technical data
Tripping delay [s]
0.1/0.2
Level of security
IP20
Working temperature [°C]
-25-50
Package width [mm]
50
Control pulse current [A]
<5
Standby power consumption [W]
0.15
load current [A]
<16A
Power indication
LED green
Package height [mm]
20
Package weight [kg]
0.2
Power consumption in the on state [W]
0.6
PKWIU
27.12.23.0
Other technical data
Function
Electronic switch
Built-in depth
25 mm
Type of control voltage 1
AC
Rated switch current
0.005 A
Voltage type (supply voltage)
AC
Max. load fluorescent lamp
750 VA
Max. load fluorescent lamp (parallel compensated)
750 VA
Suitable for manual operation
No
Mounting method
Flush-mounted
Control voltage 1
100 ... 230 V
Frequency control voltage 1
50 ... 50 Hz
Supply voltage
100 ... 230 V
Max. incandescent lamp load
3000 W
Max. load fluorescent lamp (Duo circuit)
750 VA
Max. switching current (cos phi = 0.6)
8 A
Bulk packaging
A kind of package
Sztuka
Quantity
1 pcs.
Weight (kg)
0,056
Width (m)
0,031
Length (m)
0,095
Depth (m)
0,070
