Click on the photo to enlarge

F&F

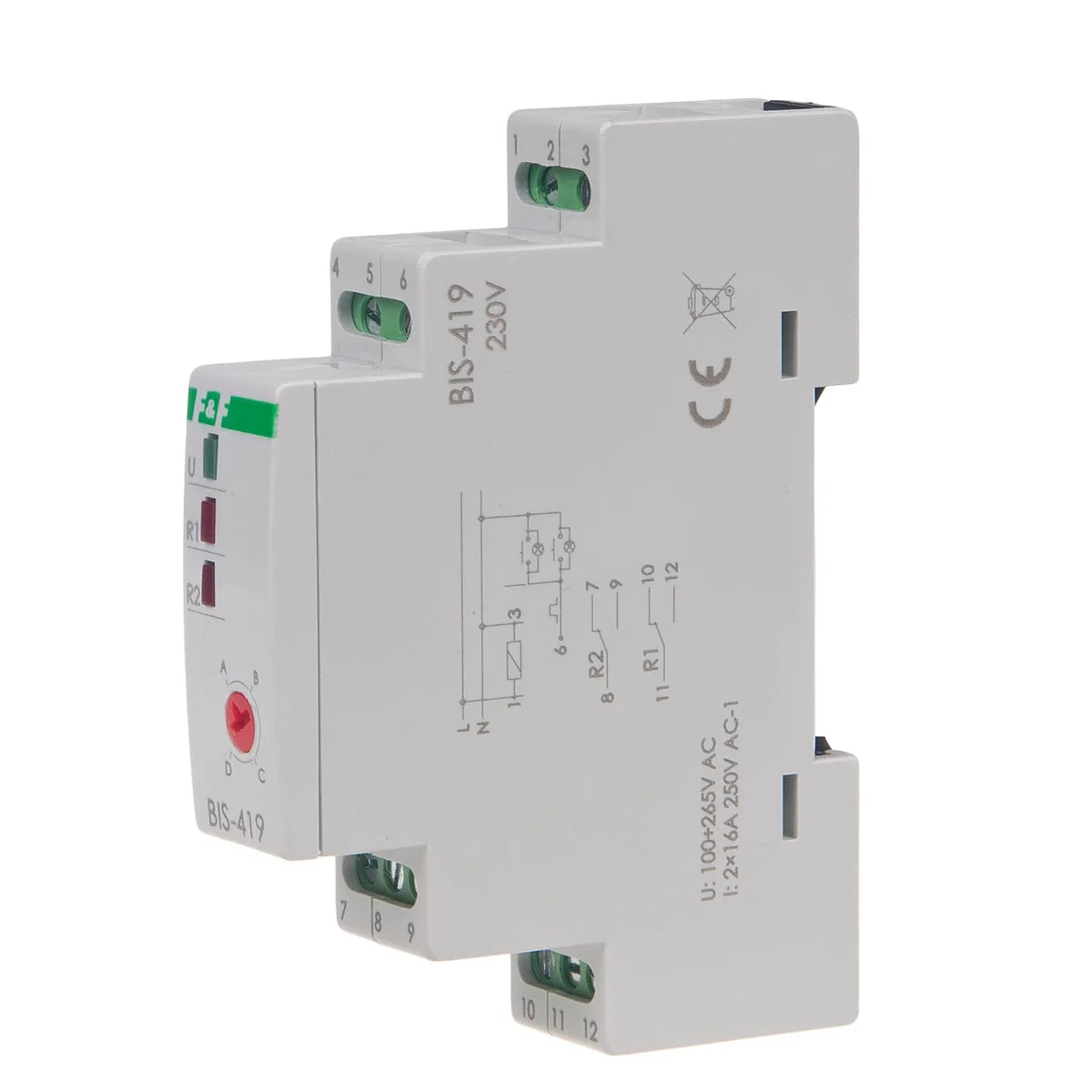

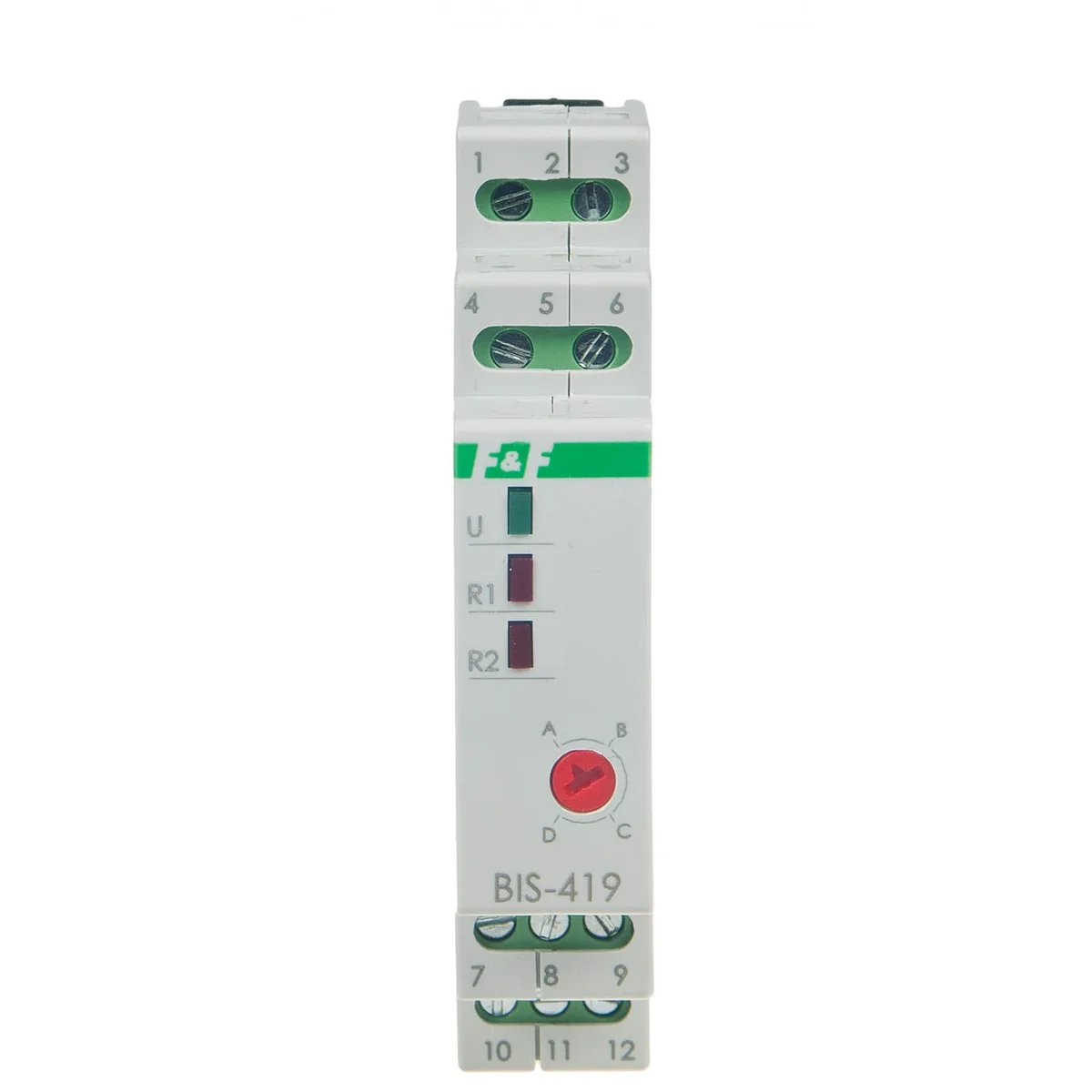

Bistable 4-function DIN relay with two control circuits BIS-419

local index:
APE014FIFQ
Catalog No:
BIS-419
EAN code:
5908312598046
Price:
30,66 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Electronic bistable impulse relays enable switching on or off lighting or other device from several different points by means of parallel connected, momentary (bell) control switches. The receiver is switched on after a current pulse caused by pressing any momentary (bell) button connected to the relay. After the next pulse, the receiver will turn off. The relay does not have a "memory" of the contact position, i.e. in the event of a power failure and its return, the relay contact will be switched off. This makes it impossible to automatically turn on the controlled receivers without supervision after a long-term power failure.

Technical data

  • Maximum switching capacity for bulbs [W]
    3000
  • Rated current [A]
    8
  • Package height [mm]
    150
  • Package weight [kg]
    0.15
  • Rated inrush current [A]
    8
  • Control voltage [V]
    100/230
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • Maximum switching capacity for fluorescent lamps [VA]
    750

Other technical data

  • Function
    Electronic switch
  • Width in number of modular spacings
    1
  • Control voltage 1
    100 ... 230 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Supply voltage
    100 ... 230 V
  • Max. incandescent lamp load
    3000 W
  • Max. load fluorescent lamp (Duo circuit)
    750 VA
  • Max. switching current (cos phi = 0.6)
    8 A
  • Mounting method
    DIN rail
  • Built-in depth
    0 mm
  • Type of control voltage 1
    AC
  • Rated switch current
    8 A
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    750 VA
  • Max. load fluorescent lamp (parallel compensated)
    750 VA
  • Suitable for manual operation
    no
