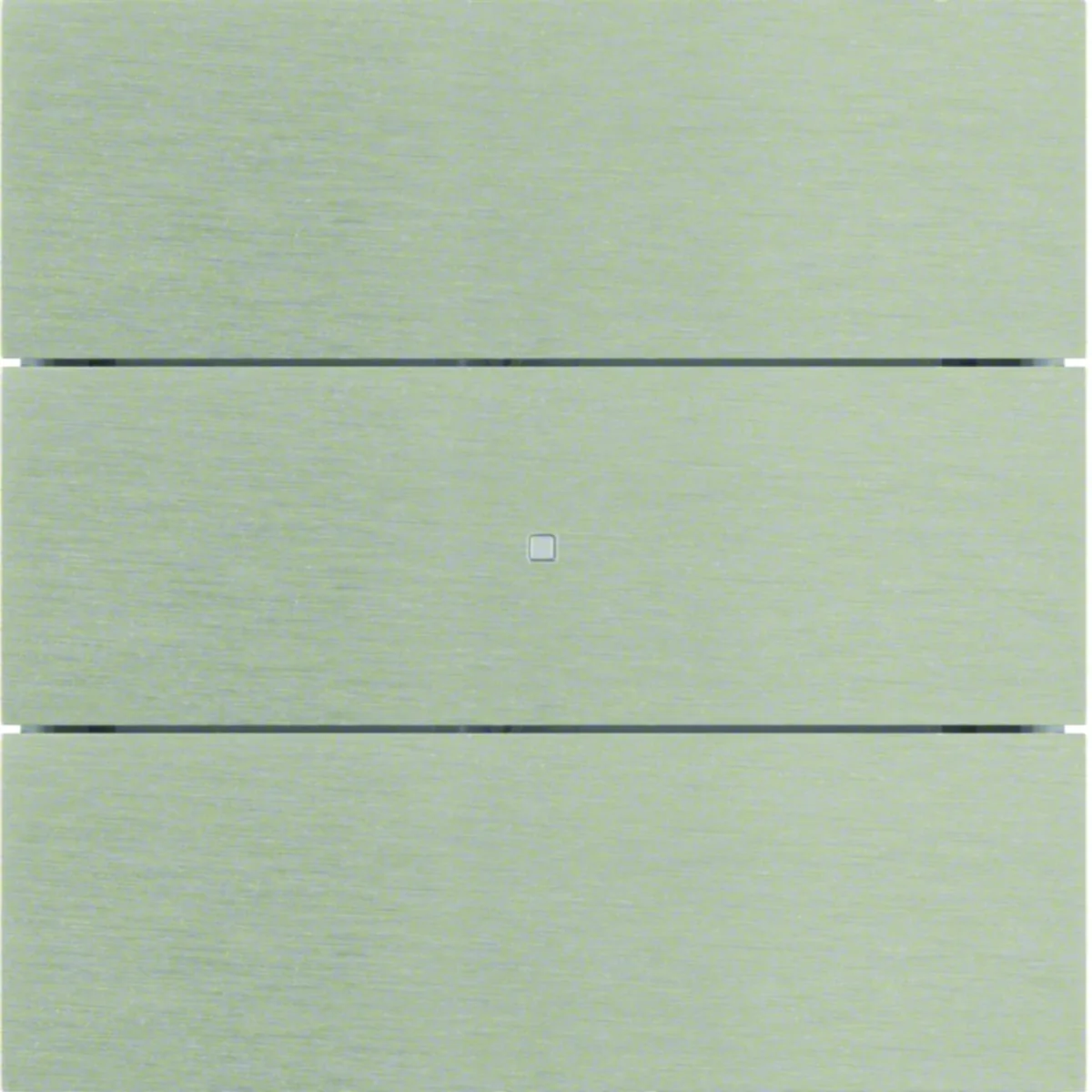

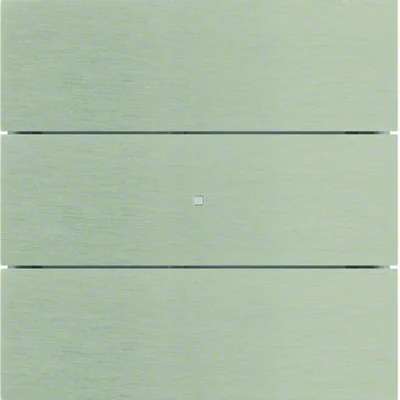

B.IQ Push-button 3-gang standard stainless steel 75163093

local index:
AIK130HAGE
Catalog No:
75163093
EAN code:
4011334257158
Manufacturer: HAGER
Halogen free: NO
Number of buttons: 3
Color: Silver
Price:
262,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Three-fold button standard Berker B.IQ series.

  • Functions: switching on/pressing, dimming and blinds control,
  • Compatibility: extension to buttons for calling up light scenes,
  • Transmission of 1 byte value,
  • With blue operation LED and 6 white status LEDs (backlighting of labeling field) ,
  • Connection: to flush-mounted bus port,
  • For installation in single standard built-in boxes,
  • Degree of protection: IP20,
  • Main design line: KNX - Berker B.IQ.

Technical data

  • Halogen free
    NO
  • Color
    Silver
  • Installation
    Flush-mounted
  • Family
    B.I.Q
  • Width [mm]
    88.5
  • Surface finish
    brushed
  • PKWIU
    27.12.31.0
  • Number of buttons
    3
  • Material
    stainless steel
  • Surface
    Matt
  • Level of security
    IP20
  • Operating temperature range [°C]
    from -5 to 45
  • Accurate color
    inox

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • With anti-theft/dismantling protection
    Yes
  • Number of actuation points
    6
  • With LED indication
    Yes
  • With display
    No
  • Material quality
    Stainless steel
  • Surface finishing
    Matt
  • RAL-number (similar)
    9022
  • With room temperature controller
    No
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • With bus connection
    No
  • Number of buttons
    3
  • With label area
    No
  • Material
    Metal
  • Surface protection
    Other
  • Colour
    Stainless steel
  • Transparent
    No
  • With IR sensor
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 7 pcs. 224 pcs.
Weight (kg) 0,442 0,496 3,917 145,336
Width (m) 0,089 0,124 0,300 0,800
Length (m) 0,017 0,090 0,225 1,050
Depth (m) 0,089 0,222 0,400 1,200
