320866
0

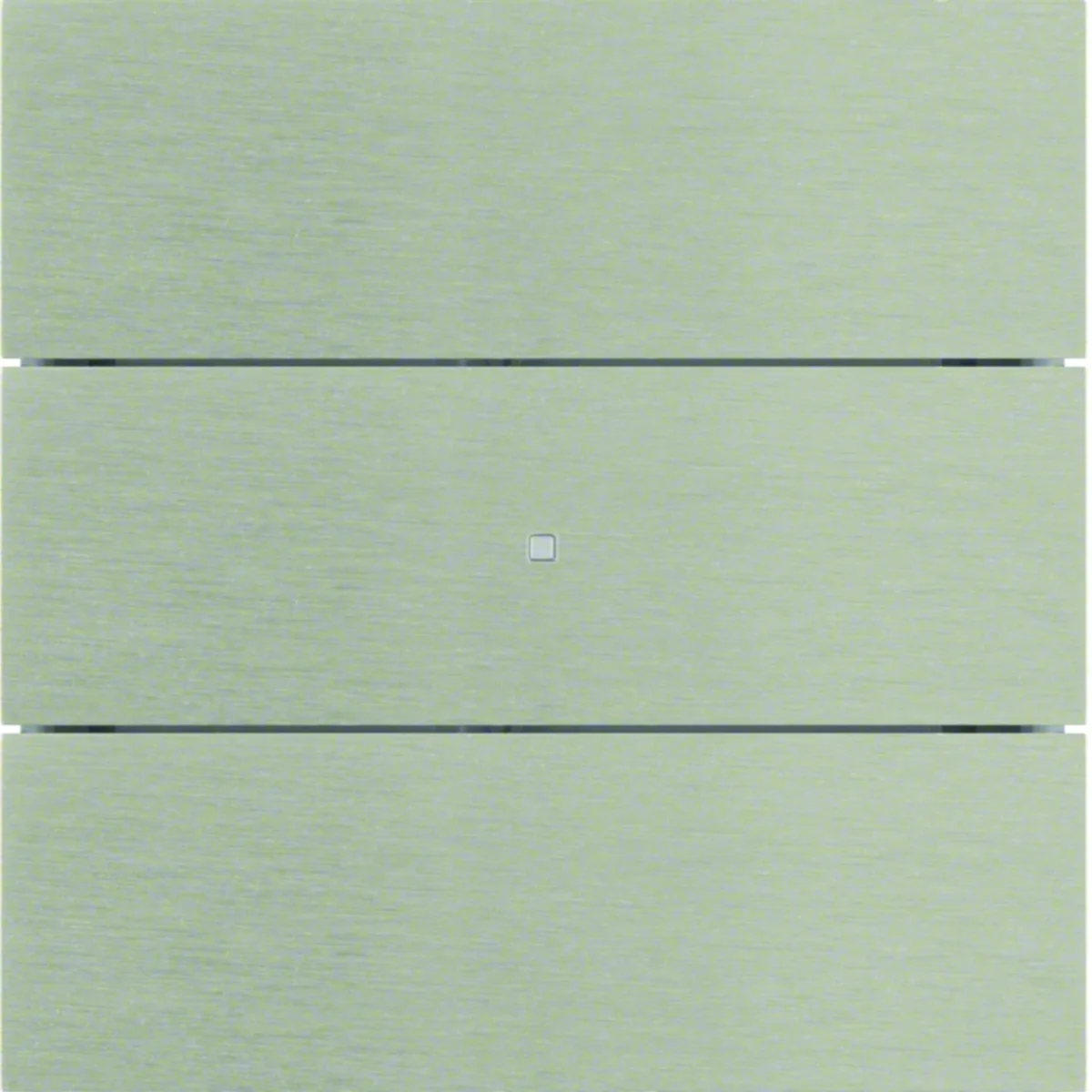

B.IQ Push button 3-fold comfort stainless steel 75163593
local index:
AIK135HAGE
Catalog No:
75163593
EAN code:
4011334257172
Price:
294,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Three-fold button comfort from the Berker B.IQ series.
- Functions: switching on/pressing, dimming and blinds control,
- Compatibility: extension to buttons for triggering light scenes,
- Controls and indicators:
- activation of the second operating mode by the object,
- Micro-SDHC /SDXC Class 10 or UHS-1,
- Function to send 1 and 2 byte values for dimming, illuminance and temperature,
- With blue LED and 6 white status LEDs (description field backlight),
- Connection: to flush-mounted bus port,
- For installation in single standard built-in boxes,
- Supported configuration modes: system, PB,
- Security: alarm telegram after removal from bus port, 1 bit, 1 byte,
- Main project line: KNX - Berker B.IQ.< /li>
Technical data
-
Halogen freeNO
-
ColorSilver
-
InstallationFlush-mounted
-
FamilyB.I.Q
-
Width [mm]88.5
-
Surface finishbrushed
-
PKWIU27.12.31.0
-
Number of buttons3
-
Materialstainless steel
-
SurfaceMatt
-
Level of securityIP20
-
Operating temperature range [°C]from -5 to 45
-
Accurate colorinox
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
With anti-theft/dismantling protectionYes
-
Number of actuation points6
-
With LED indicationYes
-
With displayNo
-
Material qualityStainless steel
-
Surface finishingMatt
-
RAL-number (similar)9022
-
With room temperature controllerNo
-
Degree of protection (IP)IP20
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodFlush-mounted
-
With bus connectionNo
-
Number of buttons3
-
With label areaNo
-
MaterialMetal
-
Surface protectionOther
-
ColourStainless steel
-
TransparentNo
-
With IR sensorNo
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 7 pcs. | 224 pcs. |
| Weight (kg) | 0,302 | 0,390 | 3,210 | 125,720 |
| Width (m) | 0,089 | 0,125 | 0,300 | 0,800 |
| Length (m) | 0,017 | 0,090 | 0,225 | 1,050 |
| Depth (m) | 0,089 | 0,225 | 0,400 | 1,200 |
