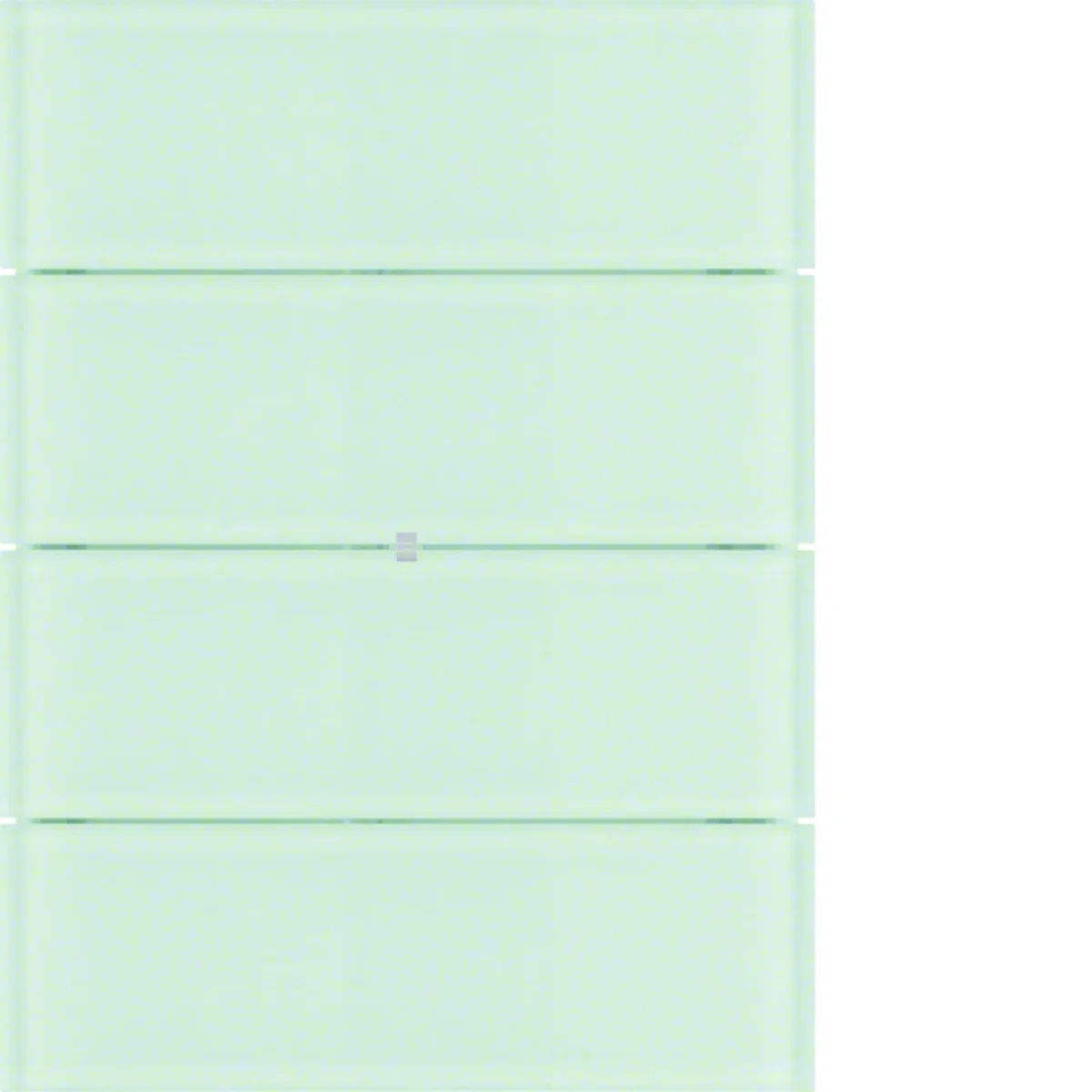

B.IQ Button 4-gang standard white glass 75164090
local index:
AIK138HAGE
Catalog No:
75164090
EAN code:
4011334380887
Price:
464,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Quad button standard from the Berker B.IQ series.
- Functions: switching on/pressing, dimming and blind control,
- Compatibility: extension to call up light scenes buttons,
- 1 byte value transmission,
- With blue operation LED and 8 white status LEDs,
- Connection: to a flush-mounted bus port,
- For installation in single standard built-in boxes,
- Degree of protection: IP20,
- Main design line: KNX - Berker B.IQ.
Technical data
-
Halogen freeNO
-
ColorWhite
-
InstallationFlush-mounted
-
FamilyB.I.Q
-
Width [mm]88.5
-
Operating temperature range [°C]from -5 to 45
-
Accurate colorSnow white
-
Number of buttons4
-
MaterialGlass
-
SurfaceGloss
-
Level of securityIP20
-
Height [mm]118.1
-
Surface finishLacquered
-
PKWIU27.12.31.0
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
With anti-theft/dismantling protectionYes
-
Number of actuation points8
-
With LED indicationYes
-
With displayNo
-
Material qualityOther
-
Surface finishingGlossy
-
RAL-number (similar)9010
-
With room temperature controllerNo
-
Degree of protection (IP)IP20
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodFlush-mounted
-
With bus connectionNo
-
Number of buttons4
-
With label areaNo
-
MaterialGlass
-
Surface protectionLacquered
-
ColourWhite
-
TransparentNo
-
With IR sensorNo
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 7 pcs. | 224 pcs. |
| Weight (kg) | 0,295 | 0,349 | 2,888 | 112,408 |
| Width (m) | 0,118 | 0,124 | 0,300 | 0,800 |
| Length (m) | 0,017 | 0,090 | 0,225 | 1,050 |
| Depth (m) | 0,089 | 0,222 | 0,400 | 1,200 |
