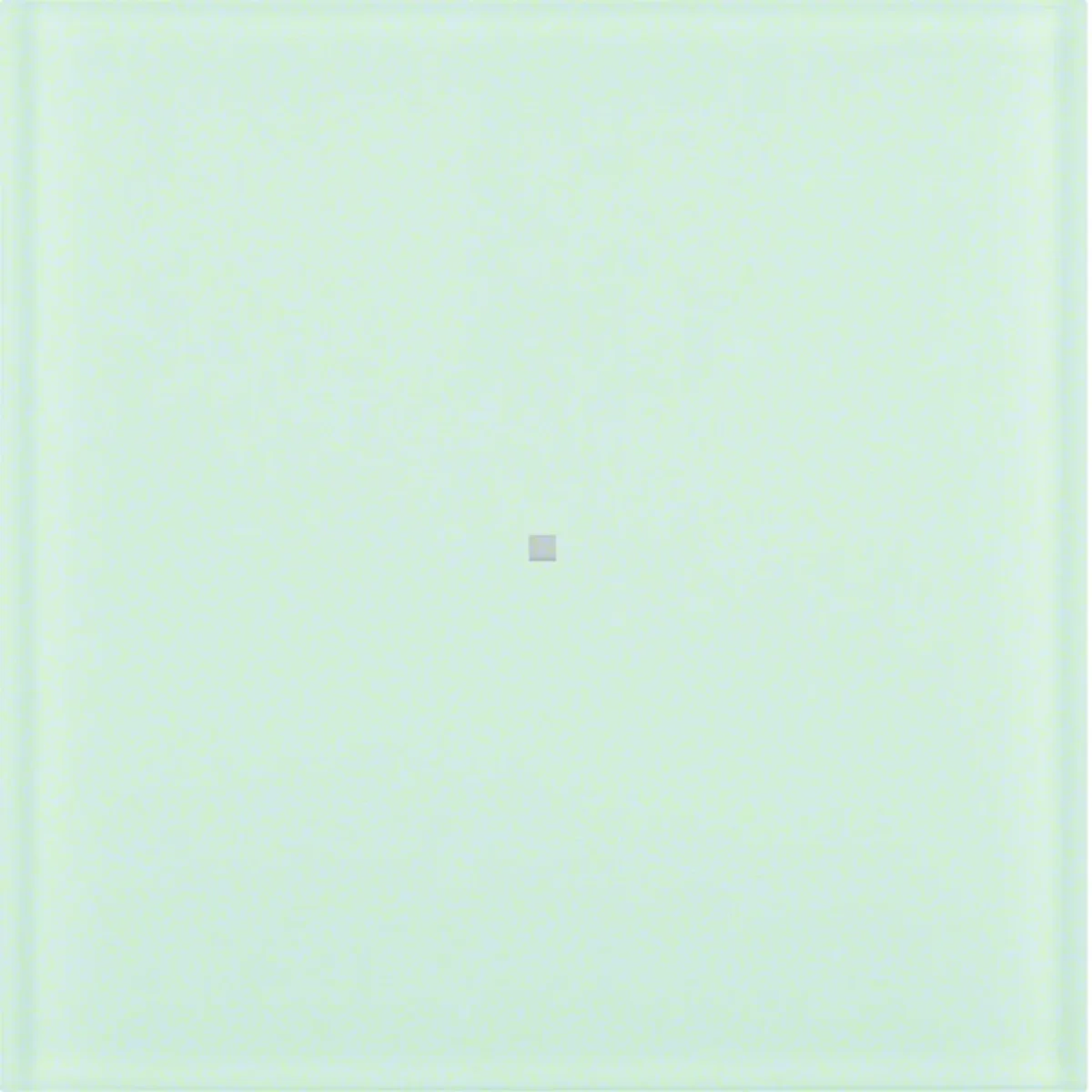

B.IQ Button 1-gang standard white glass 75161090
local index:
AIK108HAGE
Catalog No:
75161090
EAN code:
4011334380825
Price:
198,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Single button standard Berker B.IQ series.
- Functions: switching on/pressing, dimming and blinds control,
- Compatibility: extension to buttons for calling up light scenes,
- Transmission of 1 byte value,
- With blue operation LED and 2 white status LEDs (backlighting of labeling field) ,
- Connection: to flush-mounted bus port,
- For installation in single standard built-in boxes,
- Degree of protection: IP20,
- Main design line: KNX - Berker B.IQ.
Technical data
-
Halogen freeNO
-
ColorWhite
-
InstallationFlush-mounted
-
FamilyB.I.Q
-
Width [mm]88.5
-
Surface finishLacquered
-
PKWIU27.12.31.0
-
Number of buttons1
-
MaterialGlass
-
SurfaceGloss
-
Level of securityIP20
-
Operating temperature range [°C]from -5 to 45
-
Accurate colorSnow white
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
With anti-theft/dismantling protectionYes
-
Number of actuation points2
-
With LED indicationYes
-
With displayNo
-
Material qualityOther
-
Surface finishingGlossy
-
RAL-number (similar)9010
-
With room temperature controllerNo
-
Degree of protection (IP)IP20
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodFlush-mounted
-
With bus connectionNo
-
Number of buttons1
-
With label areaNo
-
MaterialGlass
-
Surface protectionLacquered
-
ColourWhite
-
TransparentNo
-
With IR sensorNo
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 7 pcs. | 224 pcs. |
| Weight (kg) | 0,224 | 0,225 | 1,945 | 87,240 |
| Width (m) | 0,089 | 0,125 | 0,300 | 0,800 |
| Length (m) | 0,017 | 0,090 | 0,225 | 1,050 |
| Depth (m) | 0,089 | 0,225 | 0,400 | 1,200 |
