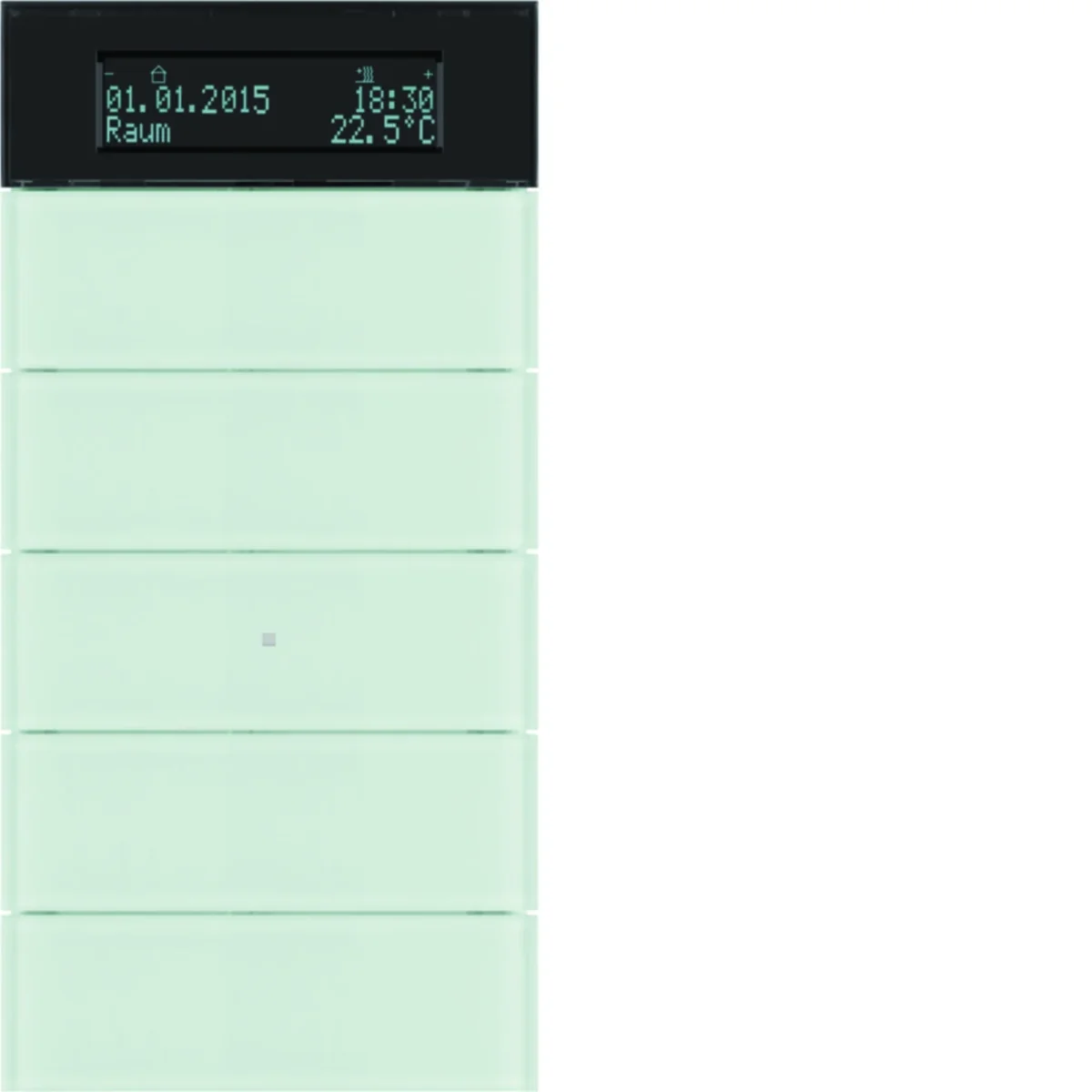

B.IQ 5-fold button with temperature regulator and white glass display 75665590

5-fold button with temperature regulator and display, Berker B.IQ series.

Functions< /p>

• operating modes: comfort, standby, night and frost/overheat protection
• for switching, touch, dimming, blinds and temperature regulators
• with the possibility of activating the push-button help function
• with the valve protection function
• with the room temperature timer function and 2-function weekly on timer.

Controls and Indicators

• Micro-SDHC/SDXC Class 10 or UHS-1
• blind control configurable as short-long-short or long -short
• display of operating mode, regulator lock, internal/external temp., time (clock required)
• LCD display with symbols and backlight, with the possibility of switching on by object

Connections

• with key lock function

Measurement

• function of sending 1 and 2 byte values for dimming, illuminance and temperature

LED control

• with blue operation LED and 10 white status LEDs (description field backlight)

Connection

• to flush-mounted bus port for B.IQ with temperature controller

Settings

• configurable presence button to extend comfort mode
• configurable function display for the customer
• for plasterboard walls

Equipment

• for heating and/or cooling with/without an additional additional source
• for continuous (PI) or two-state control of up to 2 control circuits
• for individual temperature control in a single room
• with preset parameters for heating / cooling

Security

• alarm telegram after removal from bus port, 1 bit, 1 or 2 bytes

Usage conditions

• temperature measurement via internal temperature sensor and/or external communication object (weighting factor can be configured )
• provision of temperature values from the internal sensor via the communication object
