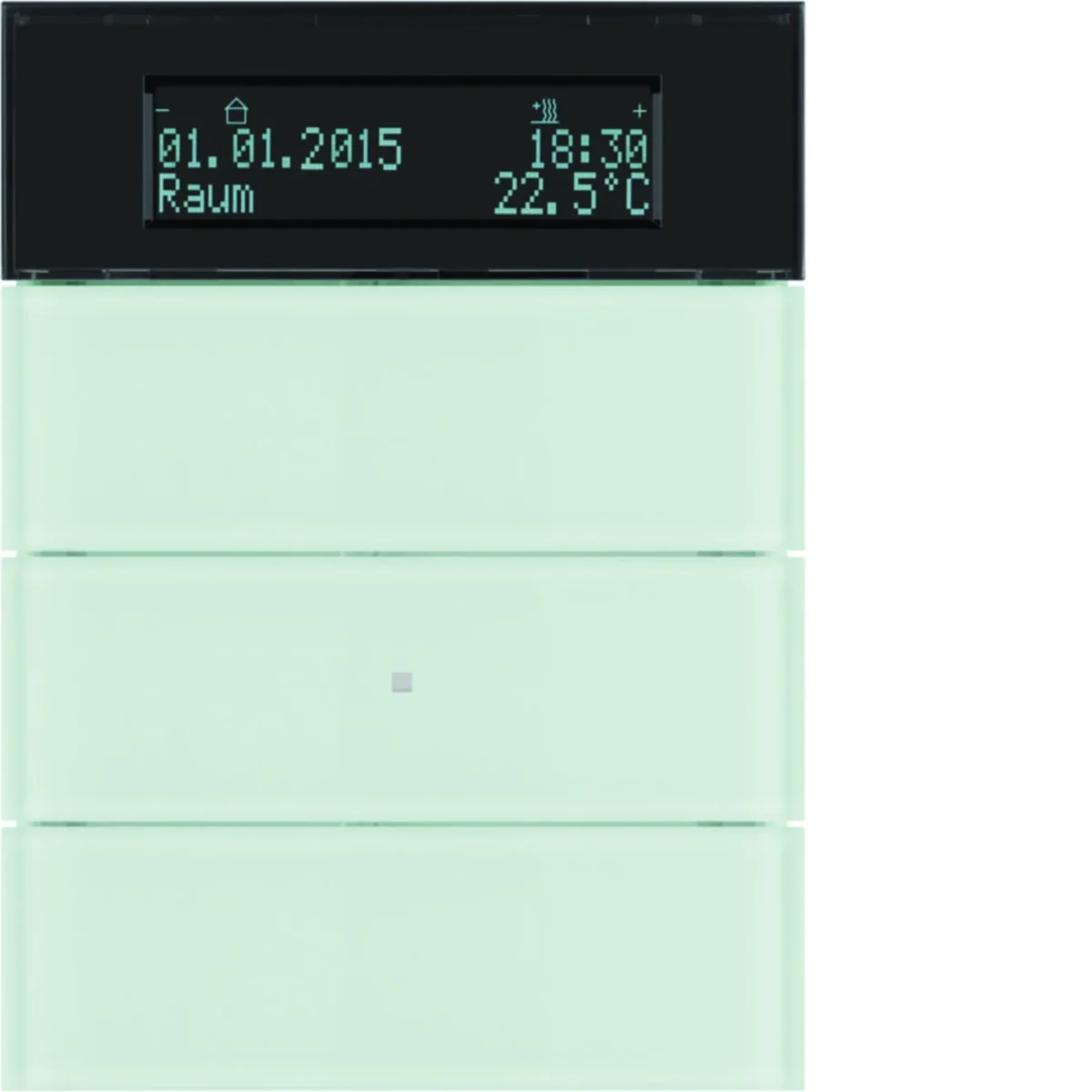

B.IQ 3-fold button with temperature regulator and white glass display 75663590

local index:
AIK216HAGE
Catalog No:
75663590
EAN code:
4011334380917
Manufacturer: HAGER
Halogen free: NO
Number of buttons: 3
Material: Glass
Price:
743,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

3-fold button with temperature regulator and display, Berker B.IQ series.

Functions< /p>

  • operating modes: comfort, standby, night and frost/overheat protection
  • for switching, touch, dimming, blinds and temperature regulators
  • with the possibility of activating the push-button help function
  • with valve protection function
  • with room temperature timer function and 2-function weekly on timer.

Controls and Indicators

  • Micro-SDHC/SDXC Class 10 or UHS-1
  • blind control configurable as short-long-short or long -short
  • display of operating mode, regulator lock, indoor/outdoor temp., time (clock required)
  • LCD display with symbols and backlight, with the option of switching on by object
  • with 2 extra display buttons

Connections

  • with key lock function

Measurements

  • function to send 1 and 2 byte values for dimming, illuminance and temperature

LED control

  • with blue operation LED and 6 white status LEDs (description field backlight)

Connection

  • for flush-mounted bus port for B.IQ with temperature controller

Settings

  • configurable presence button to extend the comfort mode
  • configurable function display for the customer
  • for plasterboard walls

Equipment

  • for heating and/or cooling with/without an additional auxiliary source
  • for continuous (PI) or two-state control of up to 2 control circuits
  • for individual temperature control in a single room
  • with preset parameters for heating / cooling

Security

  • alarm telegram after removal from the bus port, 1 bit, 1 or 2 bytes

Terms of use

  • temperature measurement by internal sensor and/or external communication object (weighing factor can be configured)
  • providing temperature values from the internal sensor via communication object

Technical data

  • Halogen free
    NO
  • Material
    Glass
  • Width [mm]
    88.5
  • Operating temperature range [°C]
    from -5 to 45
  • Number of buttons
    3
  • Family
    B.I.Q
  • Height [mm]
    119.6
  • PKWIU
    27.12.31.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Width in number of modular spacings
    0
  • With display
    Yes
  • IR sensor
    No
  • Presence button
    Yes
  • With time switch clock
    Yes
  • Central functional unit for senders/actuators
    Yes
  • Material quality
    Other
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • Number of actuation points
    8
  • Status-LED
    Yes
  • Manual set point setting
    Yes
  • With integrated DCF77 receiver
    No
  • With anti-theft/dismantling protection
    Yes
  • Material
    Glass
  • Surface protection
    Lacquered
  • Colour
    White
  • Transparent
    No
  • With bus connection
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 7 pcs. 224 pcs.
Weight (kg) 0,172 0,350 2,815 113,080
Width (m) 0,120 0,065 0,300 0,800
Length (m) 0,017 0,065 0,225 1,050
Depth (m) 0,089 0,140 0,400 1,200
