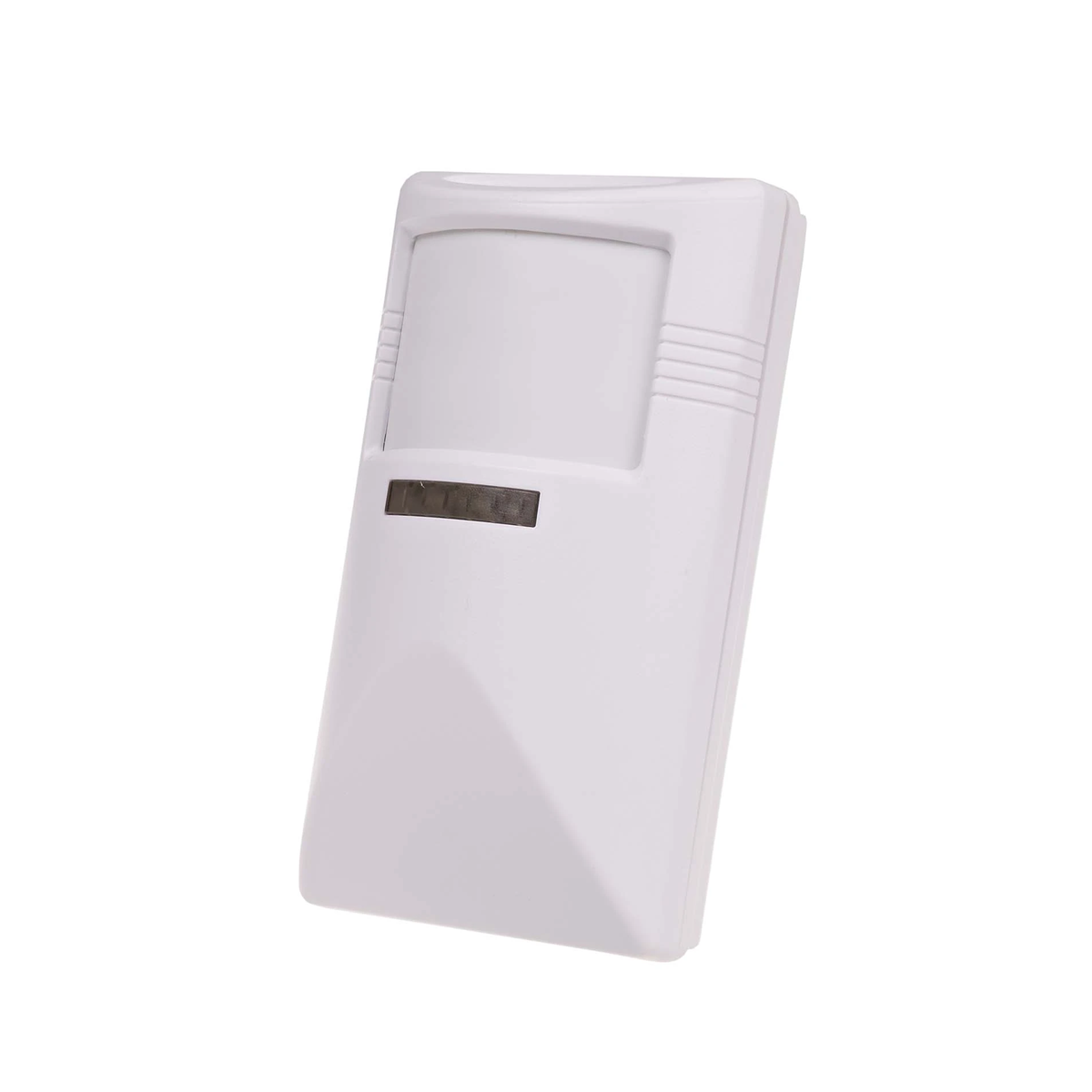

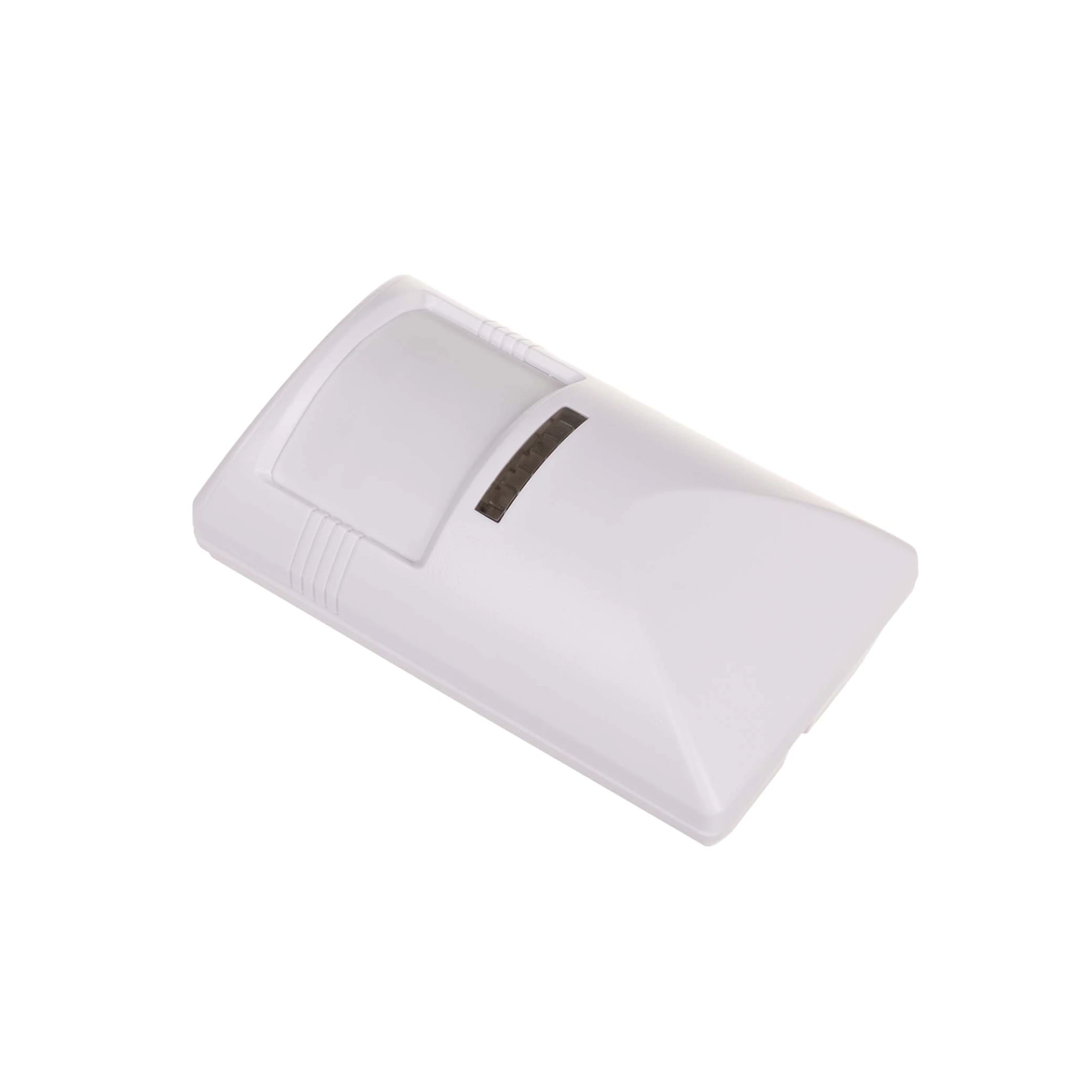

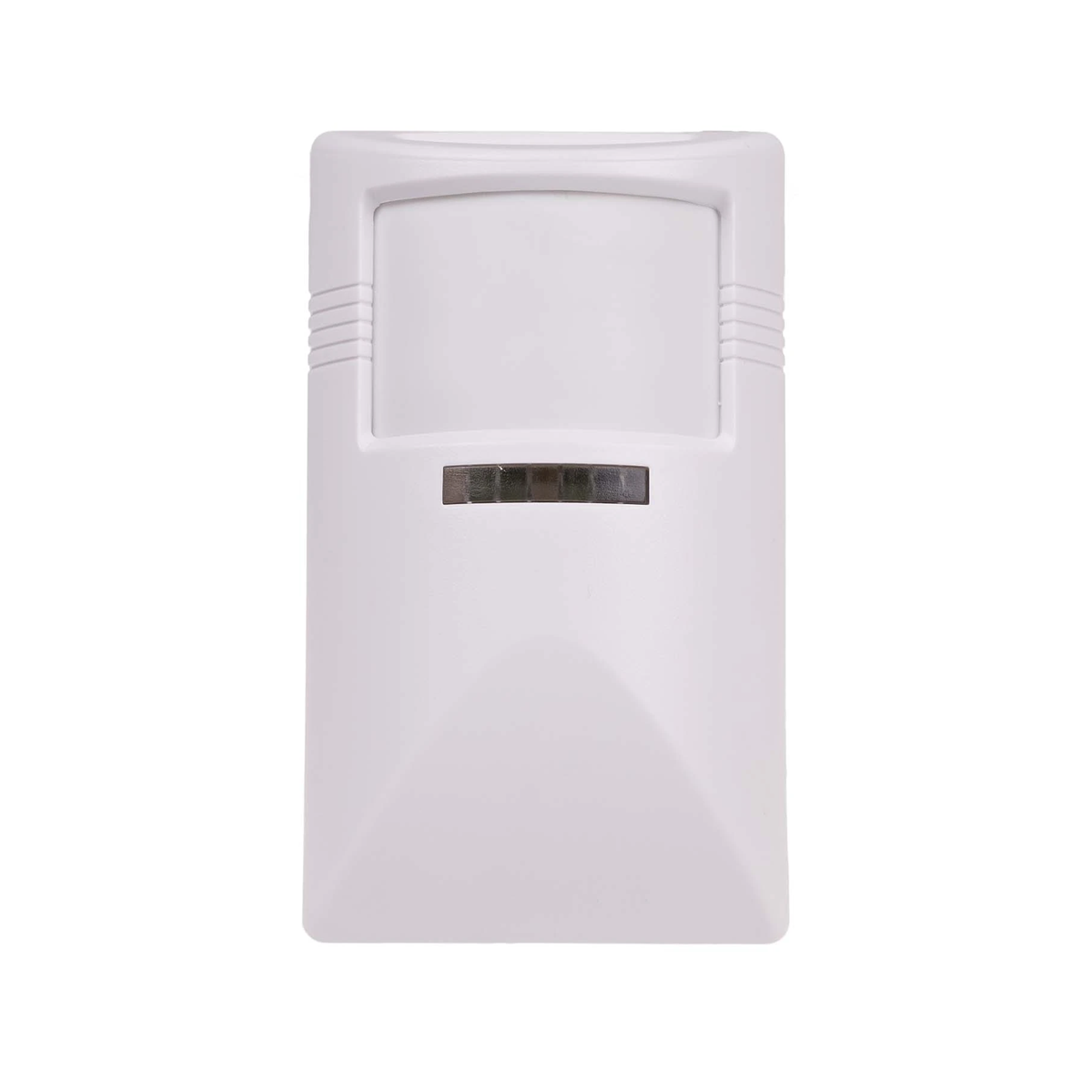

Battery powered motion sensor RH-P1

local index:
APL008FIFQ
Catalog No:
RH-P1
EAN code:
5908312596554
Manufacturer: F&F
Number of channels: 1
Maximum straight range [m]: 15
Detection field: 9m
Price:
75,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The rH-P1 sensor is a low-current, passive motion detector. The sensor detects people by detecting changes in infrared radiation. Each change is transmitted to the server. Communication is wireless. Typical application is the control of lighting, ventilation and work as part of an integrated alarm system.

Technical data

  • Number of channels
    1
  • Detection field
    9m
  • Working temperature [°C]
    -20-45
  • Package width [mm]
    80
  • PKWIU
    27.12.24.0
  • Maximum straight range [m]
    15
  • Family
    F&HOME RADIO
  • Package height [mm]
    120
  • Package weight [kg]
    0.4

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    9002
  • With bus connection
    No
  • Creep-under protection
    Yes
  • Animal zone
    No
  • Response value luminosity adjustable
    No
  • Switch-off delay self-learning
    No
  • Max. reach sideways
    2 m
  • Diameter reach on floor
    9 m
  • Detection angle horizontal
    1 ... 110 °
  • Number of channels
    1
  • Min. switch-on time
    0.1 s
  • Min. depth of built-in installation box
    0 mm
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    Other
  • Model
    Movement sensor
  • Material
    Plastic
  • Surface protection
    Other
  • Colour
    White
  • Transparent
    No
  • Substation input
    No
  • Operation mode switch
    No
  • Staircase light controller
    Yes
  • Teach-function for response value luminosity
    No
  • Optimum mounting height
    2 m
  • Max. reach frontally
    15 m
  • Detection angle vertical
    1 ... 60 °
  • Number of digital inputs
    0
  • Switching power
    0 W
  • Max. duty cycle
    36000 min

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,120
