Automation
Relays and drivers
Other automation elements

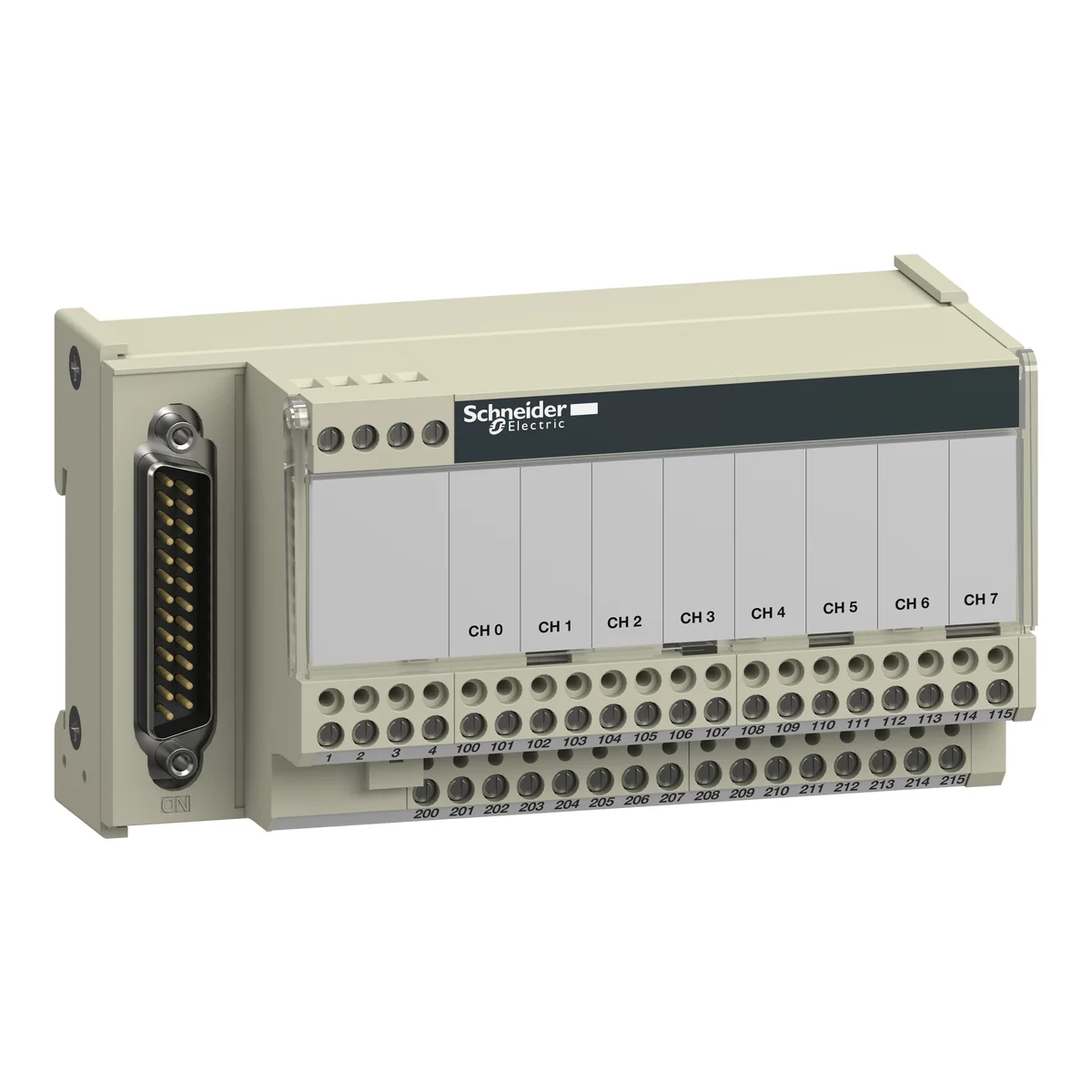

Basis for analog signals ABE7CPA02
local index:
API169SCHN
Catalog No:
ABE7CPA02
EAN code:
3389110644463
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Fixing:
screw terminals
See full description
Price:
204,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
Basis for analog signals
Technical data
Fixing
screw terminals
PKWIU
26.20.40.0
Other technical data
Connectable conductor cross section
0.09 ... 2.5 mm²
Length of the preassembled cable
3 m
Number of sensor-/actuator-slots
1
Type of branches for sensor-/actuator cables
Other
Pollution degree
2
Material contact body
Other copper alloys
Material insulation body
Other
With LED indication
No
Connection for NPN-sensors
No
Housing material
Plastic, metallized
Operating temperature
0 ... 60 °C
Explosion safety category for gas
None
Width
125 mm
Depth
67 mm
Cable outer diameter for cable gland
0.09 ... 2.5 mm
Cable length configurable
Yes
Number of channels per connector slot
8
Number of poles sensor/actuator slots
8
Diameter contact female
2.5 mm
Material of contact surface
Other
Thread sleeves sensor/actuator slots
Other
With potential separation
No
Fix cable version suitable for cable guide chain
No
Housing colour
Grey
Degree of protection (IP)
IP20
Explosion safety category for dust
None
Height
70 mm
See more >>
