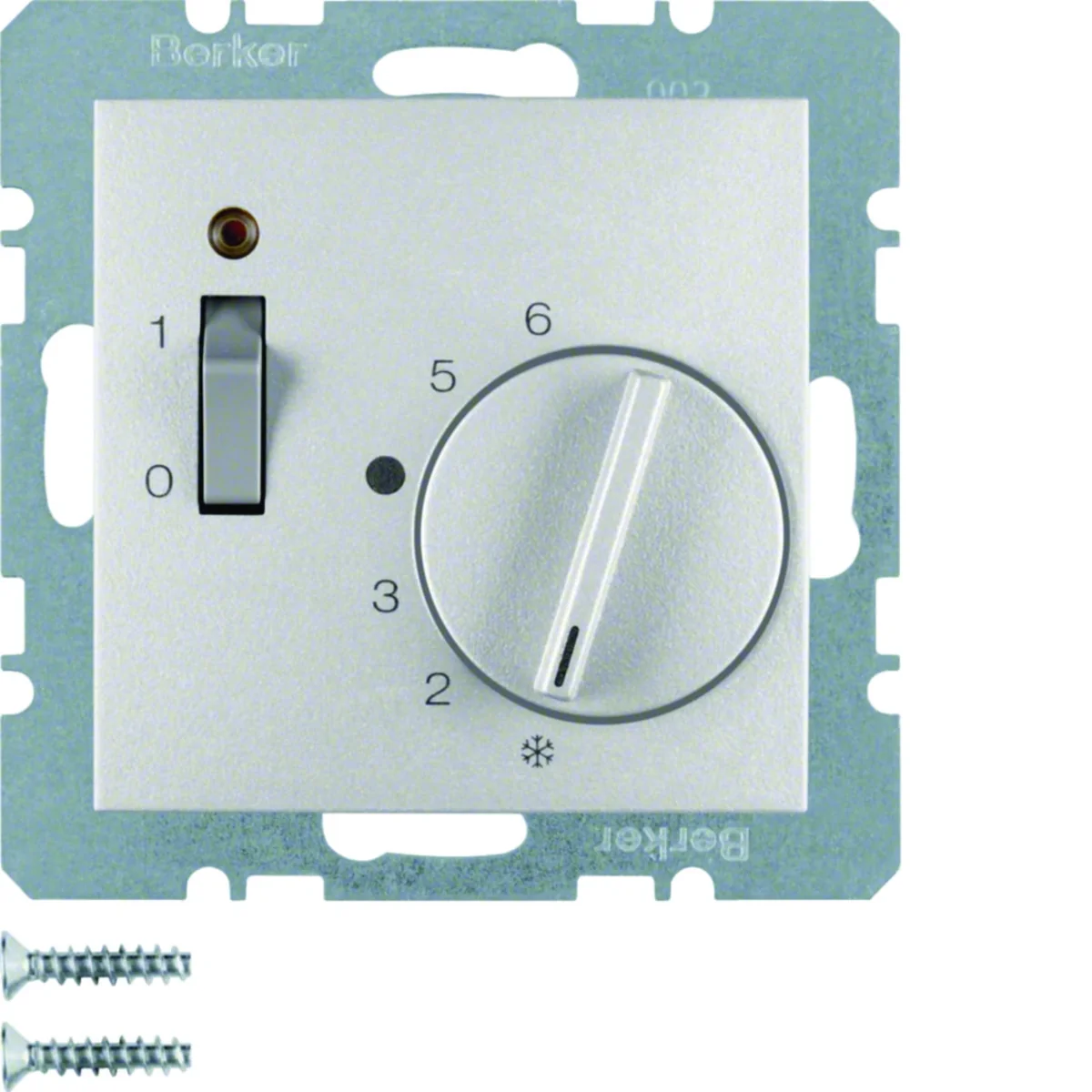

B.7 Room temperature controller 24V with NO contact, central element and aluminum connector 20311404

local index:
APT053BERK
Catalog No:
20311404
EAN code:
4011334309857
Manufacturer: BERKER
Rated voltage [V]: 24
DC rated voltage [V]: 24
Rated current [A]: 4
Price:
137,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Room temperature controller with NO contact and central element, series BerkerB.7.

  • with a switch and a LED indicating activation
  • with a separate connection for the night mode
  • for plasterboard walls
  • e.g. for valve drives closed in a de-energized state< /li>
  • rated voltage: 24V AC/DC

Technical data

  • Rated voltage [V]
    24
  • Rated current [A]
    4
  • Switching temperature difference [K]
    ≈ 0.5
  • AC rated voltage [V]
    24
  • PKWIU
    26.51.70.0
  • DC rated voltage [V]
    24
  • Family
    B.7
  • Temperature range [°C]
    5-30
  • Connection type
    With plug-in terminals

Other technical data

  • Model
    On/Off
  • Differential value
    0.5 ... 0.5 K
  • Sensor/feeler type
    Bimetal
  • Degree of protection (IP)
    IP20
  • RAL-number
    9006
  • Width
    71 mm
  • Class of the temperature control
    I
  • Thermal feedback
    Series
  • Temperature readable
    No
  • Mounting method
    Flush-mounted
  • Colour
    Other
  • Height
    71 mm
  • Depth
    50.9 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,100 0,120 4,765 172,470
Width (m) 0,071 0,084 0,300 0,800
Length (m) 0,051 0,070 0,225 1,050
Depth (m) 0,071 0,085 0,400 1,200
