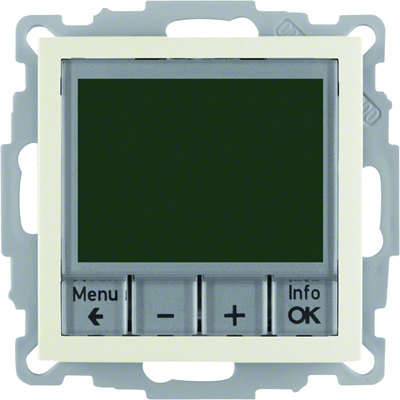

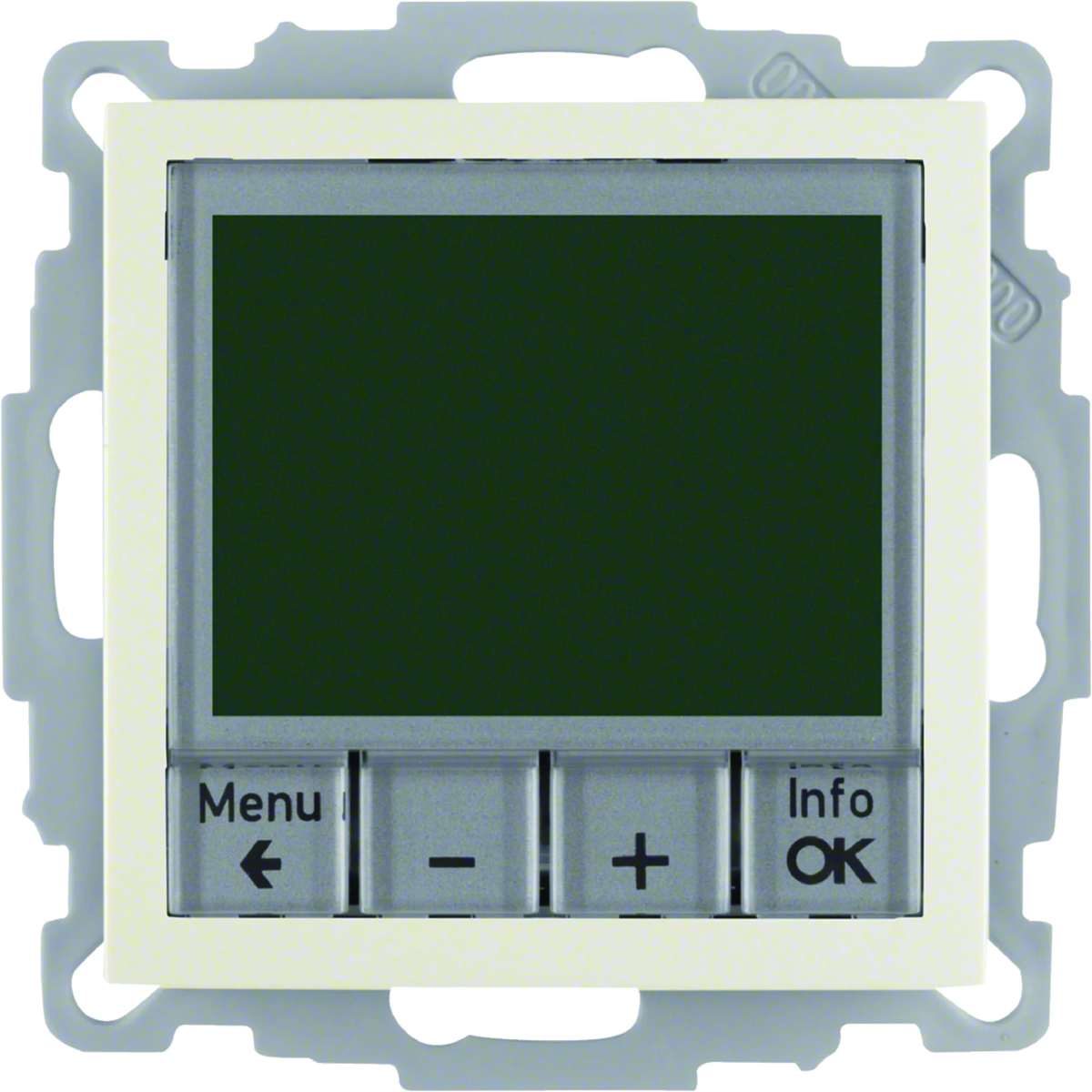

B. SQUARE Temperature regulator with time control and cream central element 20448982

local index:
APT088BERK
Catalog No:
20448982
EAN code:
4011334354697
Manufacturer: BERKER
Rated voltage [V]: 230
DC rated voltage [V]: 230
Power consumption [W]: 1.2
Price:
263,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Temperature controller with time control and a central element, from the Berker B.Kwadrat series.

Features

  • with freeze protection
  • adjustable hour meter or energy consumption indicator
  • timer for timed temperature control< /li>
  • with access protection
  • with valve protection
  • manual/automatic switchover

Controls and indicators

  • selectable interface language: German, English, Dutch or French
  • large, backlit text display

< strong>Accessories

  • for heating or air conditioning
  • with self-learning heating curve
  • with underfloor heating, regulation is possible via room temperature and/or floors
  • for space and floor heating
  • selectable PWM or 2-point control (on/off)
  • cycle times can be set PWM and hysteresis (with 2-point control)
  • option to set the type of valve drive (closed/open in the de-energized state)

Technical data

  • Rated voltage [V]
    230
  • Power consumption [W]
    1.2
  • Family
    B.SQUARE
  • Mounting depth [mm]
    25
  • PKWIU
    26.51.70.0
  • DC rated voltage [V]
    230
  • Rated current [A]
    0.01
  • Switching temperature difference [K]
    ≈ 0.5
  • Connection type
    With screw terminals

Other technical data

  • Model
    On/Off
  • Temperature readable
    Yes
  • Mounting method
    Flush-mounted
  • RAL-number
    9001
  • Width
    71 mm
  • Class of the temperature control
    IV
  • Differential value
    0.5 ... 0.5 K
  • Sensor/feeler type
    Resistance sensor
  • Degree of protection (IP)
    IP20
  • Height
    71 mm
  • Depth
    42 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,170 0,175 6,740 240,680
Width (m) 0,071 0,085 0,300 0,800
Length (m) 0,042 0,075 0,225 1,050
Depth (m) 0,071 0,085 0,400 1,200
