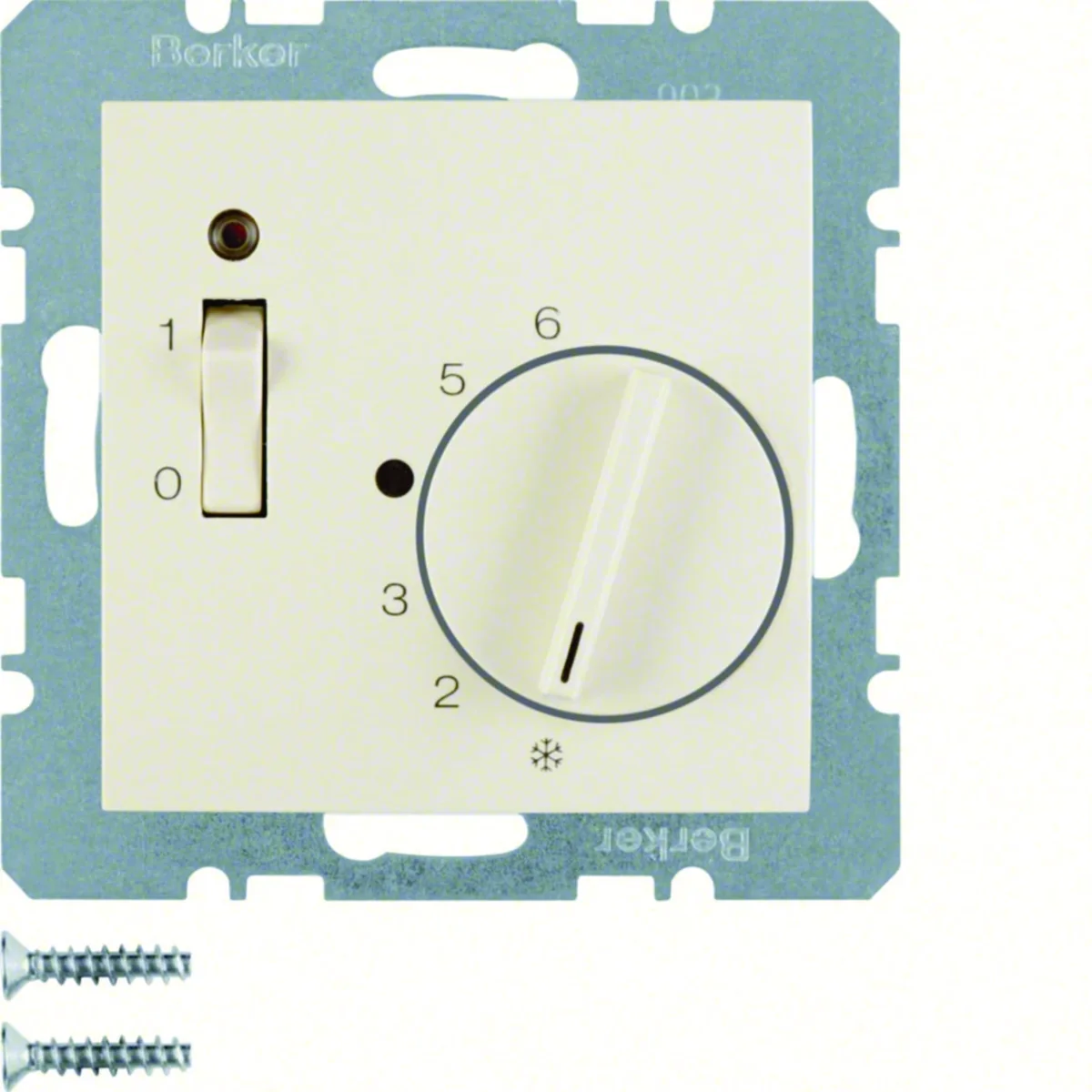

B. SQUARE 24V room temperature controller with NO contact, central element and connector, cream 20318982

Name: B. SQUARE 24V room temperature controller with NO contact, central element and connector, cream
Brand: BERKER
SKU: APT063BERK
Price: 128.60 PLN

local index:

APT063BERK

Catalog No:

20318982

EAN code:

4011334309819

B. SQUARE 24V room temperature controller with NO contact, central element and connector, cream

Click on the photo to enlarge

Manufacturer: BERKER

Rated voltage [V]: 24

DC rated voltage [V]: 24

Rated current [A]: 4

See full description

Price:

128,60 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Room temperature controller with NO contact and central element, Berker seriesB.Kwadrat.

with a switch and a LED indicating activation
with a separate connection for the night mode
for plasterboard walls
e.g. for valve drives closed in a de-energized state< /li>
rated voltage: 24V AC/DC

Technical data

Rated voltage [V]

24
Rated current [A]

4
Switching temperature difference [K]

≈ 0.5
AC rated voltage [V]

24
PKWIU

26.51.70.0

DC rated voltage [V]

24
Family

B.SQUARE
Temperature range [°C]

5-30
Connection type

With plug-in terminals

Other technical data

Model

On/Off
Differential value

0.5 ... 0.5 K
Sensor/feeler type

Bimetal
Degree of protection (IP)

IP20
Height

71 mm
Depth

46 mm

Thermal feedback

Series
Temperature readable

No
Mounting method

Flush-mounted
RAL-number

9001
Width

71 mm
Class of the temperature control

I

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,099	0,110	4,729	171,318
Width (m)	0,071	0,085	0,300	0,800
Length (m)	0,046	0,070	0,225	1,050
Depth (m)	0,071	0,085	0,400	1,200
