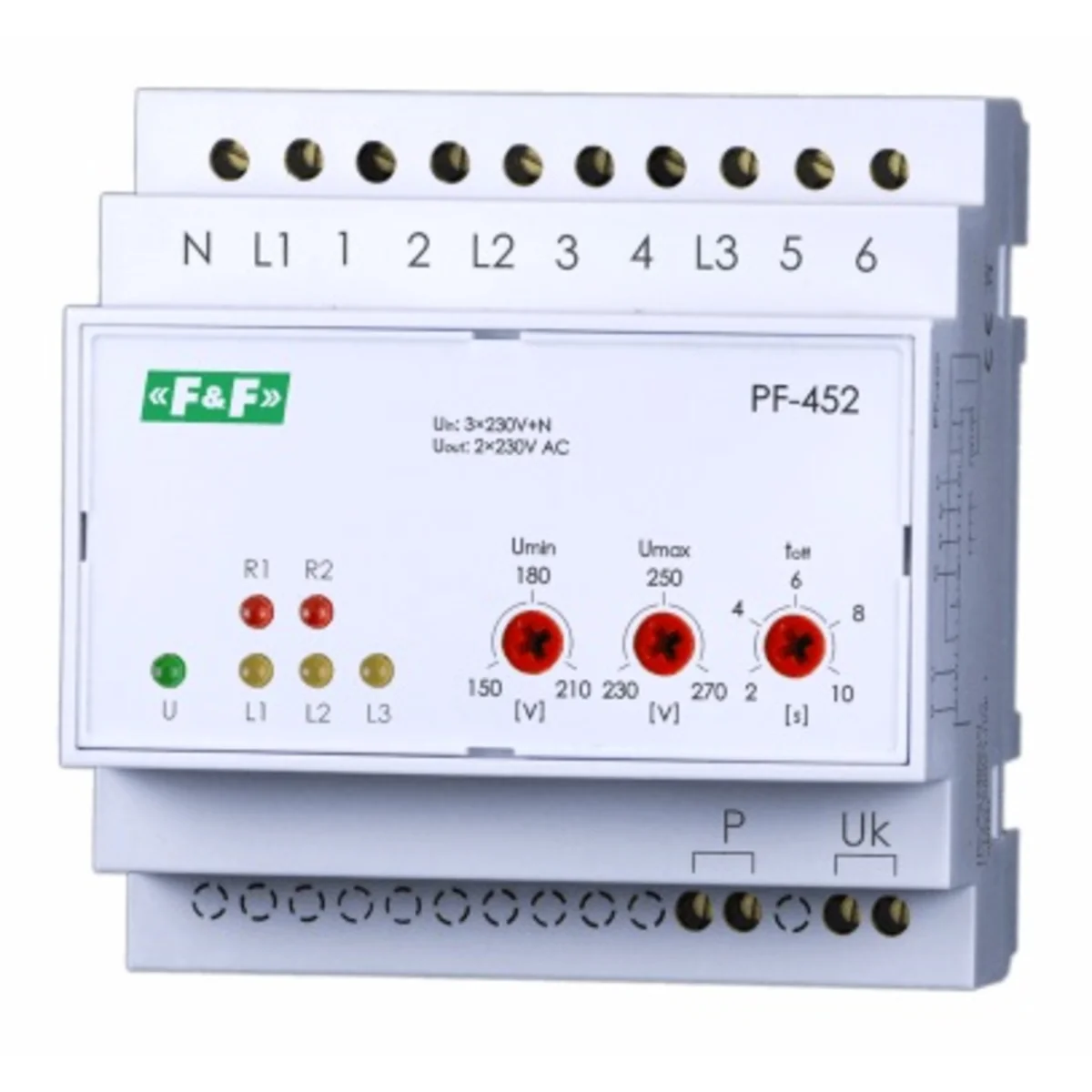

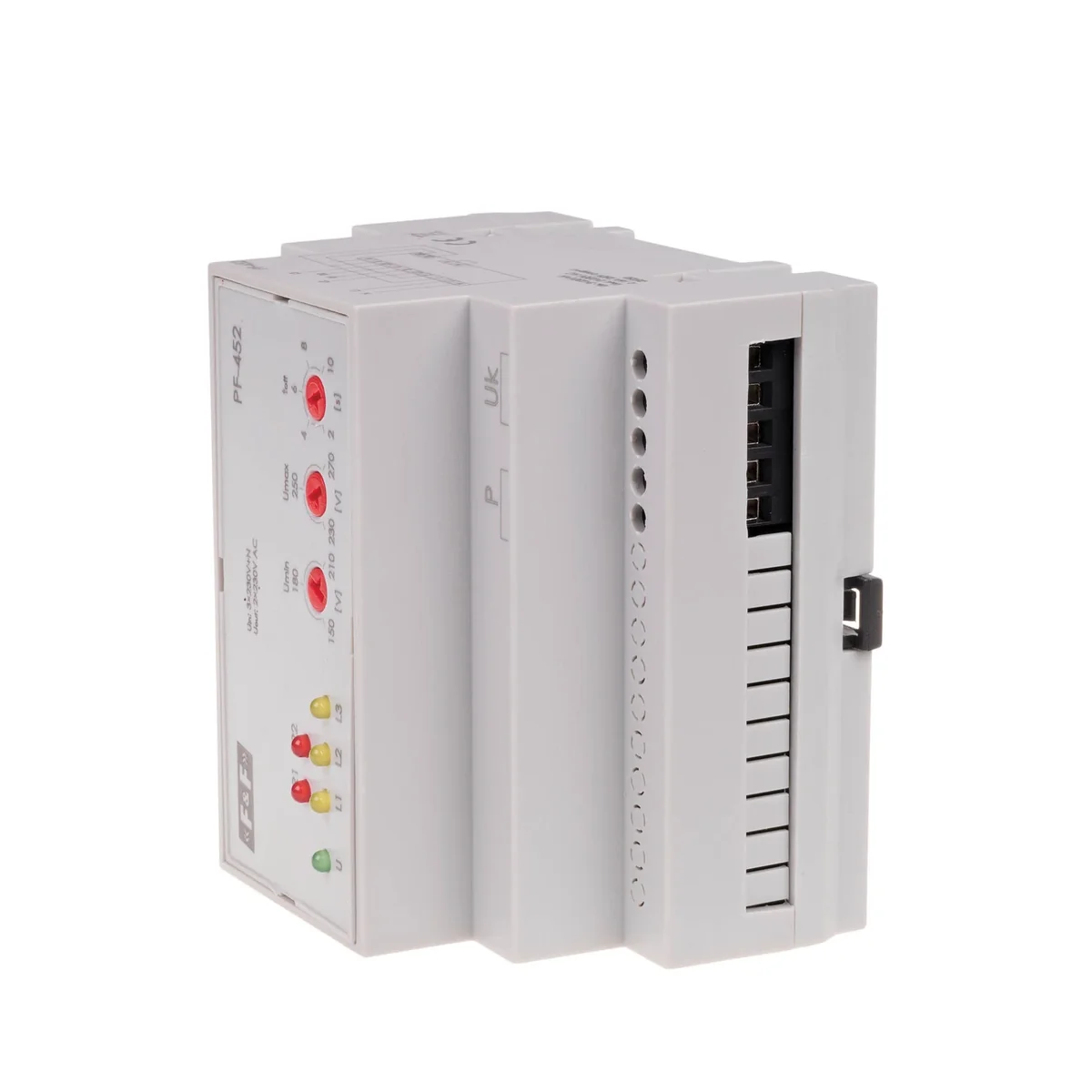

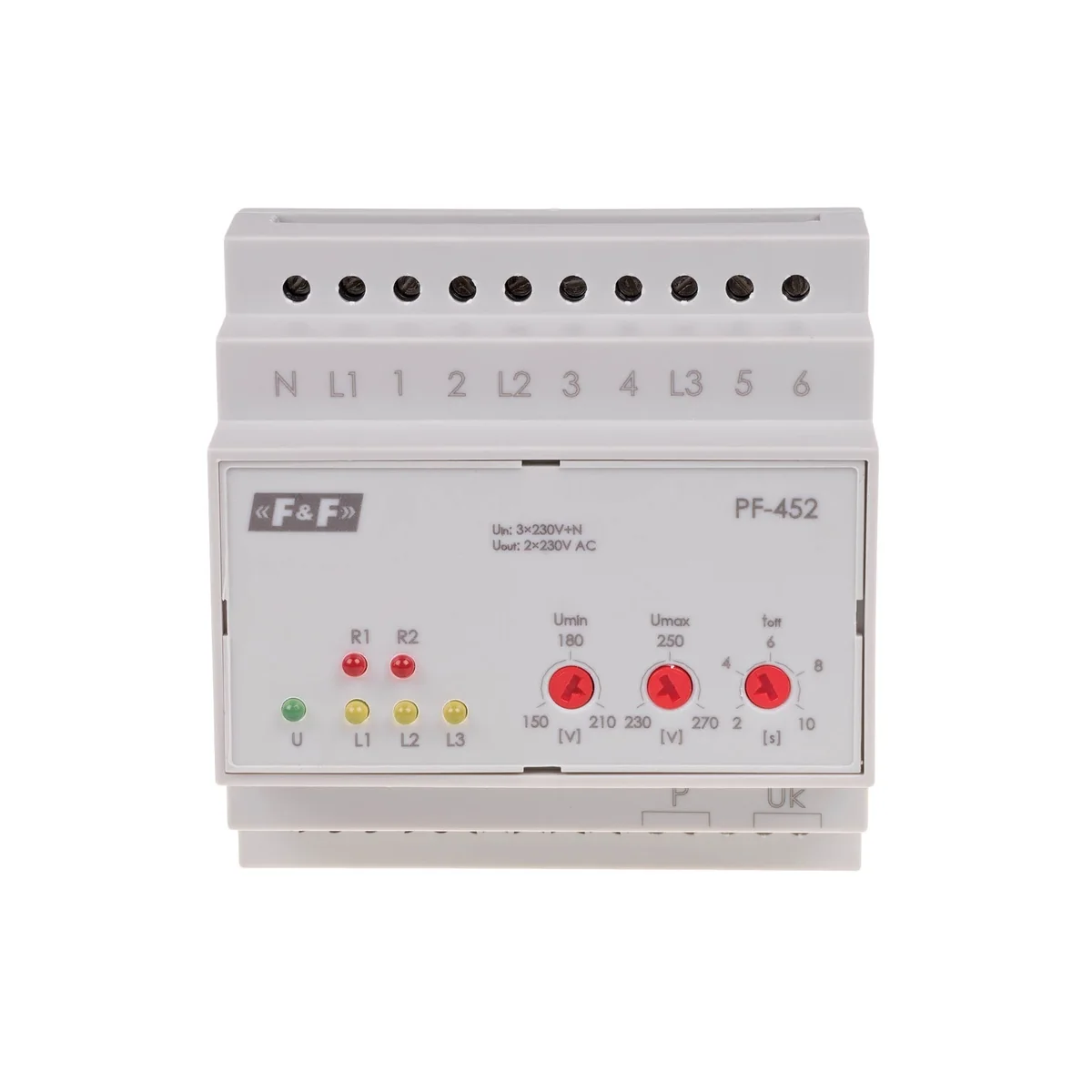

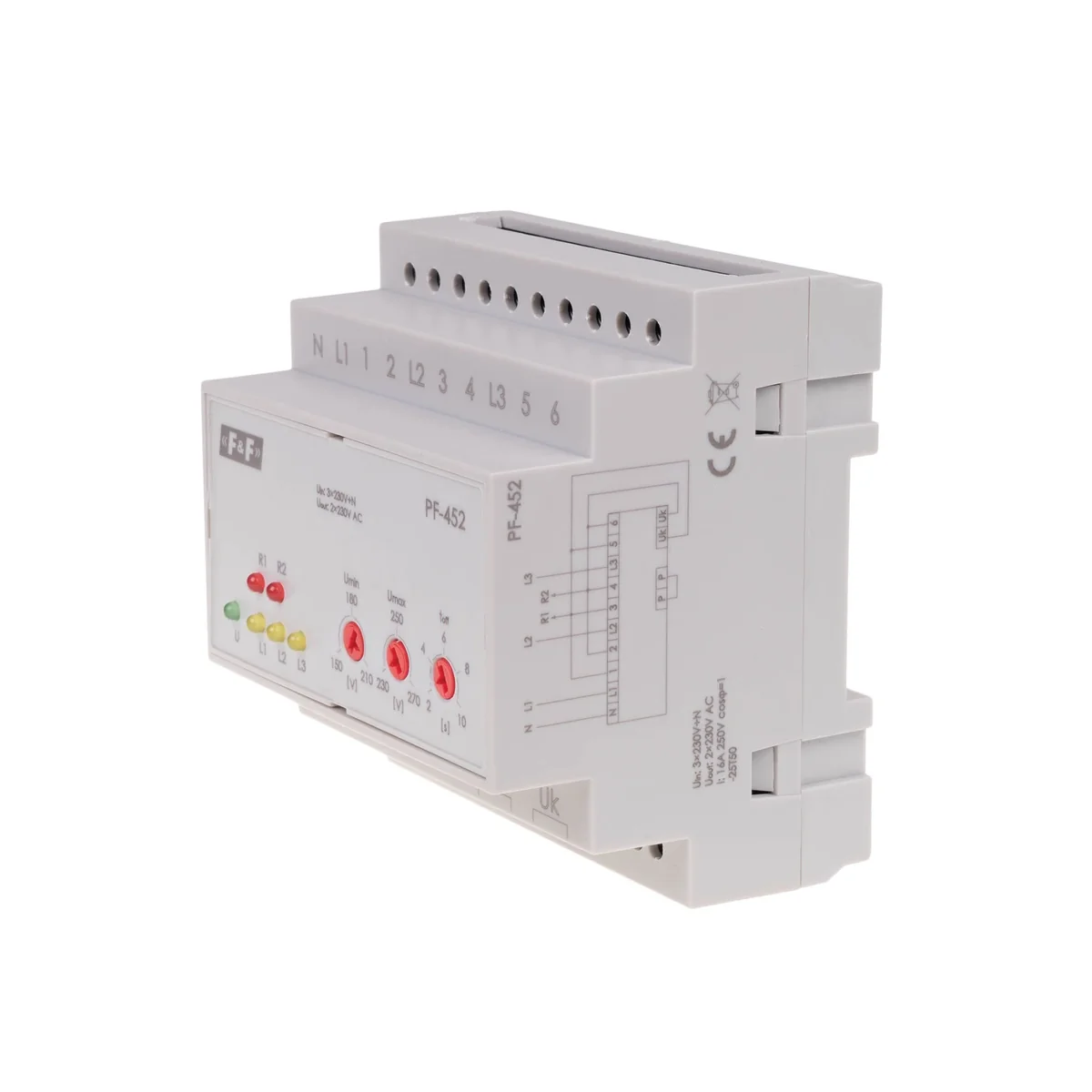

Automatic phase changer with phase voltage output PF-452
local index:
API101FIFQ
Catalog No:
PF-452
EAN code:
5908312590347
Price:
102,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The PF-452 automatic phase switch is used to maintain the continuity of power supply in a two-phase circuit in the event of a loss or drop in the parameters of one of the supply phases. Optionally, it can be used as a controller to power selected circuits when connected to one or two phases of a non-full-phase power supply.
| Minimum adjustable time delay on power failure [s] | 2 |
| Maximum allowed time delay on power failure [s] | 10< /td> |
Technical data
-
Package height [mm]90
-
Package weight [kg]0.4
-
Number of NO contacts2
-
Package width [mm]65
-
Voltage range150-270V
-
PKWIU27.12.24.0
Other technical data
-
Type of electric connectionScrew connection
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Phase sequence monitoringNo
-
Function under voltage detectionYes
-
Phase imbalance monitoringNo
-
Min. adjustable off-delay time2 s
-
Number of contacts as normally open contact2
-
Width85 mm
-
Depth65 mm
-
With detachable clampsNo
-
Voltage type for actuatingAC
-
Phase failure detectionYes
-
Function over voltage detectionYes
-
Voltage measuring range150 ... 270 V
-
Max. permitted off-delay time10 s
-
Number of contacts as change-over contact0
-
Height90 mm
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,246 |
| Width (m) | 0,070 |
| Length (m) | 0,090 |
| Depth (m) | 0,093 |
