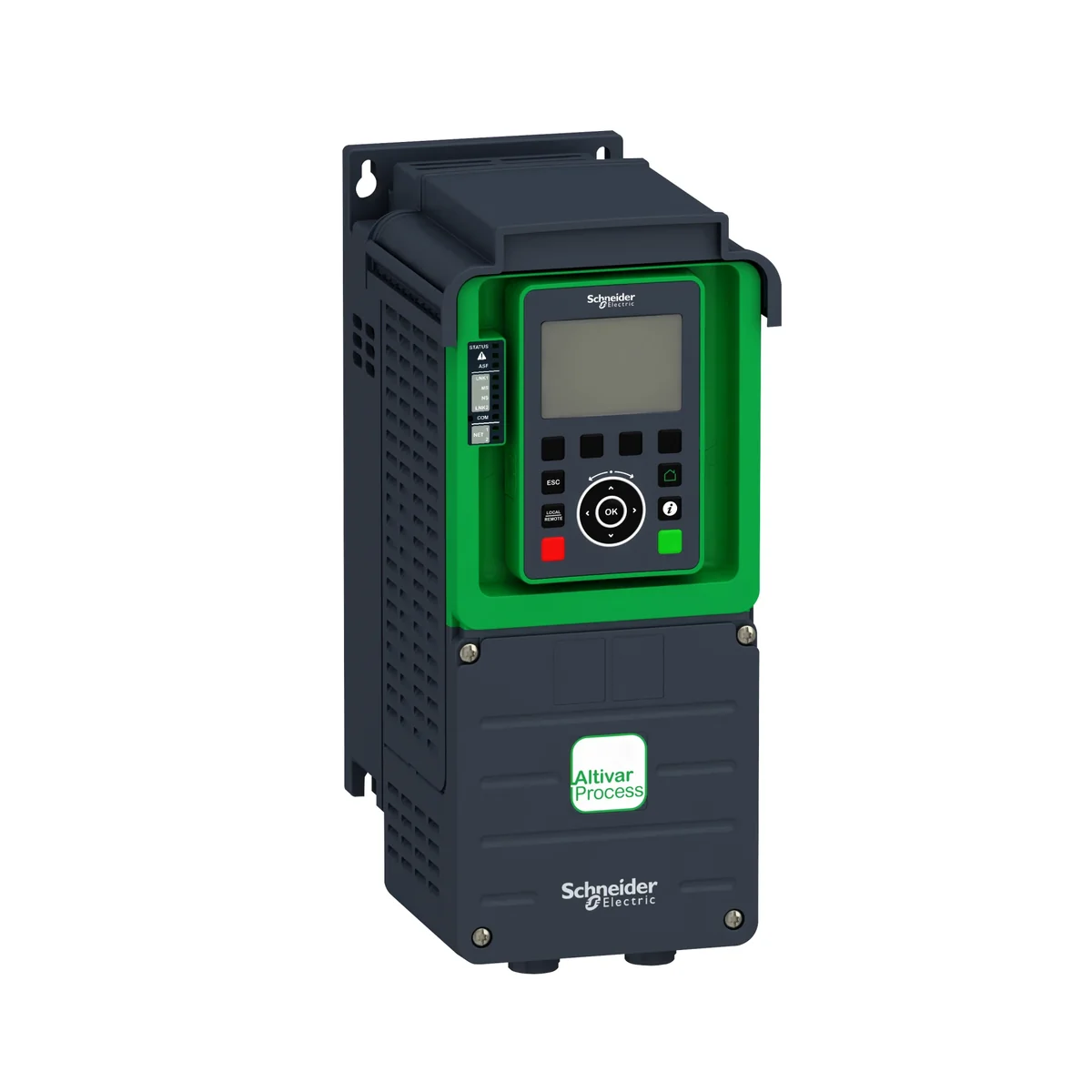

ATV930 frequency converter 3 phase 380/480VAC 50/60Hz 5.5kW 12.7A IP21 ATV930U55N4
Indeks lokalny:
API057SCHN
Numer katalogowy:
ATV930U55N4
Kod EAN:
3606480883309
Producent:
SCHNEIDER ELECTRIC
Cena:
7 567,65 zł
gross / szt.
(w tym VAT 23%)
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj
Zapytaj o produkt
Dane techniczne
Pozostałe dane techniczne
-
Mains voltage380 ... 480 V
-
Number of phases input3
-
Max. output frequency500 Hz
-
Nominal output current I2N12.7 A
-
Max. output at linear load at rated output voltage5.5 kW
-
Relative symmetric net voltage tolerance10 %
-
Number of analogue inputs3
-
Number of digital inputs8
-
Application in industrial area permittedYes
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANYes
-
Supporting protocol for ASINo
-
Supporting protocol for ModbusNo
-
Supporting protocol for DeviceNetYes
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Supporting protocol for other bus systemsYes
-
Number of interfaces PROFINET0
-
Number of HW-interfaces RS-4220
-
Number of HW-interfaces serial TTY0
-
Number of HW-interfaces parallel0
-
With optical interfaceYes
-
Integrated breaking resistanceNo
-
Type of converterU converter
-
Height350 mm
-
Depth206 mm
-
Mains frequency50/60 Hz
-
Number of phases output3
-
Max. output voltage480 V
-
Max. output at quadratic load at rated output voltage5.5 kW
-
Relative symmetric net frequency tolerance5 %
-
Number of analogue outputs2
-
Number of digital outputs1
-
With control elementYes
-
Application in domestic- and commercial area permittedYes
-
Supporting protocol for PROFIBUSYes
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for KNXNo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IOYes
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPYes
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for BACnetNo
-
Number of HW-interfaces industrial Ethernet0
-
Number of HW-interfaces RS-2320
-
Number of HW-interfaces RS-4853
-
Number of HW-interfaces USB0
-
Number of HW-interfaces other0
-
With PC connectionNo
-
4-quadrant operation possibleYes
-
Degree of protection (IP)IP21
-
Width144 mm
