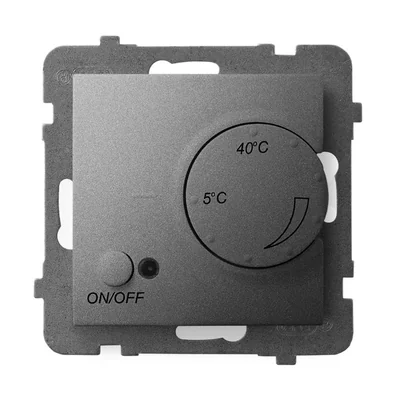

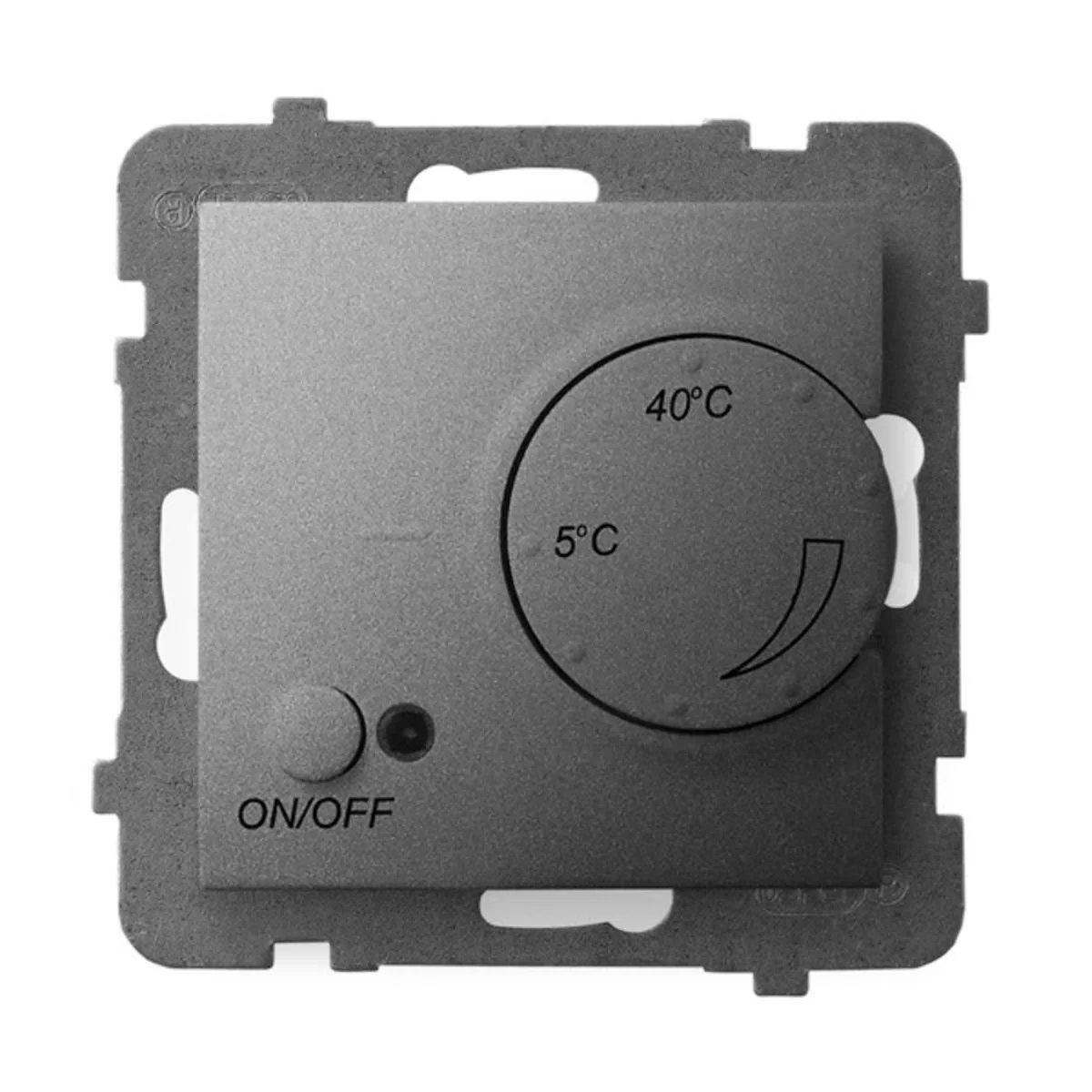

ARIA Temperature controller with underfloor sensor gray mat RTP-1U/M/70
local index:
APT011OSPE
Catalog No:
RTP-1U/M/70
EAN code:
5907577485672
Price:
102,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The temperature controller with an underfloor sensor is designed to regulate the temperature in a room with electric or water underfloor heating. The regulator is equipped with an underfloor temperature sensor as standard. A frame is required for the set. Can be used for multiple frame systems.
The temperature sensor is 3 meters long. It can be arbitrarily shortened.
Technical data
-
ColorGray
-
InstallationFlush-mounted
-
FamilyARIA
-
Level of securityIP20
-
Dimension [mm]71 x 71
-
PKWIU27.33.13.0
-
MaterialPlastic
-
Rated voltage [V]230
-
Mounting methodThread clamps
-
TypeTemperature regulators
-
Accurate colorgray matt
Other technical data
-
ModelOther
-
With receiverNo
-
Thermal feedbackSeries
-
Suitable for heatingYes
-
Number of cooler outputs0
-
Adjustable differentialNo
-
With sound indicatorNo
-
Mounting methodFlush-mounted
-
With displayNo
-
With tap water circuitNo
-
Max. contact load10 A
-
Degree of protection (NEMA)Other
-
ColourGrey
-
Height71 mm
-
Depth52 mm
-
Standby power consumption (solstandby)0.5 W
-
Type of power supply230 V AC
-
External sensorYes
-
Control characteristicOther
-
Number of heater outputs1
-
Differential value0 ... 0.5 K
-
Temperature readableNo
-
Sensor/feeler typeResistance sensor
-
Number of modules (module system)1
-
OperationButton
-
Max. contact voltage230 V
-
Degree of protection (IP)IP20
-
Explosion-proofNo
-
RAL-number7031
-
Width71 mm
-
Class of the temperature controlV
Bulk packaging
| A kind of package | Pudełko | |
| Quantity | 1 pcs. | 5 pcs. |
| Width (m) | 0,071 | 0,171 |
| Length (m) | 0,071 | 0,342 |
| Depth (m) | 0,054 | 0,088 |
