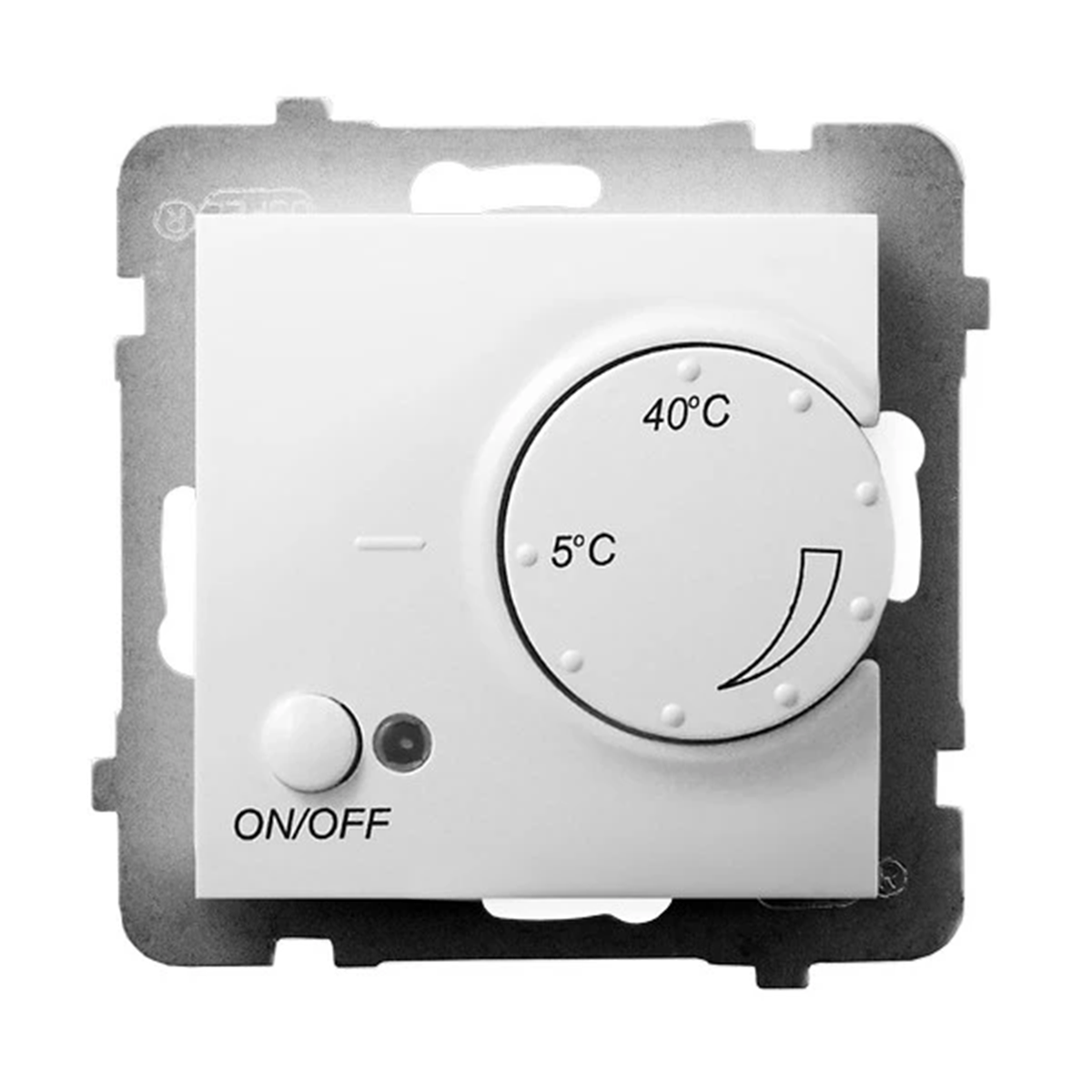

ARIA Temperature controller with outdoor sensor white RTP-1UN/M/00
local index:
APT012OSPE
Catalog No:
RTP-1UN/M/00
EAN code:
5907577482756
Price:
46,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The temperature controller with an outdoor sensor is designed to control the temperature in rooms with any type of heating (underfloor heating, radiators). A frame is required for the set. Can be used for multiple frame systems.
Technical data
-
ColorWhite
-
InstallationFlush-mounted
-
FamilyARIA
-
Level of securityIP20
-
Dimension [mm]71 x 71
-
MaterialPlastic
-
Rated voltage [V]230
-
Mounting methodThread clamps
-
TypeTemperature regulators
-
PKWIU27.33.13.0
Other technical data
-
ModelOther
-
With receiverNo
-
Thermal feedbackSeries
-
Suitable for heatingYes
-
Number of cooler outputs0
-
Adjustable differentialNo
-
With sound indicatorNo
-
Mounting methodFlush-mounted
-
With displayNo
-
With tap water circuitNo
-
Max. contact load10 A
-
Degree of protection (NEMA)Other
-
RAL-number9003
-
Width71 mm
-
Class of the temperature controlV
-
Type of power supply230 V AC
-
External sensorNo
-
Control characteristicOther
-
Number of heater outputs1
-
Differential value0 ... 0.5 K
-
Temperature readableNo
-
Sensor/feeler typeResistance sensor
-
Number of modules (module system)1
-
OperationButton
-
Max. contact voltage230 V
-
Degree of protection (IP)IP20
-
Explosion-proofNo
-
Height71 mm
-
Depth52 mm
-
Standby power consumption (solstandby)0.5 W
Bulk packaging
| A kind of package | Pudełko | |
| Quantity | 1 pcs. | 5 pcs. |
| Width (m) | 0,071 | 0,162 |
| Length (m) | 0,071 | 0,237 |
| Depth (m) | 0,054 | 0,090 |
