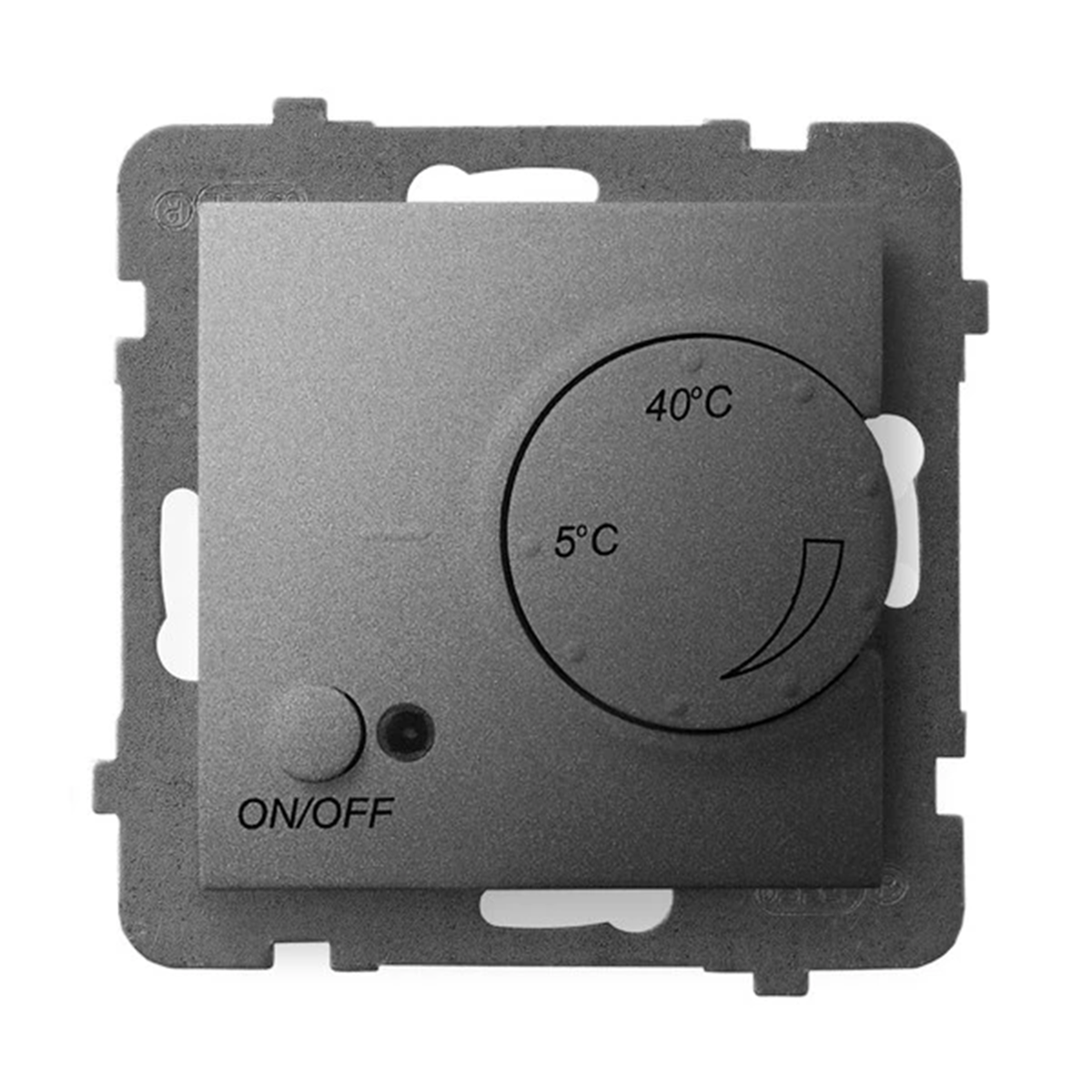

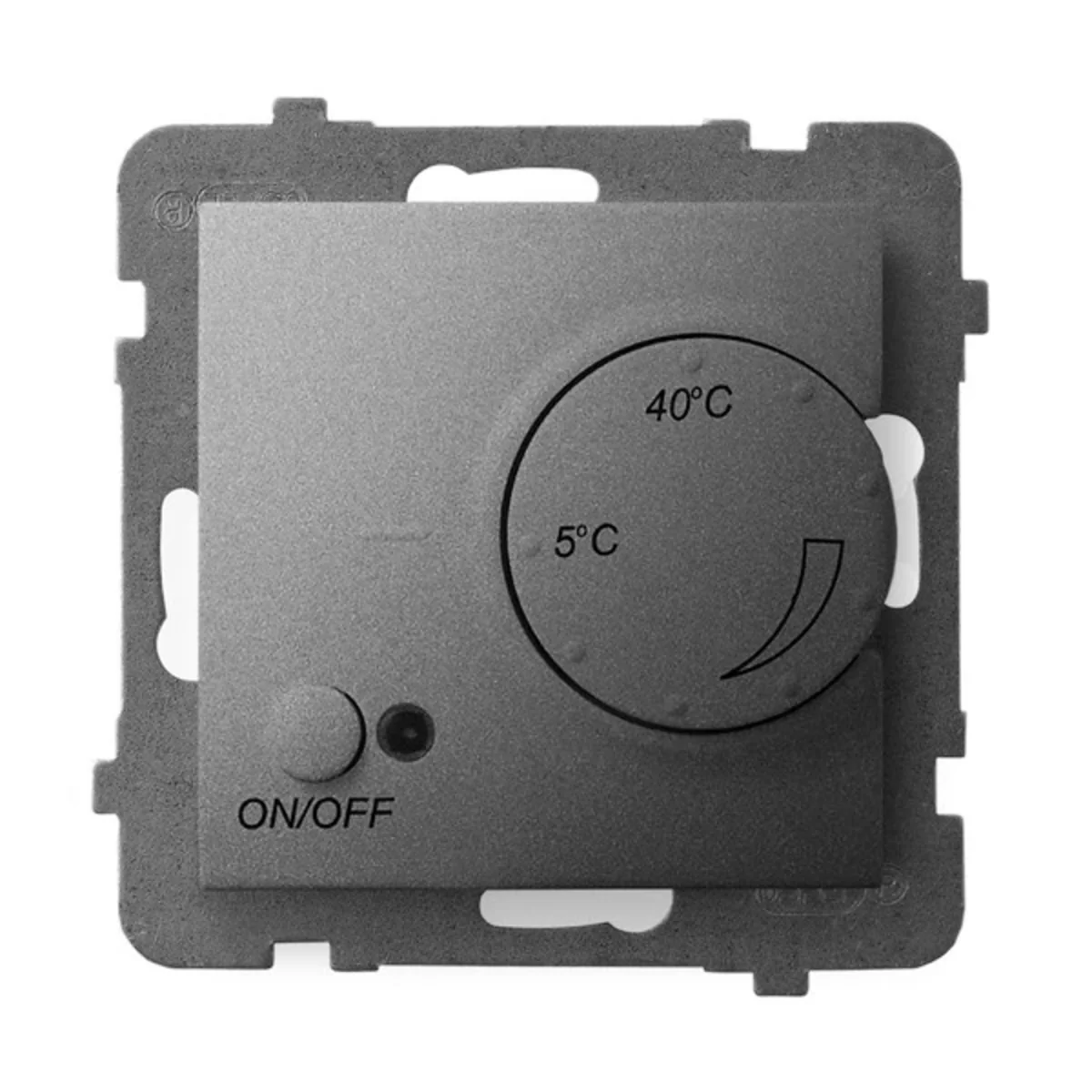

ARIA Temperature controller with an overhead sensor gray mat RTP-1UN/M/70

local index:
APT016OSPE
Catalog No:
RTP-1UN/M/70
EAN code:
5907577485498
Manufacturer: OSPEL
Color: Gray
Material: Plastic
Installation: Flush-mounted
Price:
57,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The temperature controller with an outdoor sensor is designed to control the temperature in rooms with any type of heating (underfloor heating, radiators). A frame is required for the set. Can be used for multiple frame systems.

Technical data

  • Color
    Gray
  • Installation
    Flush-mounted
  • Family
    ARIA
  • Level of security
    IP20
  • Dimension [mm]
    71 x 71
  • PKWIU
    27.33.13.0
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Mounting method
    Thread clamps
  • Type
    Temperature regulators
  • Accurate color
    gray matt

Other technical data

  • Model
    Other
  • With receiver
    No
  • Thermal feedback
    Series
  • Suitable for heating
    Yes
  • Number of cooler outputs
    0
  • Adjustable differential
    No
  • With sound indicator
    No
  • Mounting method
    Flush-mounted
  • With display
    No
  • With tap water circuit
    No
  • Max. contact load
    10 A
  • Degree of protection (NEMA)
    Other
  • Colour
    Grey
  • Height
    71 mm
  • Depth
    52 mm
  • Standby power consumption (solstandby)
    0.5 W
  • Type of power supply
    230 V AC
  • External sensor
    No
  • Control characteristic
    Other
  • Number of heater outputs
    1
  • Differential value
    0 ... 0.5 K
  • Temperature readable
    No
  • Sensor/feeler type
    Resistance sensor
  • Number of modules (module system)
    1
  • Operation
    Button
  • Max. contact voltage
    230 V
  • Degree of protection (IP)
    IP20
  • Explosion-proof
    No
  • RAL-number
    7031
  • Width
    71 mm
  • Class of the temperature control
    V

Bulk packaging

A kind of package Pudełko
Quantity 5 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
