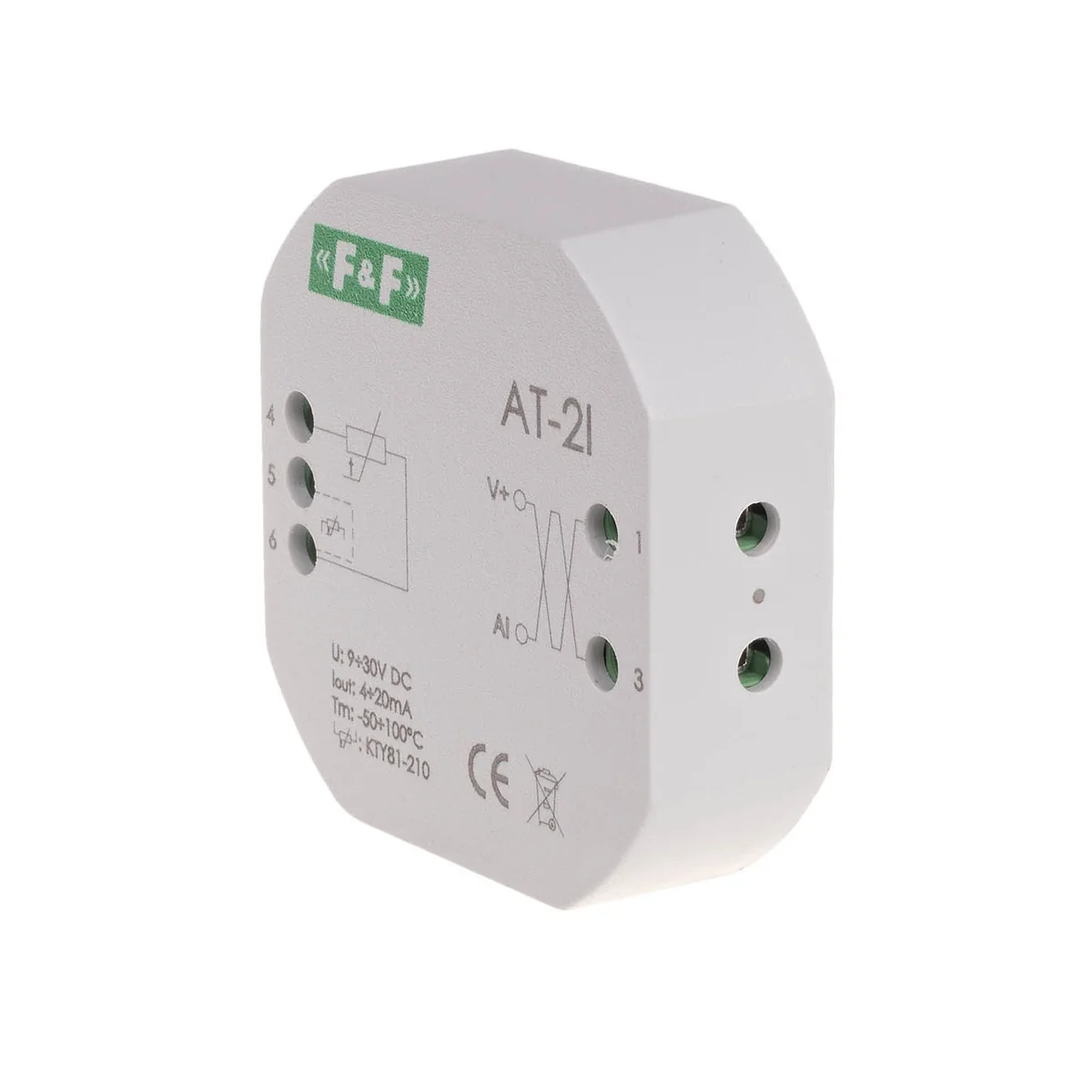

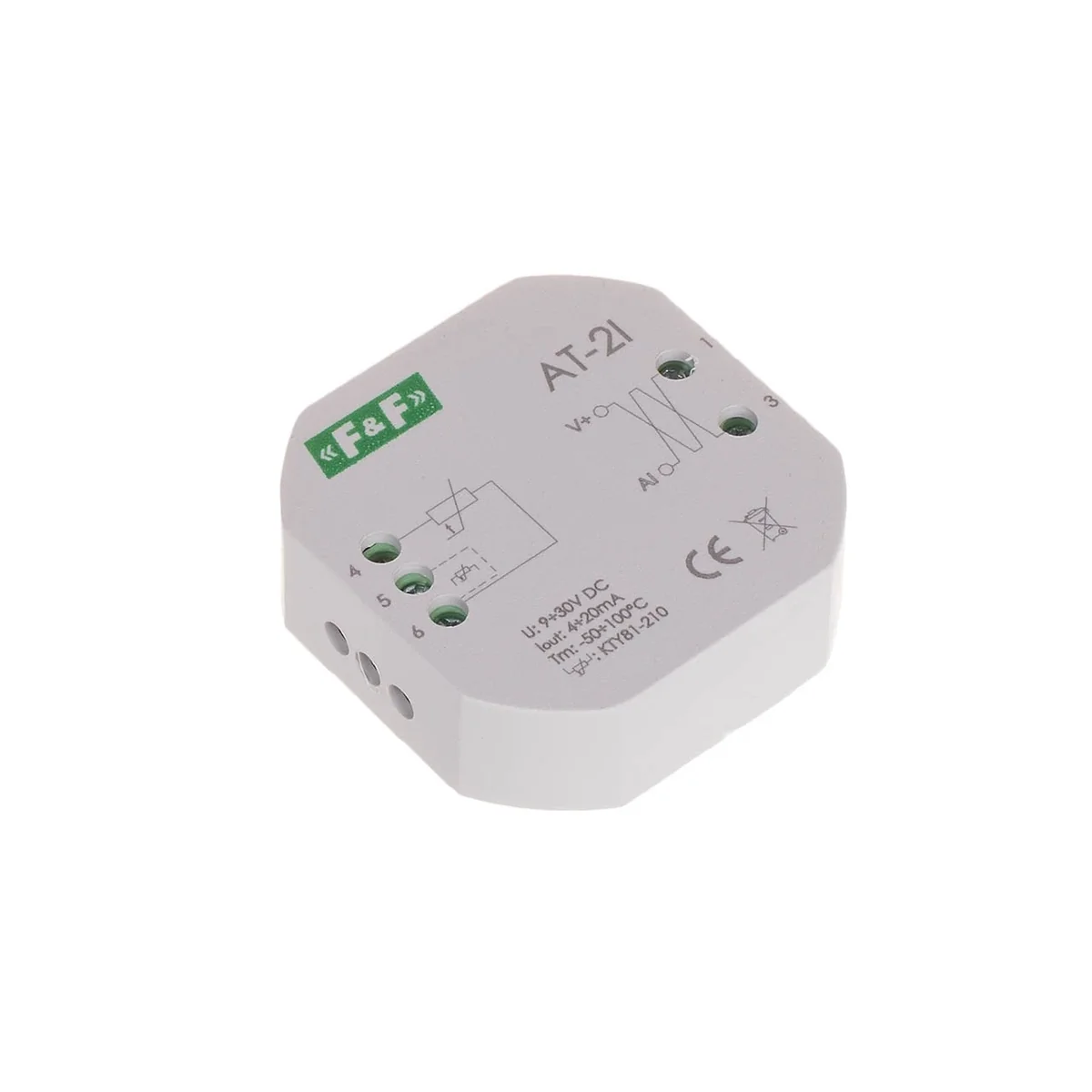

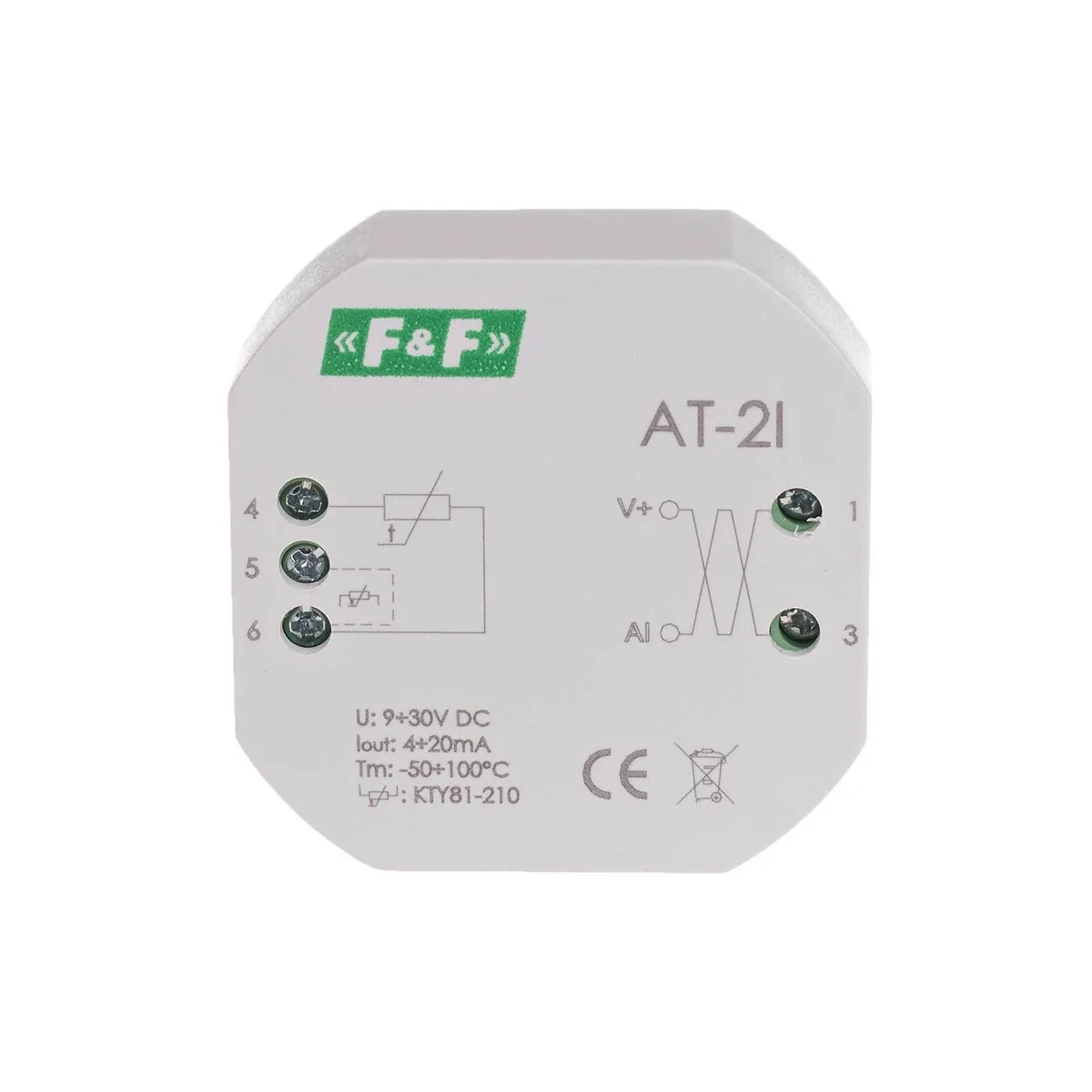

Analogue temperature converter - current [4-20mA]; PDT MAX-AT-2I
local index:
APT007FIFQ
Catalog No:
MAX-AT-2I
EAN code:
5908312594598
![Analogue temperature converter - current [4-20mA]; PDT](/zdjecia/analogue-temperature-converter-current-4-20ma-pdt,p42491,w60.jpg "Analogue temperature converter - current [4-20mA]; PDT")
![Analogue temperature converter - current [4-20mA]; PDT](/zdjecia/analogue-temperature-converter-current-4-20ma-pdt,p648287,w60.jpg "Analogue temperature converter - current [4-20mA]; PDT")
![Analogue temperature converter - current [4-20mA]; PDT](/zdjecia/analogue-temperature-converter-current-4-20ma-pdt,p42491,w1200.jpg "Analogue temperature converter - current [4-20mA]; PDT")
![Analogue temperature converter - current [4-20mA]; PDT](/zdjecia/analogue-temperature-converter-current-4-20ma-pdt,p648287,w1200.jpg "Analogue temperature converter - current [4-20mA]; PDT")
Price:
59,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The AT-2I transducer is designed to measure temperature using an external temperature sensor and convert the measured quantity to a unified analog current output signal in the range of 4÷20 mA.
Technical data
-
Rated voltage [V]12
-
Working temperature [°C]-40-85
-
Package width [mm]55
-
maximum measurement error [°C]1.5
-
Measuring range [°C]-50-100
-
Level of securityIP20
-
Package height [mm]13
-
Package weight [kg]0.2
-
Temperature sensorKTY81-210
-
PKWIU26.30.23.0
Other technical data
-
Measuring range-50 ... 100 °C
-
With switching outputNo
-
Integrated configuration functionNo
-
Analogue output 4 mA ... 20 mAYes
-
Modular versionNo
-
Ambient temperature-20 ... 50 °C
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 35,000 |
| Width (m) | 23,000 |
| Length (m) | 70,000 |
| Depth (m) | 95,000 |
