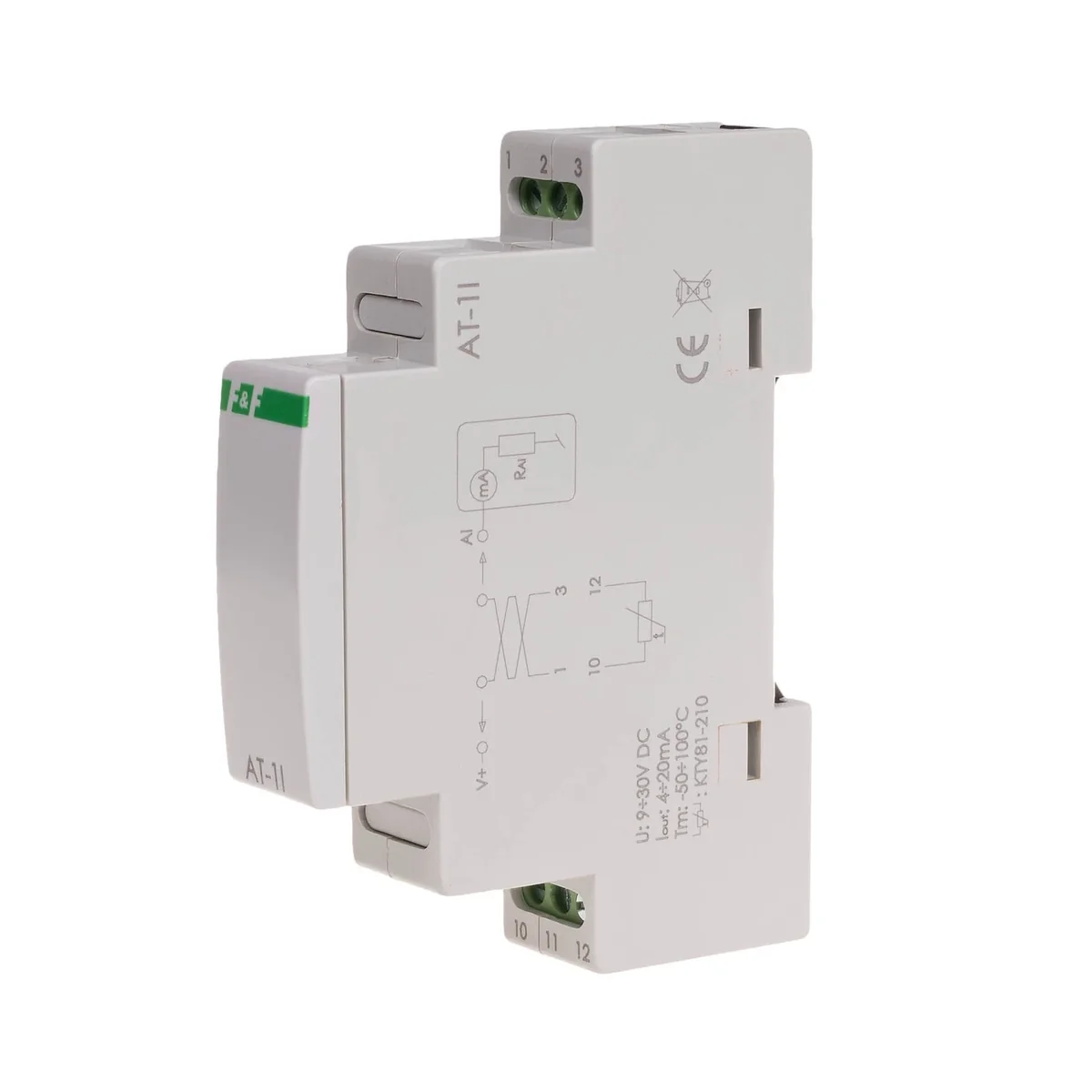

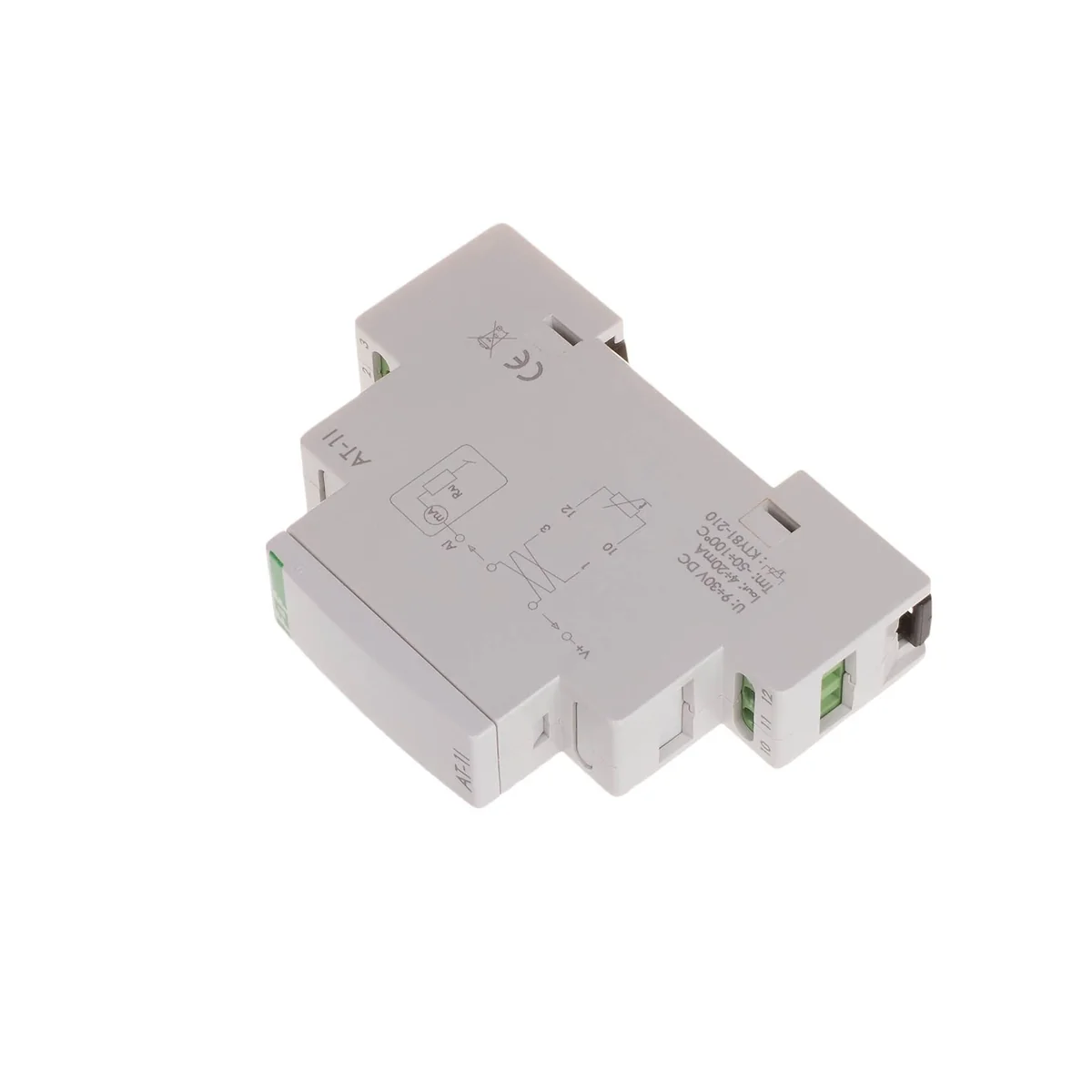

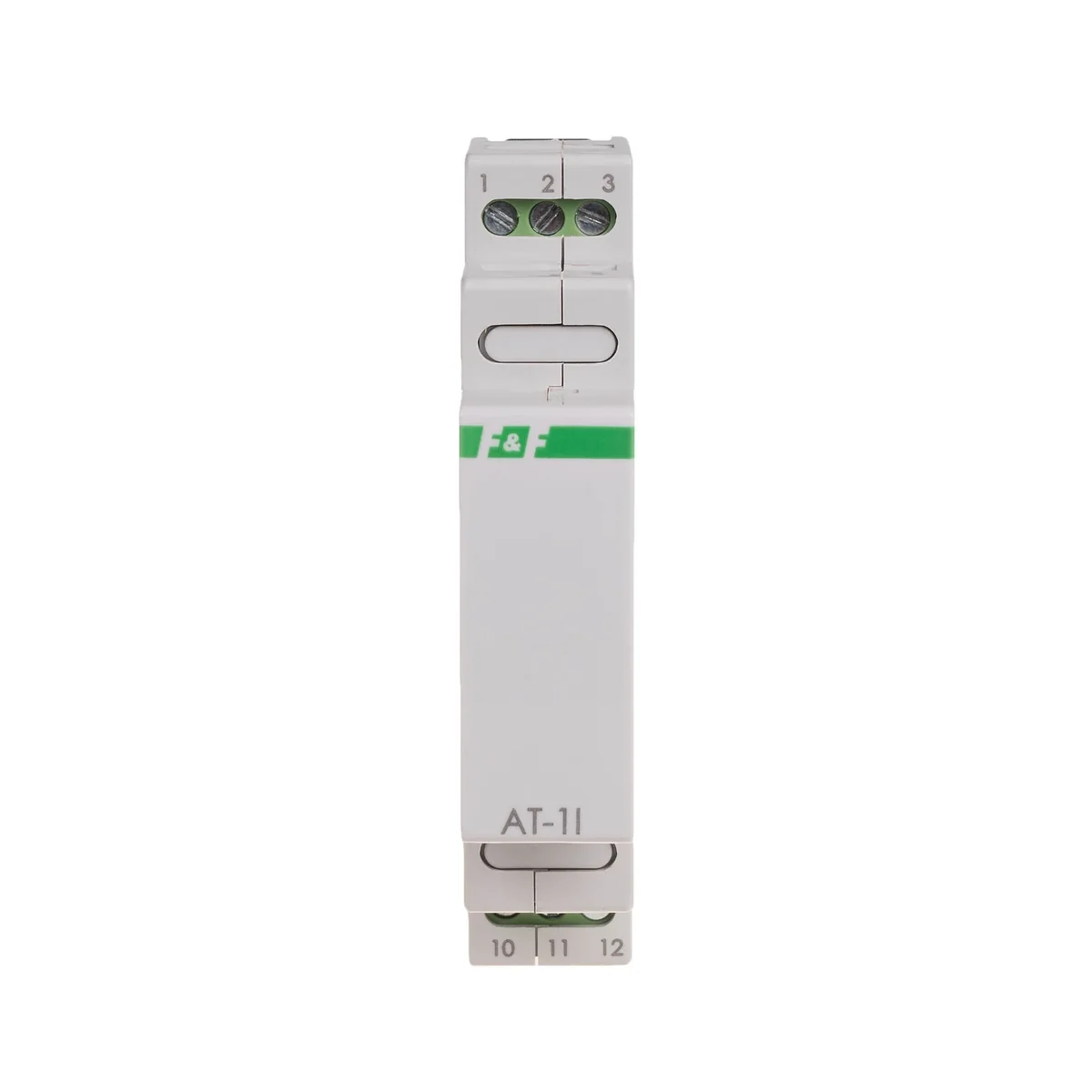

Analogue temperature converter - current [4-20mA] MAX-AT-1I
local index:
APE007FIFQ
Catalog number:
MAX-AT-1I
EAN code:
5908312594581
![Analogue temperature converter - current [4-20mA]](/zdjecia/analogue-temperature-converter-current-4-20ma,p4326676,w60.webp "Analogue temperature converter - current [4-20mA]")
![Analogue temperature converter - current [4-20mA]](/zdjecia/analogue-temperature-converter-current-4-20ma,p4326677,w60.webp "Analogue temperature converter - current [4-20mA]")
![Analogue temperature converter - current [4-20mA]](/zdjecia/analogue-temperature-converter-current-4-20ma,p4326678,w60.webp "Analogue temperature converter - current [4-20mA]")
![Analogue temperature converter - current [4-20mA]](/zdjecia/analogue-temperature-converter-current-4-20ma,p4326676,w1200.webp "Analogue temperature converter - current [4-20mA]")
![Analogue temperature converter - current [4-20mA]](/zdjecia/analogue-temperature-converter-current-4-20ma,p4326677,w1200.webp "Analogue temperature converter - current [4-20mA]")
![Analogue temperature converter - current [4-20mA]](/zdjecia/analogue-temperature-converter-current-4-20ma,p4326678,w1200.webp "Analogue temperature converter - current [4-20mA]")
Price:
264,45 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
The AT-1l module is designed to measure temperature using an external temperature sensor and convert the measured quantity to a unified analog current output signal in the range of 4-20mA.
Technical data
-
connection2.5mm screw terminals
-
Diameter [mm]8
-
Dimensions1 module (18mm)
-
Package height [mm]20
-
Package weight [kg]0.2
-
Level of securityIP20
-
Working temperature [°C]-40-85
-
Height [mm]20
-
Package width [mm]8
-
PKWIU26.30.23.0
Other technical data
-
Measuring range-50 ... 130 °C
-
Analogue output 4 mA ... 20 mAYes
-
Analogue output 0 V ... 5 VNo
-
Analogue output 2 V ... 10 VNo
-
Modular versionYes
-
EMC-versionYes
-
Weight0 kg
-
Analogue output 0 mA ... 20 mANo
-
Analogue output 0 V ... 2 VNo
-
Analogue output 0 V ... 10 VNo
-
With switching outputNo
-
Integrated configuration functionNo
-
Ambient temperature-20 ... 50 °C
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 50,000 |
| Width (m) | 19,000 |
| Length (m) | 70,000 |
| Depth (m) | 95,000 |
