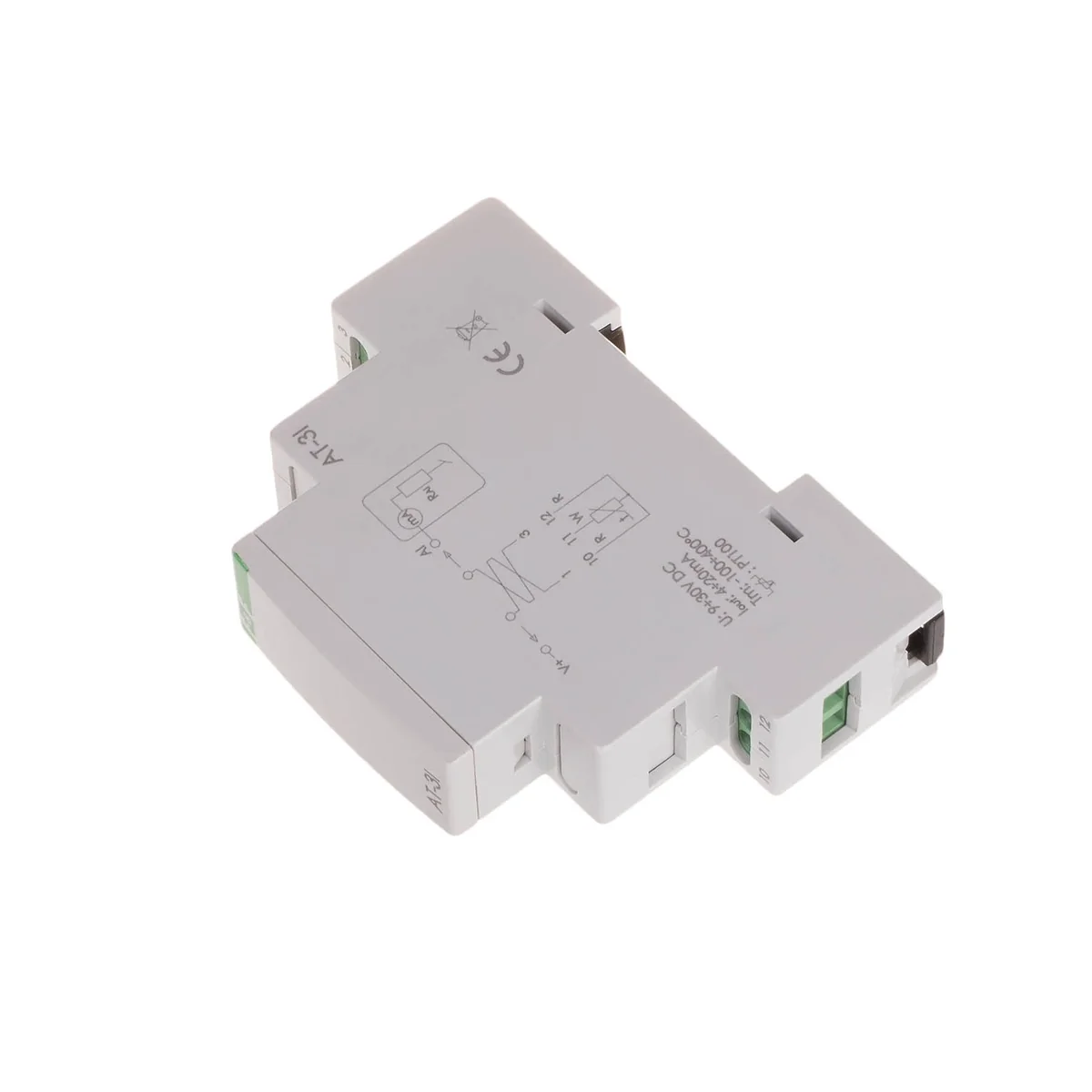

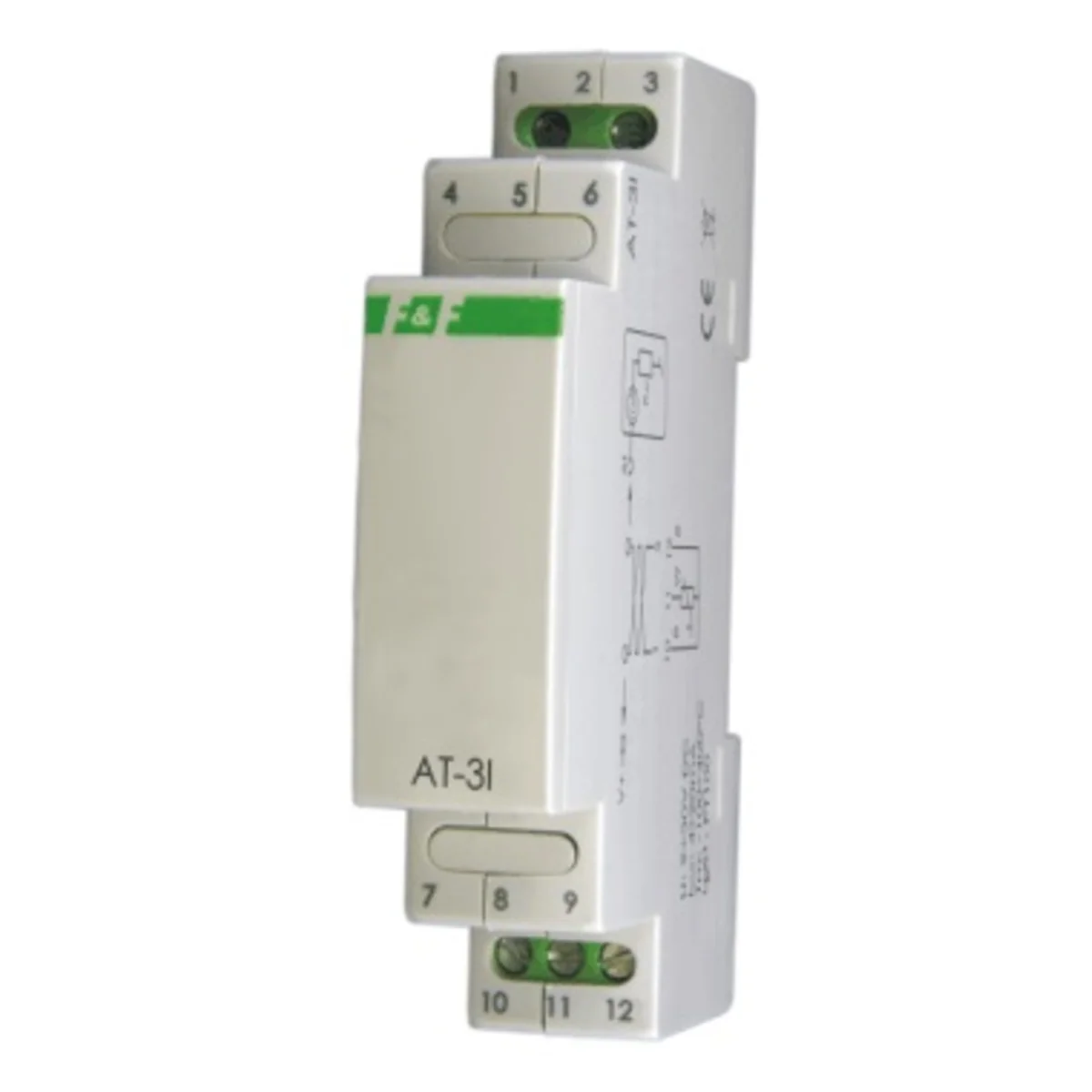

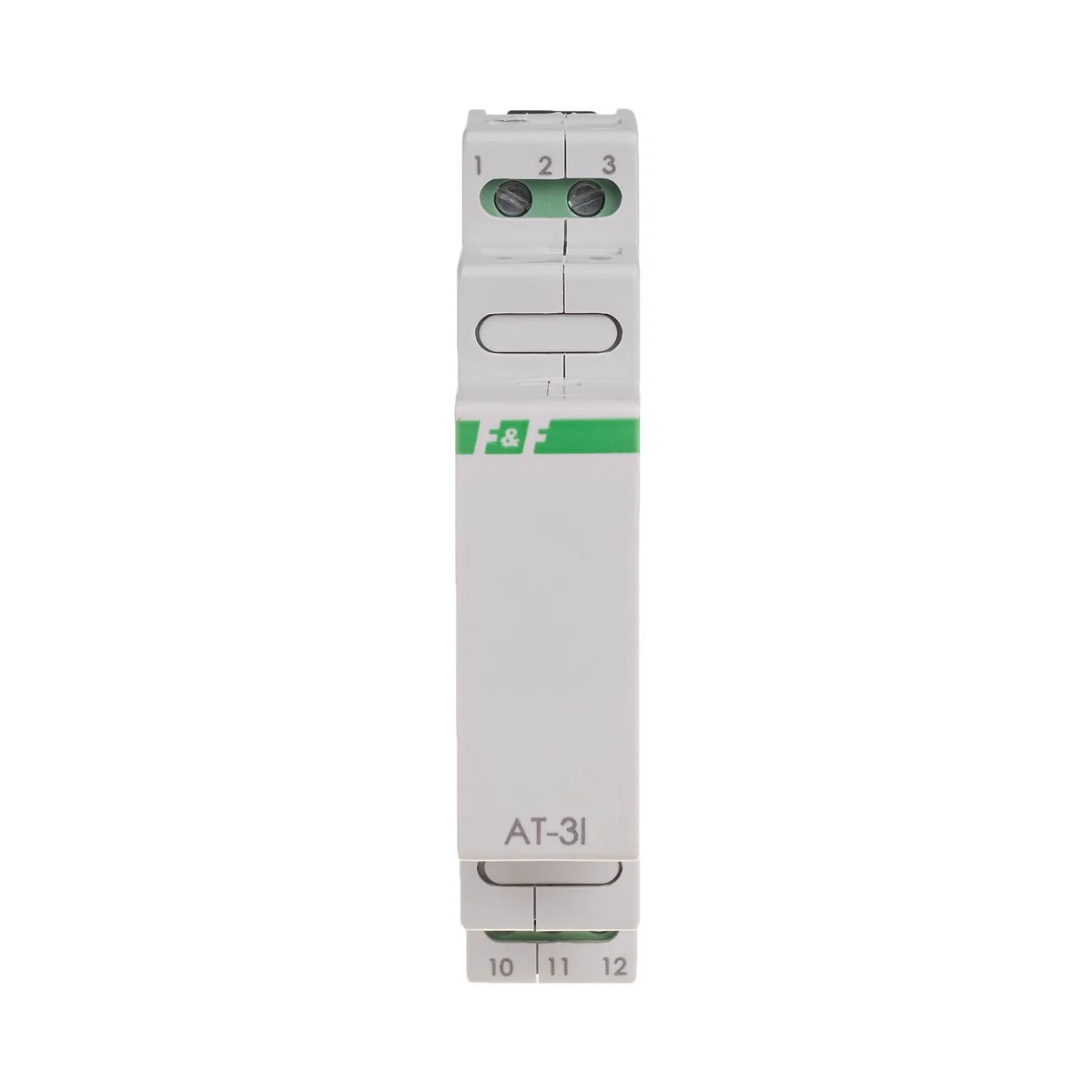

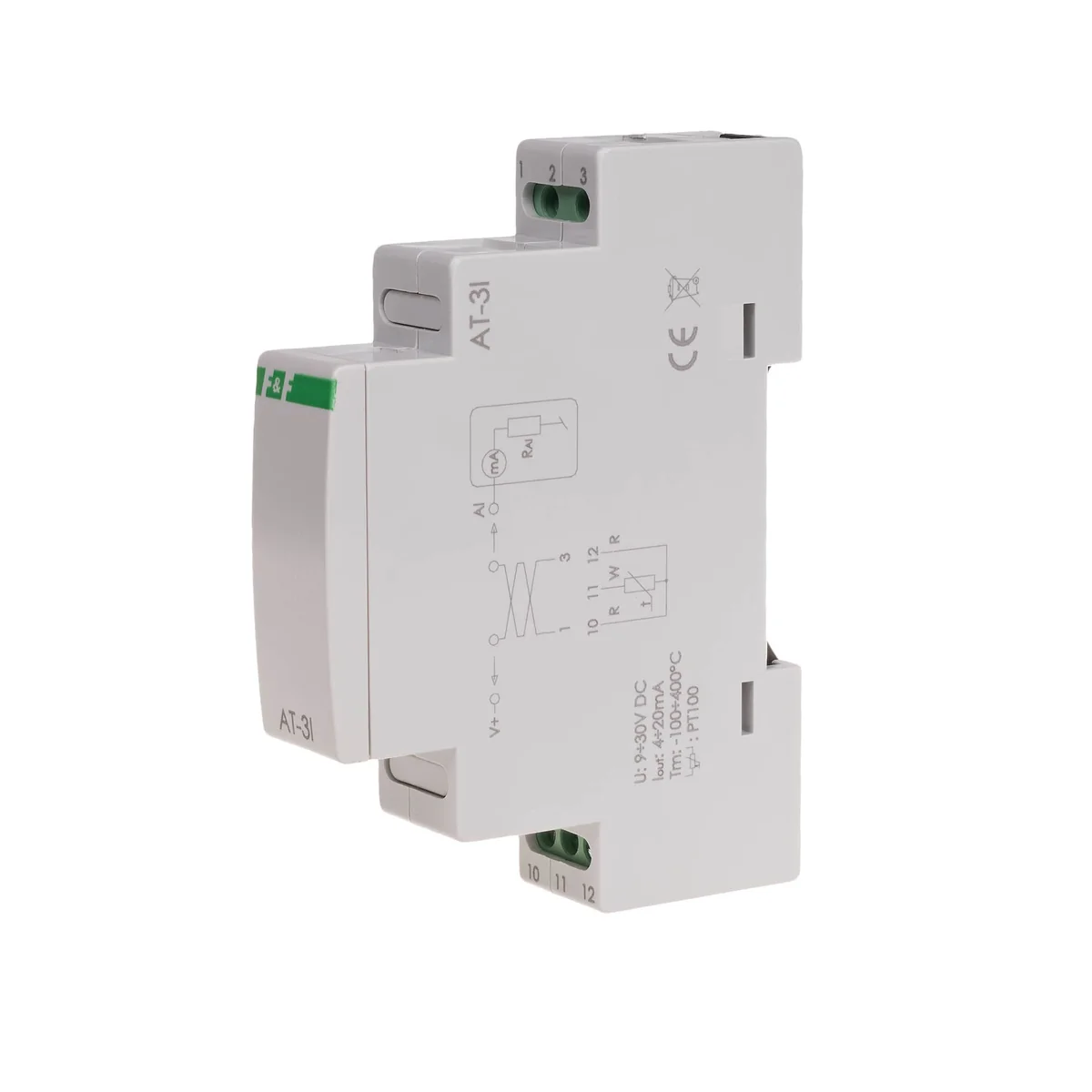

Analog temperature transmitter MAX-AT-3I

Indice locale:
API044FIFQ
Numero di catalogo:
MAX-AT-3I
Codice EAN:
5908312595274
Produttore: F&F
Power [W]: 0.8
Output current [mA]: 4/20
Level of security: IP20
Prezzo:
94,01 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a una settimana (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

The AT-3I transducer is designed to measure temperature using an external PT-100 temperature sensor and convert the measured quantity to a unified analog current output signal in the range of 4÷20 mA.

Dati tecnici

  • Power [W]
    0.8
  • Level of security
    IP20
  • Dimensions
    1 module (18mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.2
  • maximum measurement error [°C]
    1
  • Measuring range [°C]
    -100-400
  • Output current [mA]
    4/20
  • Working temperature [°C]
    -40-85
  • Power [V]
    9-30
  • Package width [mm]
    20
  • Signal output cable length [m]
    <300

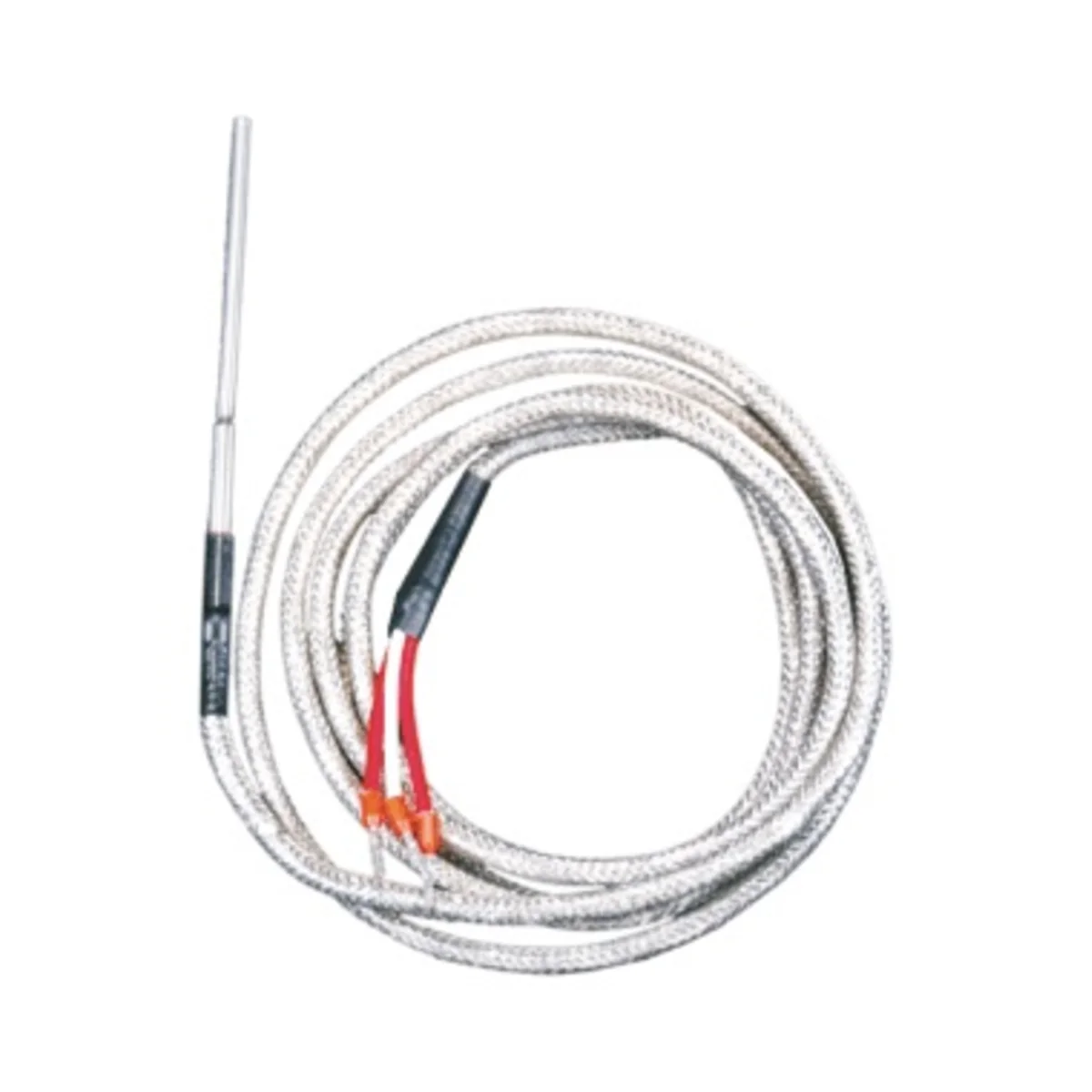

  • Temperature sensor
    PT-100
  • PKWIU
    26.30.23.0

Altri dati tecnici

  • Measuring range
    -100 ... 100 °C
  • With switching output
    No
  • Integrated configuration function
    No
  • Analogue output 4 mA ... 20 mA
    Yes
  • Modular version
    Yes
  • Ambient temperature
    -20 ... 50 °C

Dettagli del produttore

  • Produttore
    F&F Filipowski S.K.
  • Indirizzo
    95-200 Pabianice Konstantynowska 79/81 Polska

Imballaggio sfuso

Una specie di pacchetto Sztuka
Quantità 1 pezzi
Peso (kg) 0,062
Larghezza (m) 0,019
Lunghezza (m) 0,095
Profondità (m) 0,070
