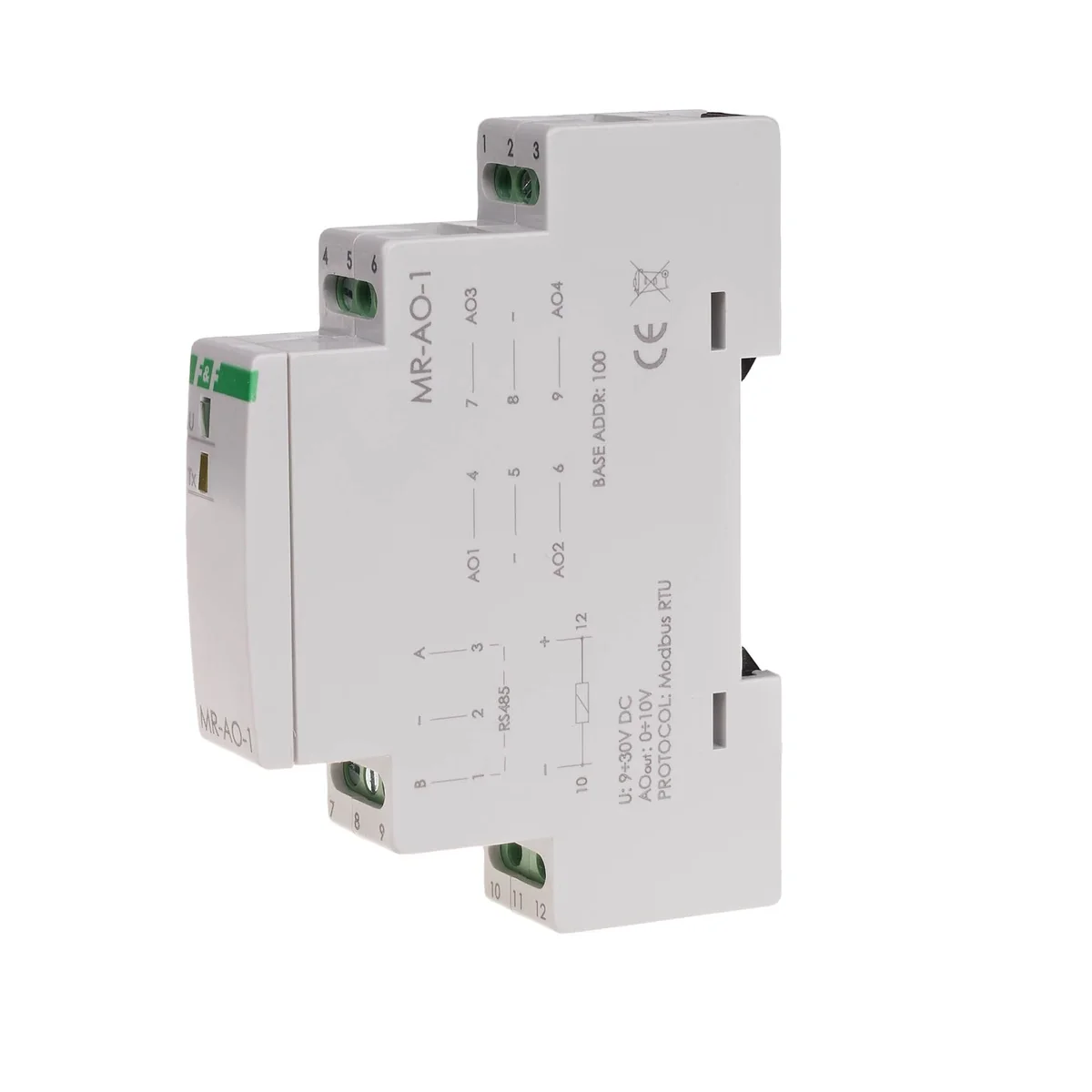

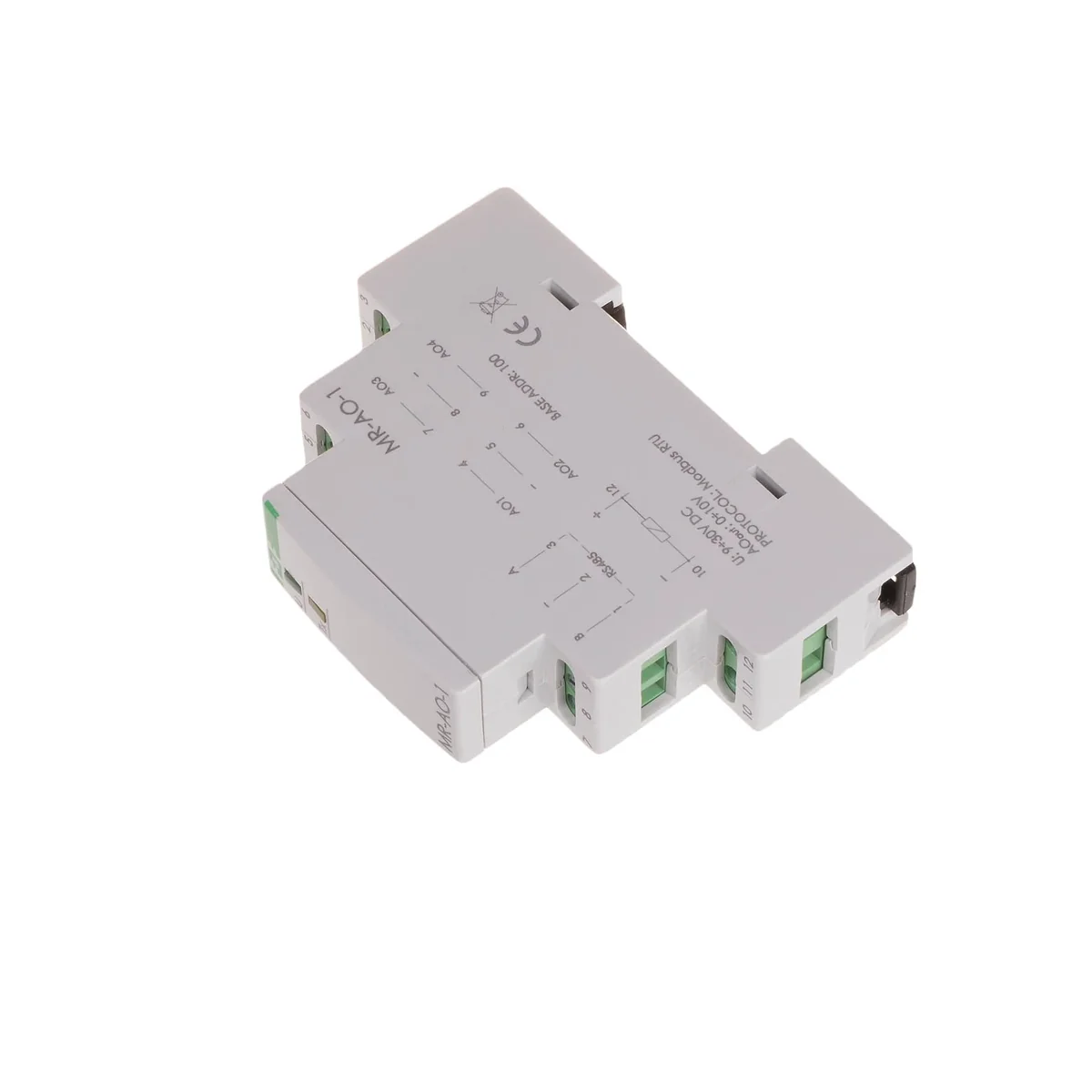

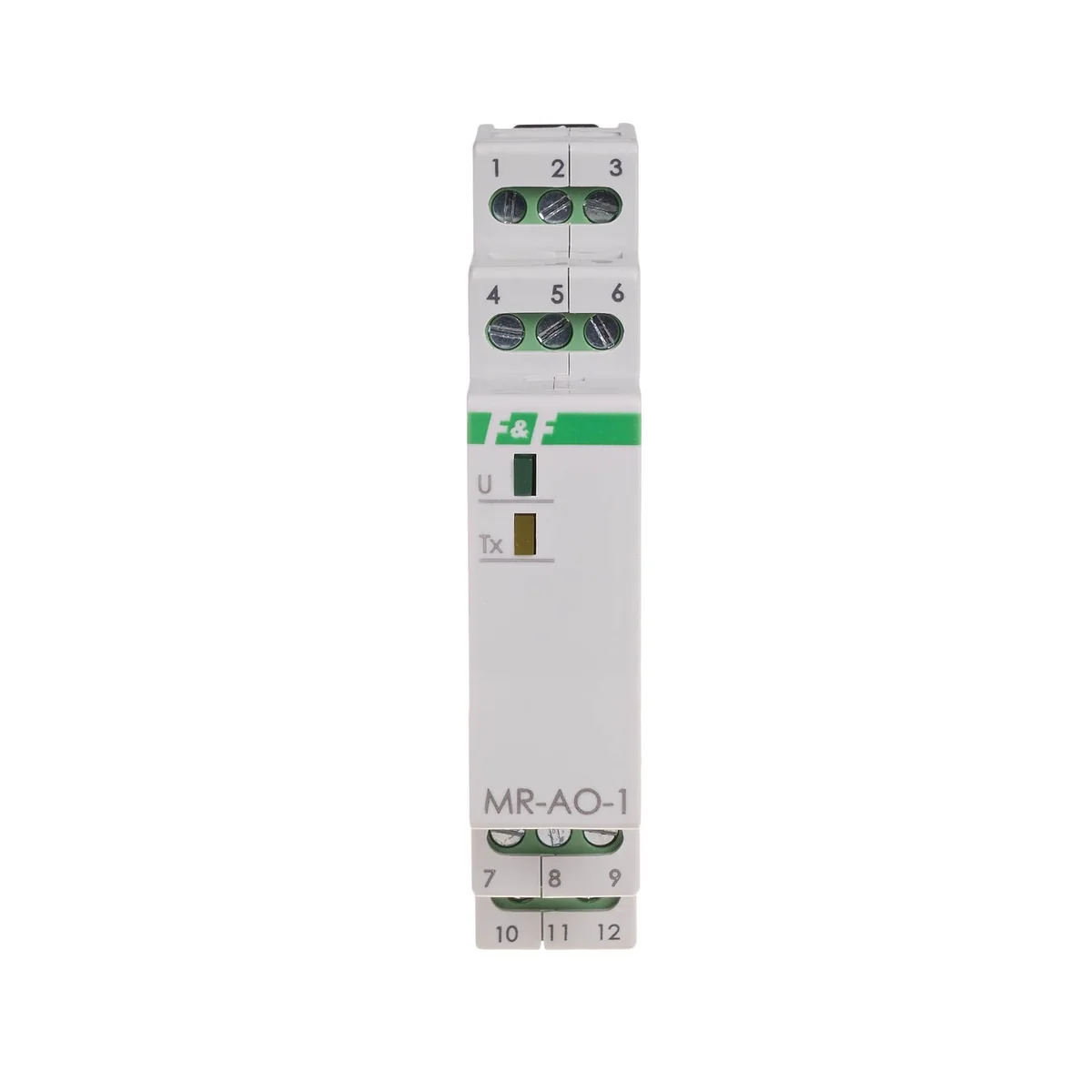

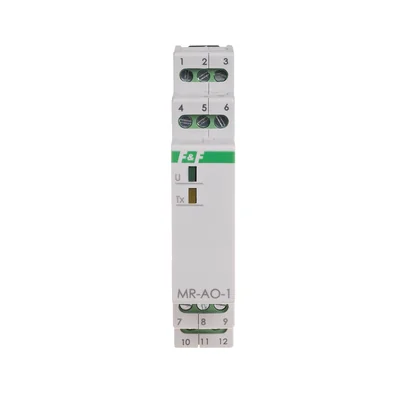

Analog output module with MODBUS RTU output MAX-MR-AO-1

local index:
APL131FIFQ
Catalog No:
MAX-MR-AO-1
EAN code:
5908312595236
Manufacturer: F&F
Data bits: 8
Start bits: 1
Stop bits: 2
Price:
94,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The MR-AO-1 module serves as an external device that extends the analog voltage outputs of PLC programmable controllers or other devices where data exchange takes place via the RS485 port in accordance with the MODBUS RTU protocol.
Operating ModeSLAVE



Technical data

  • Data bits
    8
  • Stop bits
    2
  • Maximum query frequency [Hz]
    15
  • Protocols
    MODBUS RTU
  • Network address range
    100-109
  • Package width [mm]
    18
  • PKWIU
    26.30.23.0
  • Start bits
    1
  • The number of bits per second
    9600
  • parity
    Lack
  • Operating mode
    slave
  • Package height [mm]
    90
  • Package weight [kg]
    0.1

Other technical data

  • Number of analogue inputs
    0
  • Resolution of the analogue inputs
    10 b
  • Type of electric connection
    Screw-/spring clamp connection
  • Height
    90 mm
  • Number of analogue outputs
    4
  • Output, voltage
    Yes
  • Width
    18 mm
  • Depth
    65 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,069
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
