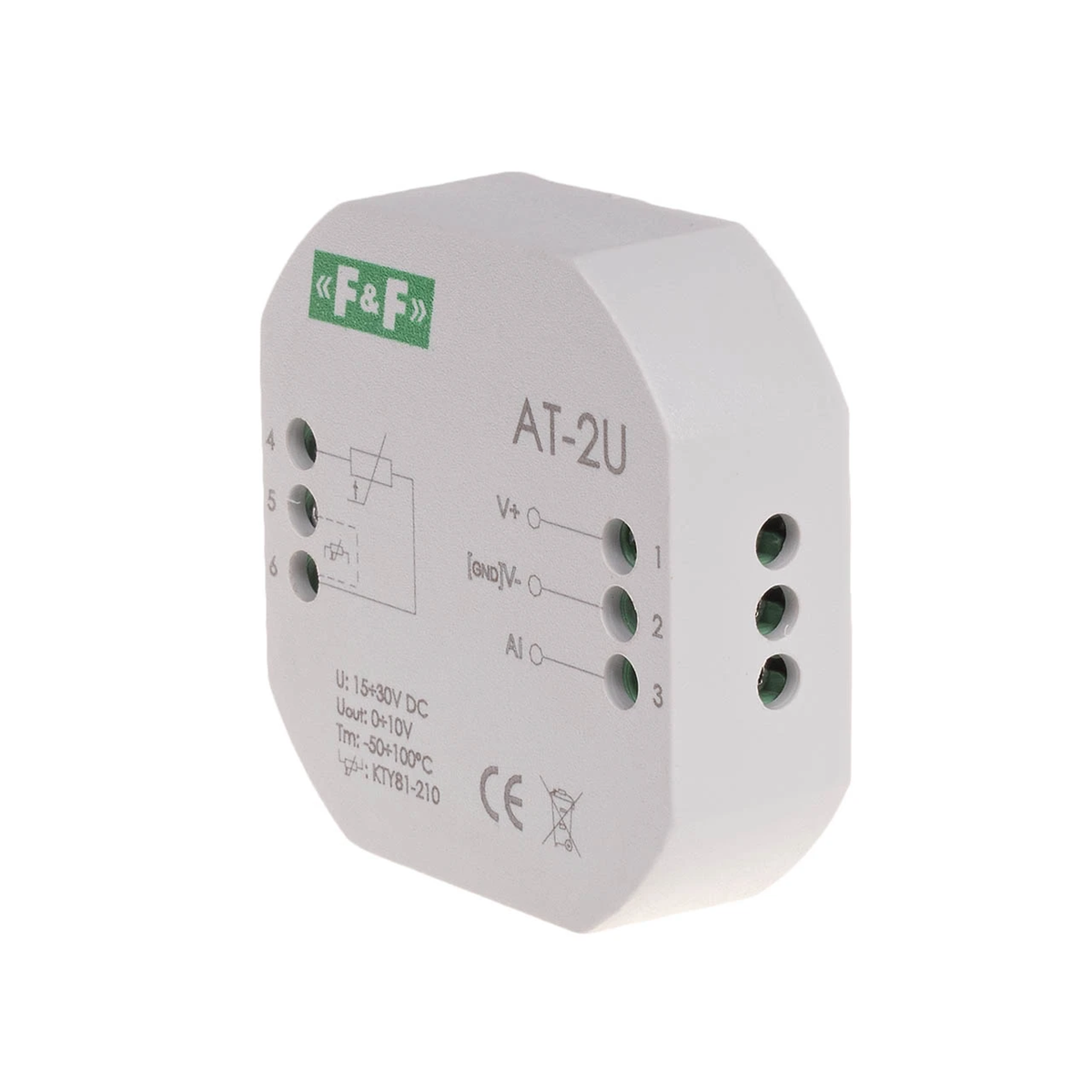

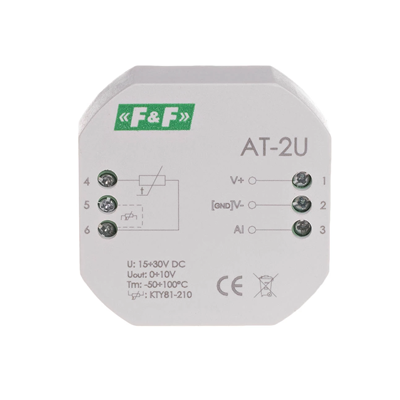

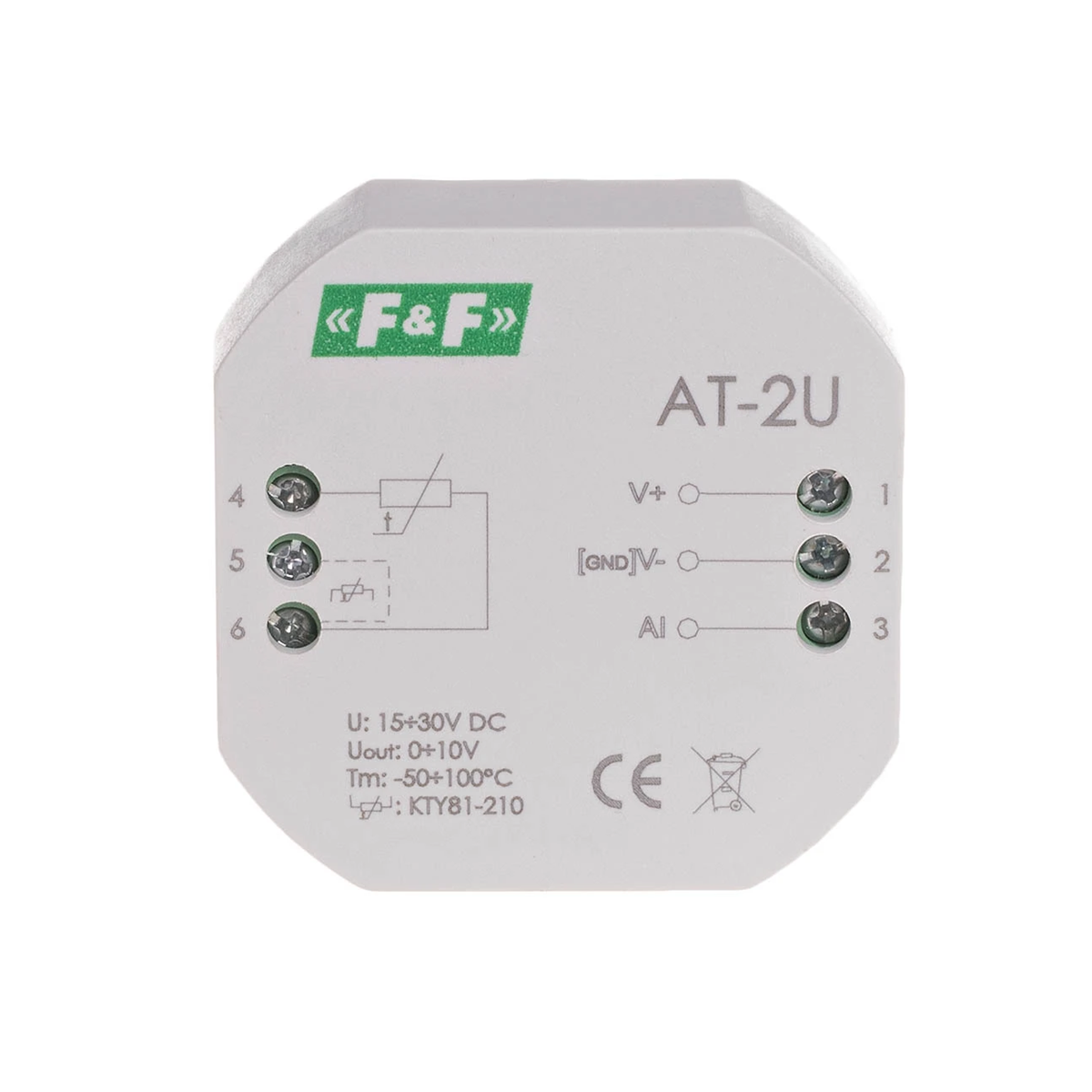

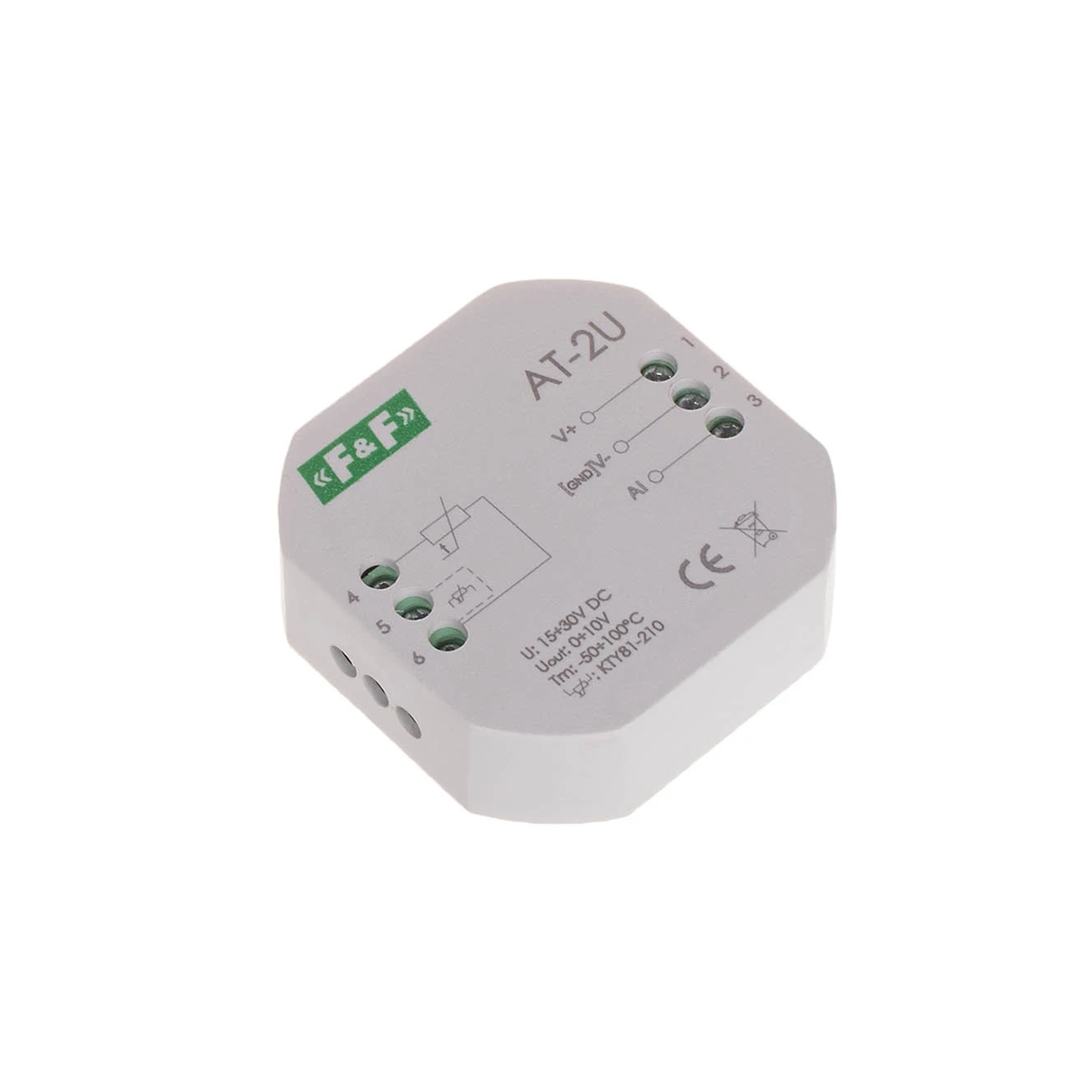

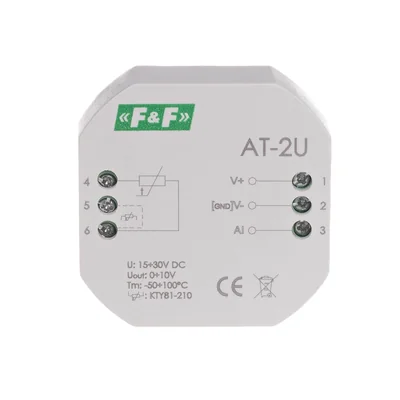

Analog measuring transducer MAX-AT-2U

local index:
APT014FIFQ
Catalog No:
MAX-AT-2U
EAN code:
5908312594611
Manufacturer: F&F
Rated voltage [V]: 24
Level of security: IP20
Working temperature [°C]: -40-40
Price:
48,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The AT-2U transducer is designed to measure temperature using an external temperature sensor and convert the measured quantity to a unified analog output voltage signal in the range of 0÷10V.

Technical data

  • Rated voltage [V]
    24
  • Working temperature [°C]
    -40-40
  • Package width [mm]
    55
  • maximum measurement error [°C]
    1.5
  • Measuring range [°C]
    -50-100
  • Level of security
    IP20
  • Package height [mm]
    13
  • Package weight [kg]
    0.2
  • Temperature sensor
    KTY81-210
  • PKWIU
    26.30.23.0

Other technical data

  • Measuring range
    -50 ... 100 °C
  • With switching output
    No
  • Integrated configuration function
    No
  • Analogue output 0 V ... 10 V
    Yes
  • Modular version
    No
  • Ambient temperature
    -20 ... 50 °C
