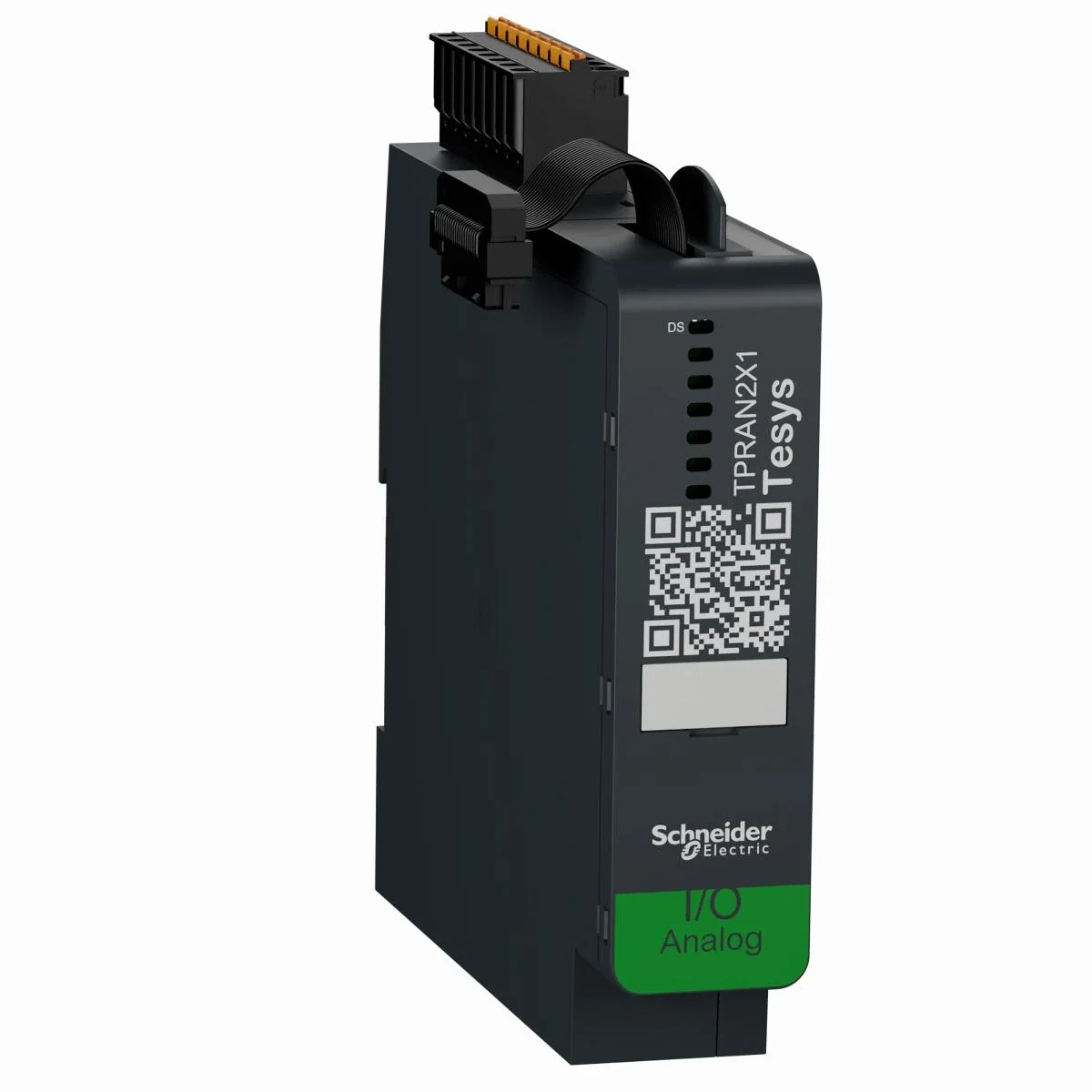

Analog I/O module, TeSys Island, 2 in / 1 out configurable type TPRAN2X1
Místní index:
API164SCHN
Katalogové číslo.:
TPRAN2X1
EAN kód:
3606489832902
Výrobce:
SCHNEIDER ELECTRIC
Cena:
2 505,67 zł
gross / kusů.
(včetně DPH 23%)
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout
Dotaz na výrobek
Technické údaje
Další technické údaje
-
Supply voltage DC20.4 ... 28.8 V
-
Input, currentYes
-
Input, resistorNo
-
Input, thermocoupleYes
-
Resolution of the analogue inputs16 b
-
Output, voltageYes
-
Resolution of the analogue outputs12 b
-
Number of analogue outputs1
-
Analogue outputs configurableYes
-
Number of interfaces PROFINET0
-
Number of HW-interfaces RS-4220
-
Number of HW-interfaces serial TTY0
-
Number of HW-interfaces wireless0
-
Number of HW-interfaces other2
-
Supporting protocol for PROFIBUSNo
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for KNXNo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IONo
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPNo
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for other bus systemsYes
-
Radio standard WLAN 802.11No
-
Radio standard GSMNo
-
IO link masterNo
-
Degree of protection (IP)IP20
-
Fieldbus connection over separate bus coupler possibleYes
-
Wall mounting/direct mountingNo
-
Rack-assembly possibleNo
-
SIL according to IEC 61508None
-
Appendant operation agent (Ex ia)No
-
Explosion safety category for gasNone
-
Width25 mm
-
Depth114 mm
-
Voltage type (supply voltage)DC
-
Input, voltageYes
-
Input, resistance thermometerYes
-
Input signal, configurableYes
-
Output, currentYes
-
Output signal configurableYes
-
Number of analogue inputs2
-
Analogue inputs configurableYes
-
Number of HW-interfaces industrial Ethernet0
-
Number of HW-interfaces RS-2320
-
Number of HW-interfaces RS-4850
-
Number of HW-interfaces parallel0
-
Number of HW-interfaces USB0
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANNo
-
Supporting protocol for ASINo
-
Supporting protocol for ModbusNo
-
Supporting protocol for DeviceNetNo
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Radio standard BluetoothNo
-
Radio standard GPRSNo
-
Radio standard UMTSNo
-
System accessoryYes
-
Type of electric connectionPlug-in connection
-
Rail mounting possibleYes
-
Front built-in possibleNo
-
Suitable for safety functionsNo
-
Performance level according to EN ISO 13849-1None
-
Appendant operation agent (Ex ib)No
-
Explosion safety category for dustNone
-
Height118 mm
