el12 Automation Relays and drivers Other automation elements

ANALOG 0-10V 2CHBASIC module, CONNS BASE set STBAVO1255K

local index:
API173SCHN
Catalog No:
STBAVO1255K
EAN code:
3595863948974

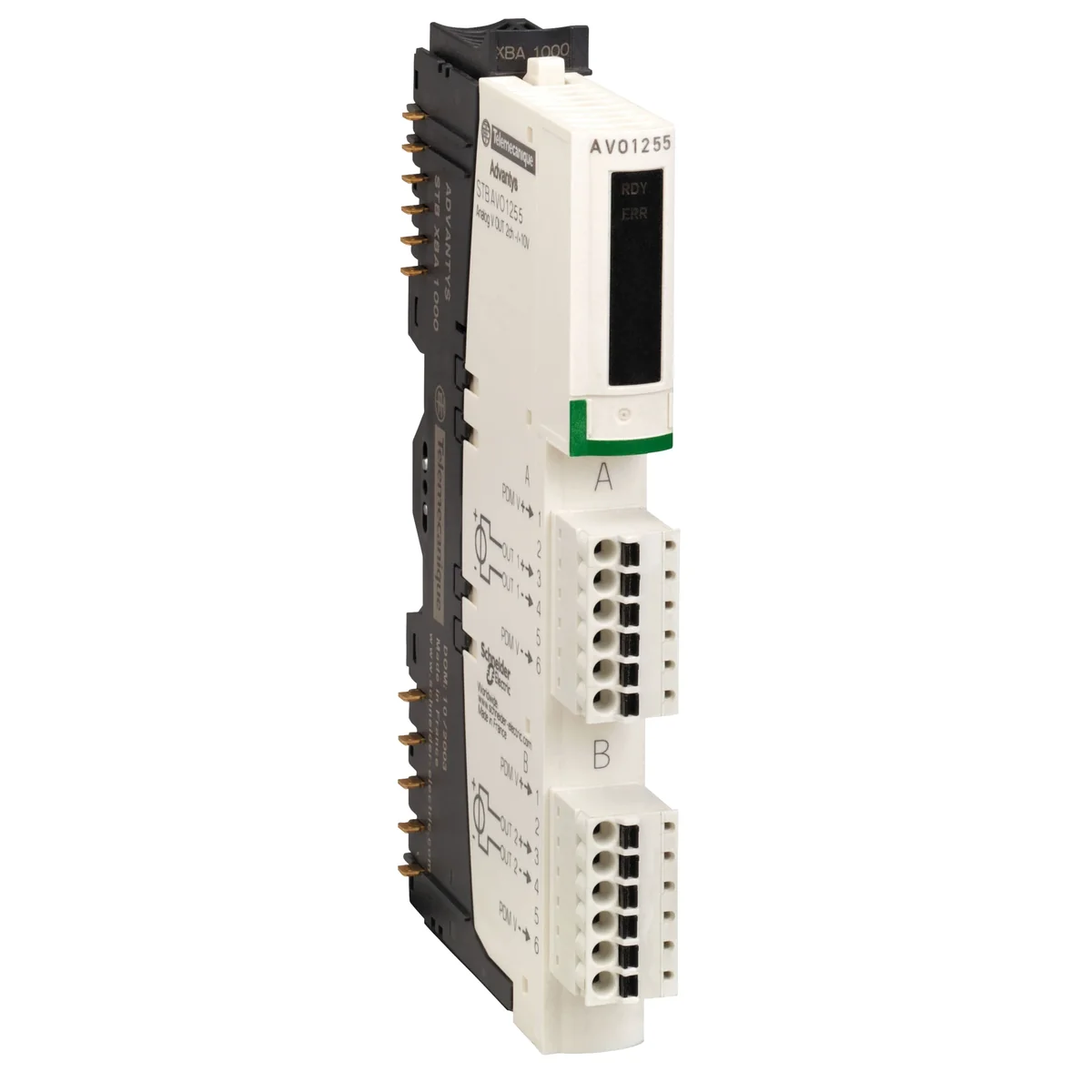

ANALOG 0-10V 2CHBASIC module, CONNS BASE set
ANALOG 0-10V 2CHBASIC module, CONNS BASE set

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 13.9
See full description
Price:
333,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details

Product description

ANALOG 0-10V 2CHBASIC module, CONNS BASE set

Technical data

  • Height [mm]
    13.9
  • PKWIU
    26.20.16.0

Other technical data

  • Supply voltage DC
    0 ... 10 V
  • Input, current
    No
  • Input, resistor
    No
  • Input, thermocouple
    No
  • Resolution of the analogue inputs
    10 b
  • Output, voltage
    Yes
  • Resolution of the analogue outputs
    10 b
  • Number of analogue outputs
    2
  • Analogue outputs configurable
    Yes
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces wireless
    0
  • Number of HW-interfaces other
    0
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • Fieldbus connection over separate bus coupler possible
    Yes
  • Wall mounting/direct mounting
    No
  • Rack-assembly possible
    Yes
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    Other
  • Width
    128.3 mm
  • Depth
    70 mm
  • Voltage type (supply voltage)
    DC
  • Input, voltage
    No
  • Input, resistance thermometer
    No
  • Input signal, configurable
    No
  • Output, current
    No
  • Output signal configurable
    Yes
  • Number of analogue inputs
    0
  • Analogue inputs configurable
    No
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces USB
    0
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • Type of electric connection
    Screw connection
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    Other
  • Height
    13.9 mm

Manufacturer details

See more >>
