Altivar 12 1.5kW 1x240V inverter ATV12HU15M2

local index:
API102SCHN
Catalog No:
ATV12HU15M2
EAN code:
3606480071096

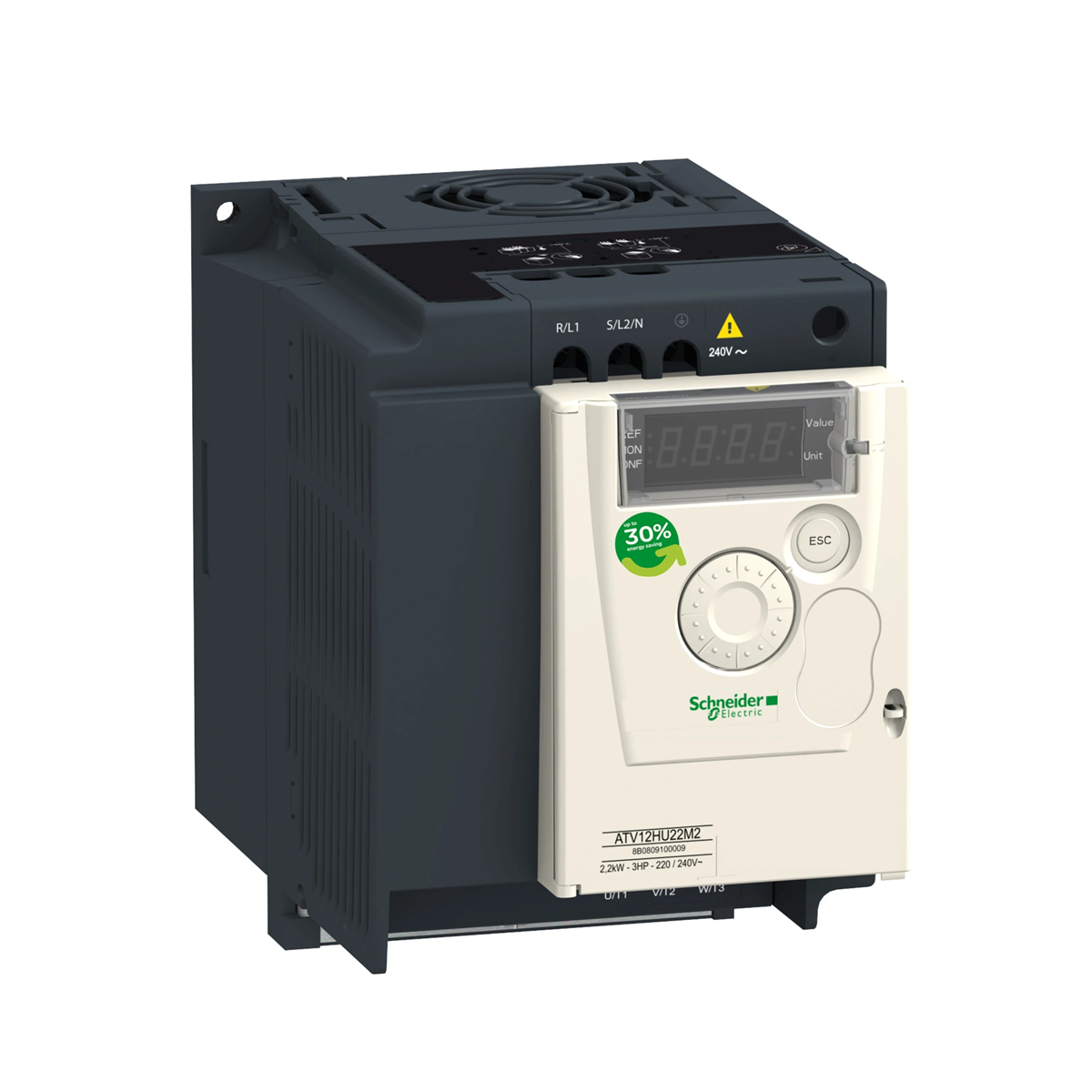

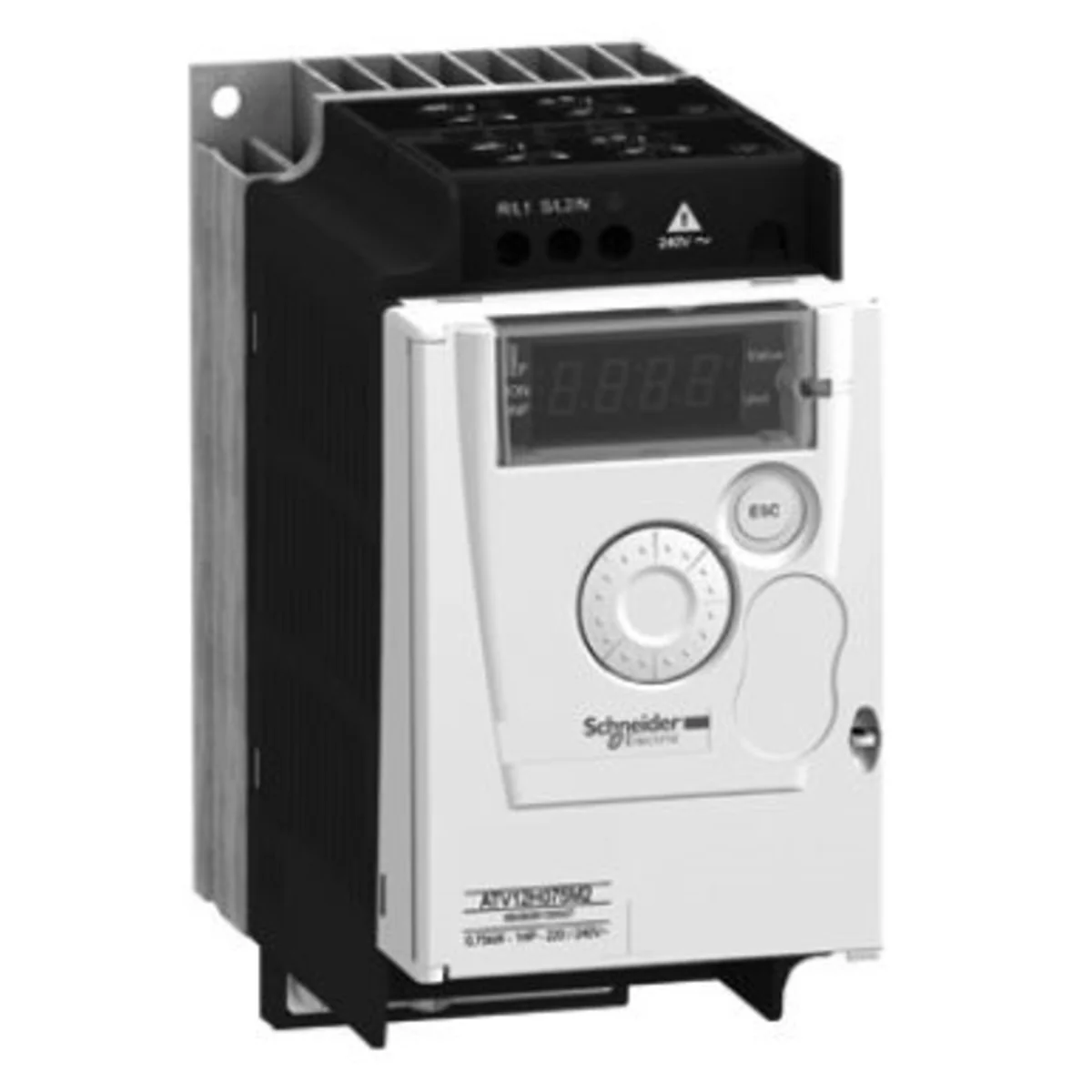

Altivar 12 1.5kW 1x240V inverter
Altivar 12 1.5kW 1x240V inverter
Altivar 12 1.5kW 1x240V inverter
Altivar 12 1.5kW 1x240V inverter

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC
Engine power [kW]: 1.5
Rated voltage [V]: 230
Rated current [A]: 7.5
See full description
Price:
430,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Files to download

Product description

ATV12 series inverter for 1.5 kW motor Power supply - 230V AC output voltage - 3x230 VAC maximum engine power - 1.5 kW output frequency - 0.5...400 Hz maximum output current - 7.5 A interface - RS 485 Modbus EMC filter PID controller

Technical data

  • Engine power [kW]
    1.5
  • Rated current [A]
    7.5
  • Rated voltage [V]
    230
  • PKWIU
    27.90.41.0

Other technical data

  • Mains voltage
    200 ... 240 V
  • Number of phases input
    1
  • Max. output frequency
    400 Hz
  • Nominal output current I2N
    7.5 A
  • Max. output at linear load at rated output voltage
    1.5 kW
  • Relative symmetric net voltage tolerance
    10 %
  • Number of analogue inputs
    1
  • Number of digital inputs
    4
  • Application in industrial area permitted
    Yes
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    Yes
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Supporting protocol for other bus systems
    No
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces parallel
    0
  • With optical interface
    No
  • Integrated breaking resistance
    No
  • Type of converter
    U converter
  • Height
    142 mm
  • Depth
    156.2 mm
  • Mains frequency
    50/60 Hz
  • Number of phases output
    3
  • Max. output voltage
    230 V
  • Max. output at quadratic load at rated output voltage
    1.5 kW
  • Relative symmetric net frequency tolerance
    5 %
  • Number of analogue outputs
    1
  • Number of digital outputs
    1
  • With control element
    Yes
  • Application in domestic- and commercial area permitted
    Yes
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for BACnet
    No
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces USB
    0
  • Number of HW-interfaces other
    8
  • With PC connection
    Yes
  • 4-quadrant operation possible
    No
  • Degree of protection (IP)
    IP20
  • Width
    105 mm
See more >>
