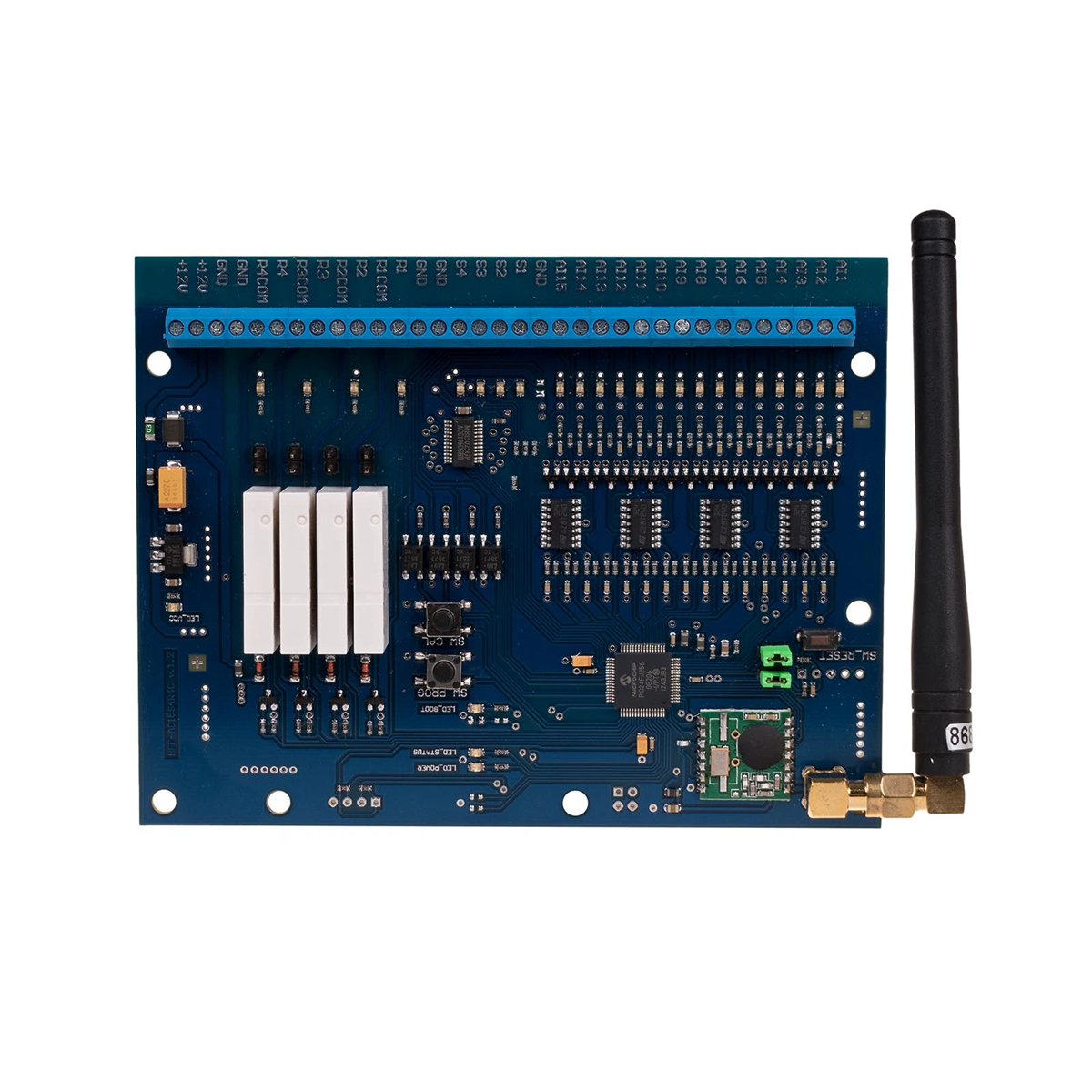

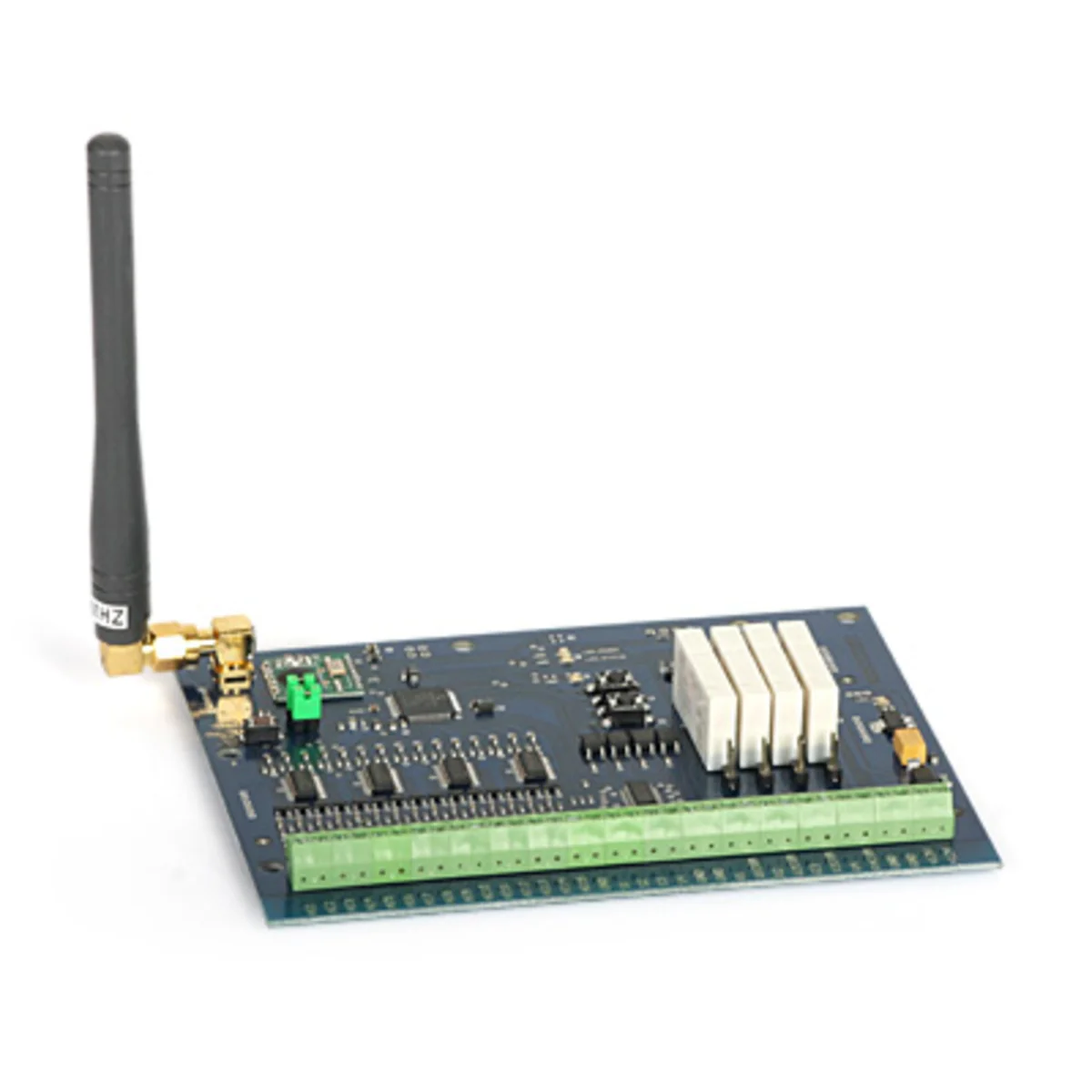

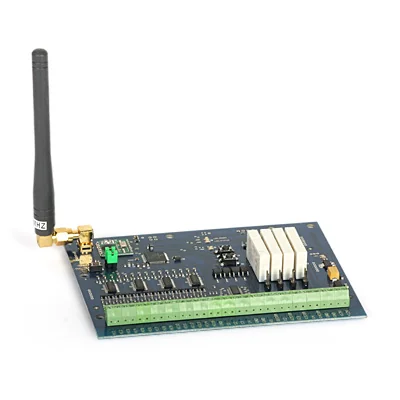

Alarm integration module RH-AC15S4R4

local index:
API100FIFQ
Catalog No:
RH-AC15S4R4
EAN code:
5908312597346
Price:
220,19 €
gross / pcs.
including VAT 23%
Availability:
up to a week (working days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Integration module with alarm control panels. The rH-AC15S4R4 module is dedicated for integration with alarm control panels of any manufacturer. It has 15 high-resistance analog inputs, four low-voltage relay outputs and four 5-10 V optocoupler inputs. Communication with the server is via radio. The reference voltage value for each input is measured individually and stored for all inputs simultaneously, therefore it is allowed to use motion sensors of any manufacturer. Memorization of the reference voltage value enables cooperation with any voltage range of motion sensors. Relays and contact inputs work in the same way as in the rH-R3S3 module (without support for standalone mode).

Technical data

  • Additional features
    For local/manual control
  • Number of outputs
    4
  • Level of security
    IP20
  • Package width [mm]
    150
  • Includes bus connector
    Yes
  • Number of inputs
    19
  • Family
    F&HOME RADIO
  • Package height [mm]
    200
  • Package weight [kg]
    0.5

Other technical data

  • Bus system KNX
    no
  • Bus system radio frequent
    no
  • Bus system Powernet
    no
  • Mounting method
    Other
  • Local operation/hand operation
    yes
  • Number of outputs
    4
  • With bus connection
    yes
  • Bus system KNX-RF (Radio Frequent)
    no
  • Bus system LON
    no
  • Other bus systems
    Other
  • Width in number of modular spacings
    0
  • Number of inputs
    23
  • Degree of protection (IP)
    IP00
