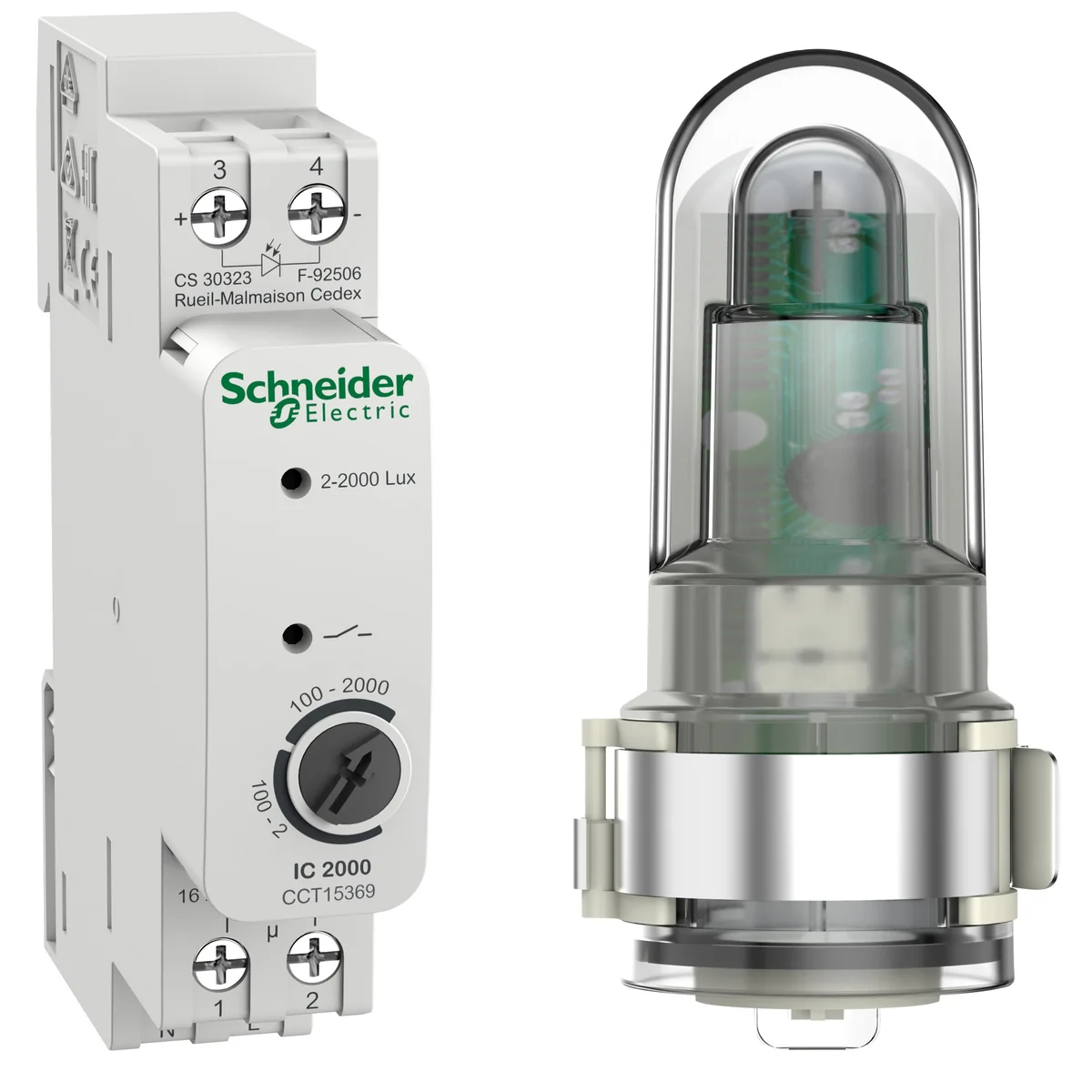

Acti9 IC2000 analog twilight switch 1-channel 2-2000 lux indoor sensor CCT15369

local index:
API014SCHN
Catalog No:
CCT15369
EAN code:
3606489524616
Manufacturer: SCHNEIDER ELECTRIC
Level of security: IP20
Price:
126,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Acti9 IC2000 analog twilight switch 1-channel 2-2000 lux indoor sensor

Technical data

  • Level of security
    IP20
  • PKWIU
    26.20.16.0

Other technical data

  • Rated voltage
    230 V
  • Max. incandescent lamp load
    2600 W
  • Max. load fluorescent lamp (Duo circuit)
    2300 VA
  • Max. switching current (cos phi = 0.6)
    10 A
  • Adjustment range brightness value
    2 ... 2000 lx
  • Push button input
    No
  • Protection class light sensor
    II
  • Mounting method
    DIN rail
  • Built-in depth
    67 mm
  • Degree of protection (IP) light sensor
    IP55
  • Rated frequency
    50 ... 60 Hz
  • Max. load fluorescent lamp
    2300 VA
  • Max. load fluorescent lamp (parallel compensated)
    730 VA
  • Rated switch current
    16 A
  • With programmable overnight shutoff
    No
  • Max. conductor length light sensor
    50 m
  • Mounting method light sensor
    Wall surface mounted
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
