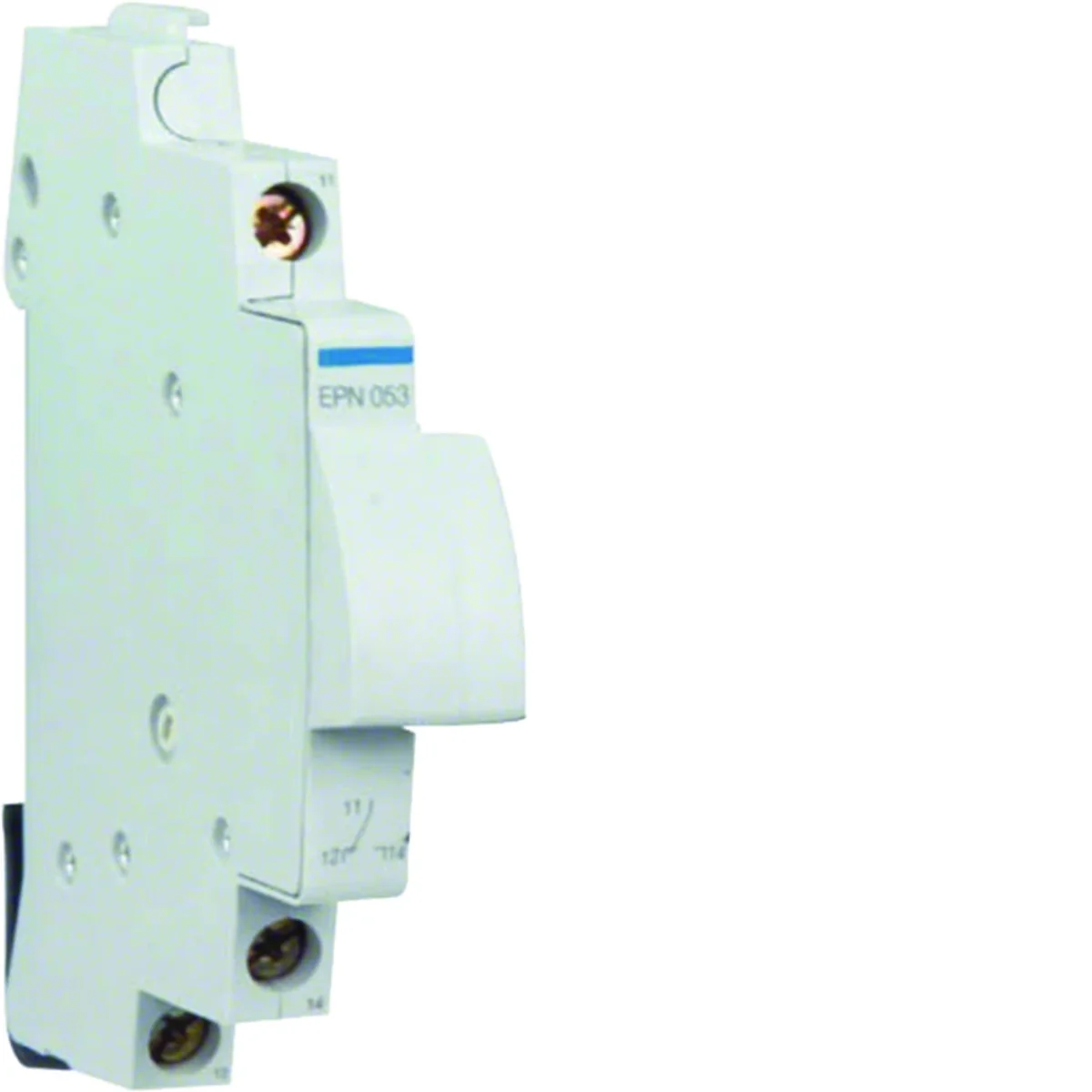

Accessories for Imp. circuit breaker, continuous signal control EPN053

local index:
API053HAGE
Catalog No:
EPN053
EAN code:
3250612360574
Manufacturer: HAGER
Rated frequency [Hz]: 50
Depth [mm]: 64
AC control voltage [V]: 24/230
Price:
32,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Accessories for Imp. circuit breaker, continuous signal control

Technical data

  • Rated frequency [Hz]
    50
  • AC control voltage [V]
    24/230
  • power loss [W]
    0.1
  • Connection type
    With a screw
  • Operating temperature range [°C]
    from -5 to 40
  • Number of modules
    0.5
  • Wire cross-section (cord) [mm²]
    1 - 6
  • PKWIU
    27.12.24.0
  • Depth [mm]
    64
  • Rated current [A]
    2
  • Width [mm]
    8.9
  • Height [mm]
    85
  • Rated switching voltage [V]
    24/230
  • storage temperature [°C]
    From -40 to 80
  • Conductor cross-section (wire) [mm²]
    1.5 - 10

Other technical data

  • Rated switch current
    2 A
  • Rated voltage
    230 V

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 108 pcs. 2592 pcs.
Weight (kg) 0,040 0,062 6,860 187,640
Width (m) 0,011 0,085 0,315 0,800
Length (m) 0,083 0,025 0,235 1,050
Depth (m) 0,064 0,085 0,360 1,200
