Accessories for Imp. circuit breaker, central on/off EPN052
local index:
API052HAGE
Catalog No:
EPN052
EAN code:
3250612360567
Price:
22,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

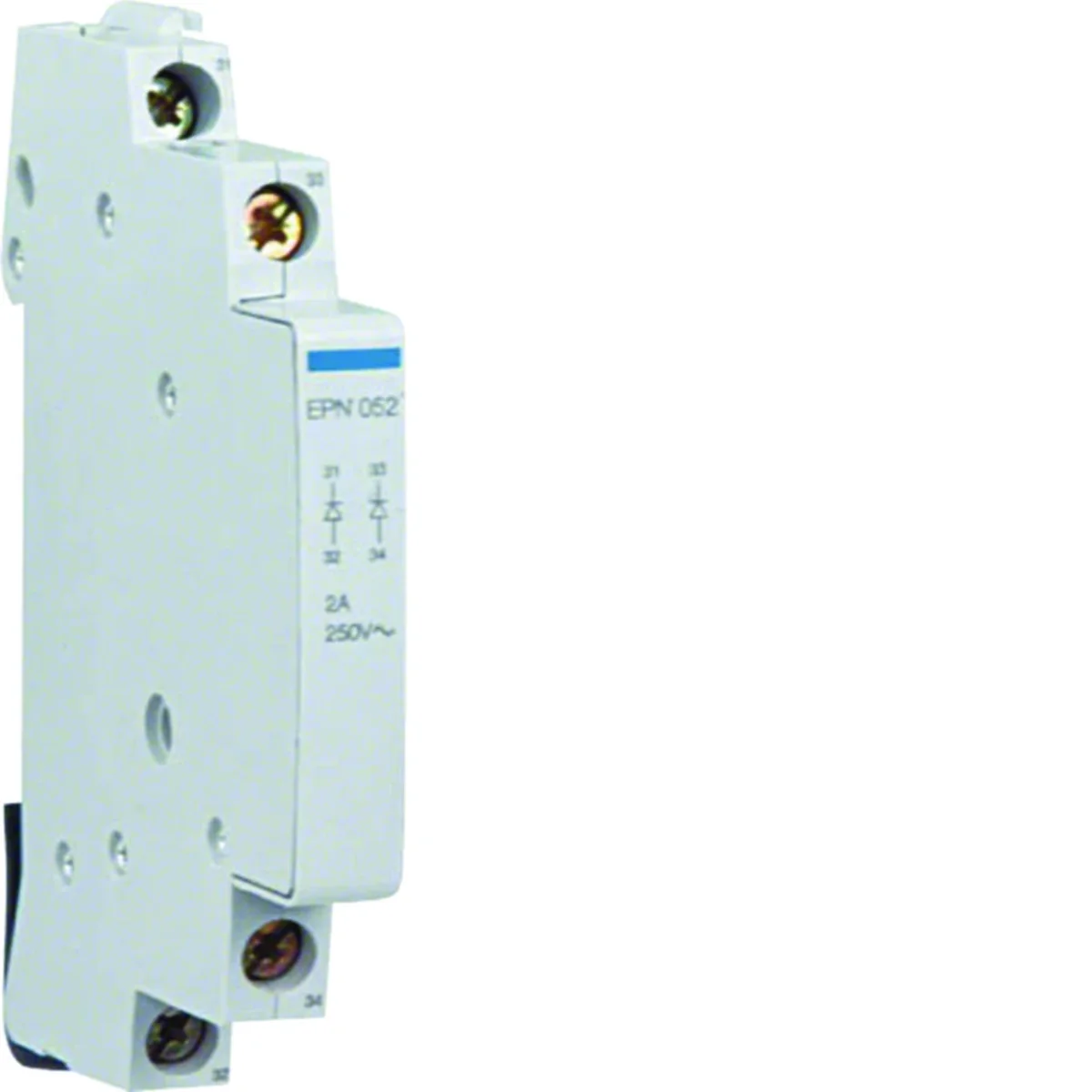

Accessories for Imp. circuit breaker, central on/off
Technical data
-
Rated frequency [Hz]50
-
AC control voltage [V]110/230
-
power loss [W]0.1
-
Connection typeWith a screw
-
Operating temperature range [°C]from -5 to 40
-
Number of modules0.5
-
Wire cross-section (cord) [mm²]1 - 6
-
PKWIU27.12.24.0
-
Depth [mm]58
-
Rated current [A]1
-
Width [mm]8.9
-
Height [mm]85
-
Rated switching voltage [V]110/230
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]1.5 - 10
Other technical data
-
Rated switch current1 A
-
Rated voltage230 V
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 108 pcs. | 2592 pcs. |
| Weight (kg) | 0,040 | 0,056 | 6,488 | 178,712 |
| Width (m) | 0,011 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,083 | 0,023 | 0,215 | 1,010 |
| Depth (m) | 0,064 | 0,094 | 0,360 | 1,200 |
