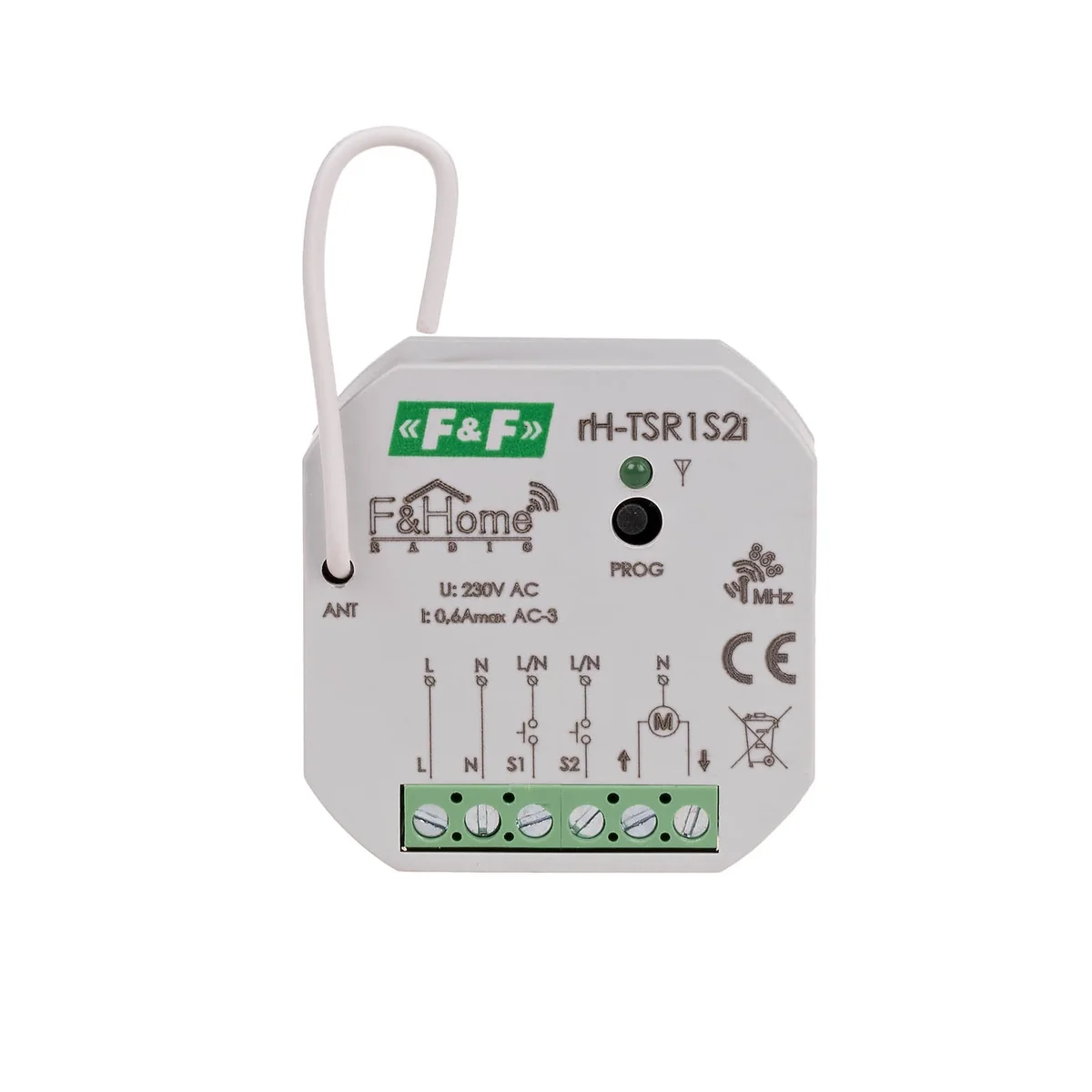

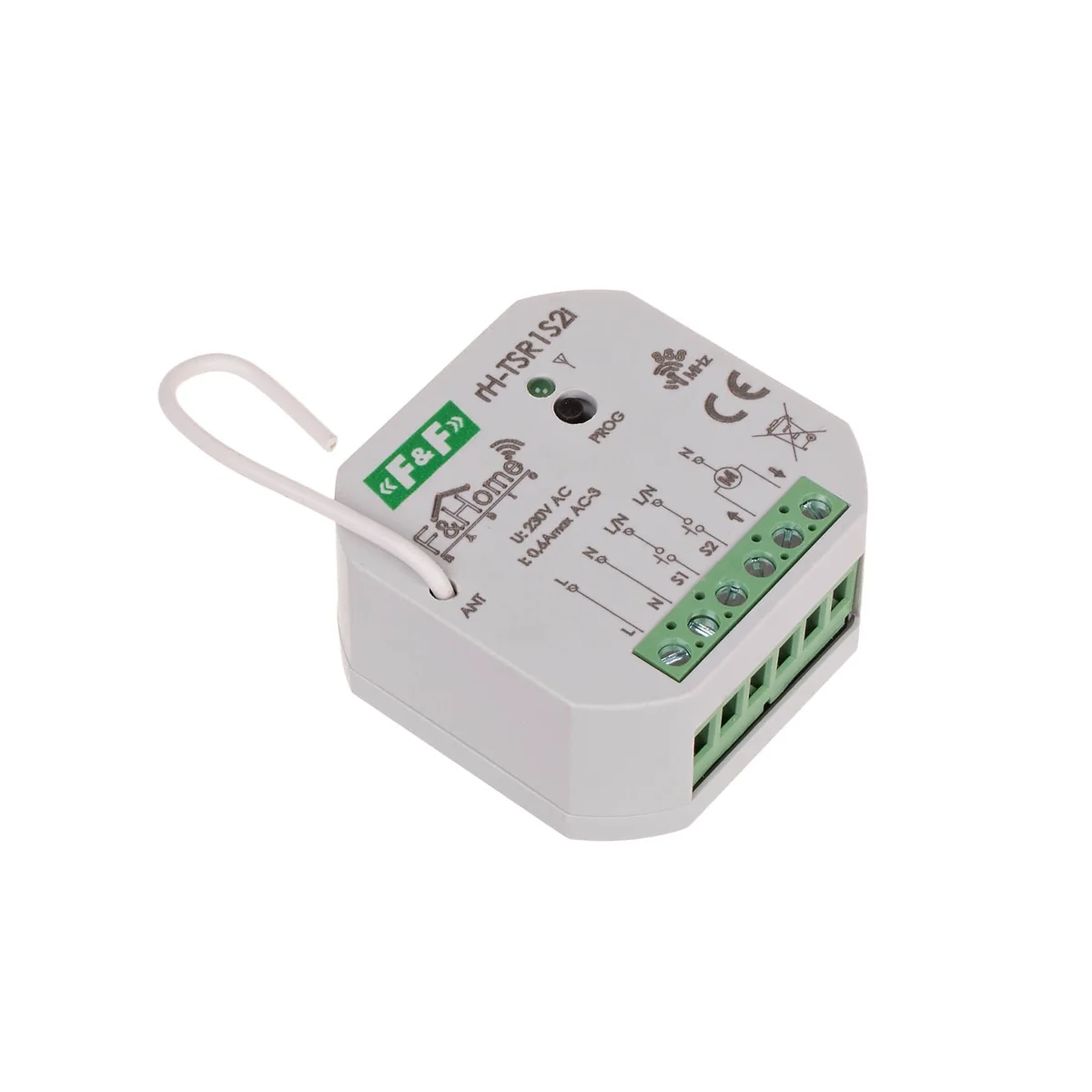

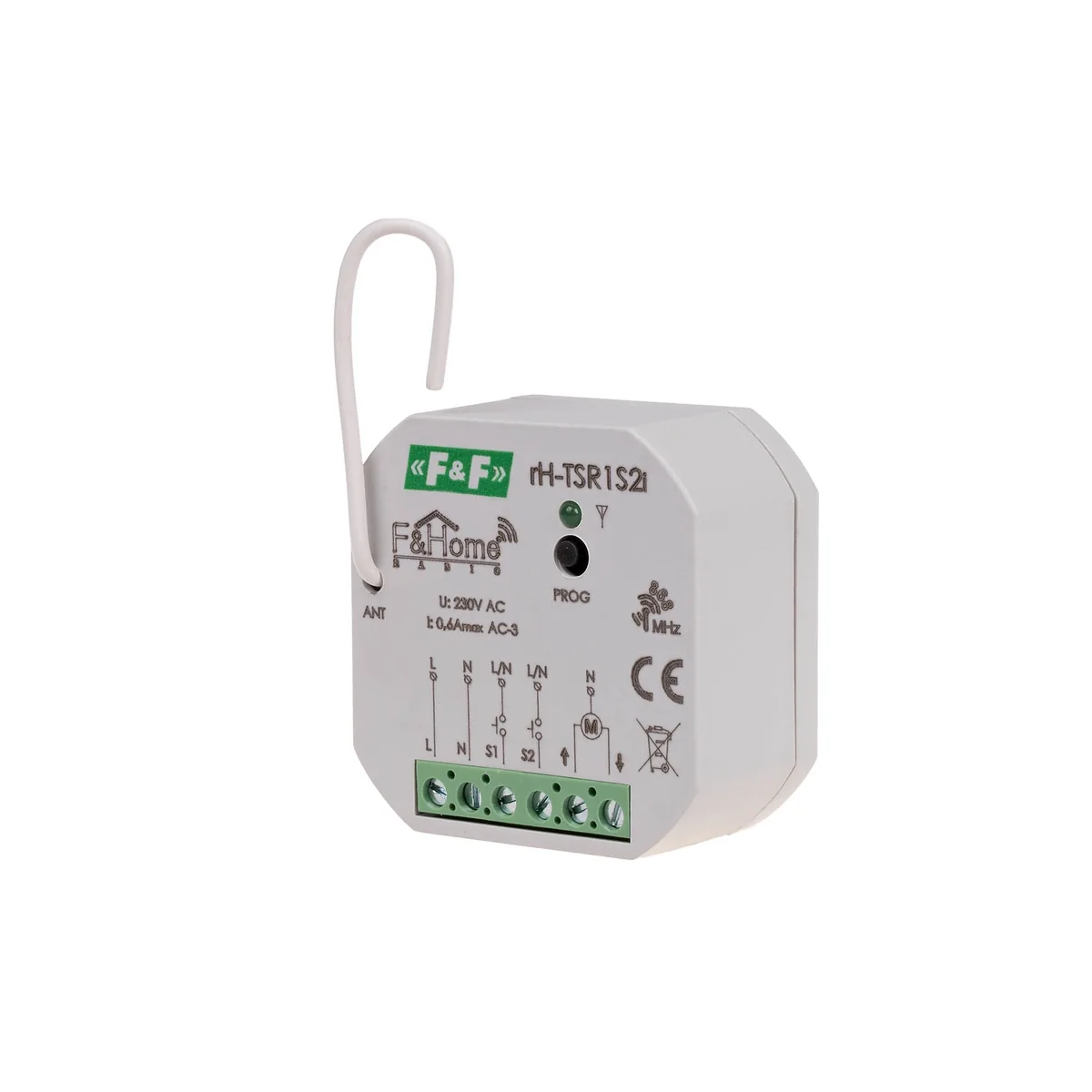

A three-state relay with a double transmitter (roller shutter controller) with a switching power supply RH-TSR1S2I

local index:
API120FIFQ
Catalog No:
RH-TSR1S2I
EAN code:
5908312597476
Price:
67,07 €
gross / pcs.
including VAT 23%
Availability:
up to a week (working days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

rH-TSR1S2 is a combination of a three-state relay and two contact inputs. The module sends information about the opening and closing of contacts to the system and controls the relay that can switch bidirectional electrical receivers. Communication with the server takes place via radio. The module has two physical inputs for connecting two monostable potential-free contacts, and two relay inputs. The load of the relay contacts can be resistive, inductive or capacitive, both in DC and AC circuits.

Technical data

  • Number of inputs
    2
  • Installation
    Flush-mounted
  • Family
    F&HOME RADIO
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • Maximum power [W]
    500
  • Switching current [A]
    2
  • Level of security
    IP20
  • Package height [mm]
    150
  • Package weight [kg]
    0.2

Other technical data

  • Bus system KNX
    no
  • Bus system radio frequent
    no
  • Bus system Powernet
    no
  • Mounting method
    Flush-mounted
  • Local operation/hand operation
    yes
  • Number of inputs
    2
  • Max. switching power
    500 W
  • With switch function
    yes
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    no
  • Bus system LON
    no
  • Other bus systems
    Other
  • With bus connection
    no
  • With LED indication
    yes
  • Switching current (resistive)
    2 A
  • Max. number of venetian-blind outputs
    1
  • Type of current
    AC
