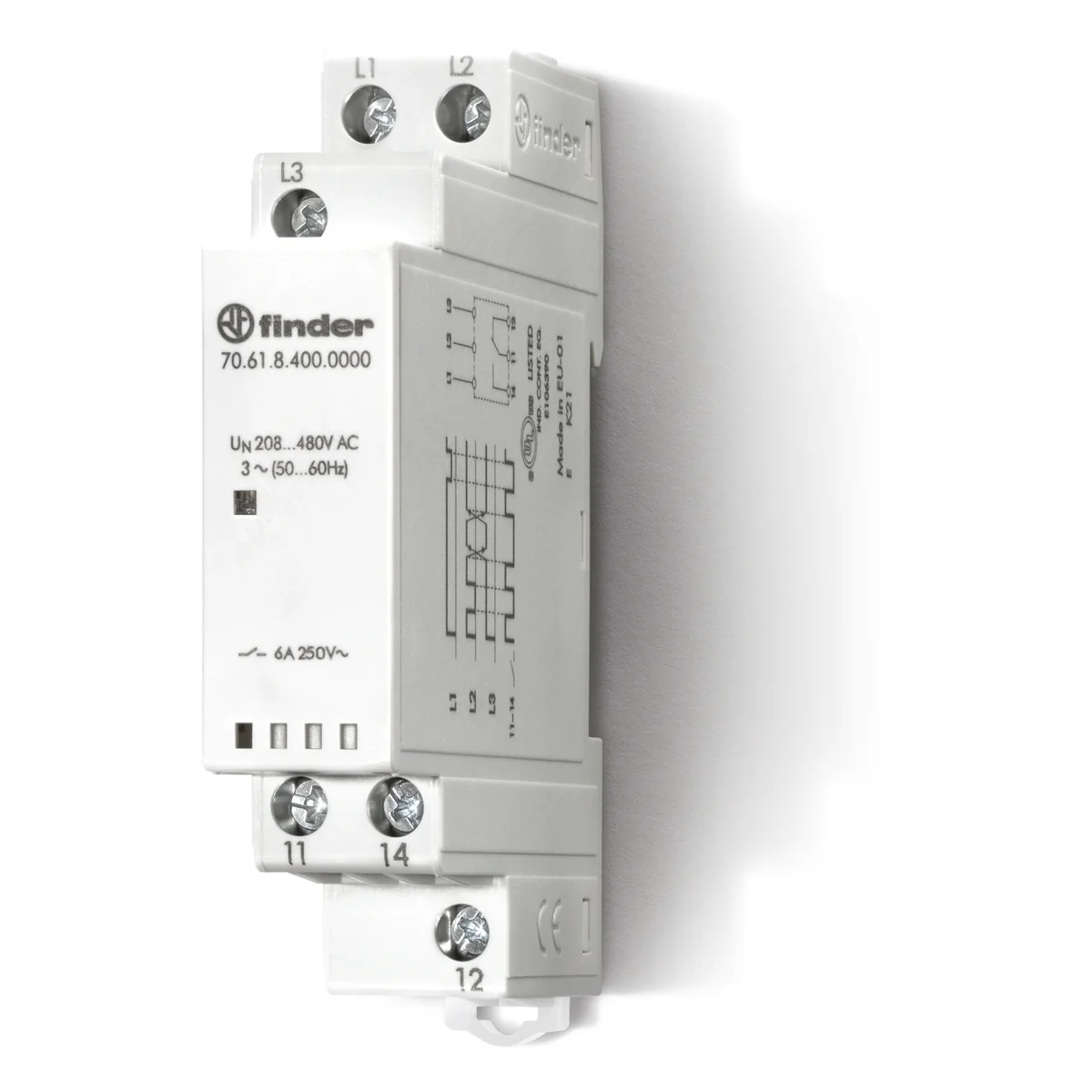

70 SERIES Electronic phase sequence and phase loss monitoring relay for 208…480V three-phase systems 706184000000

Electronic relay supervising the sequence and loss of phases in three-phase systems of the 70 series, from the manufacturer FINDER. The product part number is 70.61.8.400.0000PAS.

• Wide voltage control range (UN 208 V to 480 V, 50/60 Hz).
• Phase loss control even below the minimum value.
• Positive safety logic - contact opens when a fault is detected.
• 1 changeover contact, 6 A (17.5 mm wide).
• For mounting on a 35 mm DIN rail (EN 60715).
• European patent for a completely innovative solution in the effective monitoring and fault control of three-phase networks.
• Three phase voltage supervision (208…480V):
  • Phase loss.
  • Phase rotation
• Data coils:
  • Installation voltage (UN) V AC (50/60 Hz) 208…480.
  • Power consumption VA (50 Hz)/W 8/1.
  • Power supply voltage range V AC (50/60 Hz) 170…500.
