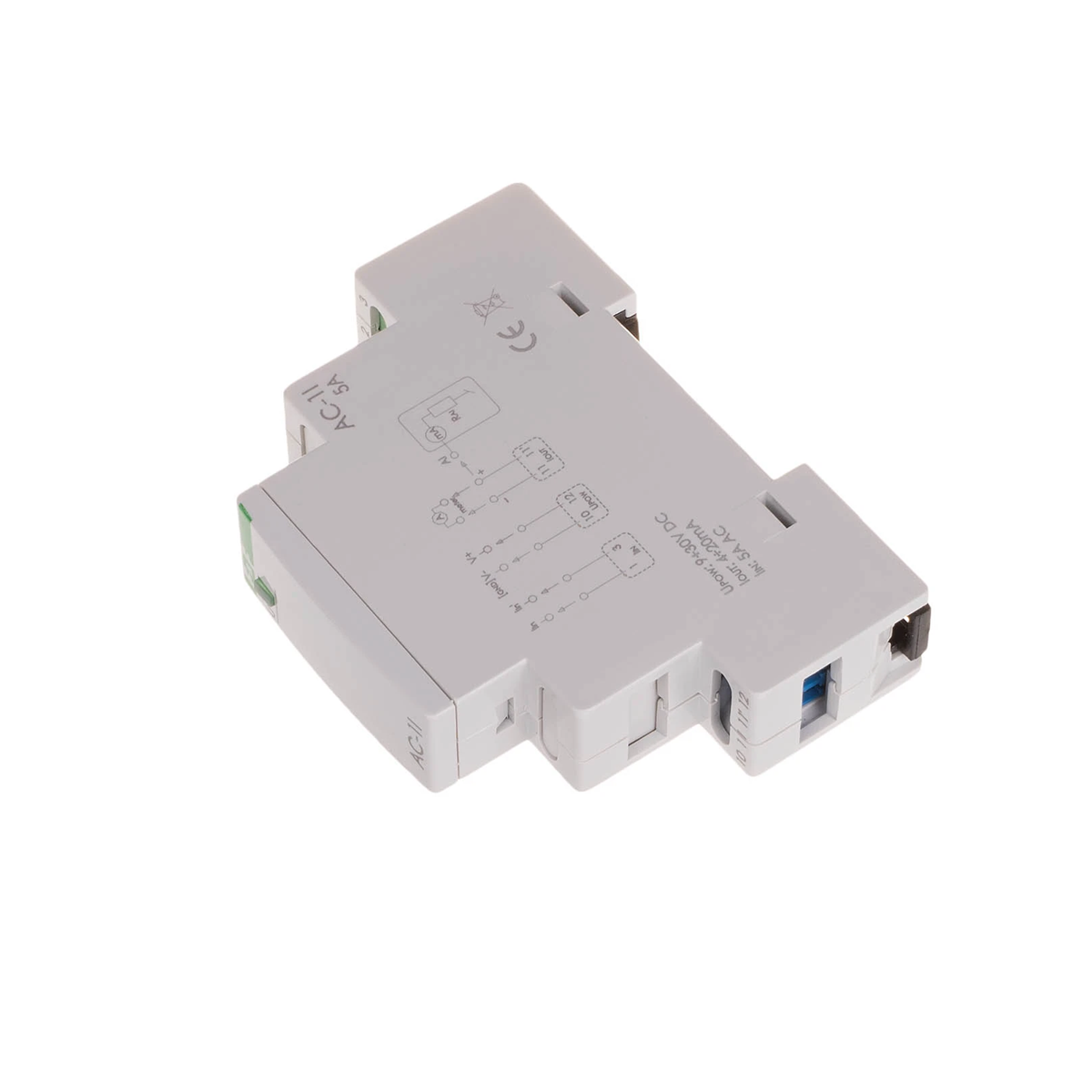

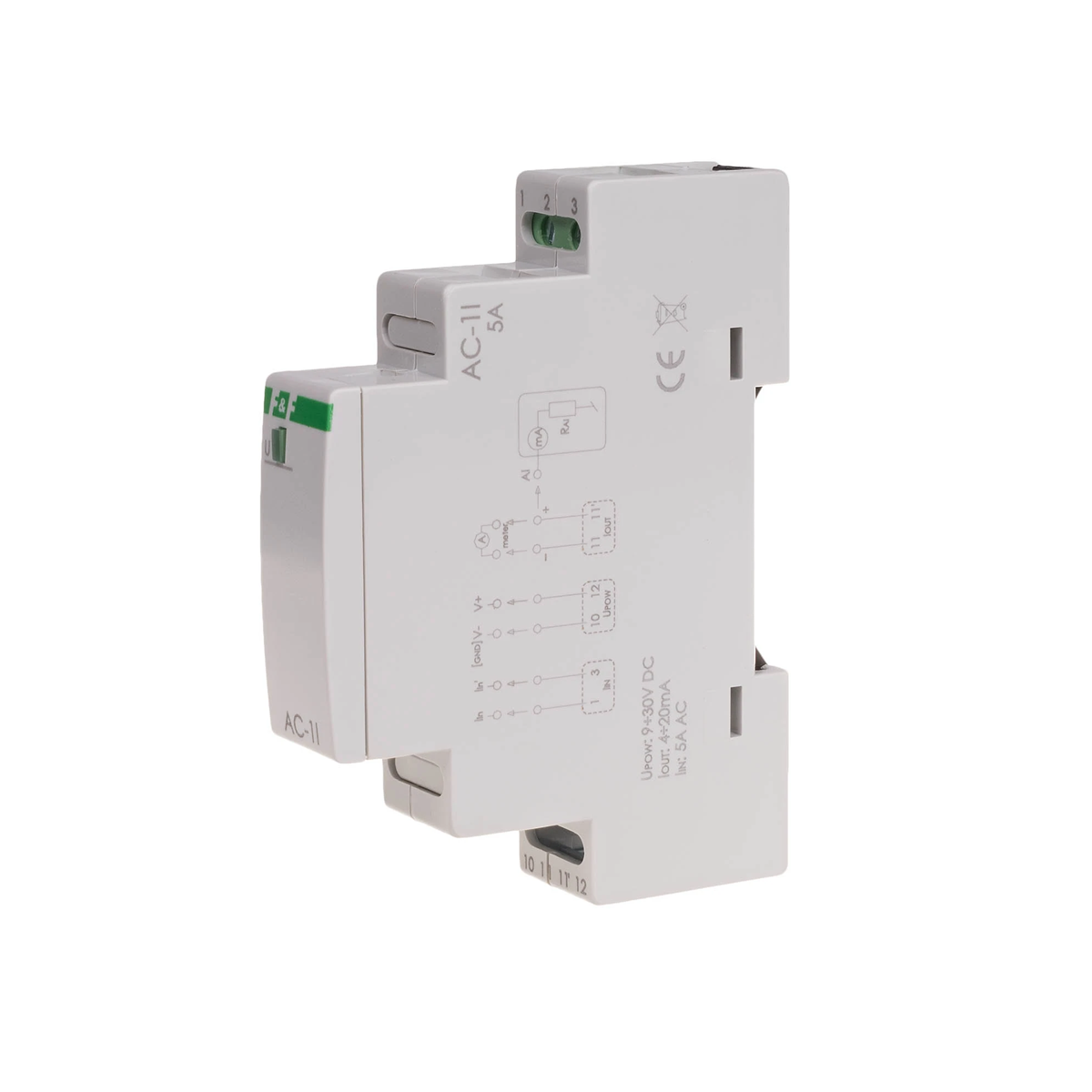

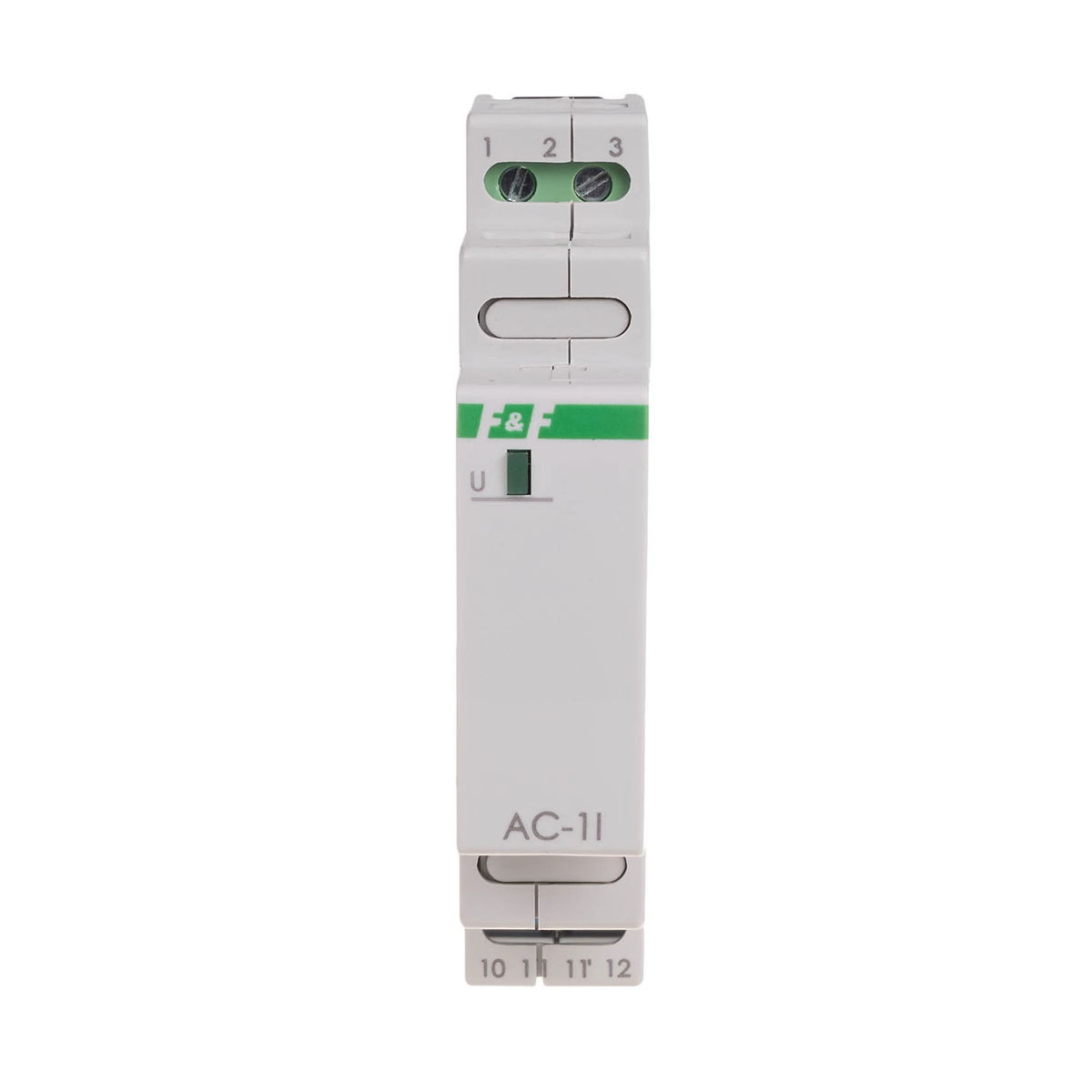

5A single phase analog current converter MAX-AC-1I-5A

Indice locale:
API055FIFQ
Numero di catalogo:
MAX-AC-1I-5A
Codice EAN:
5908312595243
Produttore: F&F
Processing error: ±0.5%
Length [m]: 300
Maximum load current [A]: 10
Prezzo:
450,28 zł
gross / pezzi
(inclusa IVA 23%)
1,50 zł gross/metro
Consegna in 3 ore
fino a una settimana (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

The AC-1I module is designed to measure AC or DC current and convert the measured value to a unified analog current output signal in the range of 4-20 mA. The transducer continuously measures the current flowing through the Iin measuring input. The measured current value is proportionally converted to the output DC signal Iout in the range of 4-20 mA. The transducer measures the rms value of the True RMS current, which guarantees high measurement accuracy also with distorted waveforms. The signal output of the module is protected by an anti-interference filter that eliminates network interference affecting the accuracy of the transmitted signal. This allows the use of signal cables up to 300m long.100A/100msec
Acceptable overload



Dati tecnici

  • Processing error
    ±0.5%
  • Maximum load current [A]
    10
  • Power [W]
    0.8
  • Breakdown voltage [kV]
    2.1
  • Output current [mA]
    4-20
  • connection
    2.5mm screw terminals
  • Dimensions
    1 module (18mm)
  • Current setting range [A] from
    0
  • Package width [mm]
    20
  • PKWIU
    26.30.23.0
  • Length [m]
    300
  • Maximum measurement error
    ±0.2A
  • Installation
    On the TH-35 rail
  • Rated voltage [V]
    285
  • Rated current [A]
    0-5
  • Level of security
    IP20
  • Current setting range [A] to
    5
  • Package height [mm]
    150
  • Package weight [kg]
    0.25

Altri dati tecnici

  • Initial value measuring range current
    0 A
  • Frequency rated current
    50 Hz
  • Integrated configuration function
    No
  • End value measuring range current
    5 A
  • Type of analogy output
    4 - 20 mA
  • With switching output
    No

Dettagli del produttore

  • Produttore
    F&F Filipowski S.K.
  • Indirizzo
    95-200 Pabianice Konstantynowska 79/81 Polska

Imballaggio sfuso

Una specie di pacchetto Sztuka
Quantità 1 pezzi
Peso (kg) 0,057
Larghezza (m) 0,019
Lunghezza (m) 0,090
Profondità (m) 0,070
