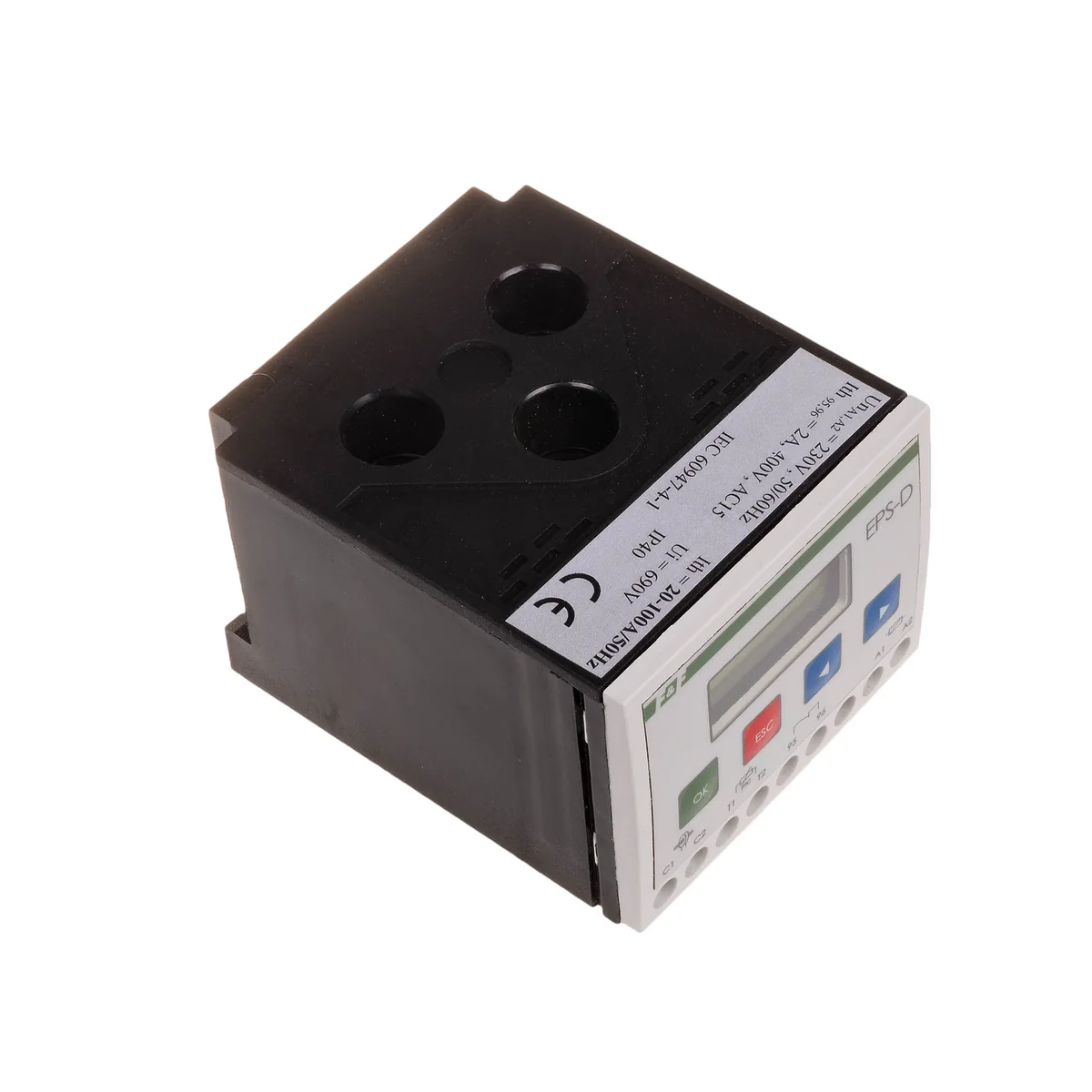

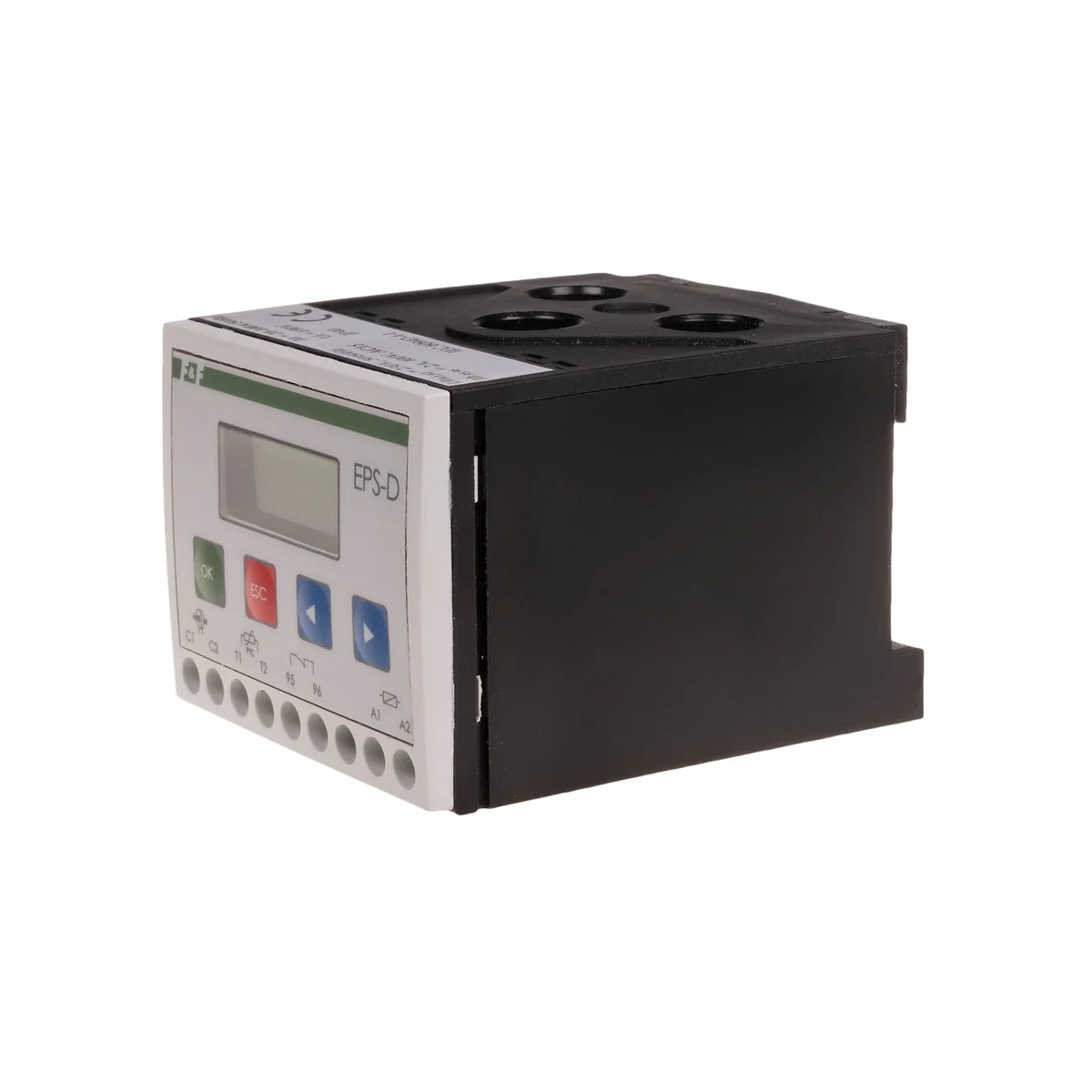

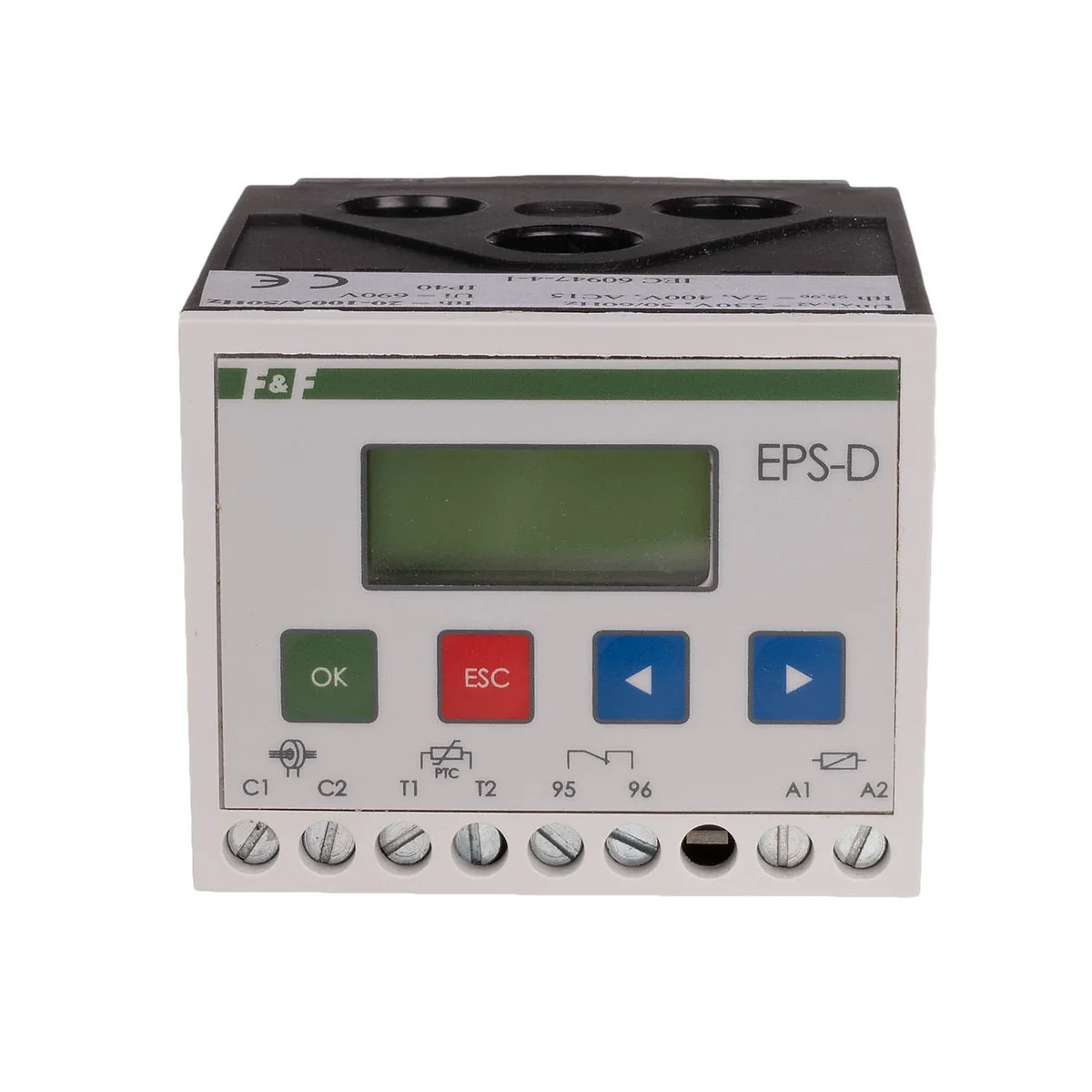

5A electronic motor relay EPS-D-5A

local index:
APN115FIFQ
Catalog No:
EPS-D-5A
EAN code:
5908312593430
Manufacturer: F&F
Trip voltage unbalance [V]: >30
Depth [mm]: 88
Maximum cable diameter [mm]: 14
Price:
214,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

EPS is designed to protect three-phase electric motors of any power. It effectively protects engines in expensive and responsible applications such as pumps, hydrophores, elevators, transporters, lifts, fans, centrifuges, compressors, etc.

Technical data

  • Trip voltage unbalance [V]
    >30
  • Maximum cable diameter [mm]
    14
  • Main circuit insulation voltage [V]
    690
  • contact load
    2A AC-15
  • connection
    2.5mm screw terminals
  • Width [mm]
    59
  • Setting range [A]
    0-5
  • Package width [mm]
    59
  • Trip current asymmetry
    >30
  • Depth [mm]
    88
  • Installation
    On the TH-35 rail
  • Rated voltage [V]
    230
  • Delay at phase loss and unbalance [s]
    4
  • Level of security
    IP20
  • Height [mm]
    72
  • Package height [mm]
    72
  • Package weight [kg]
    0.4
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operation current Ie
    1 ... 5 A
  • Rated voltage Ue at AC 60 Hz
    160 ... 242 V
  • Current detection module
    Yes
  • Type of connection system
    Through-feed technique
  • Number of analogue outputs
    0
  • Number of electronic outputs
    0
  • Input for earth fault detection
    Yes
  • Degree of protection (IP)
    IP40
  • Rated voltage Ue at AC 50 Hz
    160 ... 242 V
  • Rated operating frequency
    50 ... 60 Hz
  • Voltage detection module
    No
  • Number of analogue inputs
    2
  • Number of outputs, with contact
    1
  • Number of digital inputs
    0
  • Input for analogue temperature sensor
    Yes

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,100
Length (m) 0,125
Depth (m) 0,070
