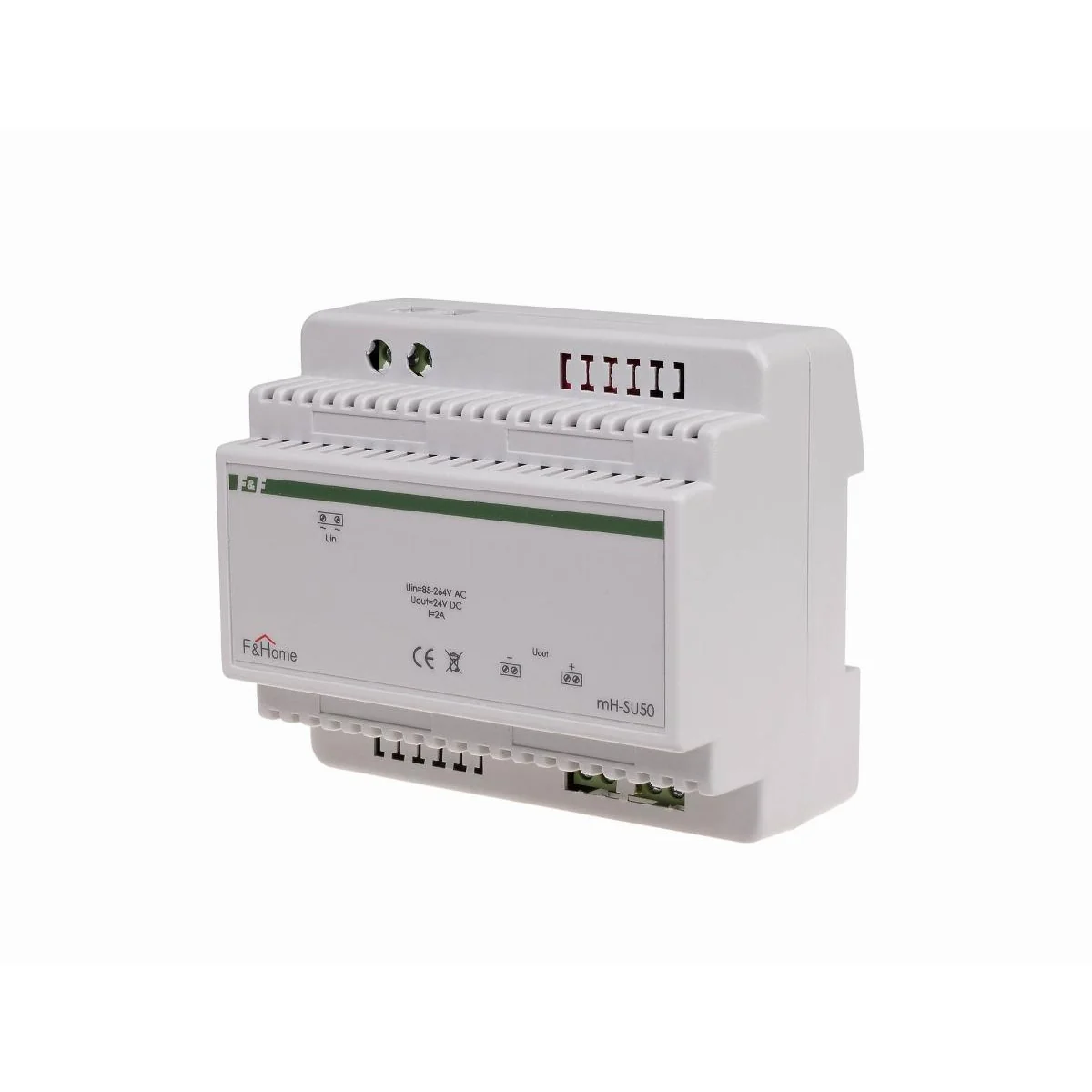

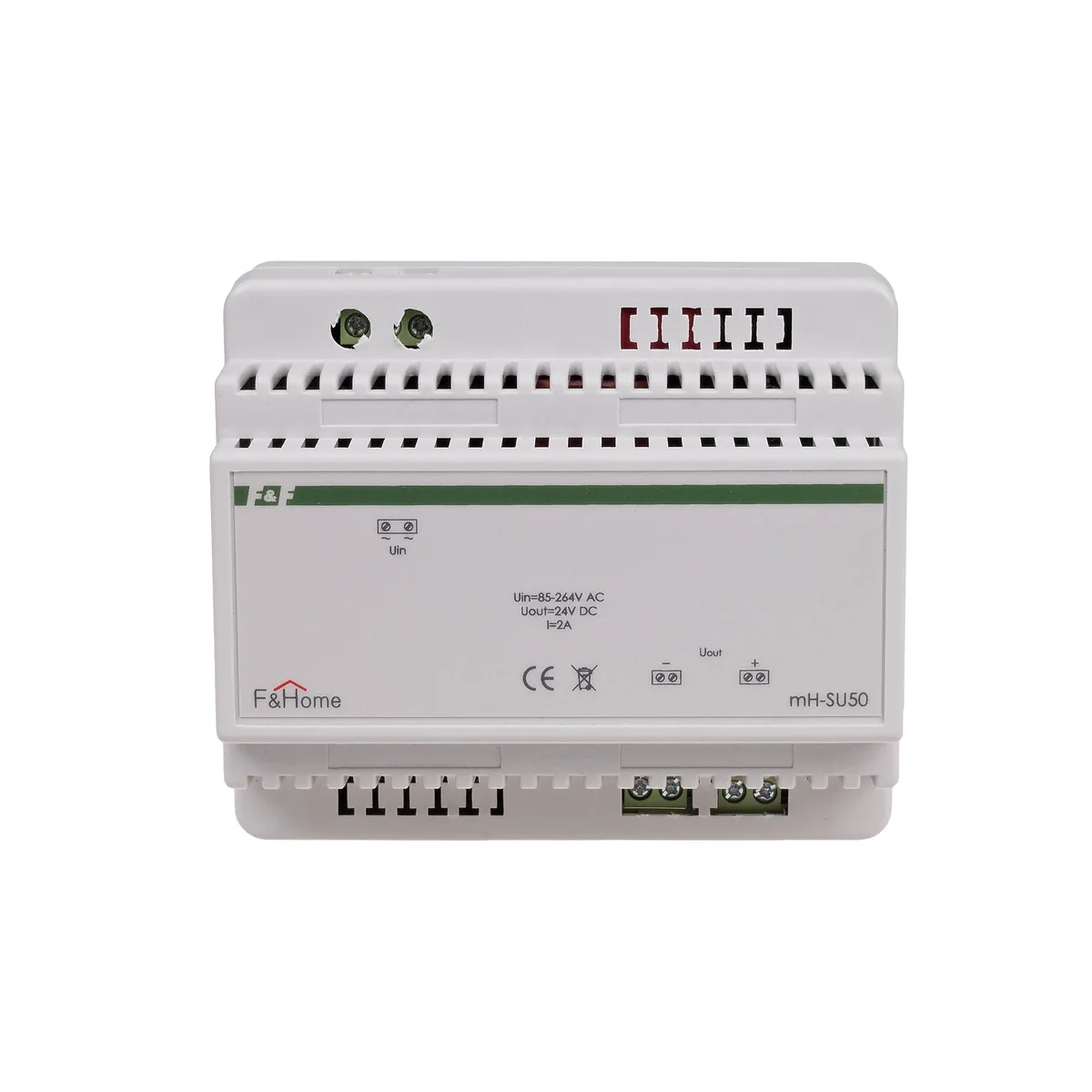

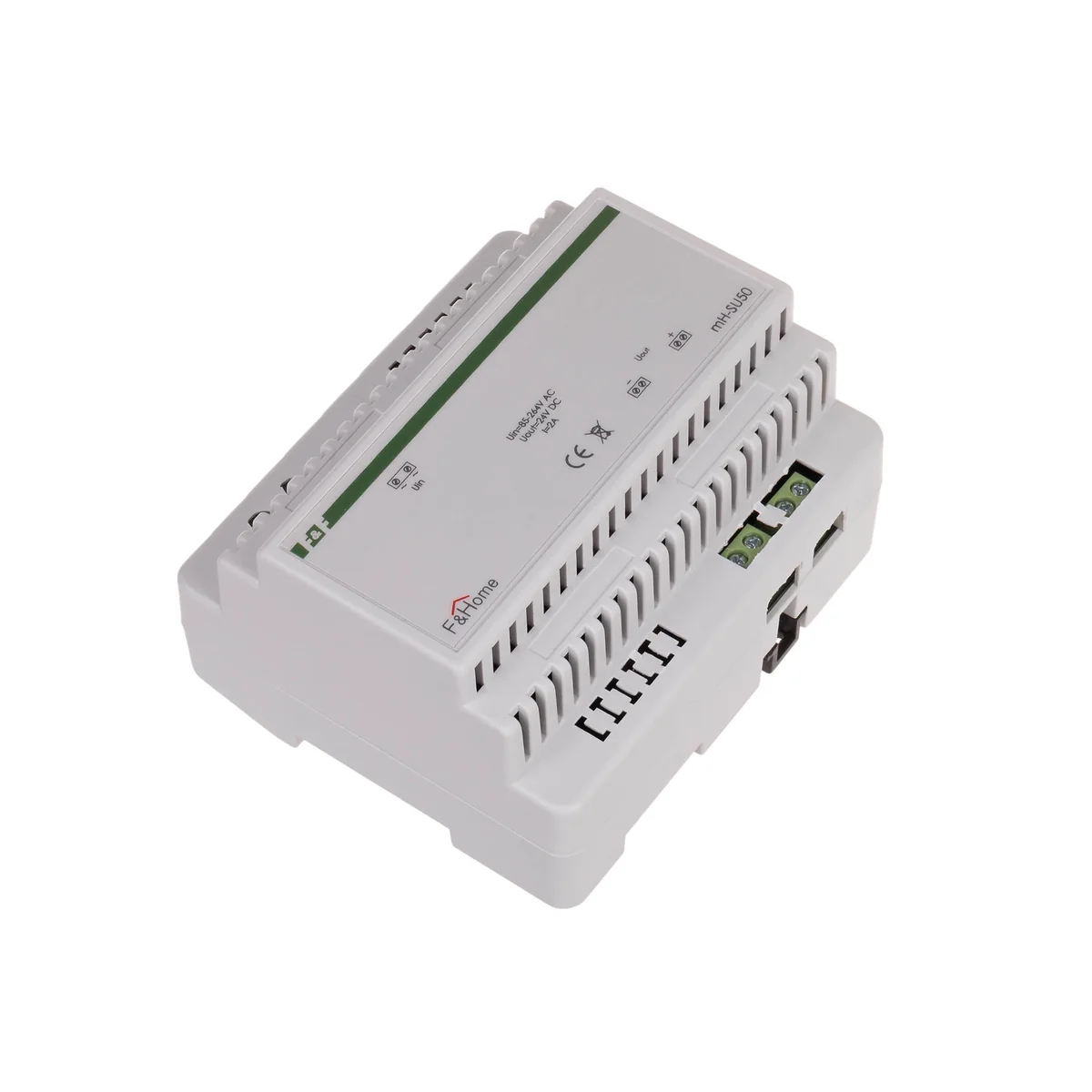

50W power unit MH-SU50

local index:
API071FIFQ
Catalog No:
MH-SU50
EAN code:
5908312594277
Manufacturer: F&F
Depth [mm]: 65
Rated voltage [V]: 230
Rated current [A]: 1.25
Price:
107,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

The mH-SU24 or mH-SU50 power supply unit is used to power system components supplied with 24V DC. In practice, one mH-SU24 unit is sufficient for a small system, a single mH-SU50 unit is recommended for a large system. For safety reasons, it is recommended to use the mH-SP filter module and the B6A overcurrent circuit breaker in the power supply circuit. The module is installed in the switchgear and takes up a field of 3 modules (mH-SU50: 6 modules). The unit has electronic protection against short circuit and overheating. 24V line protection is not required.

Technical data

  • Depth [mm]
    65
  • Rated current [A]
    1.25
  • Level of security
    IP20
  • Height [mm]
    90
  • Package width [mm]
    105
  • PKWIU
    27.11.42.0
  • Rated voltage [V]
    230
  • Family
    F&HOME
  • Width [mm]
    105
  • Package height [mm]
    150
  • Package weight [kg]
    0.35

Other technical data

  • Bus system KNX
    no
  • Bus system radio frequent
    no
  • Bus system Powernet
    no
  • Mounting method
    DRA (DIN-rail adapter)
  • With LED indication
    no
  • Number of lines to feed
    1
  • Bus system KNX-RF (Radio Frequent)
    no
  • Bus system LON
    no
  • Other bus systems
    Other
  • Width in number of modular spacings
    6
  • Bus voltage stockable
    no
  • Max. output current
    2000 mA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,290
Width (m) 0,104
Depth (m) 0,075
