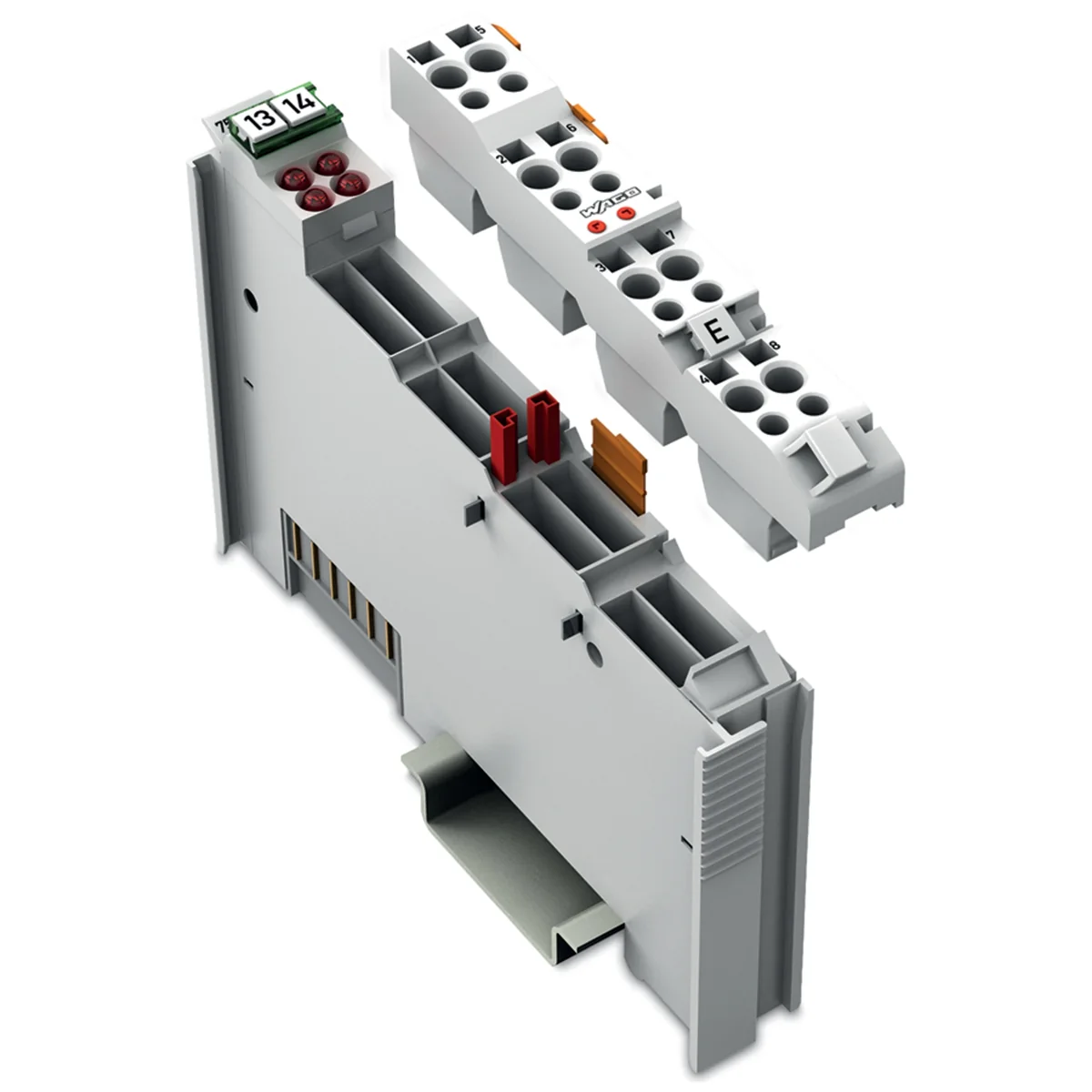

4AI module 4-20mA unbalanced inputs 753-455

local index:
API027WAGO
Catalog No:
753-455
EAN code:
4045454439644
Manufacturer: WAGO ELWAG
Processing time [ms]: 10
Depth [mm]: 100
Number of inputs: 4
Price:
314,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The analog input module processes signals with a standardized size of 4-20 mA. The input signal is galvanically separated from the system bus and transmitted with a resolution of 12 bits. The internal system bus voltage is used for power supply. The input channels of the module have a common ground potential.

Technical data

  • Processing time [ms]
    10
  • Number of inputs
    4
  • Maximum input voltage [V]
    32
  • Signal current [mA]
    2014-04-20 00:00:00
  • Resolution [bits]
    12
  • Level of security
    IP20
  • Internal current consumption [mA]
    65
  • Accurate color
    light gray
  • Depth [mm]
    100
  • Color
    Gray
  • Installation
    On the TH-35 rail
  • Gauge [AWG]
    28
  • Series
    753
  • Width [mm]
    12
  • Height[mm]
    64

Other technical data

  • Supply voltage DC
    24 ... 24 V
  • Input, current
    Yes
  • Input, resistor
    No
  • Input, thermocouple
    No
  • Resolution of the analogue inputs
    12 b
  • Output, voltage
    No
  • Number of analogue inputs
    4
  • Analogue inputs configurable
    No
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces USB
    0
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • Type of electric connection
    Spring clamp connection
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    ATEX dust-ex-protection, Cat. 3D
  • Height
    64 mm
  • Voltage type (supply voltage)
    DC
  • Input, voltage
    No
  • Input, resistance thermometer
    No
  • Input signal, configurable
    No
  • Output, current
    No
  • Output signal configurable
    No
  • Number of analogue outputs
    0
  • Analogue outputs configurable
    No
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces wireless
    0
  • Number of HW-interfaces other
    0
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • Fieldbus connection over separate bus coupler possible
    Yes
  • Wall mounting/direct mounting
    No
  • Rack-assembly possible
    No
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 3G
  • Width
    12 mm
  • Depth
    100 mm

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,057
Volume (m3) 0,000
Width (m) 0,020
Length (m) 0,104
Depth (m) 0,074
