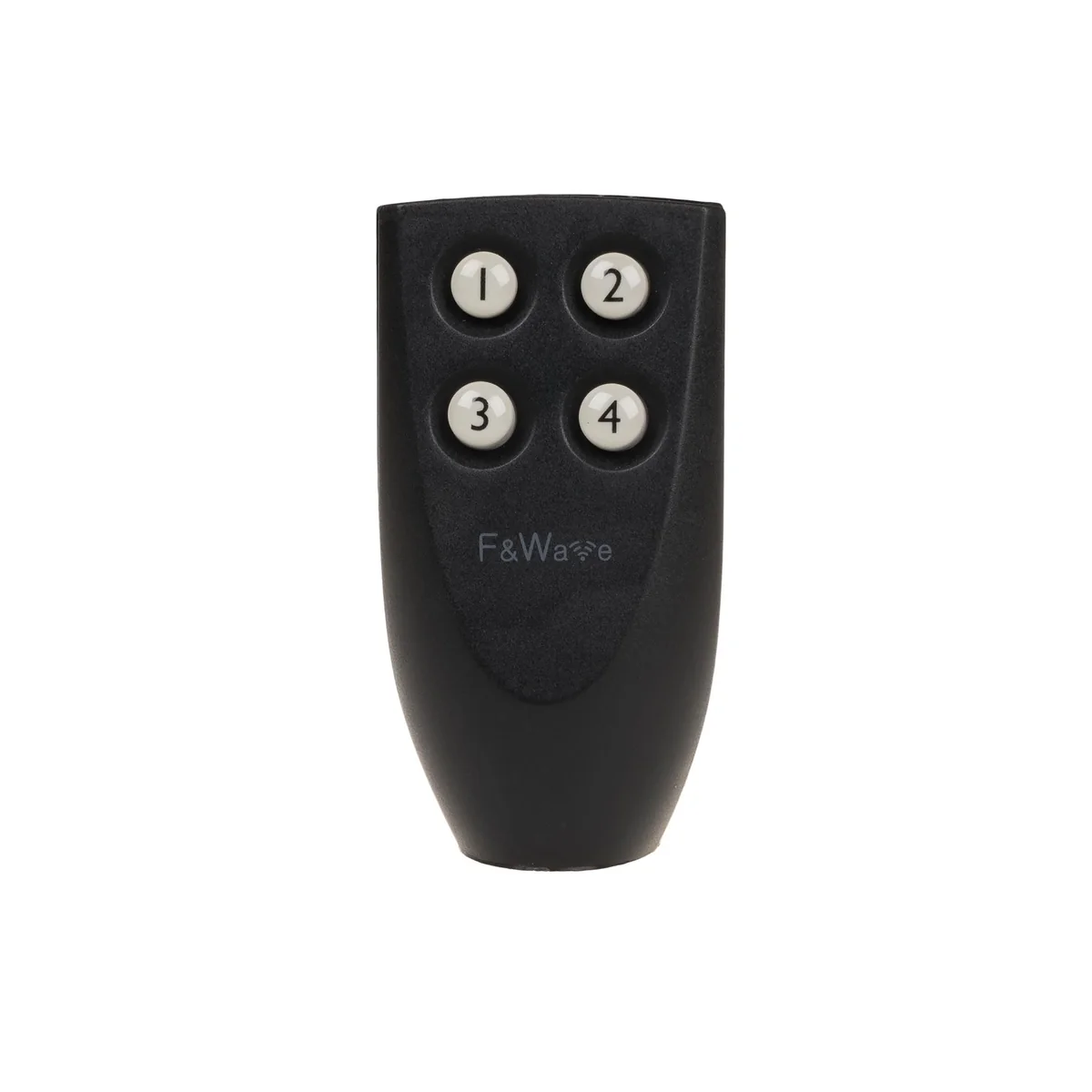

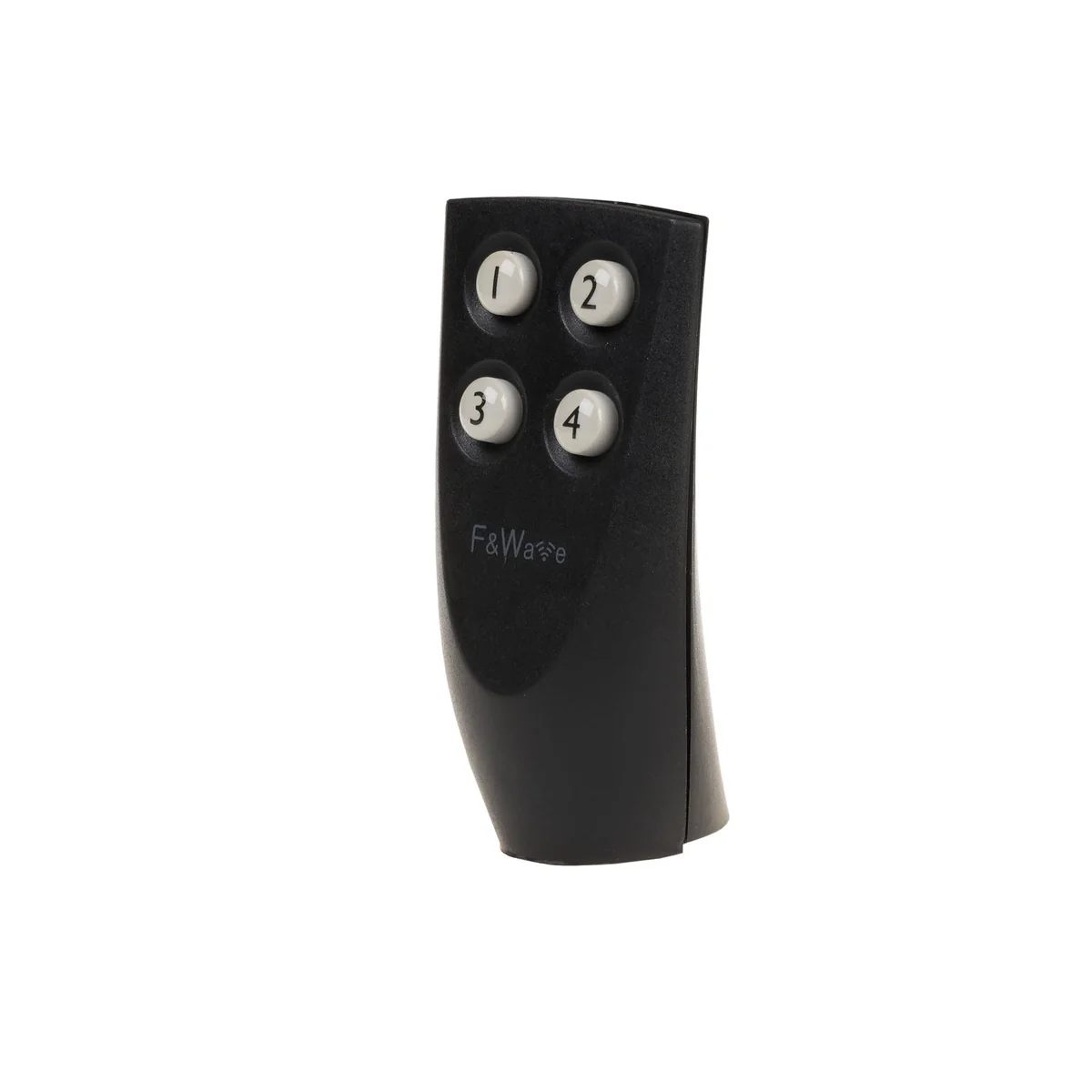

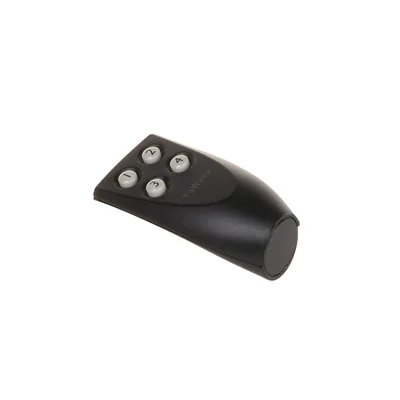

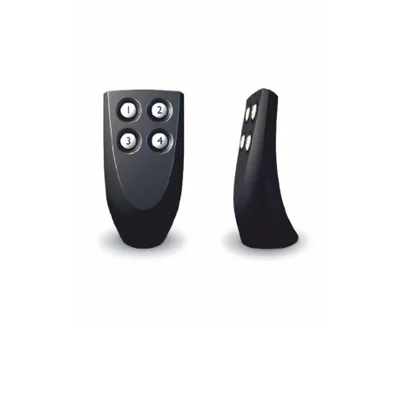

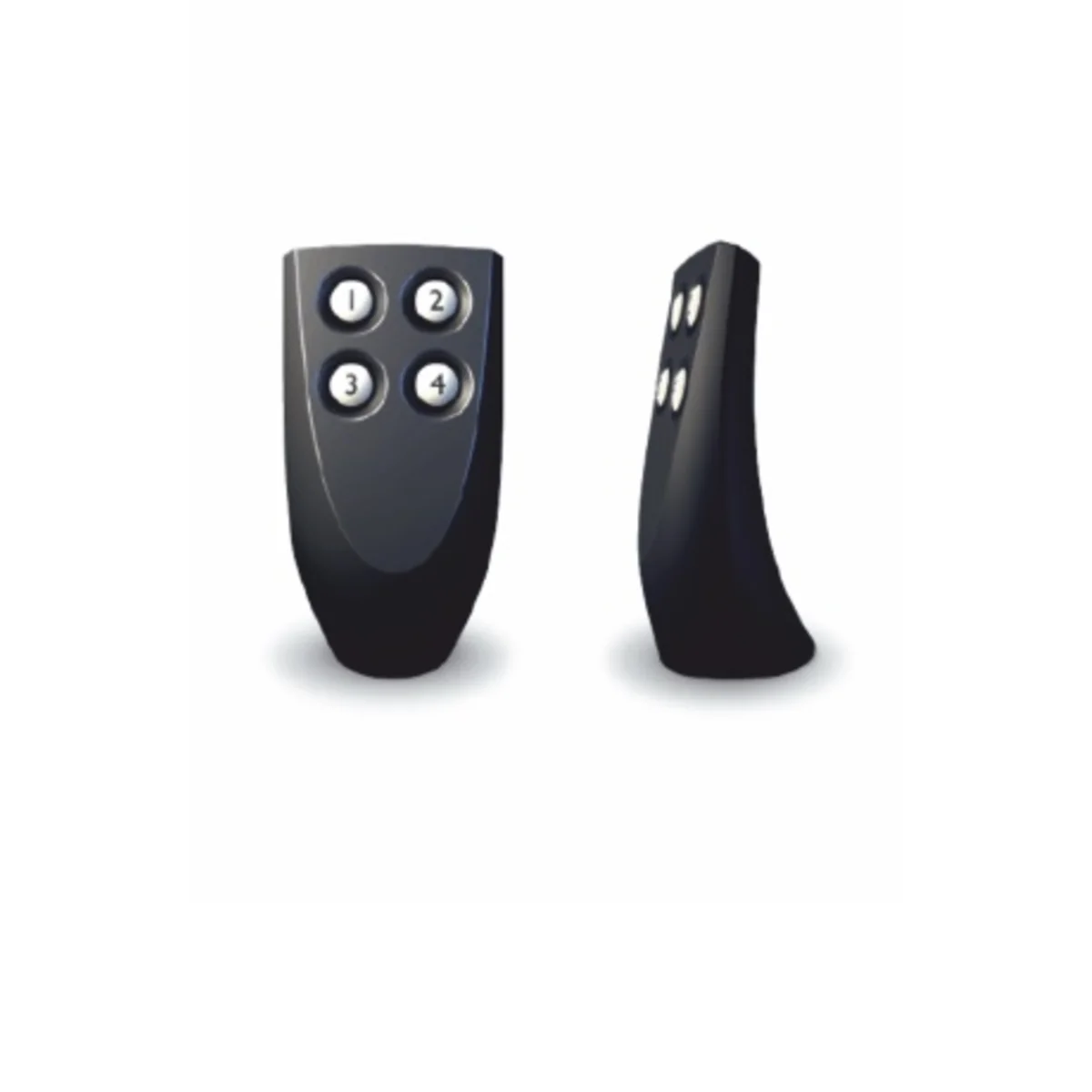

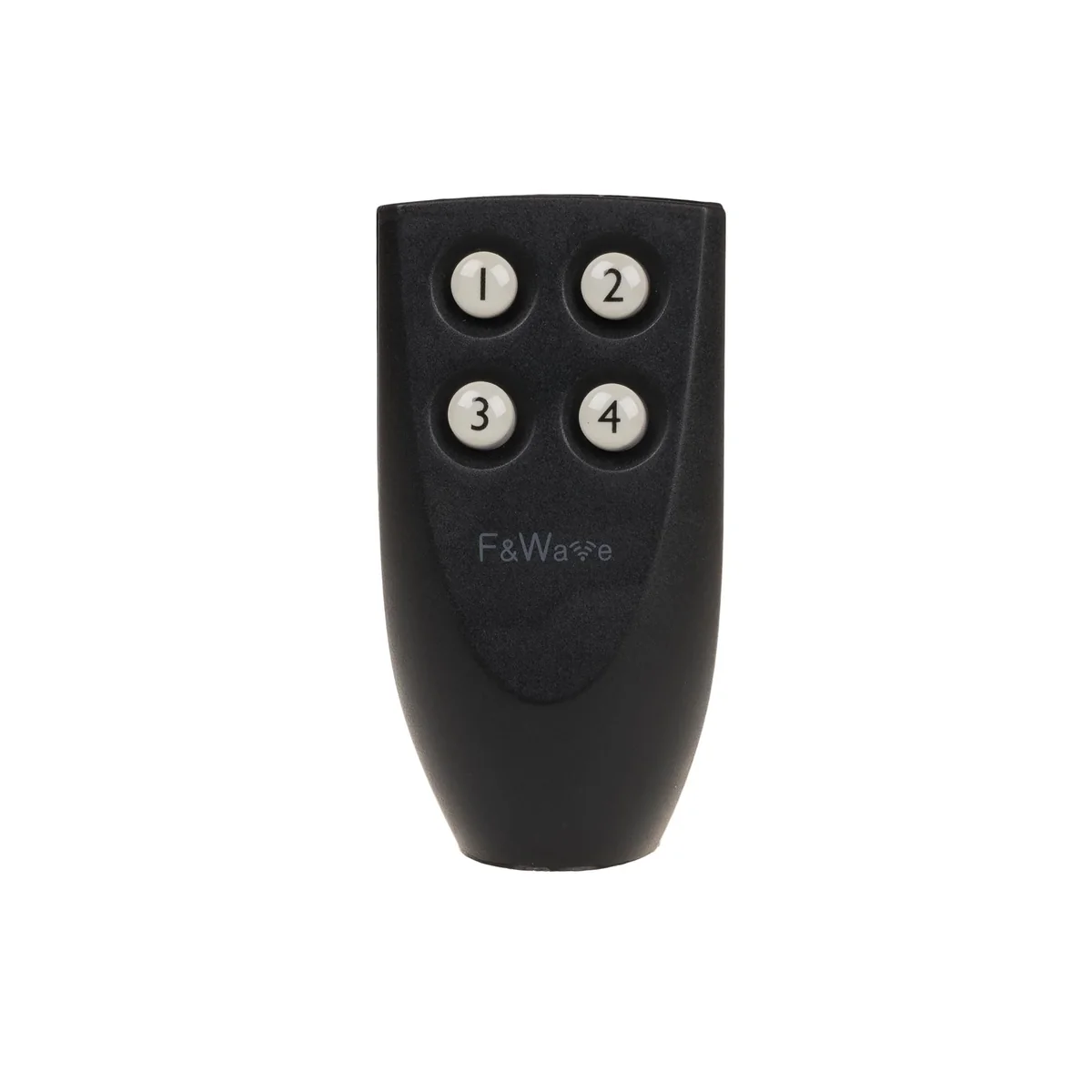

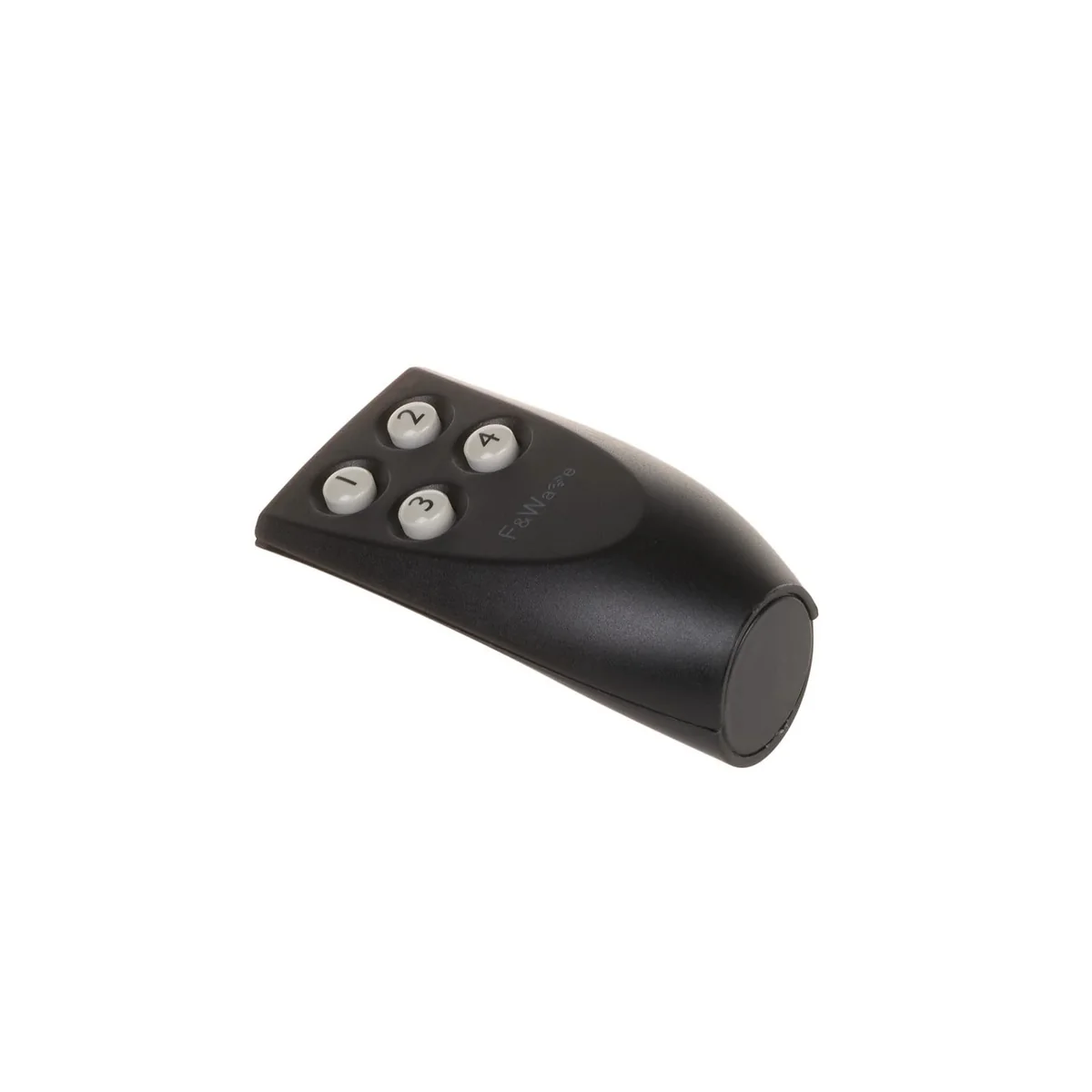

4-button remote control 3V power supply FW-RC4

local index:
APL017FIFQ
Catalog No:
FW-RC4
EAN code:
5908312599333
Manufacturer: F&F
Battery: CR2032
Power type: Battery
Family: F&WAVE
Price:
22,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 20 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


Module features



  • 4-button remote control transmitter;


  • Cooperation with F&Wave remote control receivers;


  • Ability to control any number of receivers;


  • On/off functionality (bistable switch) with FW-R1P, FW-R1D, FW-R2P receivers , FW-R2D, FW-D1P, FW-D1D, FW-LED2P, FW-LED2D;


  • Functionality raise/lower the roller shutter with FW-STR1P, FW-STR1D receivers ;


  • Functionality dim/brighten the light with FW-D1P, FW-D1D, FW-LED2P, FW-LED2D receivers.


Specifications








































Attribute

Value

power supply

3V DC
< br/> current consumption
button pressed - 20 mA

standby - 15 nA


20mA

battery

CR2032

battery life

approx. 15 hours of broadcasting

(remote button pressed)

operating temperature

-25÷50° C

radio frequency

868 MHz

dimensions

37×72× 30mm


Operating range - In open space without interfering factors, the range of radio-controlled devices oscillates around 100 m. . The range can be improved by direct retransmission of modules within each other's range.

Technical data

  • Battery
    CR2032
  • Family
    F&WAVE
  • Power
    3VDC
  • PKWIU
    26.30.12.0
  • Power type
    Battery
  • Dimensions [mm]
    37x72x30
  • Frequency [MHz]
    868

Other technical data

  • Radio frequency
    868 MHz
  • Rolling code system
    Yes
  • Number of commands
    4
  • Flush-mounted radio transmitter
    No
  • With radio coding device
    Yes
  • Modulation
    FM
  • Range
    100 m
  • With manual radio transmitter
    Yes
  • Surface mounted radio transmitter
    No
  • Current supply
    Battery

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,034
Length (m) 0,095
Depth (m) 0,070
