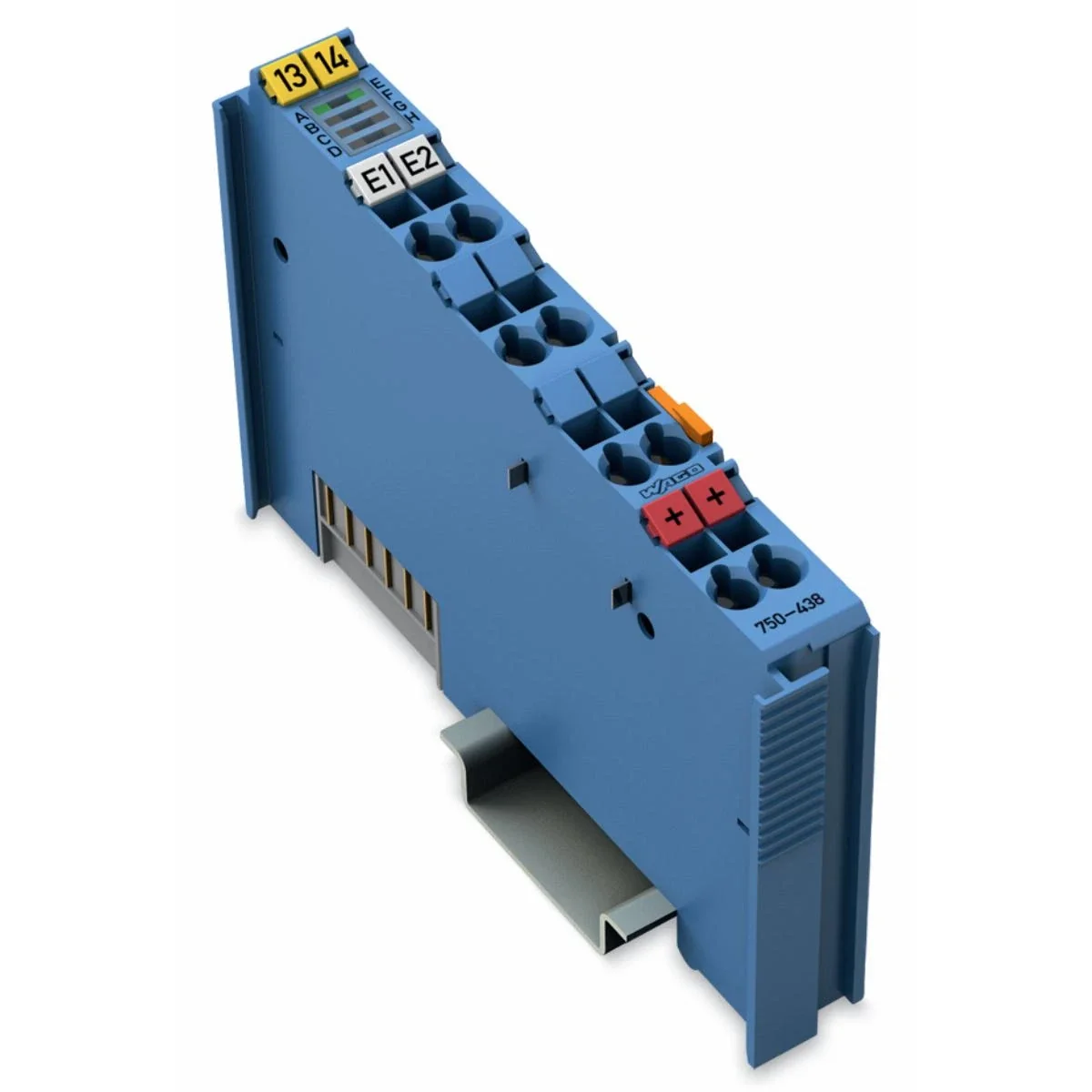

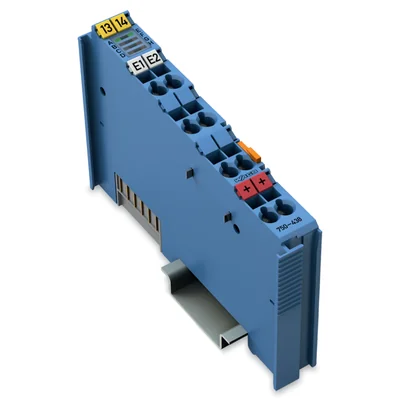

2DI NAMUR Ex i module 750-438

local index:
API069WAGO
Catalog No:
750-438
EAN code:
4045454725525
Manufacturer: WAGO ELWAG
Filter: 3
Depth [mm]: 100
Number of inputs: 2
Price:
164,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The binary input module collects binary signals from sensors used in zone 0+1 of the potentially explosive area. These can be NAMUR sensors, optocouplers, mechanical contacts and other devices that meet the necessary intrinsic safety requirements. The WAGO-I/O-SYSTEM 750 modules should be installed in zone 2 or in a non-hazardous area. A short-circuit-proof voltage output of 8.2 V is used to power the sensors.

Technical data

  • Filter
    3
  • Number of inputs
    2
  • Power [W]
    0.4
  • Signal current [mA]
    & ≤ 1.2
  • Gauge [AWG]
    28
  • Width [mm]
    12
  • Accurate color
    Blue
  • Depth [mm]
    100
  • Color
    Blue
  • Installation
    On the TH-35 rail
  • Short-circuit current [kA]
    8.2
  • Series
    750
  • Height [mm]
    64

Other technical data

  • Supply voltage DC
    24 ... 24 V
  • Number of digital inputs
    2
  • Digital inputs configurable
    No
  • Input current at signal 1
    2.1 mA
  • Type of voltage (input voltage)
    DC
  • Short-circuit protection, outputs available
    No
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces wireless
    0
  • Number of HW-interfaces other
    0
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • Type of electric connection
    Spring clamp connection
  • Fieldbus connection over separate bus coupler possible
    Yes
  • Wall mounting/direct mounting
    No
  • Rack-assembly possible
    No
  • Appendant operation agent (Ex ia)
    Yes
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 3G
  • Width
    12 mm
  • Depth
    100 mm
  • Voltage type (supply voltage)
    DC
  • Number of digital outputs
    0
  • Digital outputs configurable
    No
  • Permitted voltage at input
    8.2 ... 8.2 V
  • Type of digital output
    Other
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces USB
    0
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    Yes
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • Time delay at signal change
    3 ... 3 ms
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    ATEX dust-ex-protection, Cat. 3D
  • Height
    64 mm

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,062
Volume (m3) 0,000
Width (m) 0,020
Length (m) 0,104
Depth (m) 0,074
