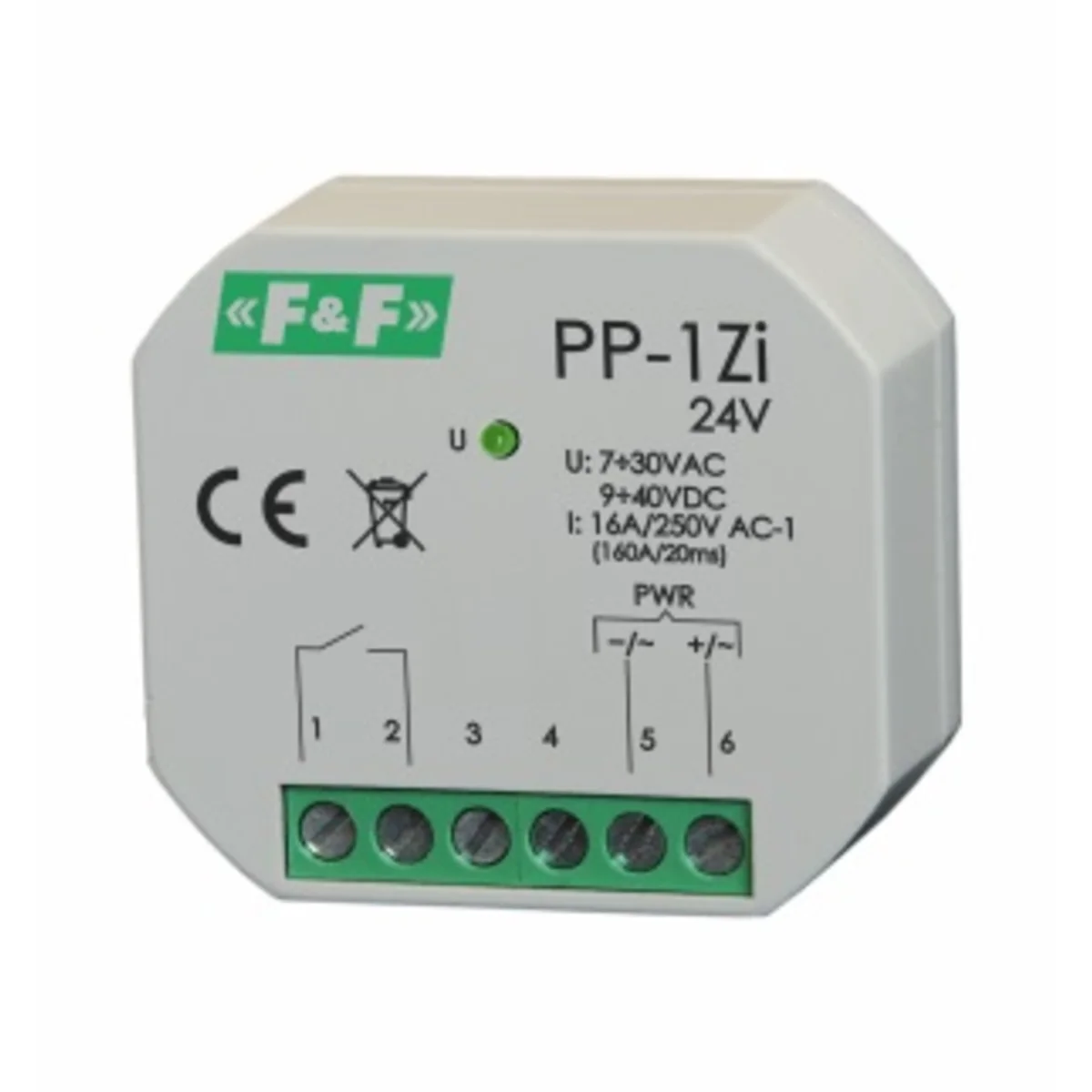

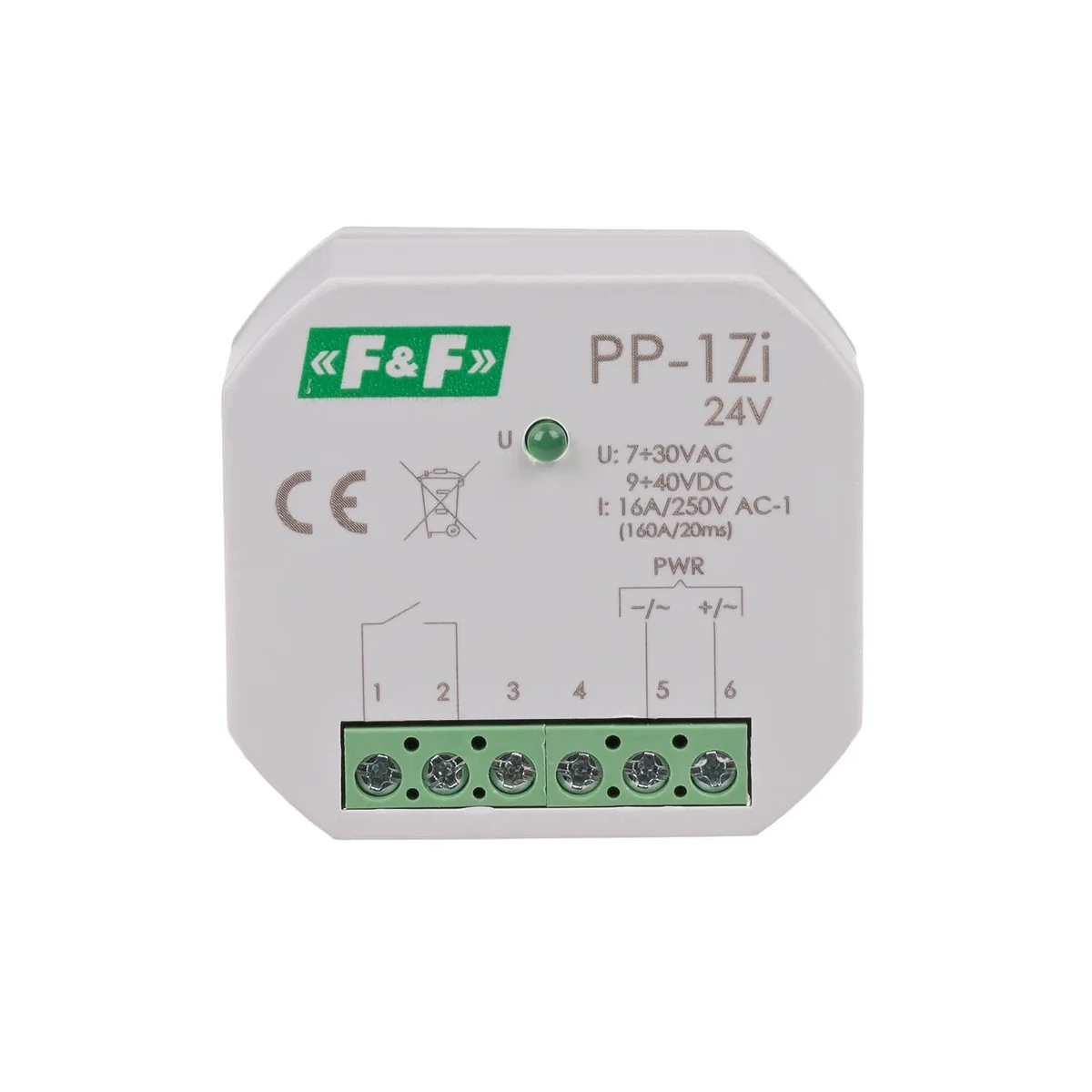

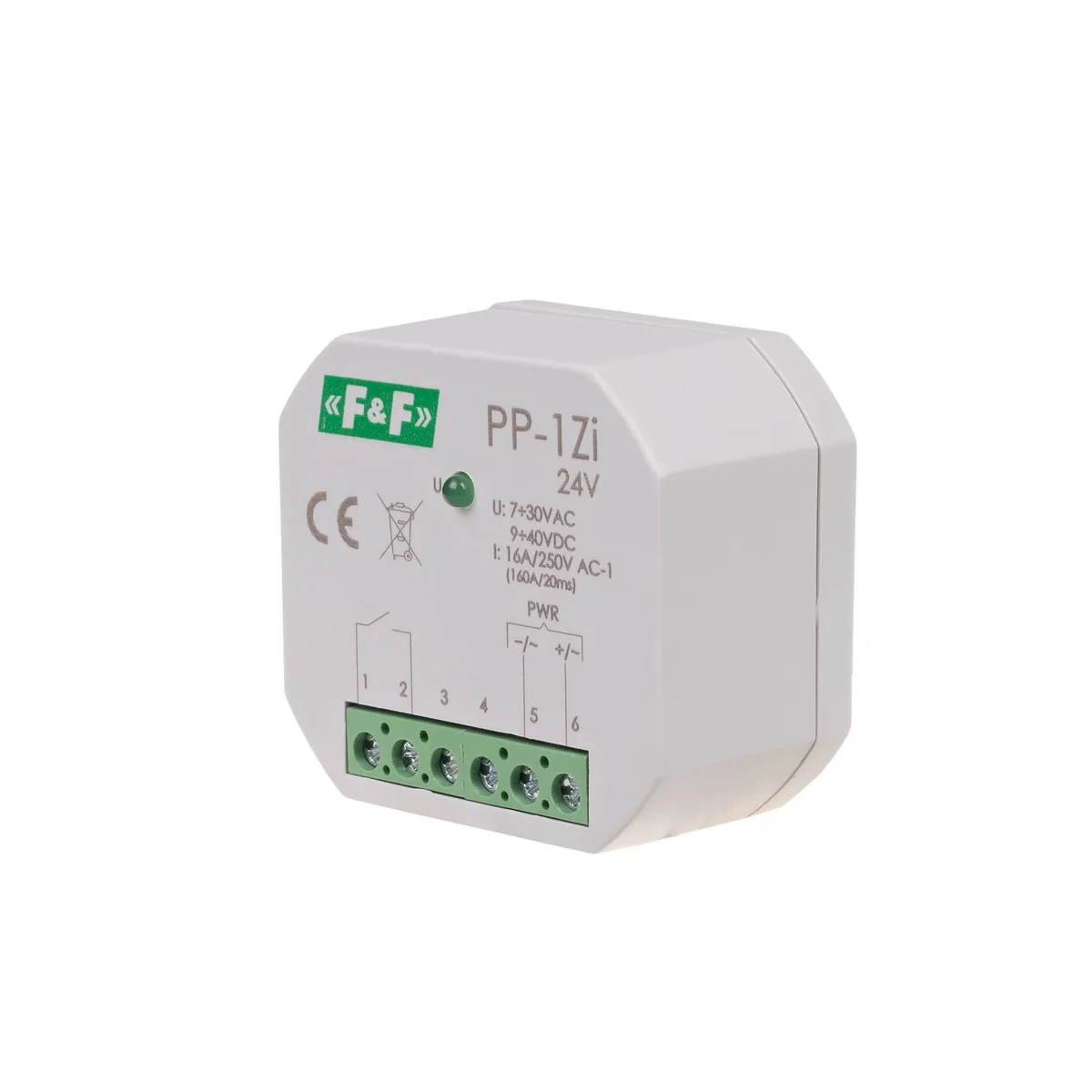

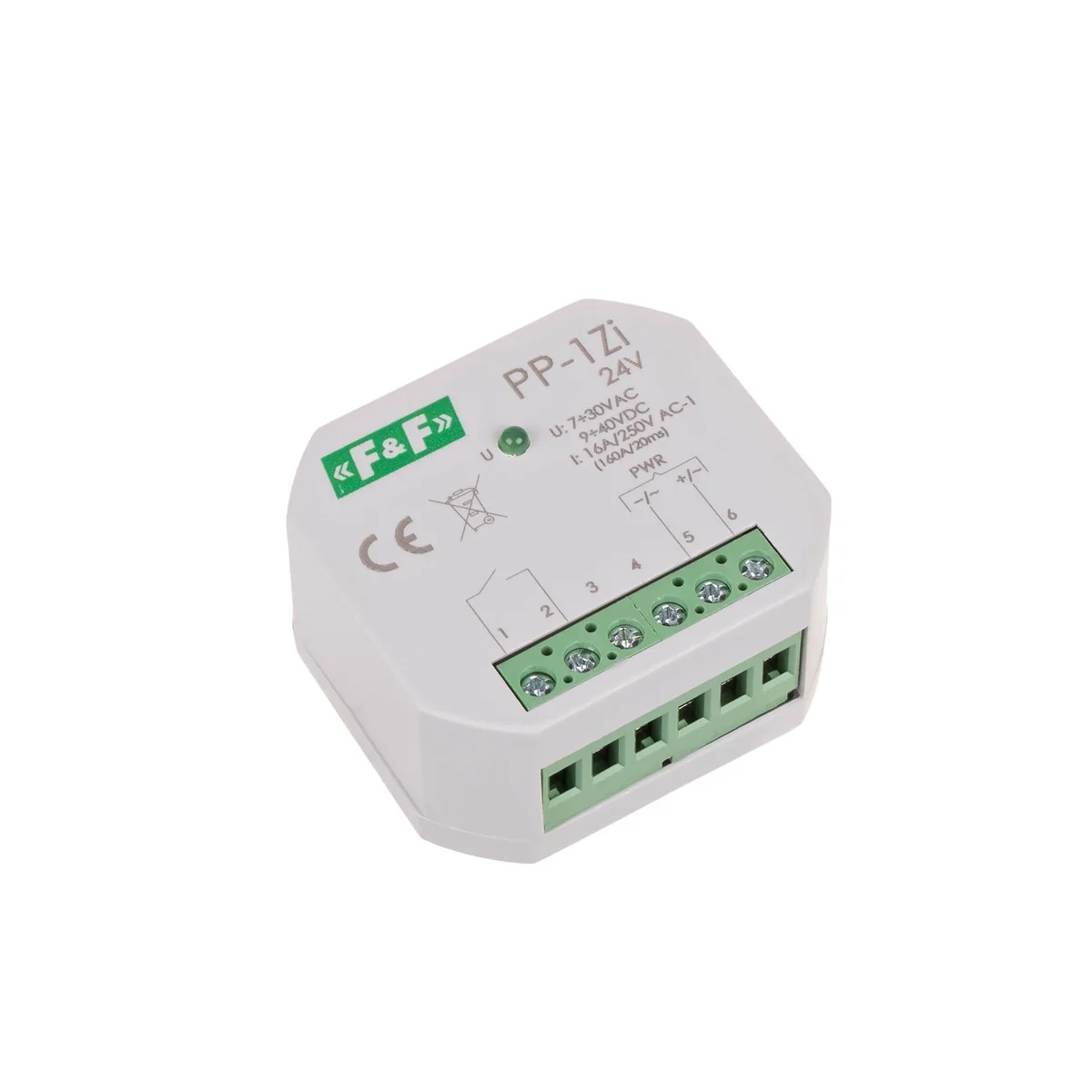

24V electromagnetic relay PP-1Z-LED-24V

local index:
APE018FIFQ
Catalog No:
PP-1Z-LED-24V
EAN code:
5908312598541
Manufacturer: F&F
Shutdown time [ms]: max 20
Power [W]: 0.6
Level of security: IP20
Price:
13,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electromagnetic relays in a housing for direct mounting in a Ø60 flush-mounted box.

Technical data

  • Shutdown time [ms]
    max 20
  • Level of security
    IP20
  • Dimensions
    1 module (18mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.2
  • PKWIU
    27.12.24.0
  • Power [W]
    0.6
  • Mechanical durability
    5000000 cycles
  • Power [V]
    7/30
  • Package width [mm]
    20
  • Tripping time [ms]
    max 40

Other technical data

  • Type of electric connection
    Screw connection
  • Rated control supply voltage AC 50 Hz
    7 ... 30 V
  • Number of contacts as normally open contact
    1
  • Degree of protection (IP)
    IP20
  • Height
    43 mm
  • With detachable clamps
    No
  • Rated control supply voltage DC
    9 ... 40 V
  • Type of switch contact
    Single contact
  • Width
    48 mm
  • Depth
    25 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,056
Width (m) 0,031
Length (m) 0,095
Depth (m) 0,070
