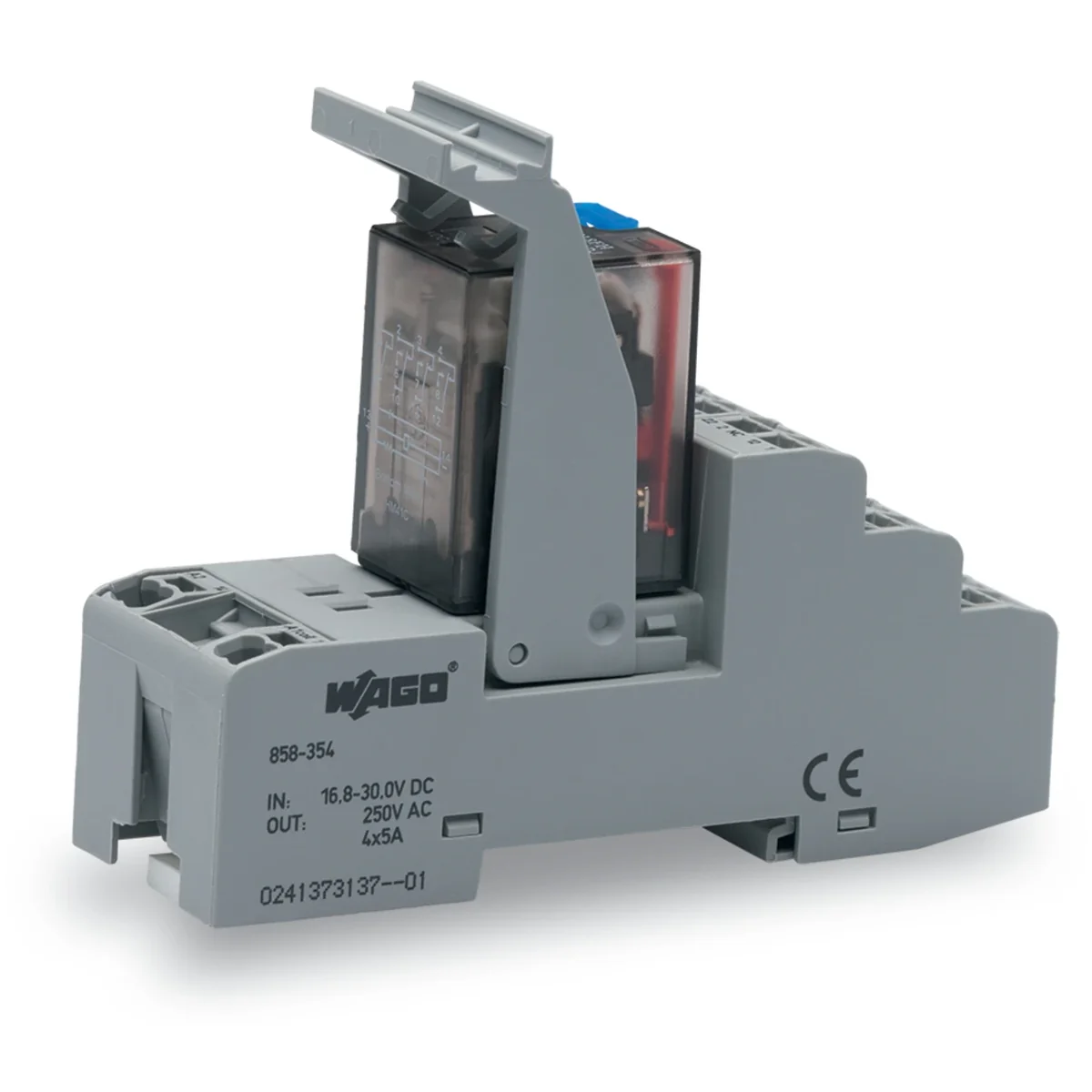

24V DC Relay Module 858-354 858-354
local index:
APN001WAGO
Catalog number:
858-354
EAN code:
4055143568333
Manufacturer:
WAGO ELWAG
Price:
74,45 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Type of electric connectionSpring clamp connection
-
Nominal current5 A
-
Voltage type for actuatingDC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
With forced-guided contactsNo
-
Complete with socketYes
-
Degree of protection (IP)IP20
-

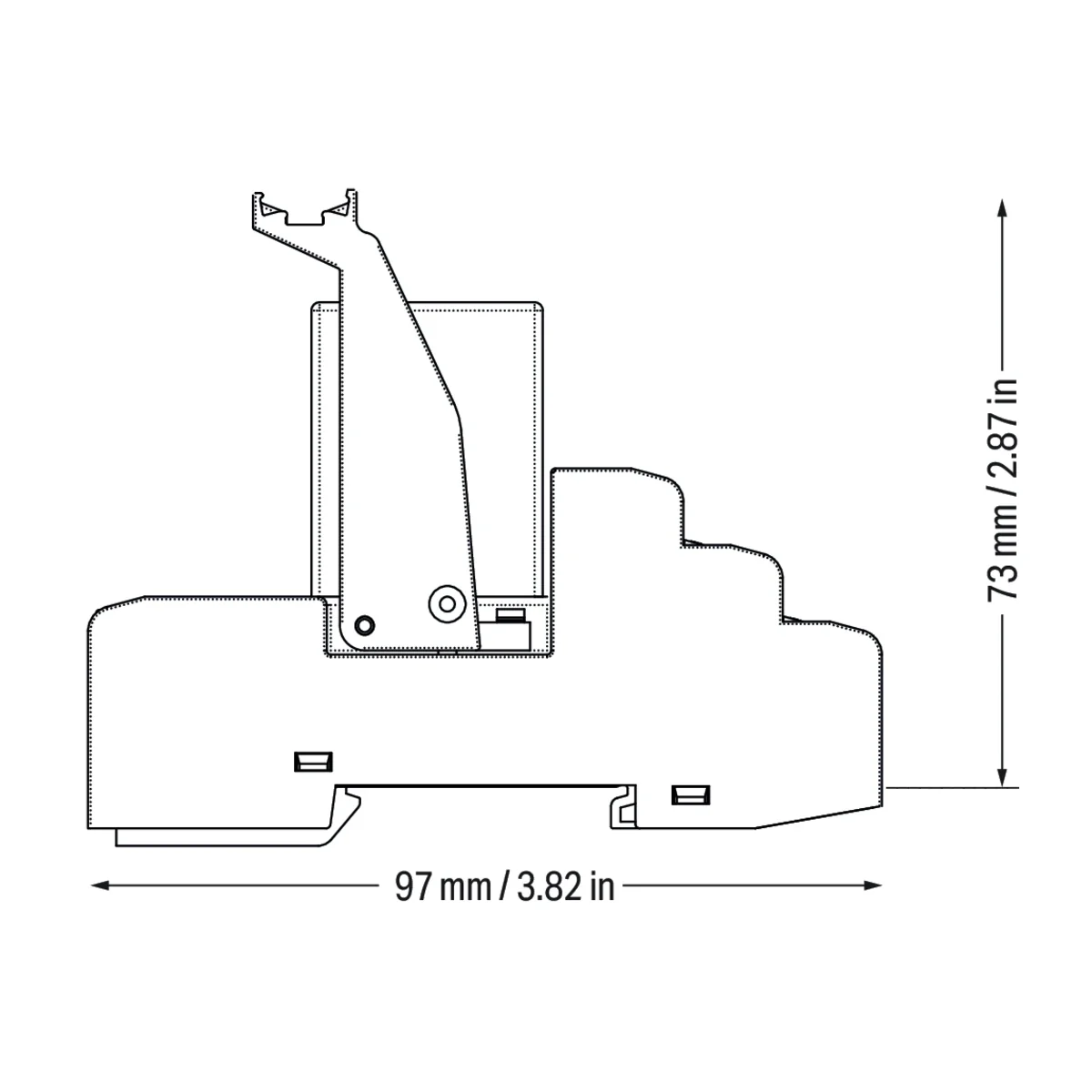

Height72 mm
-
With detachable clampsNo
-
Rated control supply voltage DC24 ... 24 V
-
Drive, polarizationPolarized
-
Number of contacts as normally closed contact0
-

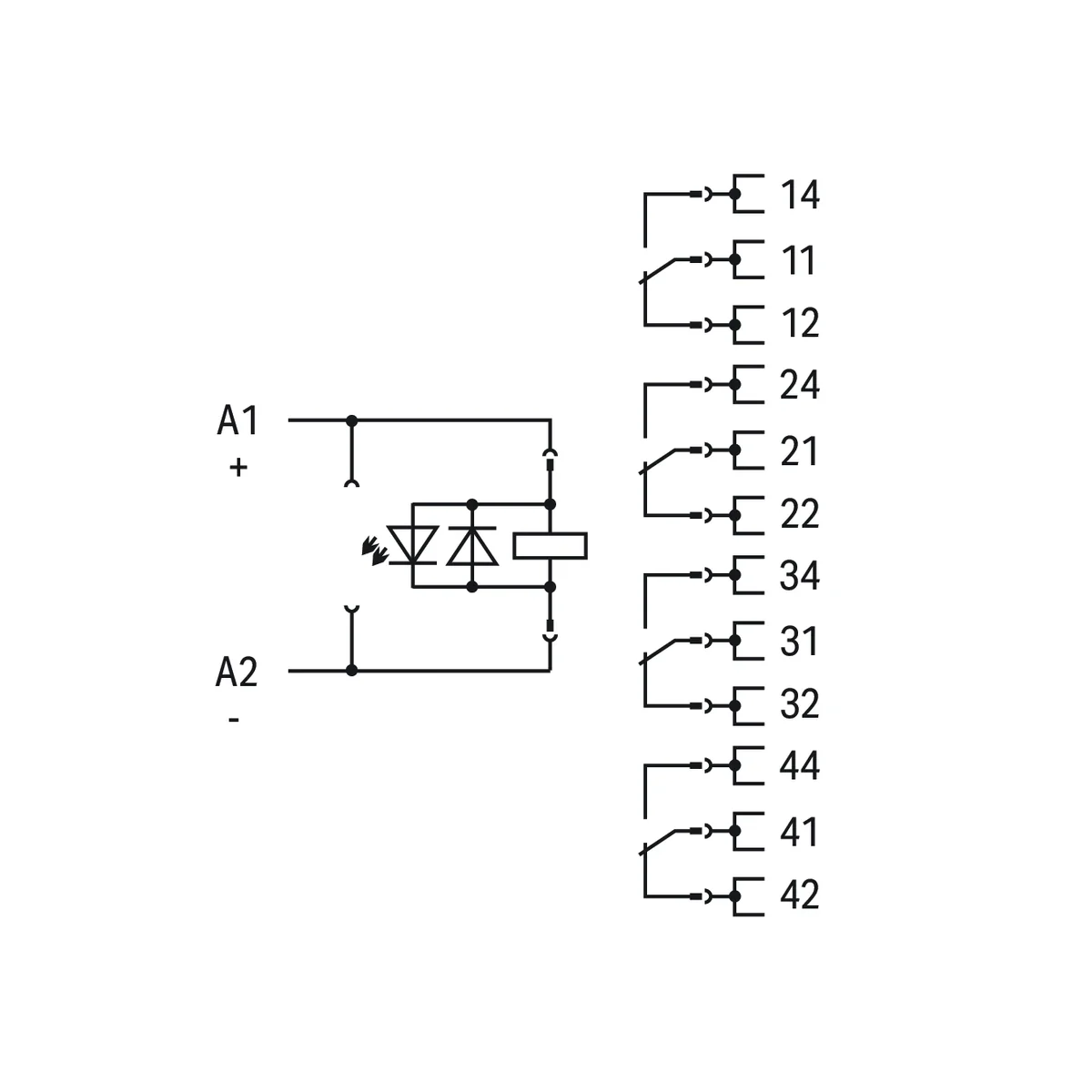

Number of contacts as change-over contact4
-
Type of switch contactSingle contact
-
With LED indicationYes
-
Width31 mm
-
Depth96 mm
Manufacturer details
-
ManufacturerWAGO GmbH & Co. KG
-
Address32423 Minden Hansastraße 27 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton |
| Quantity | 5 pcs. |
| Weight (kg) | 0,566 |
| Volume (m3) | 0,002 |
| Width (m) | 0,105 |
| Length (m) | 0,170 |
| Depth (m) | 0,095 |
