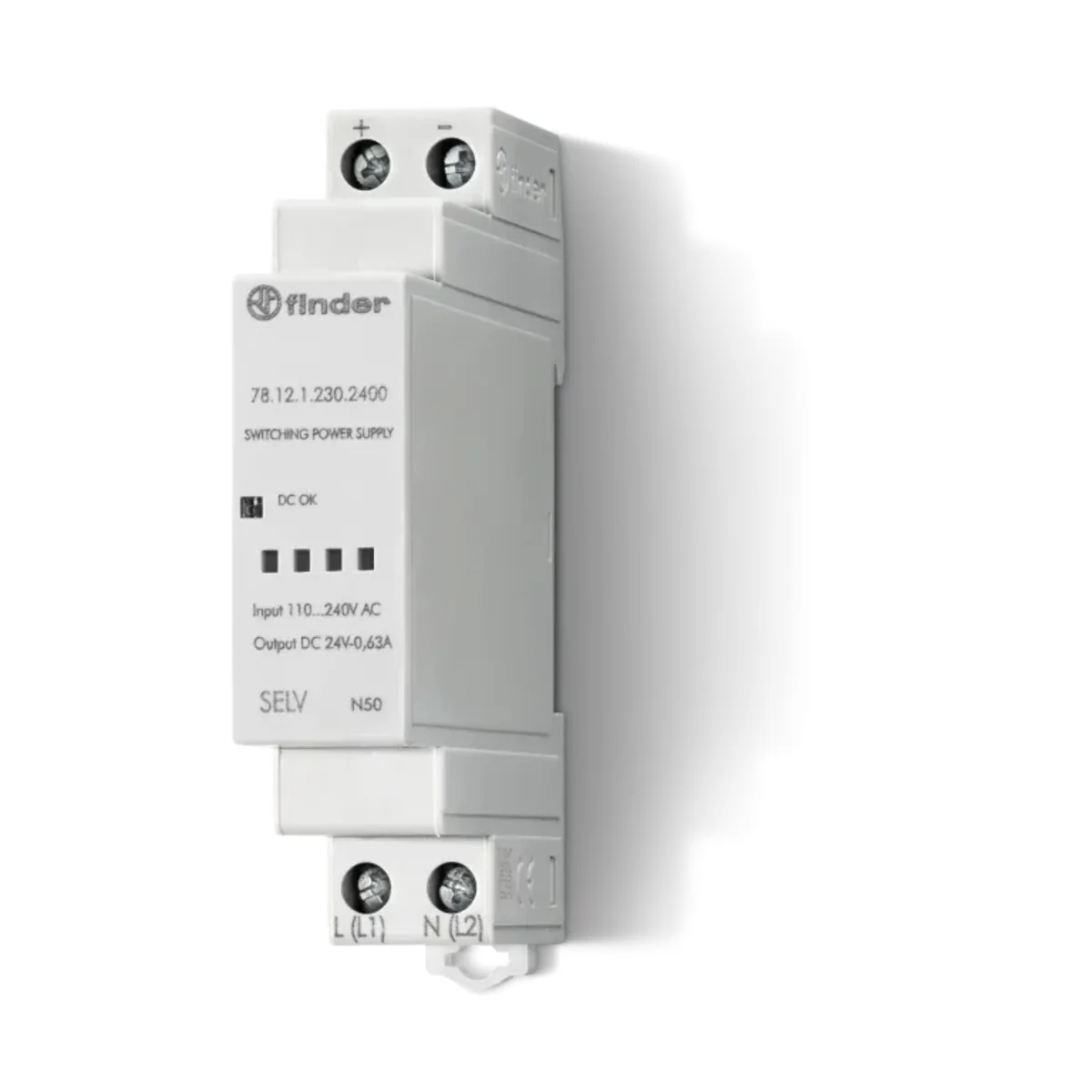

24V DC 12W Switching Power Supply 781212302400

Switching power supply DC 12 W for electrical and automation cabinets of the 78 series, from the manufacturer FINDER. The product part number is 78.12.1.230.2400PAS.

• Output 24VDC, 12W.
• 17.5 mm (1 module) x 61 mm depth.
• Low (< 0.4 W) standby power consumption.
• Thermal protection: internal, excluding Vout.
• Short-circuit protection: hiccup mode.
• Surge protection: varistor.
• Flyback topology.
• EN 60950-compliant 1 and EN 61204-3.
• Parallel operation (redundancy) - with OR diode.
• Can be connected in dual and in series.
• For mounting on 35mm DIN rail (EN 60715).
• Voltage change (no load, with load): < 1%.
• Rated voltage: 110…240 V AC (50/60 Hz), 220 V DC (no polarity).
• Range supply voltage: 100…265 V AC (50/60 Hz), 140…370 V DC.
• Power factor: 0.50.
