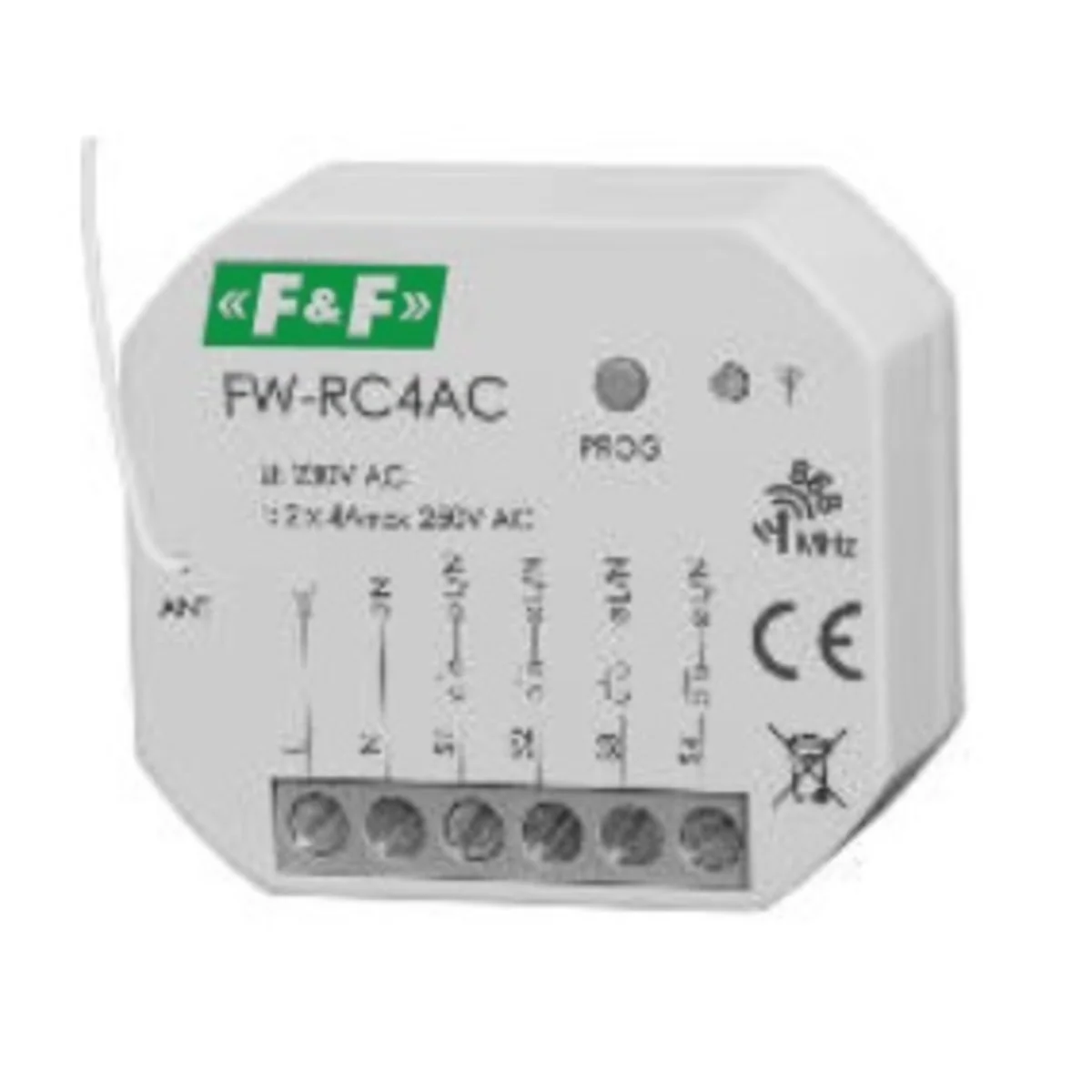

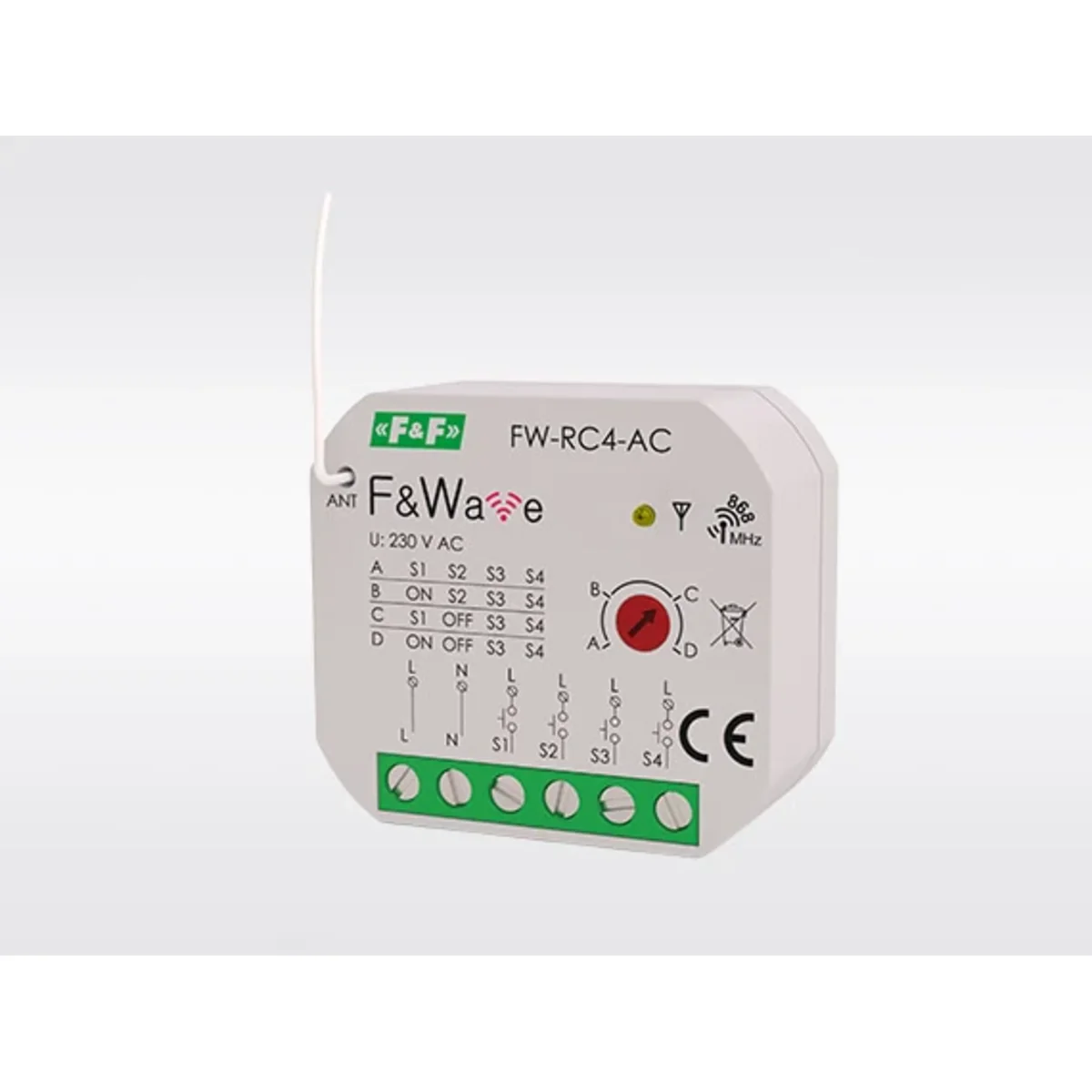

230V flush-mounted radio transmitter FW-RC4AC

Features
* 4-button remote control transmitter powered by 230V mains;
* Supportó work with remote control receivers of the F&Wave;
* Possibility to control any number of receiversó
* On/off functionality (bistable switch) with receivers FW-R1P, FW-R1D, FW-R2P, FW-R2D, FW-D1P, FW-D1D, FW-LED2P, FW-LED2D;
* Functionality raise/lower the roller shutter with receivers FW-STR1P, FW-STR1D;
* Functionality dim/brighten the light with receivers FW-D1P, FW-D1D, FW-LED2P, FW-LED2D;
* Possibility to change the configuration of the S1 input to the ON function - always turn off the paired receivers and/or lower the roller shutter;
* Possibility to change the configuration S2 inputs for the OFF function - always turn on the paired receivers and/or raise the roller shutter;
* Small size of the housing;
* Screw terminals for easy mounting in a flush-mounted box Ø60;
* Low power consumption power - low operating cost.

    power supply:                               80÷265V AC/DC
    control inputs:                   85÷265V AC; <1mA
    power consumption:
         - operating mode:                          0.5W
         - standby:                 0.25W
    working temperature:                  -25÷65°C
    tightening torque (max):     0.4Nm


< b>The operating range
In open space, without the presence of factors interfering with the range of radio-controlled devices, it oscillates within 100 m.  In built-up conditions and in the presence of sources of interference (power lines, transmitters, etc.) the actual range may be smaller. The range can be improved by direct retransmission of modules within each other's range.
