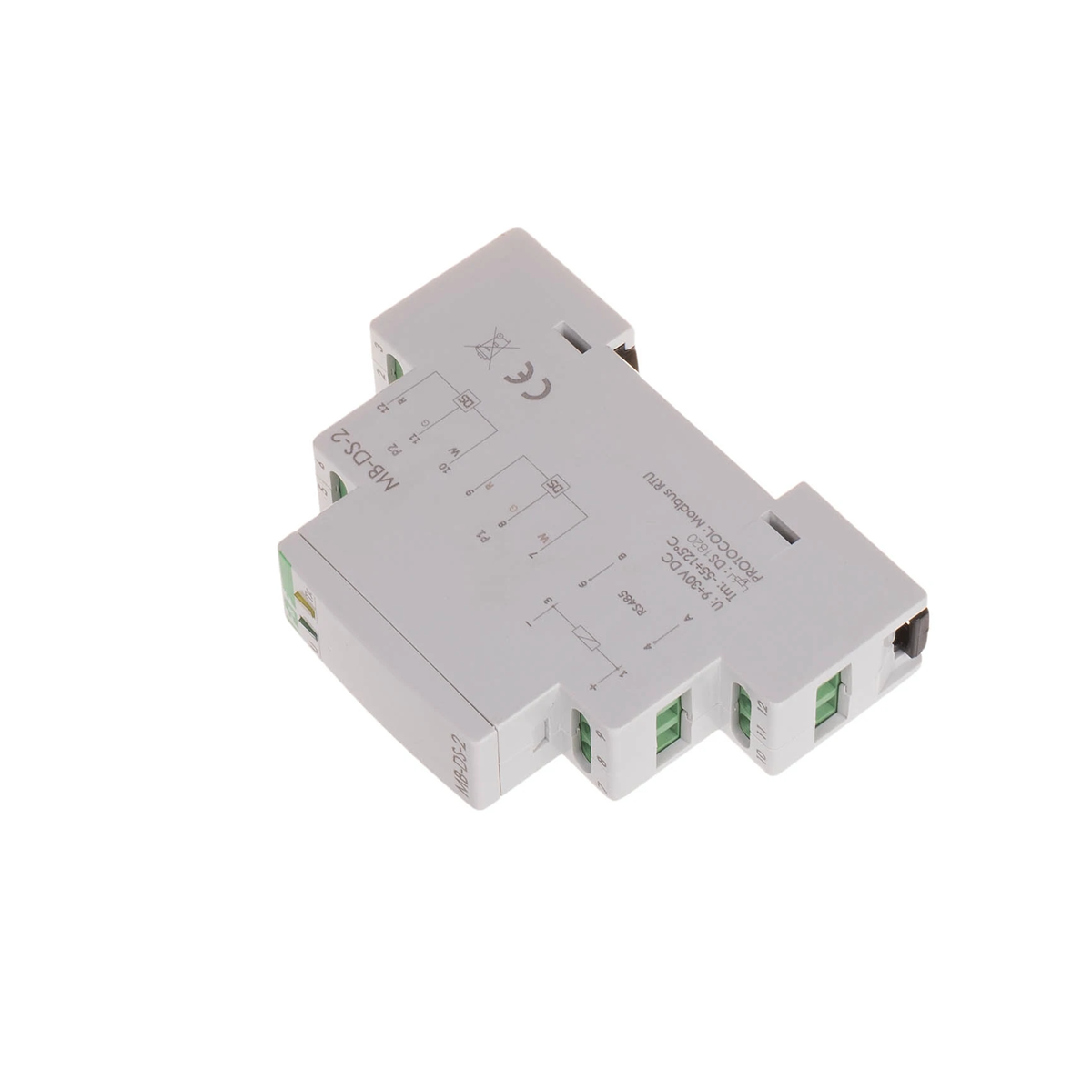

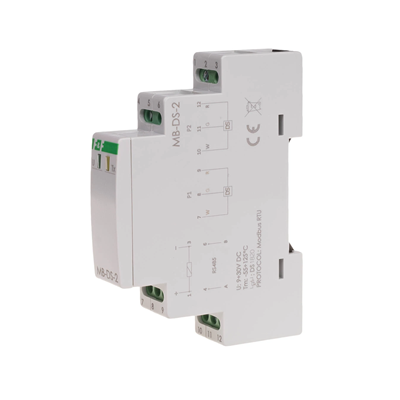

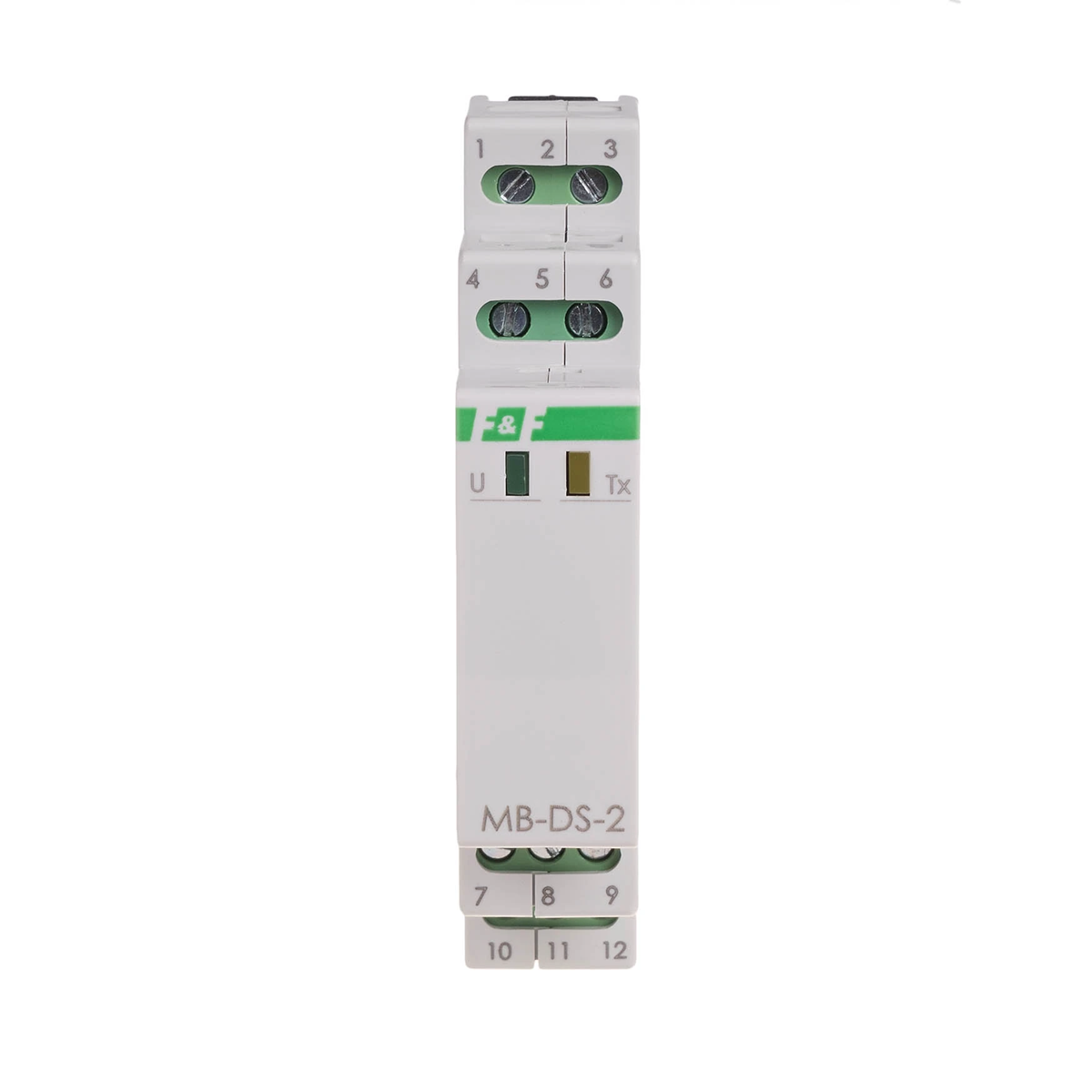

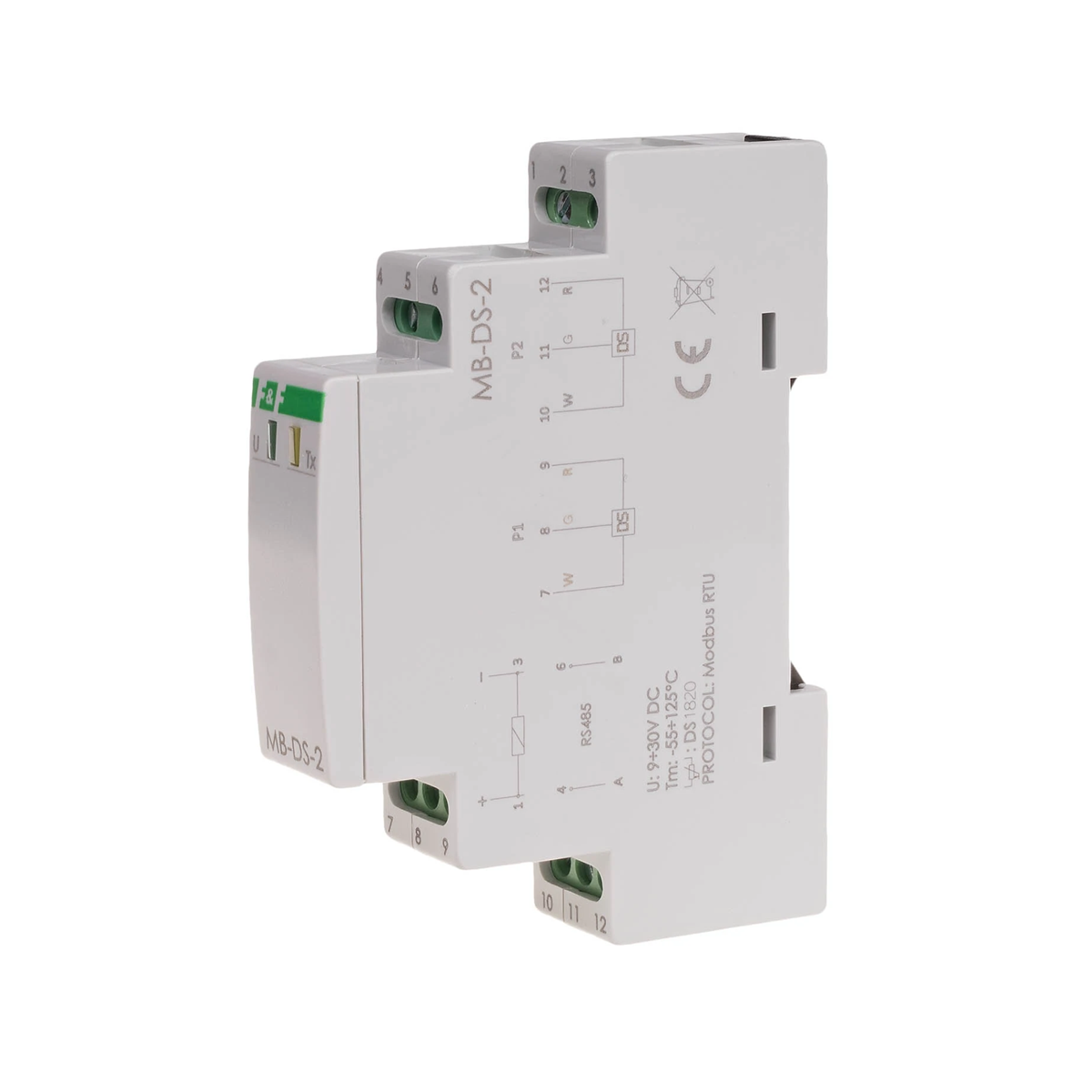

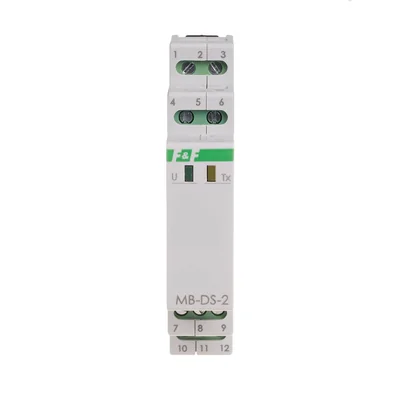

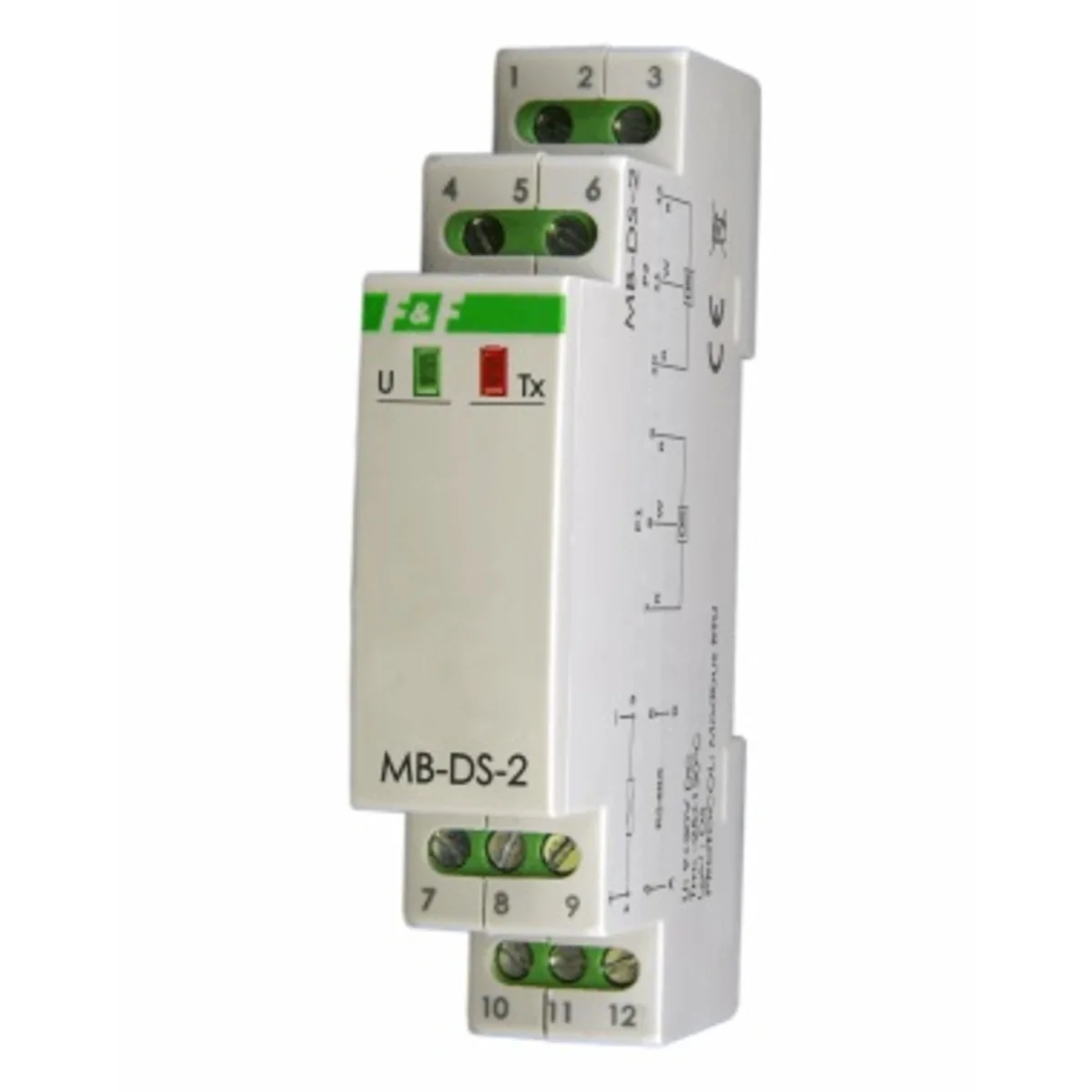

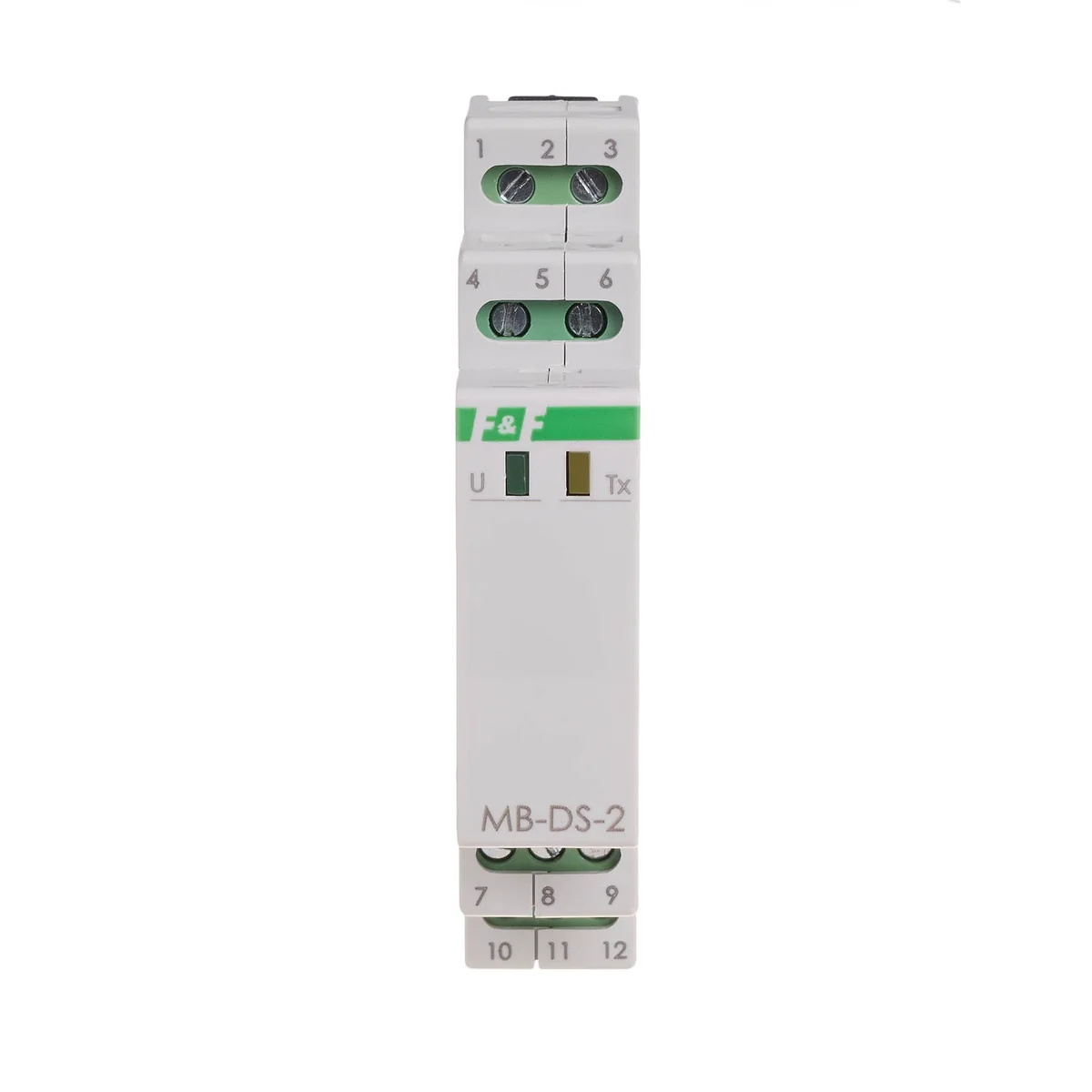

2-channel temperature measuring transducer with MODBUS RTU output MAX-MB-DS-2
local index:
API046FIFQ
Catalog No:
MAX-MB-DS-2
EAN code:
5908312598657
Price:
147,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The MB-DS-2 measuring transducer is designed for temperature measurement using an external DS1820 temperature sensor and data exchange using the RS-485 port in accordance with the MODBUS RTU protocol.
| Read accuracy [°C] | 0, 25 |
Technical data
-
Power [W]0.3
-
Level of securityIP20
-
Dimensions1 module (18mm)
-
Package height [mm]150
-
Package weight [kg]0.2
-
Temperature sensor typeDS1820
-
PKWIU27.12.24.0
-
HarborRS-485
-
Working temperature [°C]-20-50
-
Power [V]9-30
-
Package width [mm]20
-
Sampling frequency [Hz]10
-
Measuring range [°C]-55-125
Other technical data
-
Number of analogue inputs2
-
Analogue inputs configurableNo
-
Resolution of the analogue inputs0 b
-
Type of electric connectionScrew-/spring clamp connection
-
Height90 mm
-
Number of analogue outputs0
-
Input signal, configurableNo
-
Output, voltageYes
-
Width18 mm
-
Depth65 mm
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,060 |
| Width (m) | 0,019 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
