2-channel radio control flush-mounted transmitter RS-N2

local index:
APL129FIFQ
Catalog No:
RS-N2
EAN code:
5908312594871
Manufacturer: F&F
Battery: CR2032
Number of channels: 2
Installation: Flush-mounted
Price:
22,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

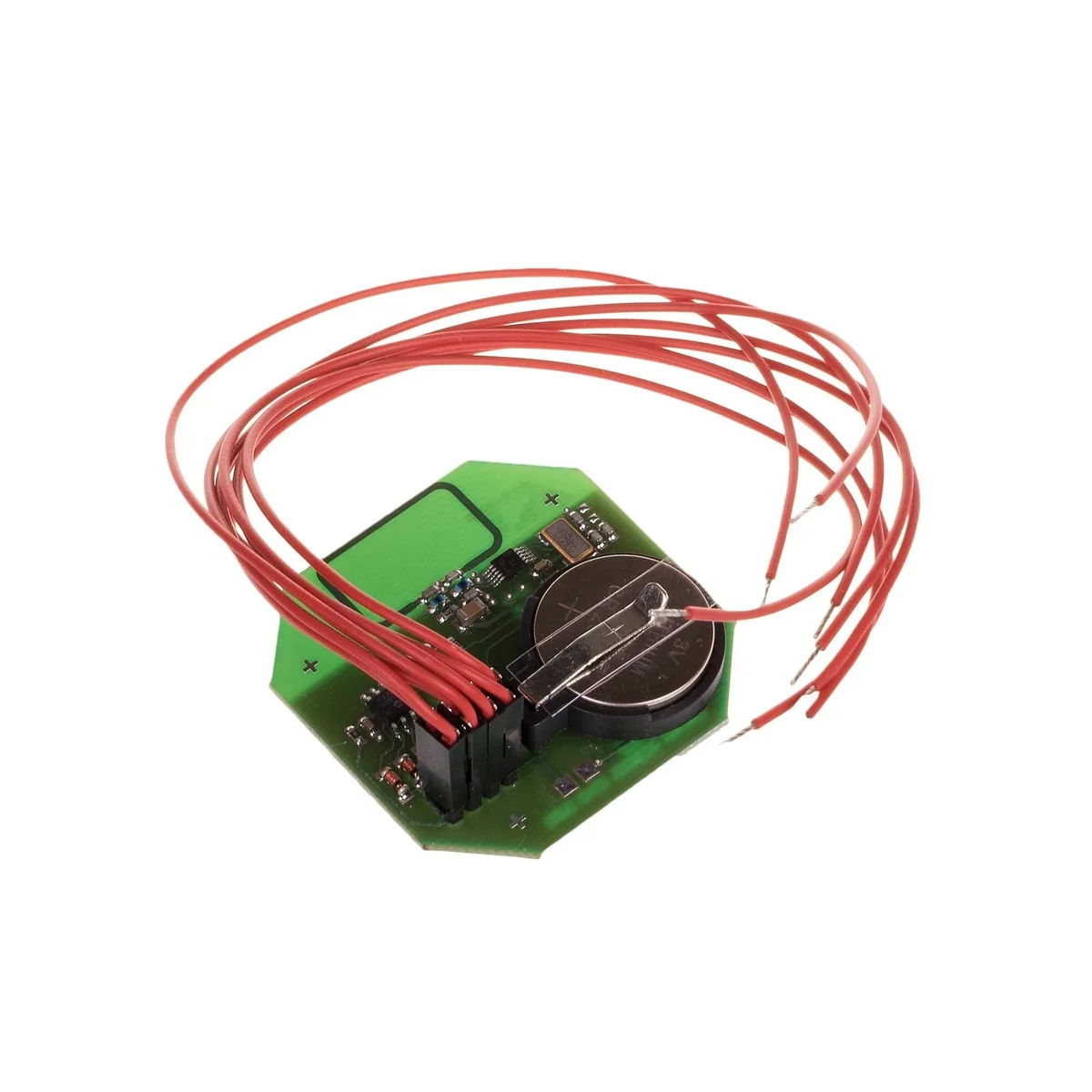

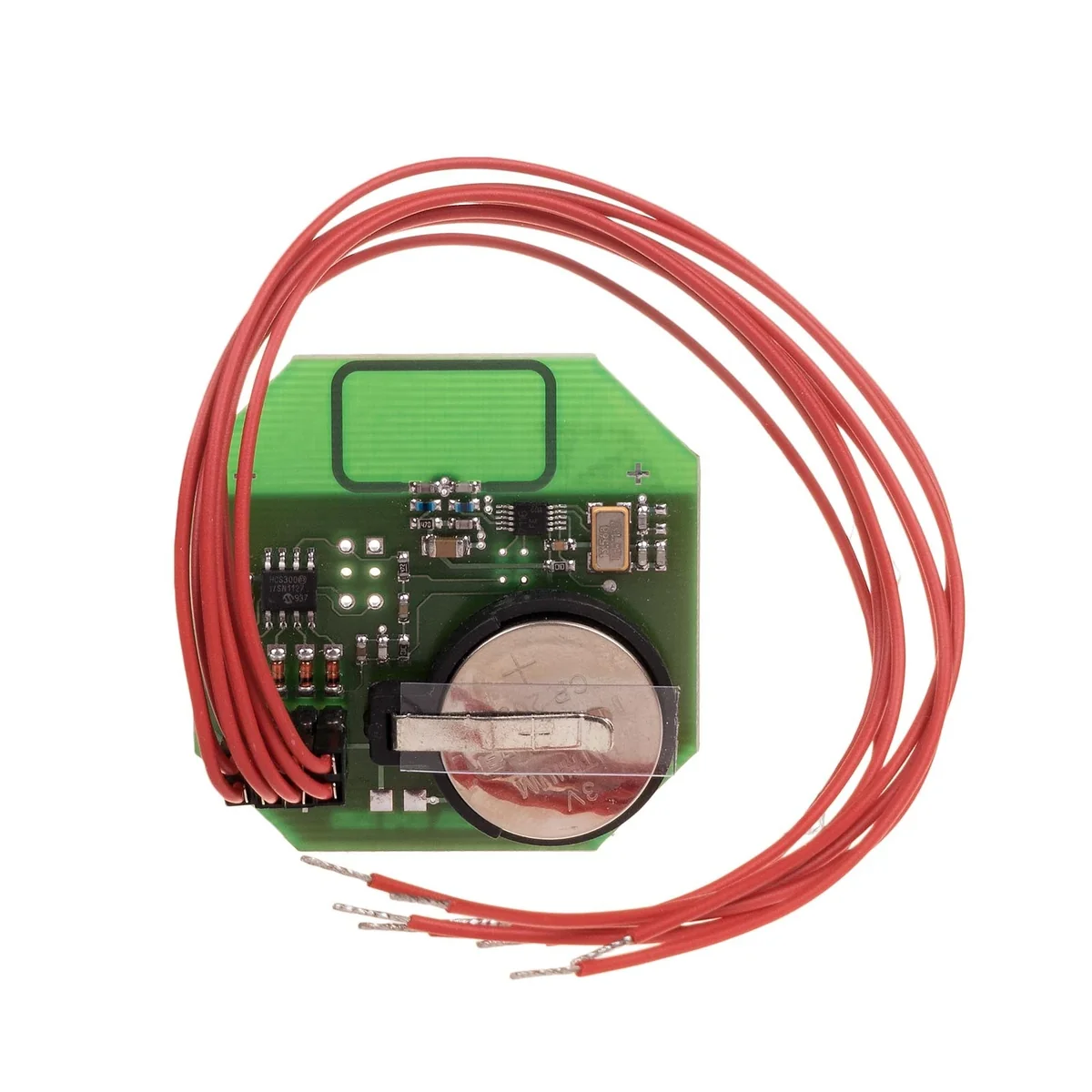

Electronic radio transmitters are used to remotely control gates, roller shutters, lighting, arming alarm systems, etc. The remote control system consists of a transmitter and a receiver (relay). There is a possibility of cooperation of many transmitters with one receiver and a single transmitter with many receivers. The RS-N... radio transmitter works with dedicated F&F devices: monostable RS-407M receiver and bistable RS-407B receiver. The impulse caused by pressing the button connected to the transmitter sends the coded signal to the receiver. The transmitter has a protection against breaking the transmission after releasing the button. Thanks to this, even the shortest activation of the function results in the transmission of a full data frame. Data transmission from the transmitter is indicated by the blinking of the red LED. The programming manual (pairing the transmitter with the receiver) is included with the RS-407M and RS-407B receiver.

Technical data

  • Battery
    CR2032
  • Installation
    Flush-mounted
  • connection
    LGY 0.5mm l=15cm
  • Diameter [mm]
    52
  • Height [mm]
    11
  • Package weight [kg]
    0.1
  • Frequency [MHz]
    868
  • PKWIU
    26.30.12.0
  • Number of channels
    2
  • Rated voltage [V]
    3
  • Family
    RS
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    11
  • Packaging diameter [mm]
    52
  • Frequency [MHz]
    868

Other technical data

  • Radio frequency
    868 MHz
  • Range
    100 m
  • Flush-mounted radio transmitter
    Yes
  • With radio coding device
    Yes
  • Rolling code system
    Yes
  • Number of commands
    2
  • Surface mounted radio transmitter
    No
  • Current supply
    Battery

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,028
Width (m) 0,080
Length (m) 0,070
Depth (m) 0,040
